Wiring Diagram Of Exterior Lights - PE82.10-P-2000-97FCF
WARNING: This page is about a different car, the 2023 Mercedes-Benz GLC300, 2022 Mercedes-Benz GLC300, 2021 Mercedes-Benz GLC300, 2020 Mercedes-Benz GLC350e, and 2020 Mercedes-Benz GLC300. However, it is still accessible from the selected car via links, so may be relevant.
Model 253 (except 253.99) as of model year 2020
except code 631 (Static LED headlamps, left-hand traffic)
except code 632 (Headlamps, LED, static, right-side traffic)
except code 640 (High-performance LED)
except code 641 (Dynamic LED headlamps, left-hand traffic)
except code 642 (LED Intelligent Light System)
E1, E2
| Code: | Designation: | Position: |
|---|---|---|

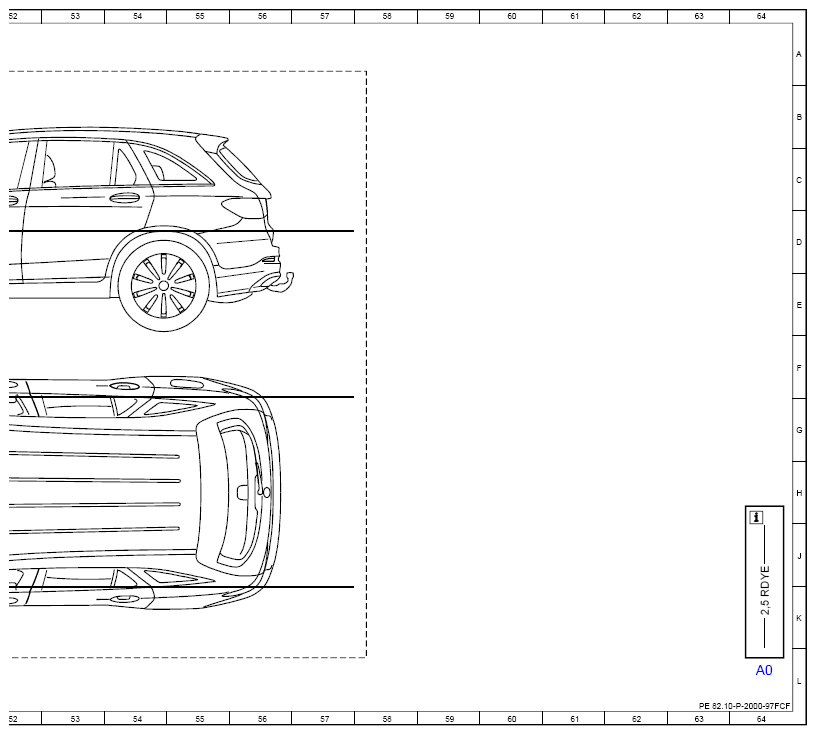

| A0 | Use of wiring diagrams | 64L |
| Code 460 | Canada version | 32C |
| Code 460 | Canada version | 11C |
| Code 460 | Canada version | 14C |
| Code 460 | Canada version | 25C |
| Code 494 | USA version | 32D |
| Code 494 | USA version | 11D |
| Code 494 | USA version | 14D |
| Code 494 | USA version | 25D |

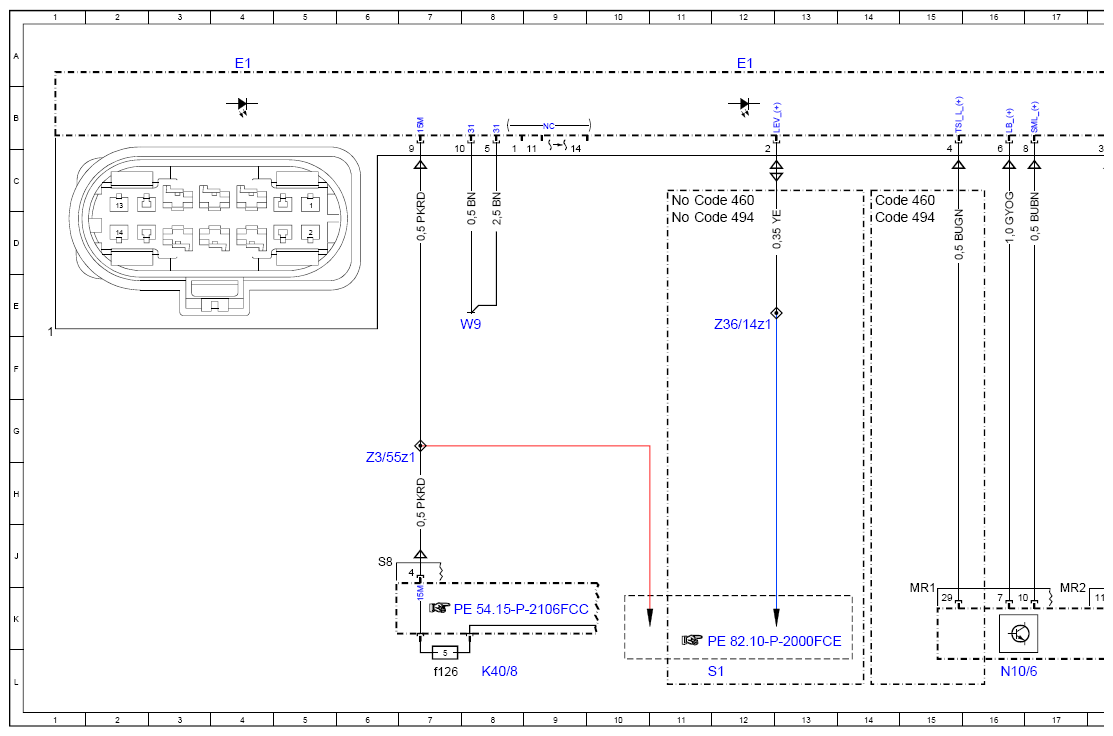

| E1 | Left front lamp unit | 4A |
| E1 | Left front lamp unit | 12A |
| E1 | Left front lamp unit | 18A |

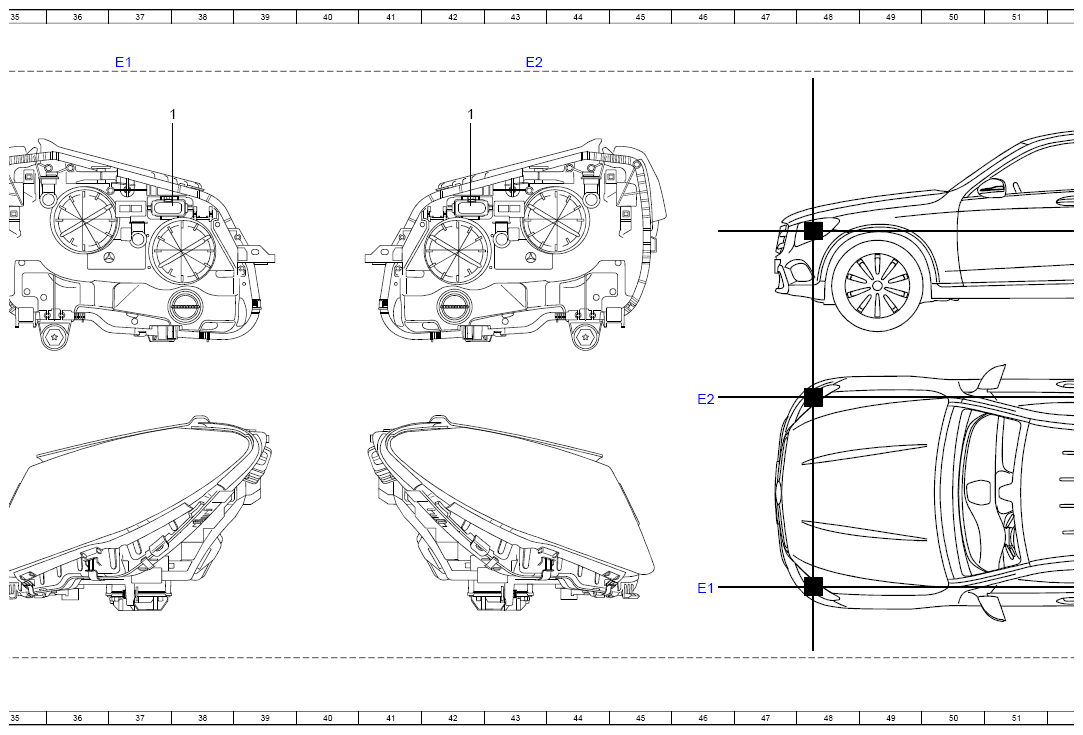

| E1 | Left front lamp unit | 46K |
| E1 | Left front lamp unit | 37A |

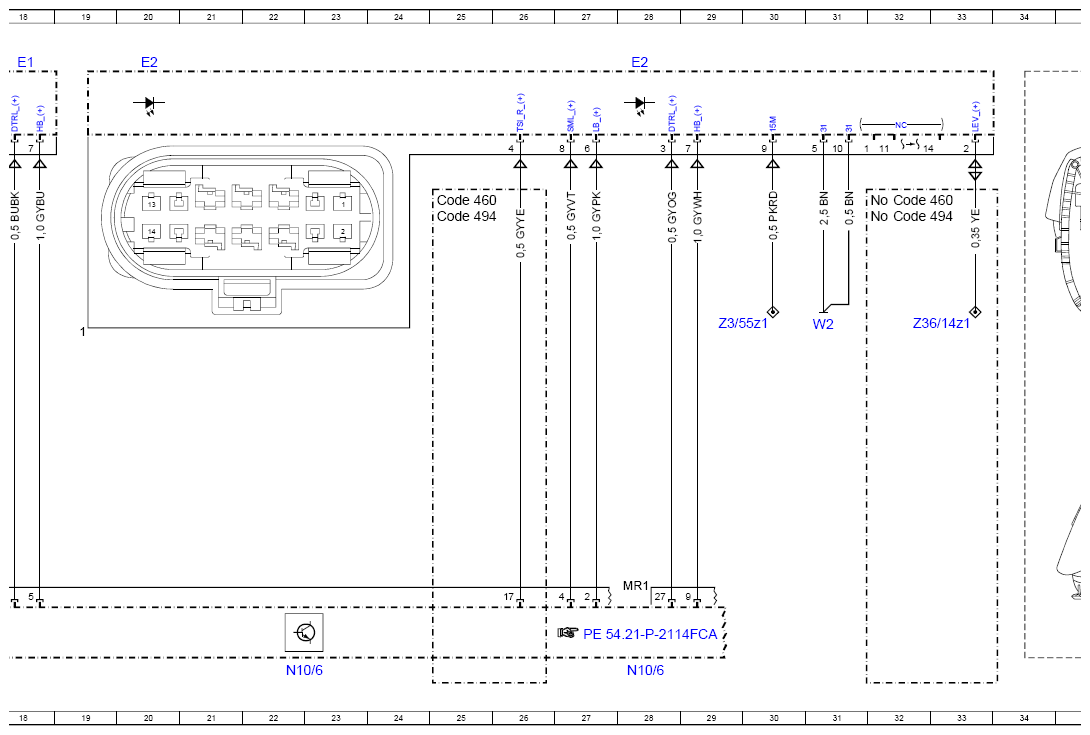

| E2 | Right front lamp unit | 20A |
| E2 | Right front lamp unit | 28A |
| E2 | Right front lamp unit | 46G |
| E2 | Right front lamp unit | 43A |
| K40/8 | Engine fuse and relay module | 8L |
| K40/8f126 | Fuse 126 | 7L |
| N10/6 | Front SAM control unit | 22L |
| N10/6 | Front SAM control unit | 16L |
| N10/6 | Front SAM control unit | 28L |
| S1 | Exterior lights switch | 12L |
| W2 | Right front ground point (at lamp unit) | 31E |
| W9 | Left front ground point (at lamp unit) | 8E |
| Z3/55z1 | Tml. 15 connector sleeve | 6G |
| Z3/55z1 | Tml. 15 connector sleeve | 30E |
| Z36/14z1 | Headlamp range adjustment signal connector sleeve | 33E |
| Z36/14z1 | Headlamp range adjustment signal connector sleeve | 12E |
