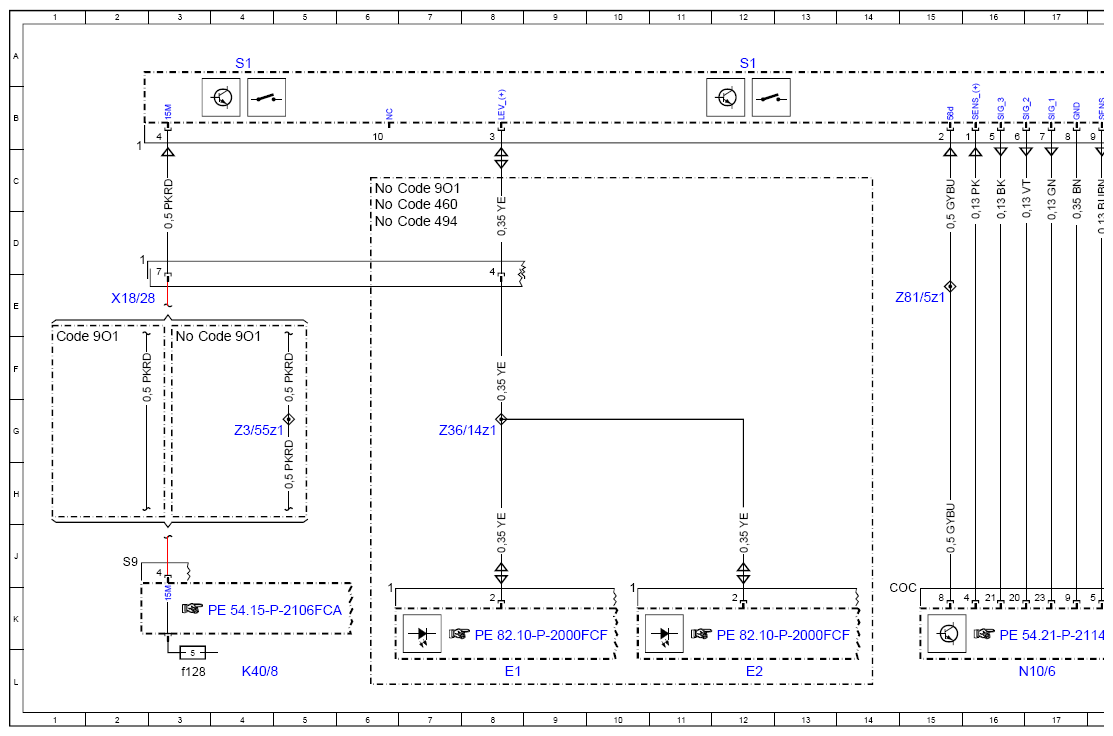

Wiring Diagram Of Exterior Lights - PE82.10-P-2000-97FCE
WARNING: This page is about a different car, the 2023 Mercedes-Benz GLC300, 2022 Mercedes-Benz GLC300, 2021 Mercedes-Benz GLC300, 2020 Mercedes-Benz GLC350e, and 2020 Mercedes-Benz GLC300. However, it is still accessible from the selected car via links, so may be relevant.
Model 253 (except 253.99) as of model year 2020
Switch S1
Model 253.99 as of model year 2019
with code 9O1 (Fuel cell pre-installation)
Switch S1
| Code: | Designation: | Position: |
|---|---|---|

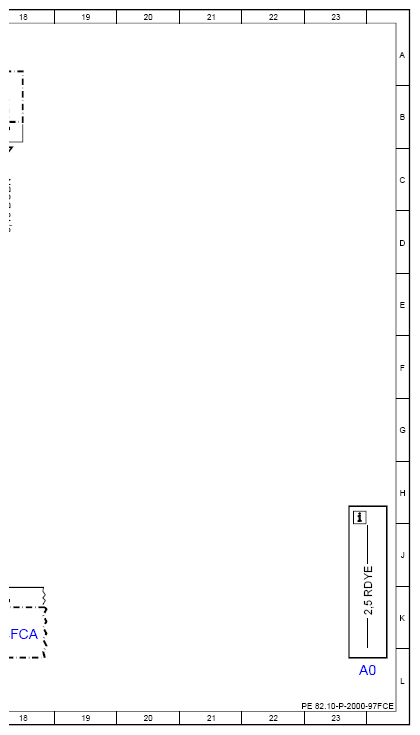

| A0 | Use of wiring diagrams | 23L |
| Code 460 | Canada version | 6C |
| Code 494 | USA version | 6D |
| Code 9O1 | Fuel cell retrofitting | 1F |
| Code 9O1 | Fuel cell retrofitting | 3F |
| Code 9O1 | Fuel cell retrofitting | 6C |
| E1 | Left front lamp unit | 8L |
| E2 | Right front lamp unit | 12L |
| K40/8 | Engine fuse and relay module | 4L |
| K40/8f128 | Fuse 128 | 3L |
| N10/6 | Front SAM control unit | 17L |
| S1 | Exterior lights switch | 4A |
| S1 | Exterior lights switch | 12A |
| X18/28 | Left cockpit/engine compartment electrical connector | 2E |
| Z3/55z1 | Tml. 15 connector sleeve | 4G |
| Z36/14z1 | Headlamp range adjustment signal connector sleeve | 8G |
| Z81/5z1 | Circuit 58d connector sleeve | 15E |
