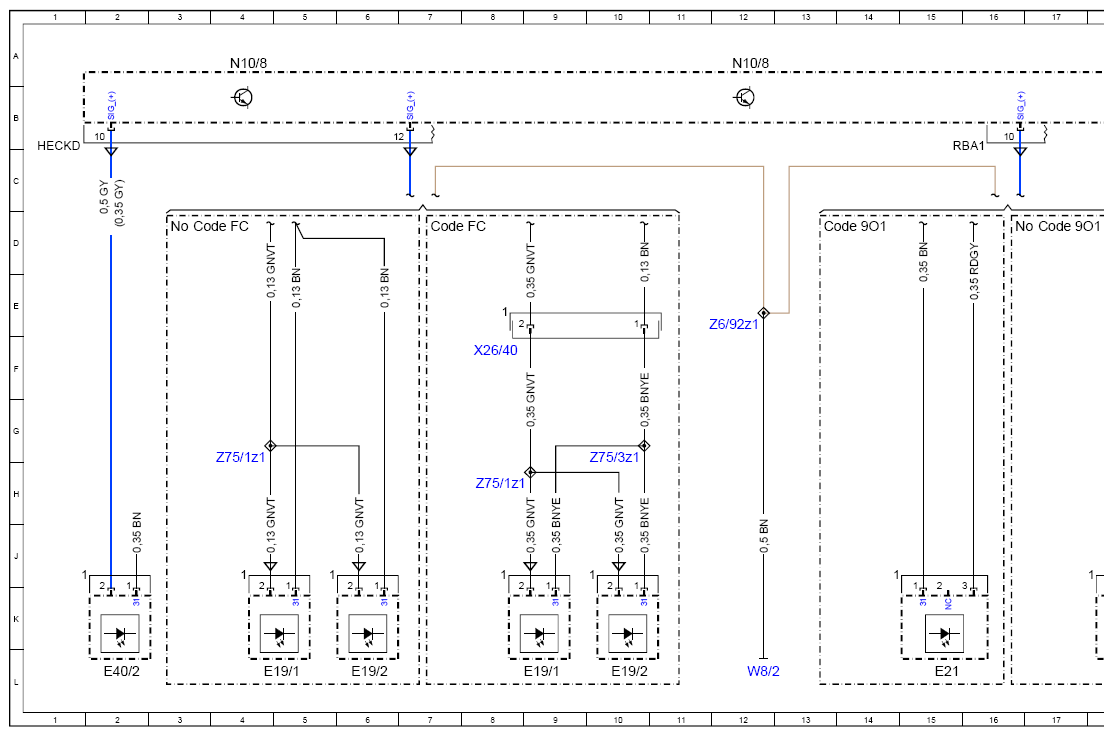

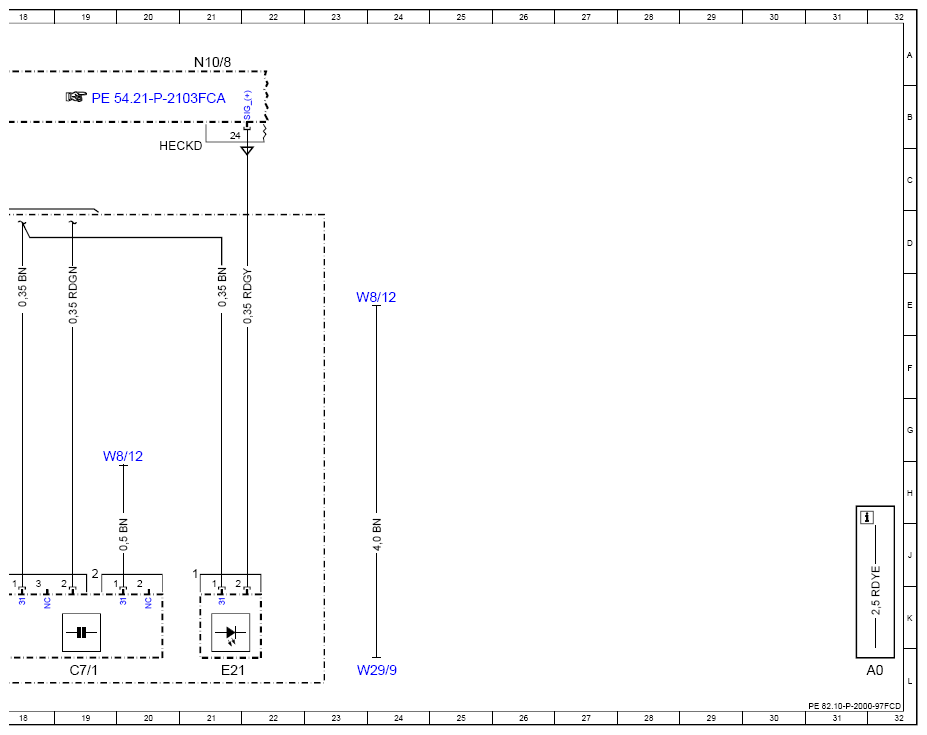

Wiring Diagram Of Exterior Lights - PE82.10-P-2000-97FCD
WARNING: This page is about a different car, the 2023 Mercedes-Benz GLC300, 2022 Mercedes-Benz GLC300, 2021 Mercedes-Benz GLC300, 2020 Mercedes-Benz GLC350e, and 2020 Mercedes-Benz GLC300. However, it is still accessible from the selected car via links, so may be relevant.
Model 253 (except 253.99) as of model year 2020
Rear lamps
Model 253.99 as of model year 2019
with code 9O1 (Fuel cell pre-installation)
Rear lamps
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Use of wiring diagrams | 32L |
| C7/1 | Interference suppression filter (12V) | 19L |
| Code 9O1 | Fuel cell retrofitting | 13D |
| Code 9O1 | Fuel cell retrofitting | 17D |
| Code FC | COUPE | 3D |
| Code FC | COUPE | 7D |
| E19/1 | Left license plate lamp | 4L |
| E19/1 | Left license plate lamp | 9L |
| E19/2 | Right license plate lamp | 6L |
| E19/2 | Right license plate lamp | 10L |
| E21 | Center stop lamp | 15L |
| E21 | Center stop lamp | 21L |
| E40/2 | Left trunk lid/liftgate ambient lamp and warning lamp | 2L |
| N10/8 | Rear SAM control unit | 4A |
| N10/8 | Rear SAM control unit | 12A |
| N10/8 | Rear SAM control unit | 21A |
| W29/9 | Right D-pillar ground point | 24L |
| W8/12 | Upper right liftgate ground point | 19H |
| W8/12 | Upper right liftgate ground point | 24E |
| W8/2 | Right tailgate ground point | 12L |
| X26/40 | Rear frame floor assembly/bumper electrical connector | 8F |
| Z6/92z1 | Trunk lid ground line connector sleeve | 12E |
| Z75/1z1 | License plate lamp connector sleeve | 4G |
| Z75/1z1 | License plate lamp connector sleeve | 8H |
| Z75/3z1 | 10G |
