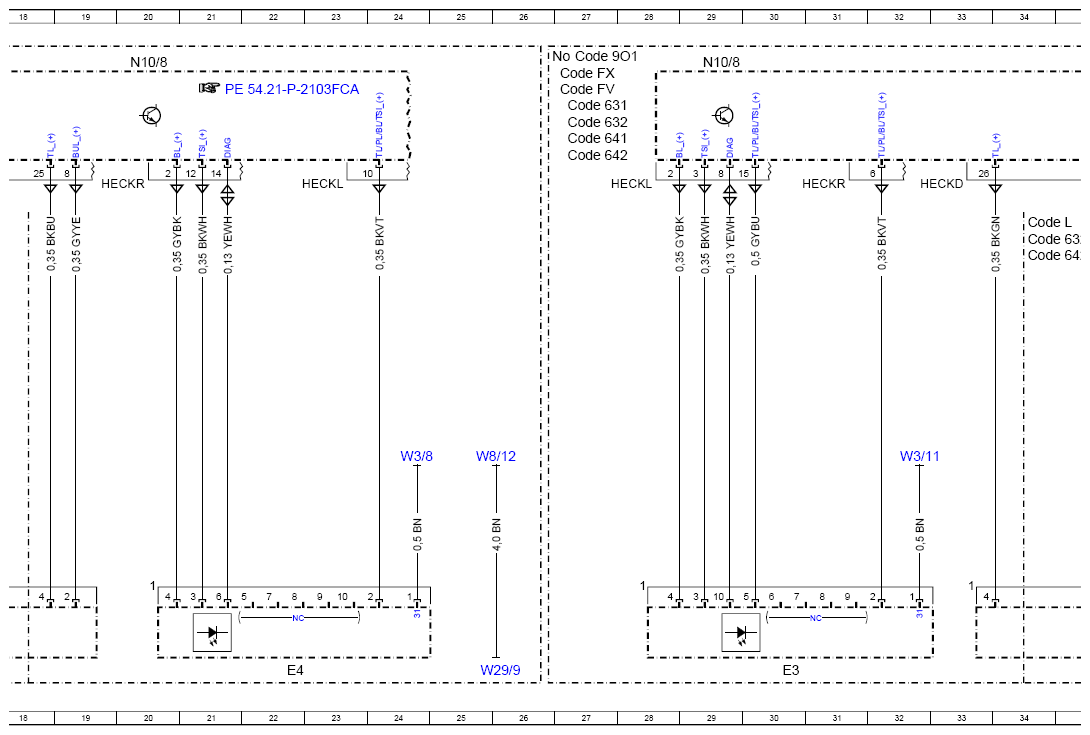

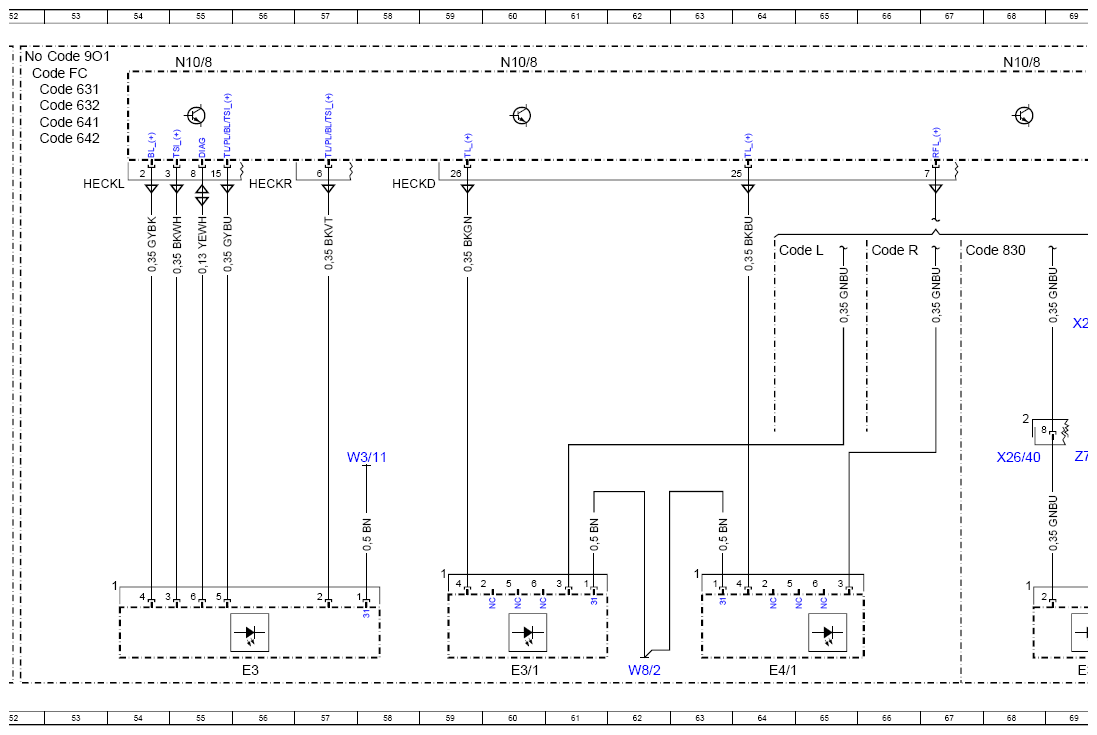

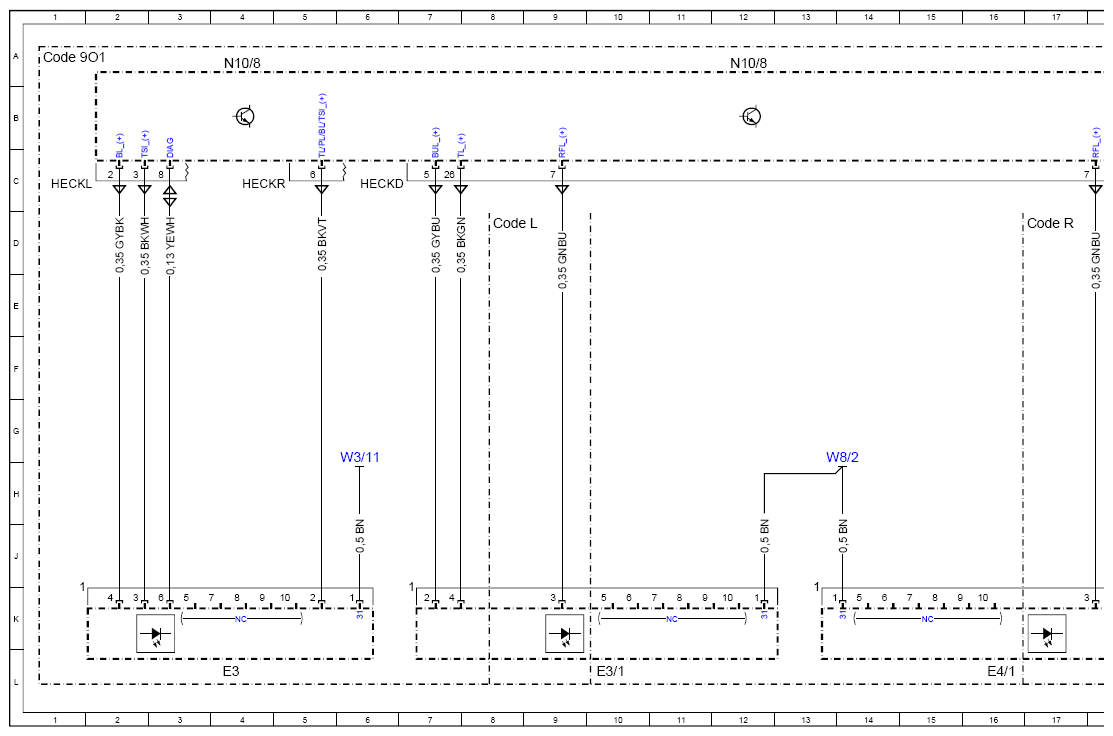

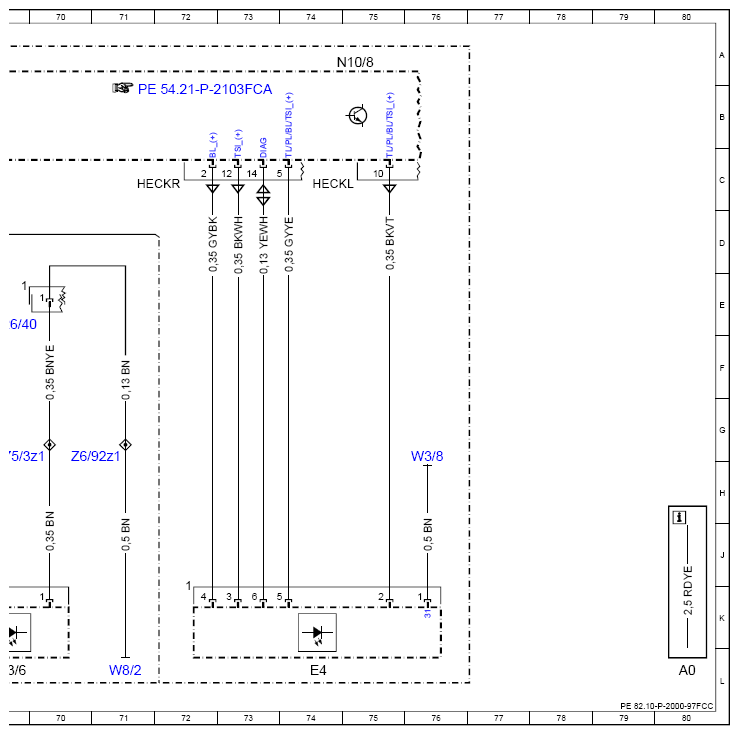

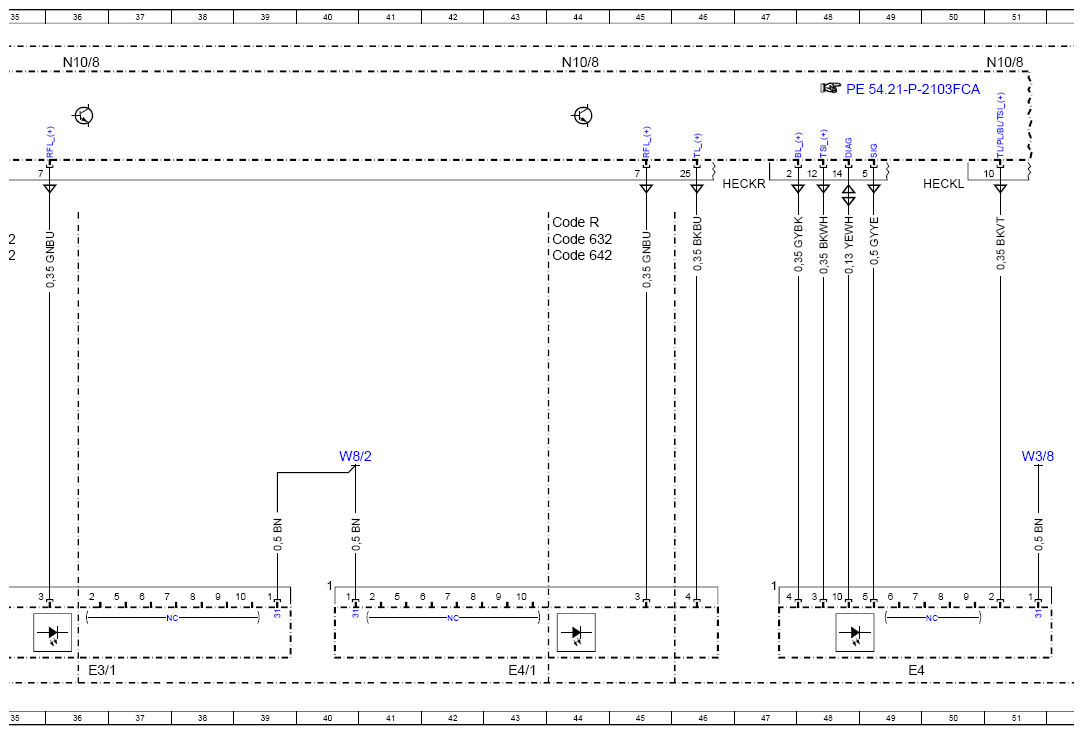

Wiring Diagram Of Exterior Lights - PE82.10-P-2000-97FCC
WARNING: This page is about a different car, the 2023 Mercedes-Benz GLC300, 2022 Mercedes-Benz GLC300, 2021 Mercedes-Benz GLC300, 2020 Mercedes-Benz GLC350e, and 2020 Mercedes-Benz GLC300. However, it is still accessible from the selected car via links, so may be relevant.
Model 253 (except 253.99) as of model year 2020
with code 631 (Static LED headlamps, left-hand traffic)
with code 632 (Headlamps, LED, static, right-side traffic)
with code 640 (High-performance LED)
with code 641 (Dynamic LED headlamps, left-hand traffic)
with code 642 (LED Intelligent Light System)
E3, E3/1, E4, E4/1
Model 253.99 as of model year 2019
with code 631 (Static LED headlamps, left-hand traffic)
with code 632 (Headlamps, LED, static, right-side traffic)
with code 9O1 (Fuel cell pre-installation)
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Use of wiring diagrams | 80L |
| Code 631 | Static LED headlamp, left-hand traffic | 27B |
| Code 631 | Static LED headlamp, left-hand traffic | 52B |
| Code 632 | Static LED headlamp, right-hand traffic | 34D |
| Code 632 | Static LED headlamp, right-hand traffic | 27B |
| Code 632 | Static LED headlamp, right-hand traffic | 44D |
| Code 632 | Static LED headlamp, right-hand traffic | 52B |
| Code 641 | Dynamic LED headlamps, left-hand traffic | 27B |
| Code 641 | Dynamic LED headlamps, left-hand traffic | 52B |
| Code 642 | Dynamic LED headlamps, right-hand traffic | 34D |
| Code 642 | Dynamic LED headlamps, right-hand traffic | 27C |
| Code 642 | Dynamic LED headlamps, right-hand traffic | 52B |
| Code 642 | Dynamic LED headlamps, right-hand traffic | 44D |
| Code 830 | Additional parts for China vehicles | 67D |
| Code 9O1 | Fuel cell retrofitting | 1A |
| Code 9O1 | Fuel cell retrofitting | 27A |
| Code 9O1 | Fuel cell retrofitting | 53A |
| Code FC | COUPE | 52A |
| Code FV | LONG SEDAN | 27B |
| Code FX | SPORT-UTILITY-VEHICLE | 27A |
| Code L | LEFT-HAND DRIVE | 8D |
| Code L | LEFT-HAND DRIVE | 34D |
| Code L | LEFT-HAND DRIVE | 64D |
| Code R | RIGHT-HAND DRIVE | 17D |
| Code R | RIGHT-HAND DRIVE | 44D |
| Code R | RIGHT-HAND DRIVE | 66D |
| E3 | Left rear lamp unit | 4L |
| E3 | Left rear lamp unit | 30L |
| E3 | Left rear lamp unit | 56L |
| E3/1 | Inner left rear lamp unit | 10L |
| E3/1 | Inner left rear lamp unit | 36L |
| E3/1 | Inner left rear lamp unit | 60L |
| E3/6 | Rear fog lamp | 69L |
| E4 | Right rear lamp unit | 22L |
| E4 | Right rear lamp unit | 49L |
| E4 | Right rear lamp unit | 74L |
| E4/1 | Inner right rear lamp unit | 16L |
| E4/1 | Inner right rear lamp unit | 43L |
| E4/1 | Inner right rear lamp unit | 64L |
| N10/8 | Rear SAM control unit | 4A |
| N10/8 | Rear SAM control unit | 12A |
| N10/8 | Rear SAM control unit | 20A |
| N10/8 | Rear SAM control unit | 29A |
| N10/8 | Rear SAM control unit | 36A |
| N10/8 | Rear SAM control unit | 44A |
| N10/8 | Rear SAM control unit | 51A |
| N10/8 | Rear SAM control unit | 55A |
| N10/8 | Rear SAM control unit | 60A |
| N10/8 | Rear SAM control unit | 68A |
| N10/8 | Rear SAM control unit | 75A |
| W29/9 | Right D-pillar ground point | 25L |
| W3/11 | Left rear wheel well ground point | 6H |
| W3/11 | Left rear wheel well ground point | 32H |
| W3/11 | Left rear wheel well ground point | 57H |
| W3/8 | Right rear wheel well ground point | 24H |
| W3/8 | Right rear wheel well ground point | 51H |
| W3/8 | Right rear wheel well ground point | 76H |
| W8/12 | Upper right liftgate ground point | 25H |
| W8/2 | Right tailgate ground point | 13H |
| W8/2 | Right tailgate ground point | 40H |
| W8/2 | Right tailgate ground point | 71L |
| W8/2 | Right tailgate ground point | 62L |
| X26/40 | Rear bumper electrical connector | 68H |
| X26/40 | Rear bumper electrical connector | 69E |
| Z6/92z1 | Trunk lid ground line connector sleeve | 71G |
| Z75/3z1 | Circuit 31 connector sleeve | 69G |
