Wiring Diagram Of Exterior Lights - PE82.10-P-2000-97FCA
WARNING: This page is about a different car, the 2023 Mercedes-Benz GLC300, 2022 Mercedes-Benz GLC300, 2021 Mercedes-Benz GLC300, 2020 Mercedes-Benz GLC350e, and 2020 Mercedes-Benz GLC300. However, it is still accessible from the selected car via links, so may be relevant.
Model 253 (except 253.99) as of model year 2020
with code 631 (Static LED headlamps, left-hand traffic)
with code 632 (Headlamps, LED, static, right-side traffic)
except code 640 (High-performance LED)
except code 641 (Dynamic LED headlamps, left-hand traffic)
E1
Model 253.99 as of model year 2019
with code 631 (Static LED headlamps, left-hand traffic)
with code 632 (Headlamps, LED, static, right-side traffic)
with code 9O1 (Fuel cell pre-installation)
except code 640 (High-performance LED)
except code 6

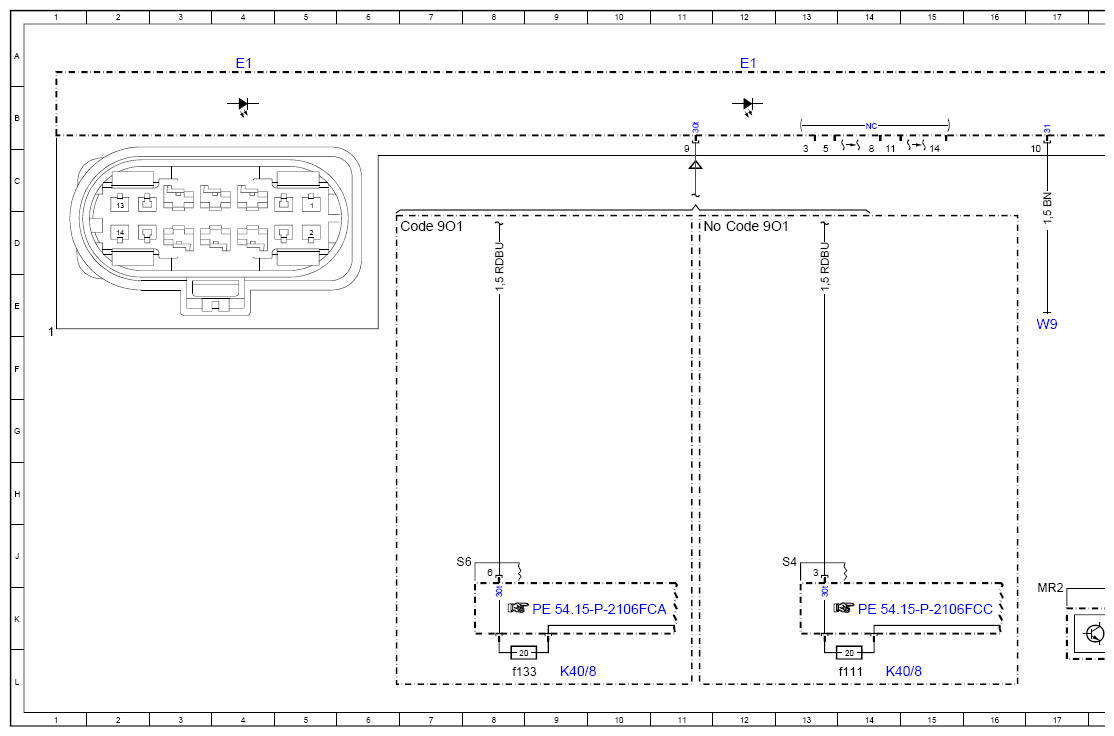

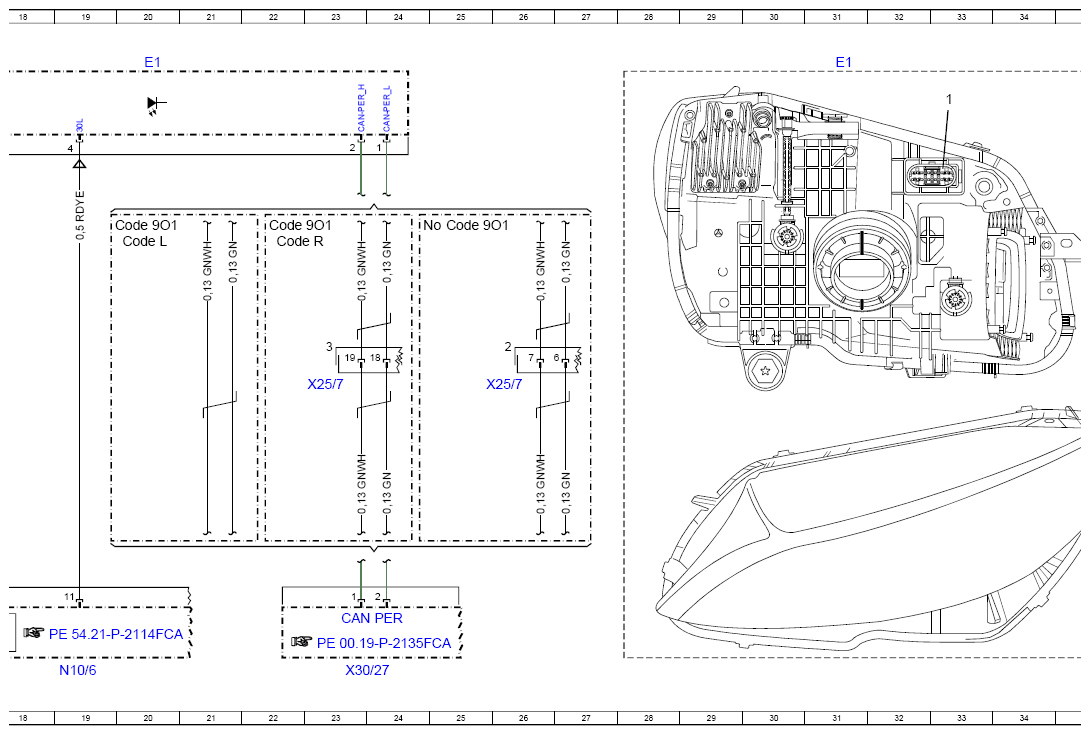

| Code: | Designation: | Position: |
|---|---|---|
| A0 | Use of wiring diagrams | 48L |
| CAN PER | Peripherals CAN | 23K |
| Code 9O1 | Fuel cell retrofitting | 7D |
| Code 9O1 | Fuel cell retrofitting | 12D |
| Code 9O1 | Fuel cell retrofitting | 19D |
| Code 9O1 | Fuel cell retrofitting | 22D |
| Code 9O1 | Fuel cell retrofitting | 25D |
| Code L | LEFT-HAND DRIVE | 20D |
| Code R | RIGHT-HAND DRIVE | 22D |

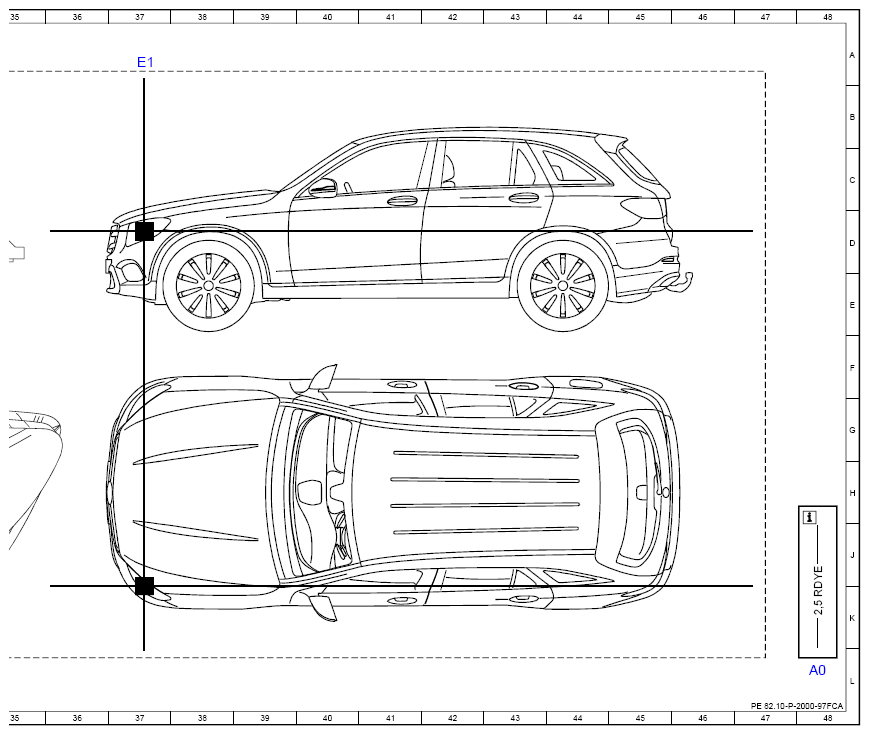

| E1 | Left front lamp unit | 4A |
| E1 | Left front lamp unit | 12A |
| E1 | Left front lamp unit | 20A |
| E1 | Left front lamp unit | 31A |
| E1 | Left front lamp unit | 37A |
| K40/8 | Engine fuse and relay module | 9L |
| K40/8 | Engine fuse and relay module | 14L |
| K40/8f111 | Fuse 111 | 14L |
| K40/8f133 | Fuse 133 | 8L |
| N10/6 | Front SAM control unit | 19L |
| W9 | Left front ground point (at lamp unit) | 17E |
| X25/7 | Engine compartment/frame floor assembly electrical connector | 23F |
| X25/7 | Engine compartment/frame floor assembly electrical connector | 26F |
| X30/27 | Peripherals CAN (CAN PER) potential distributor electrical connector | 23L |
