Wiring Diagram Of Exterior Lights - PE82.10-P-2000-97FBI
WARNING: This page is about a different car, the 2023 Mercedes-Benz GLC300, 2022 Mercedes-Benz GLC300, 2021 Mercedes-Benz GLC300, 2020 Mercedes-Benz GLC350e, and 2020 Mercedes-Benz GLC300. However, it is still accessible from the selected car via links, so may be relevant.
Model 253 (except 253.99) up to model year 2020
with code 640 (High-performance LED)
with code 641 (Dynamic LED headlamps, left-hand traffic)
with code 642 (LED Intelligent Light System)

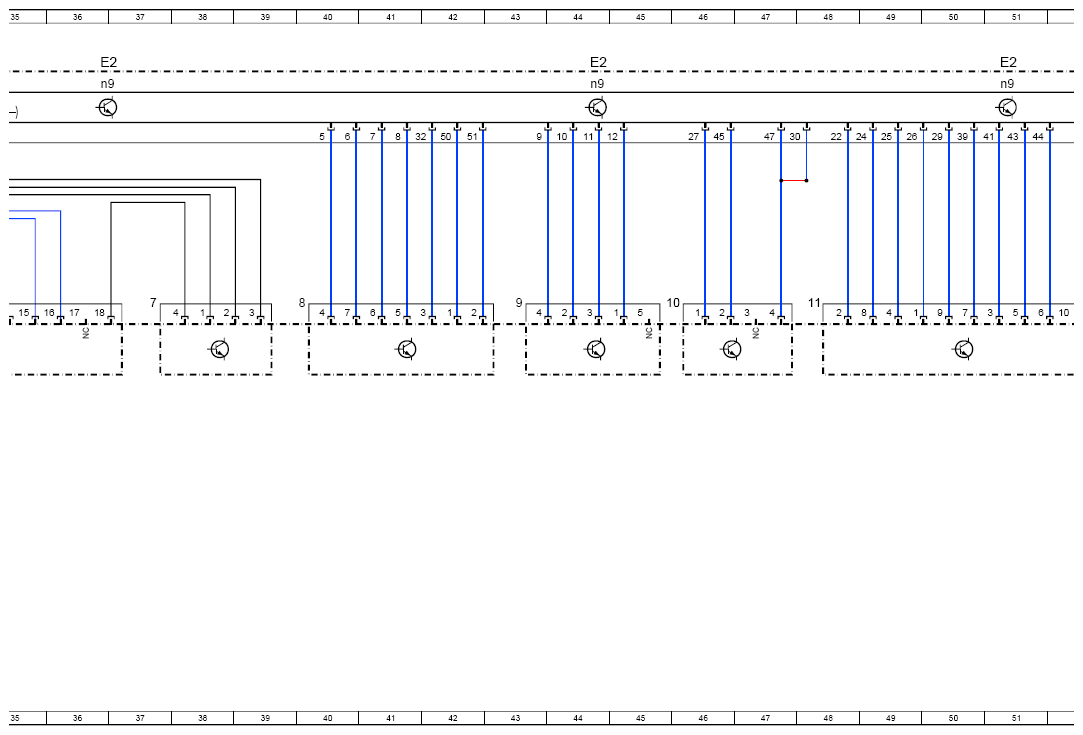

E2
| Code: | Designation: | Position: |
|---|---|---|

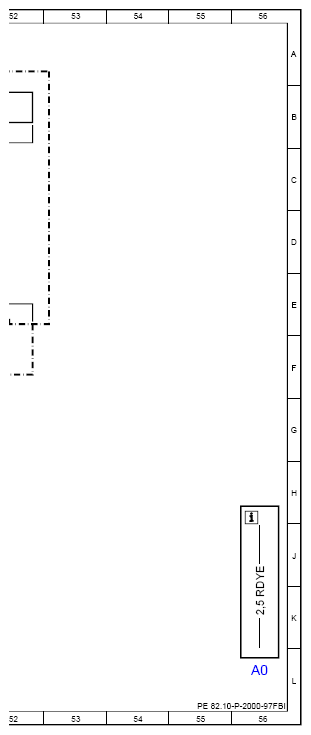

| A0 | Use of wiring diagrams | 56L |

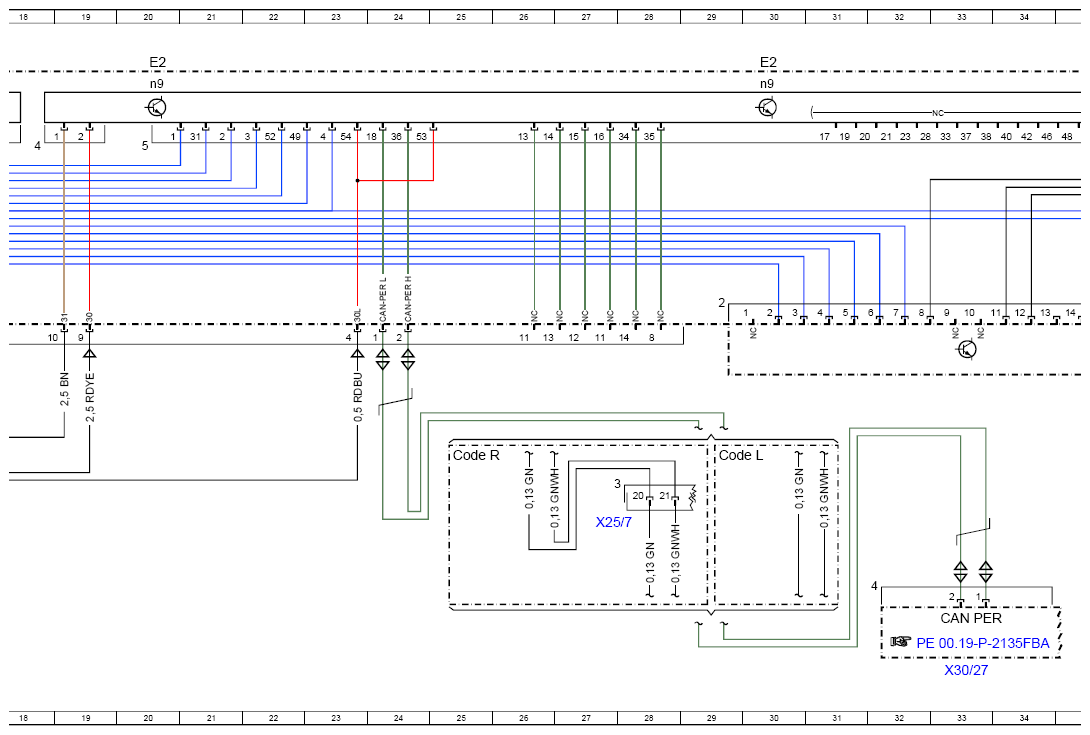

| CAN PER | Peripherals CAN | 33K |
| Code L | LEFT-HAND DRIVE | 29G |
| Code R | RIGHT-HAND DRIVE | 25G |

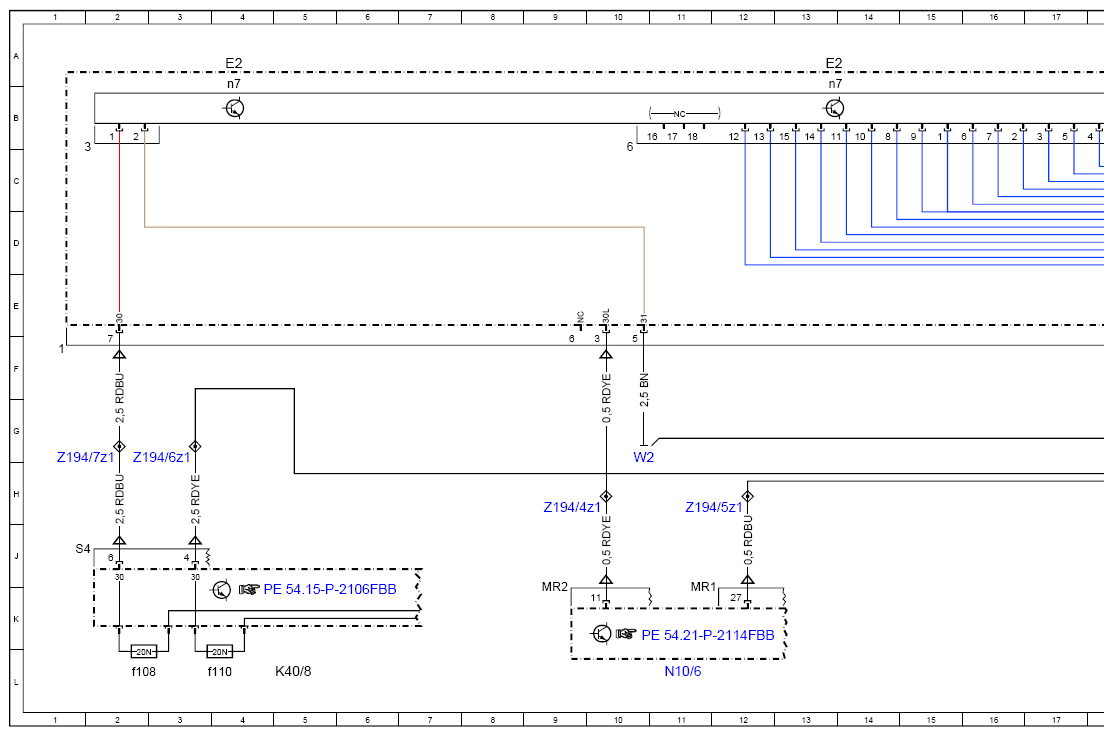

| E2 | Right front lamp unit | 4A |
| E2 | Right front lamp unit | 13A |
| E2 | Right front lamp unit | 20A |
| E2 | Right front lamp unit | 30A |
| E2 | Right front lamp unit | 36A |
| E2 | Right front lamp unit | 44A |
| E2 | Right front lamp unit | 51A |
| E2n7 | Actuation module for right front exterior lights LED | 4B |
| E2n7 | Actuation module for right front exterior lights LED | 13B |
| E2n9 | Right headlamp control unit | 20B |
| E2n9 | Right headlamp control unit | 30B |
| E2n9 | Right headlamp control unit | 36B |
| E2n9 | Right headlamp control unit | 44B |
| E2n9 | Right headlamp control unit | 51B |
| K40/8 | Engine fuse and relay module | 5L |
| K40/8f108 | Fuse 108 | 2L |
| K40/8f110 | Fuse 110 | 4L |
| N10/6 | Front SAM control unit | 11L |
| W2 | Right front ground point (at lamp unit) | 10H |
| X25/7 | Engine compartment/frame floor assembly electrical connector | 27J |
| X30/27 | Peripherals CAN (CAN PER) potential distributor electrical connector | 33L |
| Z194/4z1 | Left front lamp unit circuit 30 connector sleeve | 9H |
| Z194/5z1 | Right front lamp unit circuit 30 connector sleeve | 12H |
| Z194/6z1 | Left position lamp connector sleeve | 3H |
| Z194/7z1 | Right position lamp connector sleeve | 2H |
