Wiring Diagram Of Exterior Lights - PE82.10-P-2000-97FBH
WARNING: This page is about a different car, the 2023 Mercedes-Benz GLC300, 2022 Mercedes-Benz GLC300, 2021 Mercedes-Benz GLC300, 2020 Mercedes-Benz GLC350e, and 2020 Mercedes-Benz GLC300. However, it is still accessible from the selected car via links, so may be relevant.
Model 253 (except 253.99) up to model year 2020
with code 640 (High-performance LED)
with code 641 (Dynamic LED headlamps, left-hand traffic)
with code 642 (LED Intelligent Light System)
E1
| Code: | Designation: | Position: |
|---|---|---|

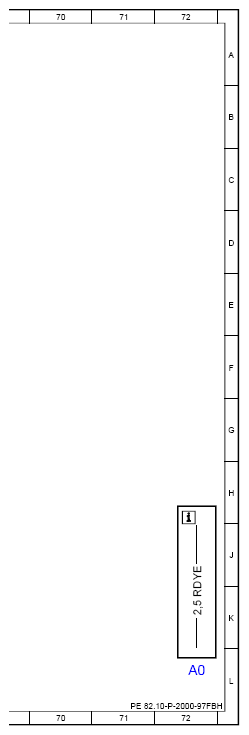

| A0 | Use of wiring diagrams | 72L |
| B22/7 | Left rear level sensor | 34L |
| B22/8 | Left front level sensor | 30L |
| CAN PER | Peripherals CAN | 46K |
| Code 459 | DYNAMIC BODY CONTROL suspension with adjustment damping | 27F |
| Code 489 | AIR BODY CONTROL | 27G |
| Code L | LEFT-HAND DRIVE | 42G |
| Code R | RIGHT-HAND DRIVE | 37G |

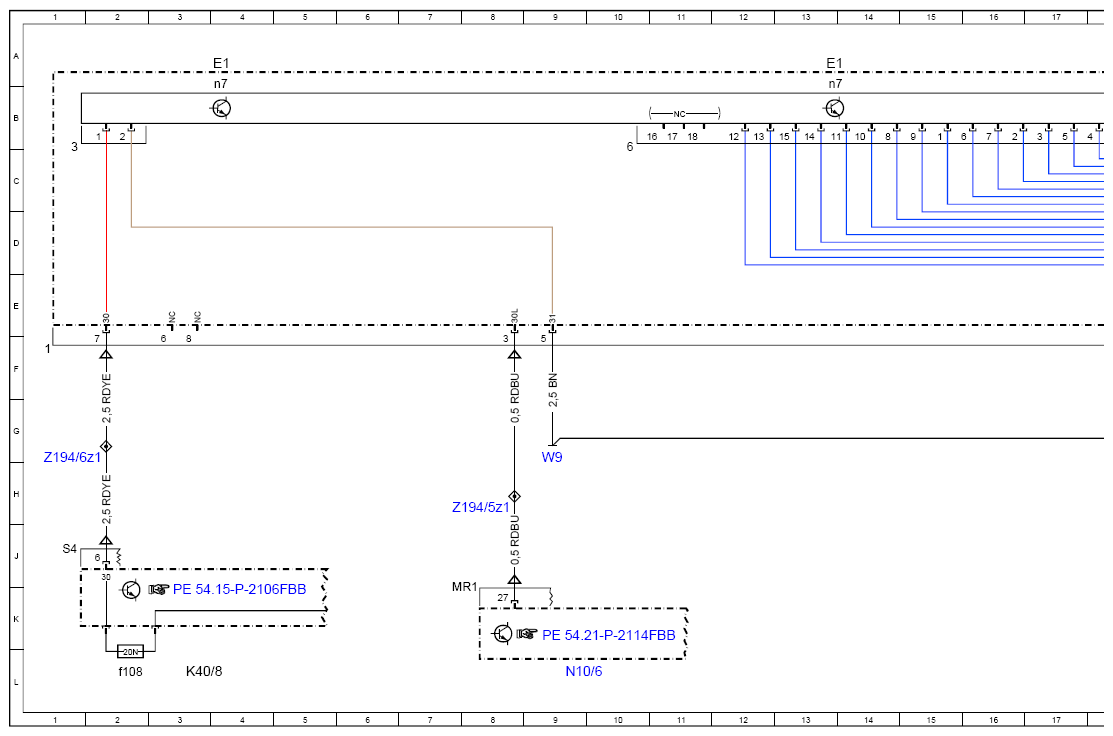

| E1 | Left front lamp unit | 37A |
| E1 | Left front lamp unit | 4A |
| E1 | Left front lamp unit | 13A |
| E1 | Left front lamp unit | 20A |
| E1 | Left front lamp unit | 28A |
| E1 | Left front lamp unit | 45A |
| E1 | Left front lamp unit | 52A |
| E1 | Left front lamp unit | 61A |
| E1n7 | Actuation module for left front exterior lights LED | 4B |
| E1n7 | Actuation module for left front exterior lights LED | 13B |

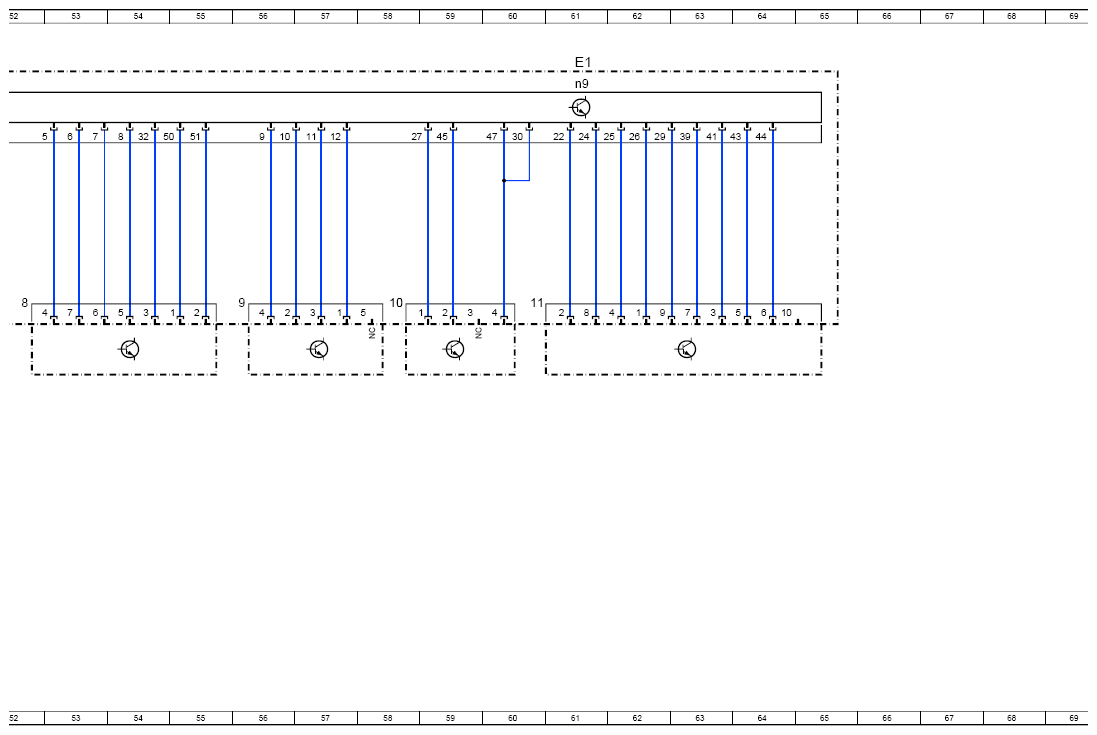

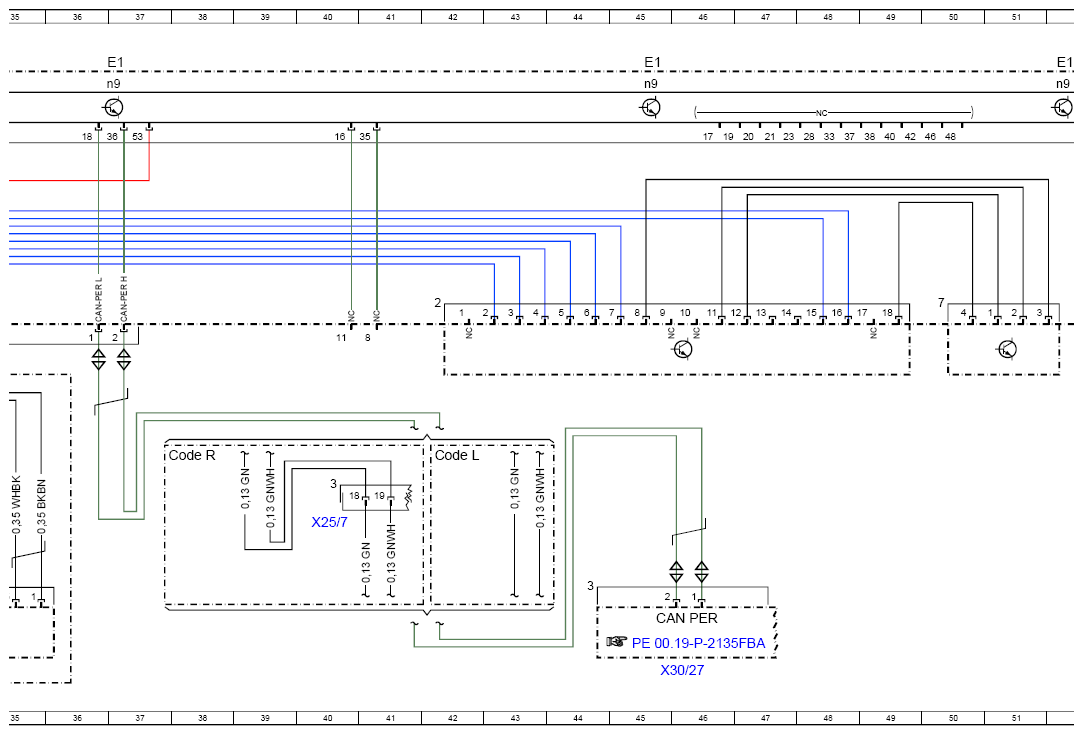

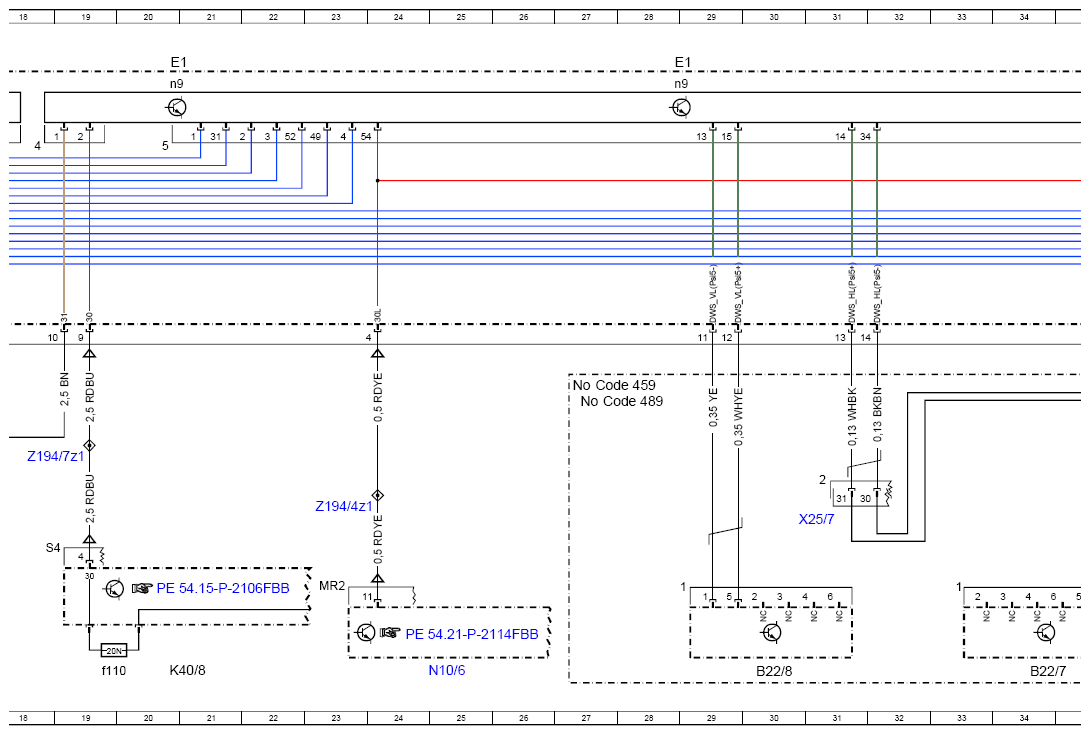

| E1n9 | Left headlamp control unit | 37B |
| E1n9 | Left headlamp control unit | 20B |
| E1n9 | Left headlamp control unit | 28B |
| E1n9 | Left headlamp control unit | 45B |
| E1n9 | Left headlamp control unit | 52B |
| E1n9 | Left headlamp control unit | 61B |
| K40/8 | Engine fuse and relay module | 3L |
| K40/8 | Engine fuse and relay module | 20L |
| K40/8f108 | Fuse 108 | 2L |
| K40/8f110 | Fuse 110 | 19L |
| N10/6 | Front SAM control unit | 9L |
| N10/6 | Front SAM control unit | 25L |
| W9 | Left front ground point (at lamp unit) | 9H |
| X25/7 | Engine compartment/frame floor assembly electrical connector | 31J |
| X25/7 | Engine compartment/frame floor assembly electrical connector | 40J |
| X30/27 | Peripherals CAN (CAN PER) potential distributor electrical connector | 46L |
| Z194/4z1 | Left front lamp unit circuit 30 connector sleeve | 23H |
| Z194/5z1 | Right front lamp unit circuit 30 connector sleeve | 8H |
| Z194/6z1 | Left position lamp connector sleeve | 1H |
| Z194/7z1 | Right position lamp connector sleeve | 19H |
