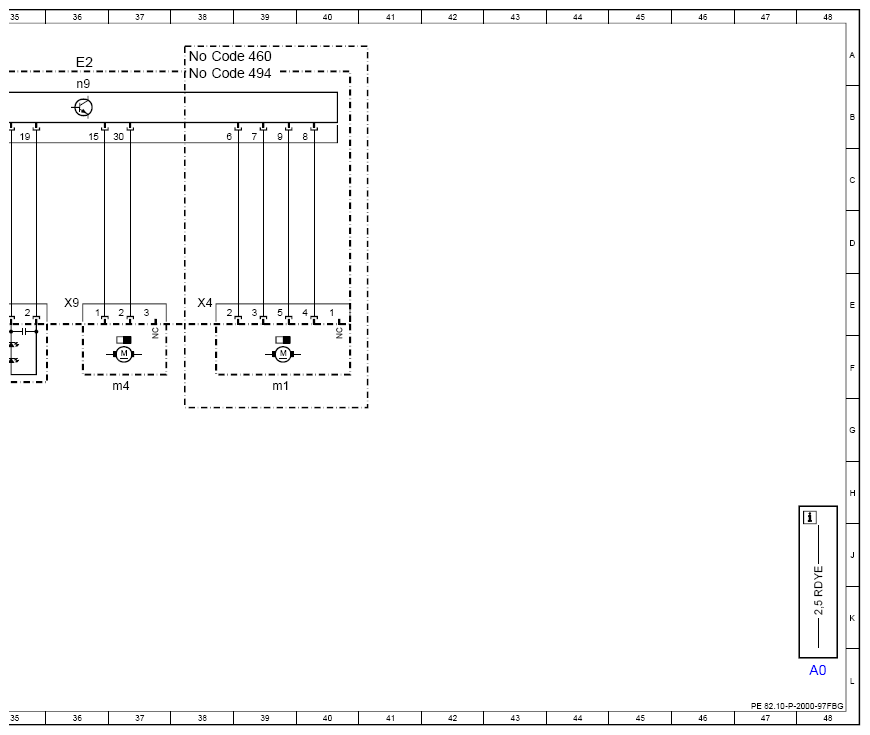

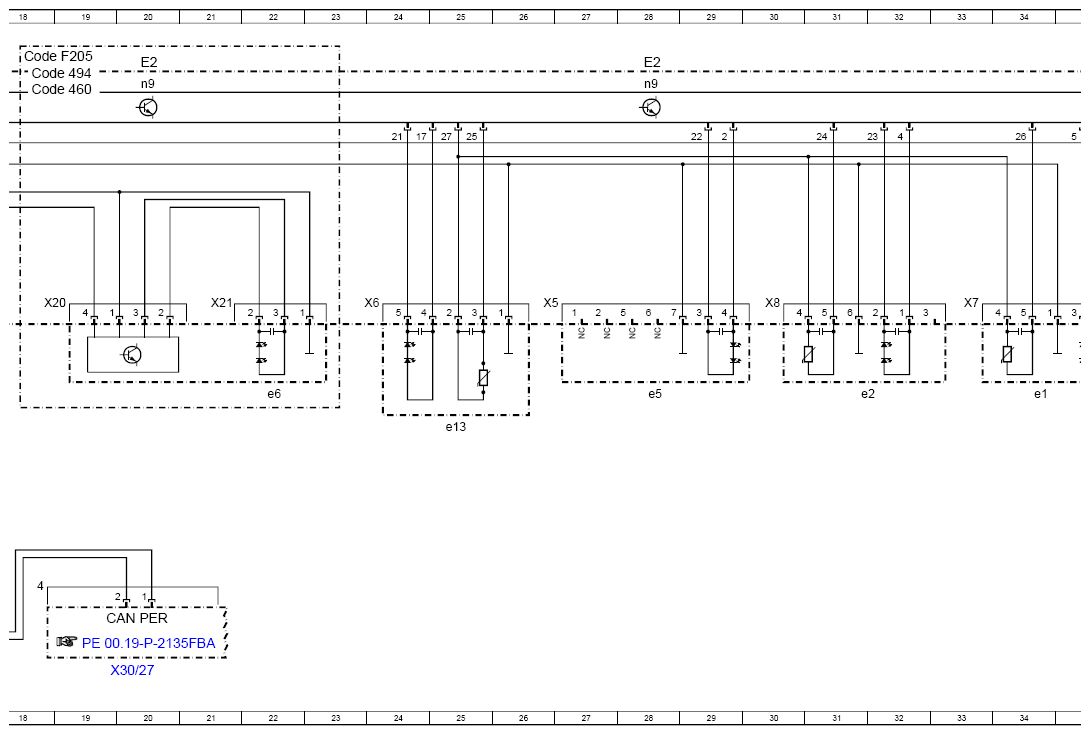

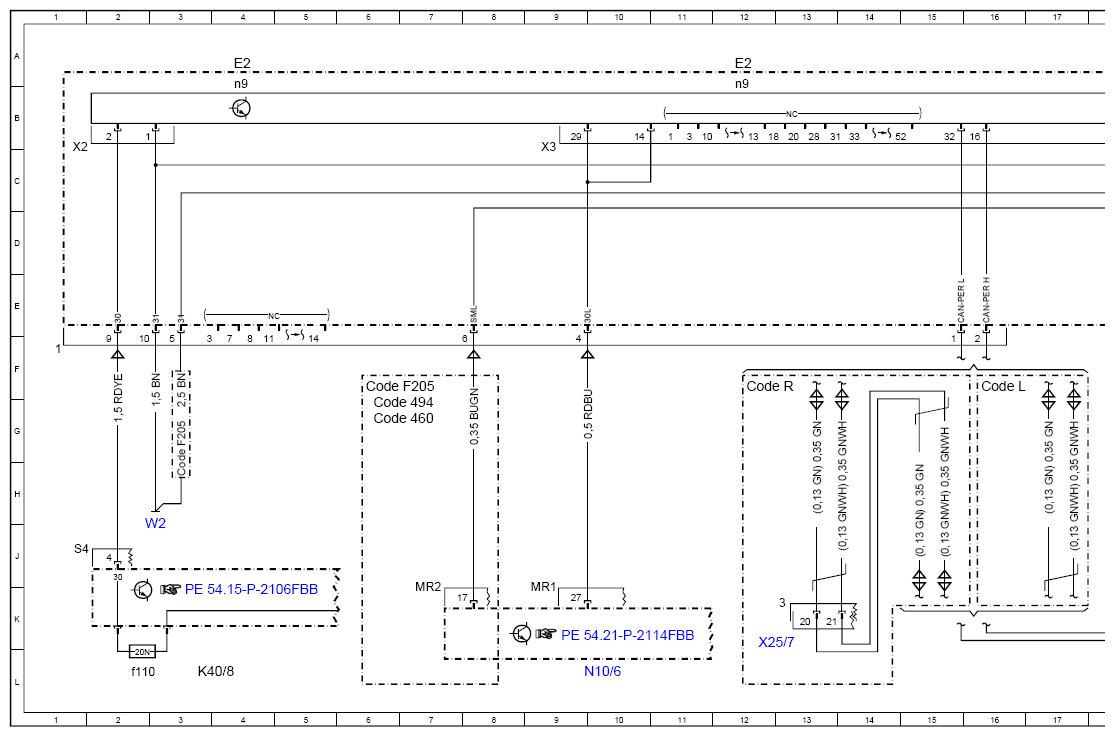

Wiring Diagram Of Exterior Lights - PE82.10-P-2000-97FBG
WARNING: This page is about a different car, the 2023 Mercedes-Benz GLC300, 2022 Mercedes-Benz GLC300, 2021 Mercedes-Benz GLC300, 2020 Mercedes-Benz GLC350e, and 2020 Mercedes-Benz GLC300. However, it is still accessible from the selected car via links, so may be relevant.
Model 205 up to model year 2019
with code 631 (Static LED headlamps, left-hand traffic)
with code 632 (Headlamps, LED, static, right-side traffic)
except code 640 (High-performance LED)
except code 641 (Dynamic LED headlamps, left-hand traffic)
except code 642 (Dynamic LED headlamps, right-hand traffic)
Headlamp unitE2
Model 253 (except 253.99) up to model year 2020
with code 631 (Static LED headlamps, left-hand traffic)
with code 632 (Headlamps, LED, static, right-side traffic)
except code 640 (High-performance LED)
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Use of wiring diagrams | 48L |
| CAN PER | Peripherals CAN | 20K |
| Code 460 | Canada version | 6G |
| Code 460 | Canada version | 18B |
| Code 460 | Canada version | 38A |
| Code 494 | USA version | 6G |
| Code 494 | USA version | 18A |
| Code 494 | USA version | 38A |
| Code F205 | MODEL SERIES 205 | 3H |
| Code F205 | MODEL SERIES 205 | 6F |
| Code F205 | MODEL SERIES 205 | 18A |
| Code L | LEFT-HAND DRIVE | 16F |
| Code R | RIGHT-HAND DRIVE | 12F |
| E2 | Right front lamp unit | 4A |
| E2 | Right front lamp unit | 12A |
| E2 | Right front lamp unit | 20A |
| E2 | Right front lamp unit | 28A |
| E2 | Right front lamp unit | 36A |
| E2e1 | Right high beam | 34F |
| E2e13 | Right parking light, standing light and daytime running light | 25G |
| E2e2 | Right low beam | 31F |
| E2e5 | Right front turn signal lamp | 28F |
| E2e6 | Right front side-marker lamp | 22F |
| E2m1 | Right headlamp range adjustment actuator motor | 39F |
| E2m4 | Right LED signaling lights actuation module fan motor | 37F |
| E2n9 | Right headlamp control unit | 4B |
| E2n9 | Right headlamp control unit | 12B |
| E2n9 | Right headlamp control unit | 20B |
| E2n9 | Right headlamp control unit | 28B |
| E2n9 | Right headlamp control unit | 36B |
| K40/8 | Engine fuse and relay module | 3L |
| K40/8f110 | Fuse 110 | 2L |
| N10/6 | Front SAM control unit | 10L |
| W2 | Right front ground point (at lamp unit) | 3J |
| X25/7 | Engine compartment/frame floor assembly electrical connector | 13K |
| X30/27 | Peripherals CAN (CAN PER) potential distributor electrical connector | 20L |
