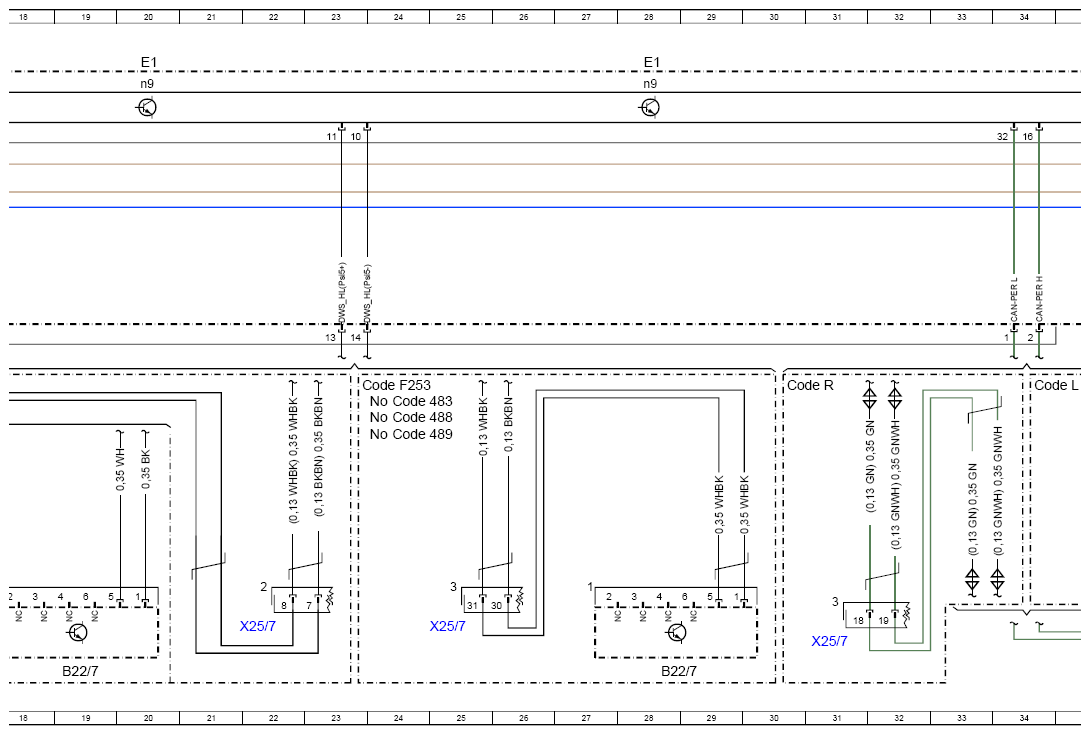

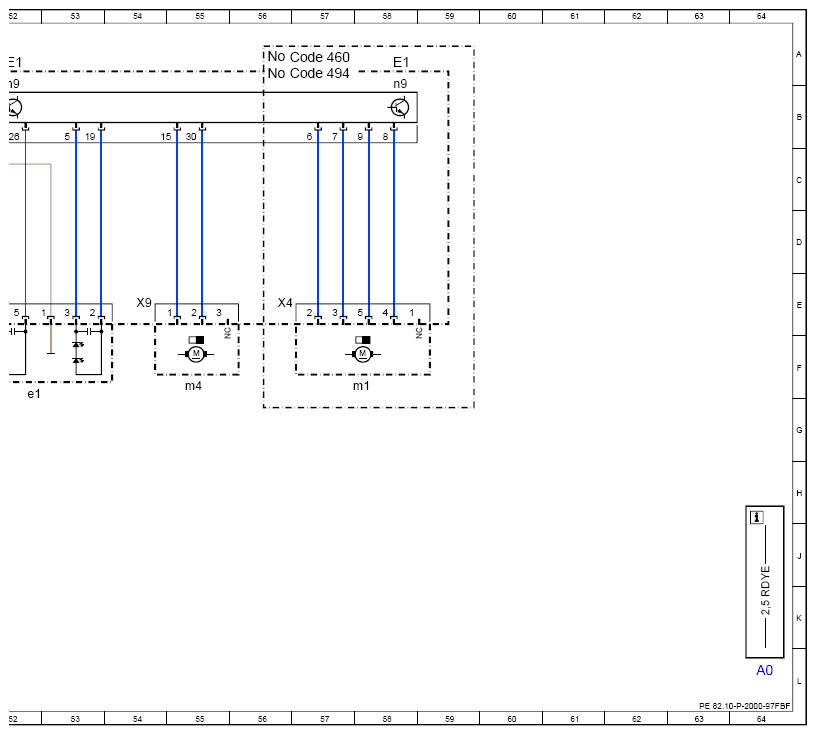

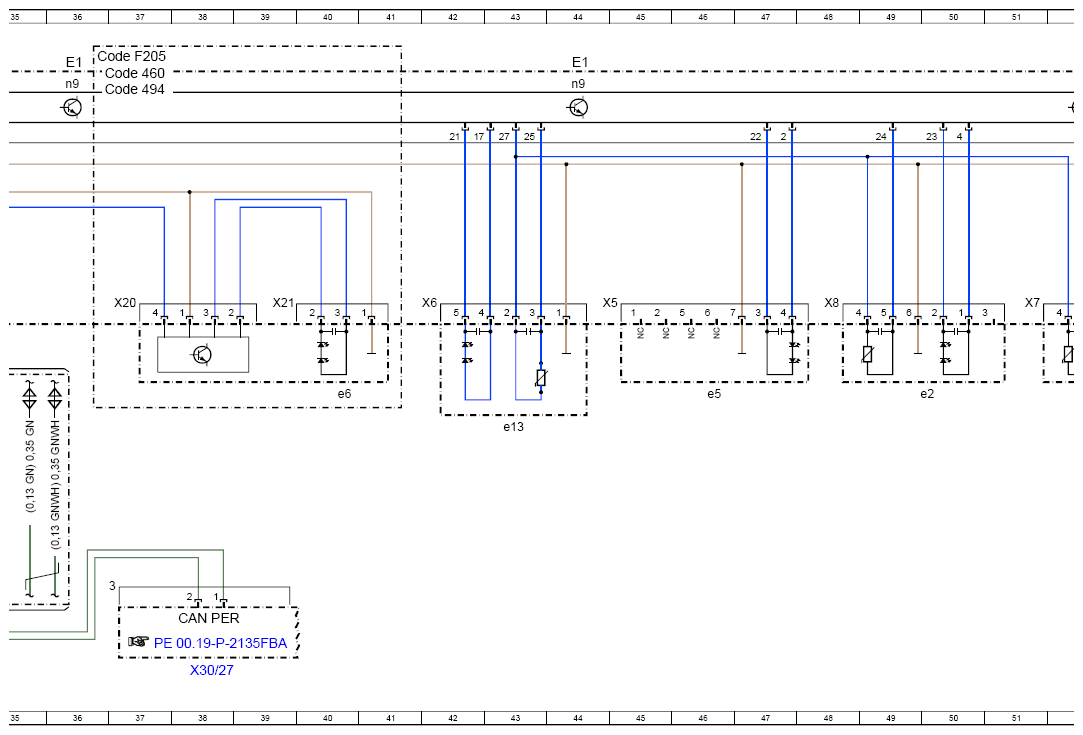

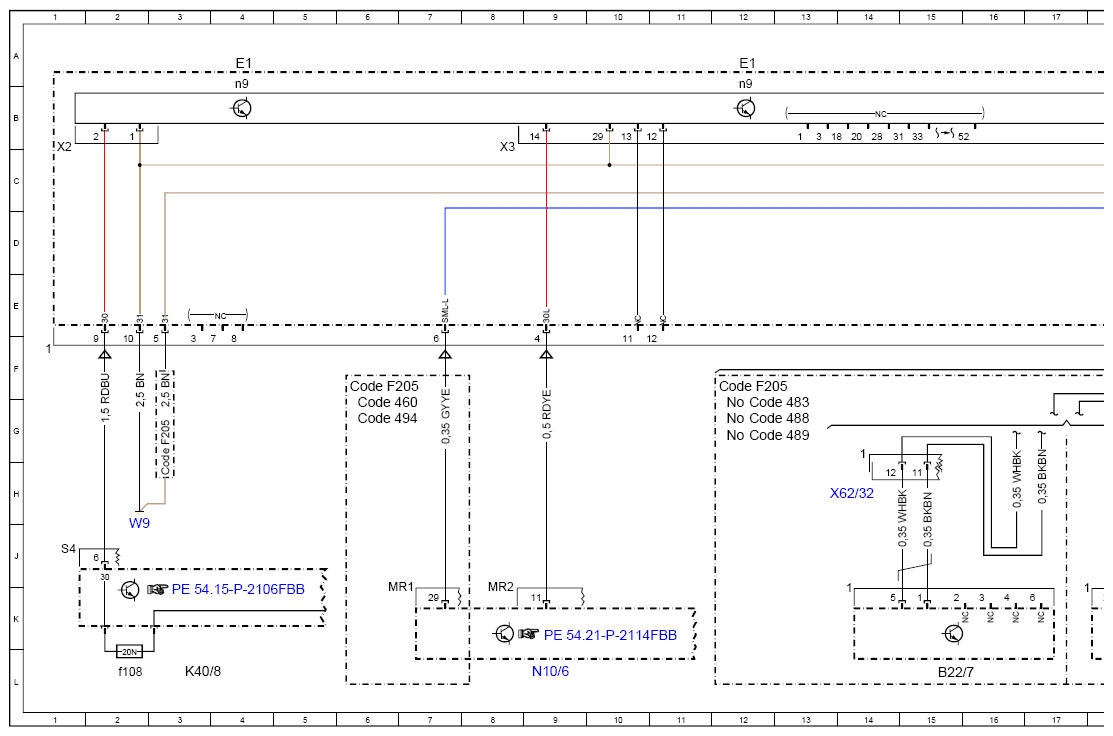

Wiring Diagram Of Exterior Lights - PE82.10-P-2000-97FBF
WARNING: This page is about a different car, the 2023 Mercedes-Benz GLC300, 2022 Mercedes-Benz GLC300, 2021 Mercedes-Benz GLC300, 2020 Mercedes-Benz GLC350e, and 2020 Mercedes-Benz GLC300. However, it is still accessible from the selected car via links, so may be relevant.
Model 205 up to model year 2019
with code 631 (Static LED headlamps, left-hand traffic)
with code 632 (Headlamps, LED, static, right-side traffic)
except code 640 (High-performance LED)
except code 641 (Dynamic LED headlamps, left-hand traffic)
except code 642 (Dynamic LED headlamps, right-hand traffic)
Headlamp unitE1
Model 253 (except 253.99) up to model year 2020
with code 631 (Static LED headlamps, left-hand traffic)
with code 632 (Headlamps, LED, static, right-side traffic)
except code 640 (High-performance LED)
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Use of wiring diagrams | 64L |
| B22/7 | Left rear level sensor | 15L |
| B22/7 | Left rear level sensor | 19L |
| B22/7 | Left rear level sensor | 28L |
| CAN PER | Peripherals CAN | 38K |
| Code 460 | Canada version | 6G |
| Code 460 | Canada version | 36A |
| Code 460 | Canada version | 56A |
| Code 483 | Dynamic handling package 2.0 incl. ADS+ | 12G |
| Code 483 | Dynamic handling package 2.0 incl. ADS+ | 24G |
| Code 488 | Chassis with steel/air suspension | 12G |
| Code 488 | Chassis with steel/air suspension | 24G |
| Code 489 | AIR BODY CONTROL | 12G |
| Code 489 | AIR BODY CONTROL | 24G |
| Code 494 | USA version | 6G |
| Code 494 | USA version | 36B |
| Code 494 | USA version | 56A |
| Code F205 | MODEL SERIES 205 | 12F |
| Code F205 | MODEL SERIES 205 | 3H |
| Code F205 | MODEL SERIES 205 | 6F |
| Code F205 | MODEL SERIES 205 | 36A |
| Code F253 | MODEL SERIES 253 | 23F |
| Code L | LEFT-HAND DRIVE | 34F |
| Code R | RIGHT-HAND DRIVE | 30F |
| E1 | Left front lamp unit | 4A |
| E1 | Left front lamp unit | 12A |
| E1 | Left front lamp unit | 20A |
| E1 | Left front lamp unit | 28A |
| E1 | Left front lamp unit | 36A |
| E1 | Left front lamp unit | 44A |
| E1 | Left front lamp unit | 52A |
| E1 | Left front lamp unit | 58A |
| E1e1 | Left high beam | 52F |
| E1e13 | Left parking light, standing light and daytime running light | 43G |
| E1e2 | Left low beam | 50F |
| E1e5 | Left front turn signal lamp | 46F |
| E1e6 | Left front side-marker lamp | 40F |
| E1m1 | Left headlamp range adjustment actuator motor | 58F |
| E1m4 | Left LED signaling lights actuation module fan motor | 55F |
| E1n9 | Left headlamp control unit | 4B |
| E1n9 | Left headlamp control unit | 12B |
| E1n9 | Left headlamp control unit | 20B |
| E1n9 | Left headlamp control unit | 28B |
| E1n9 | Left headlamp control unit | 36B |
| E1n9 | Left headlamp control unit | 44B |
| E1n9 | Left headlamp control unit | 52B |
| E1n9 | Left headlamp control unit | 58B |
| K40/8 | Engine fuse and relay module | 3L |
| K40/8f108 | Fuse 108 | 2L |
| N10/6 | Front SAM control unit | 9L |
| W9 | Left front ground point (at lamp unit) | 2J |
| X25/7 | Engine compartment/frame floor assembly electrical connector | 22K |
| X25/7 | Engine compartment/frame floor assembly electrical connector | 25K |
| X25/7 | Engine compartment/frame floor assembly electrical connector | 31K |
| X30/27 | Peripherals CAN (CAN PER) potential distributor electrical connector | 38L |
| X62/32 | Rear axle electrical connector, left distributor | 14H |
