Wiring Diagram Of Exterior Lights - PE82.10-P-2000-97FBE
WARNING: This page is about a different car, the 2023 Mercedes-Benz GLC300, 2022 Mercedes-Benz GLC300, 2021 Mercedes-Benz GLC300, 2020 Mercedes-Benz GLC350e, and 2020 Mercedes-Benz GLC300. However, it is still accessible from the selected car via links, so may be relevant.
Model 205 up to model year 2019

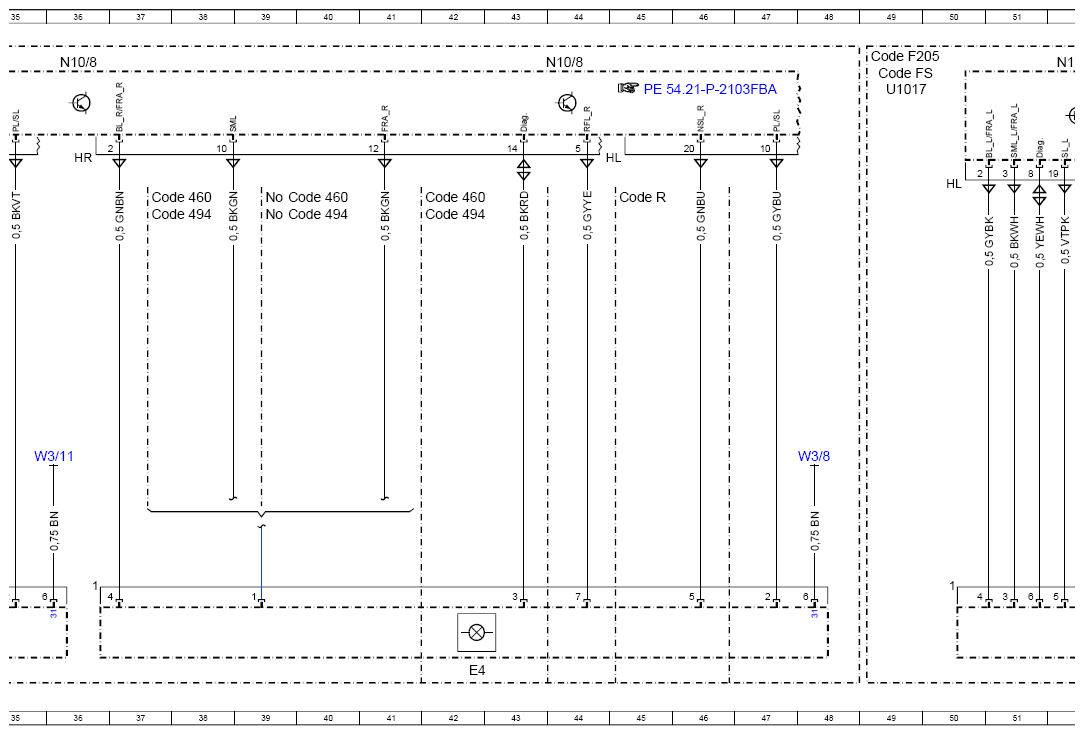

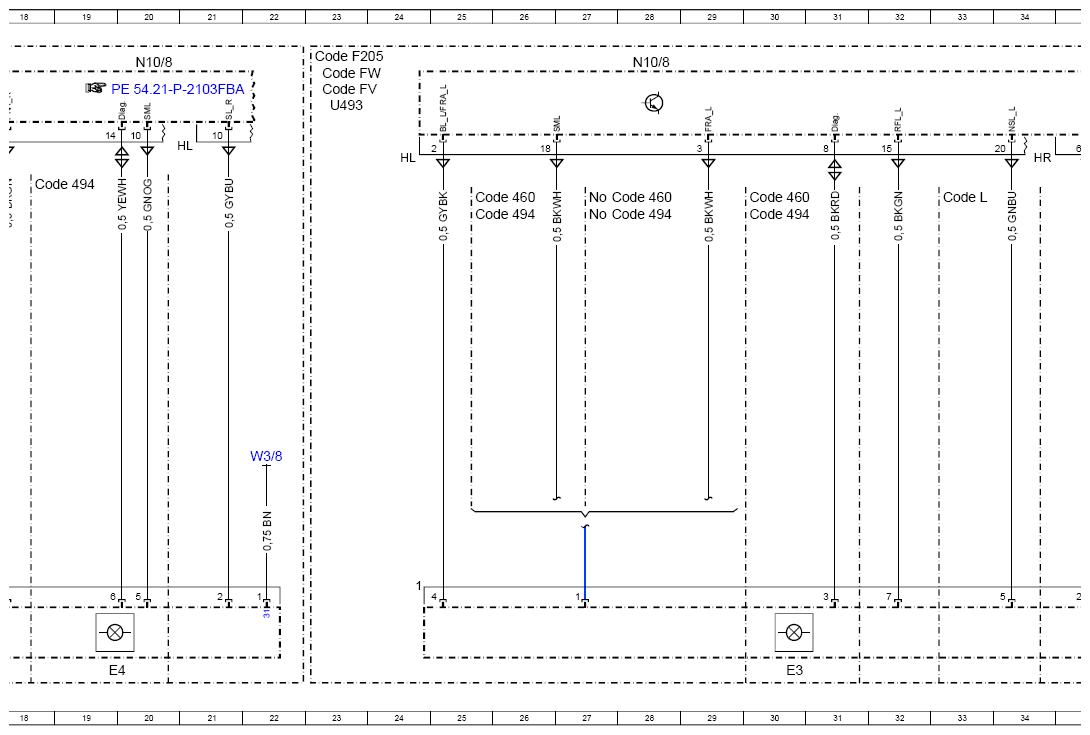

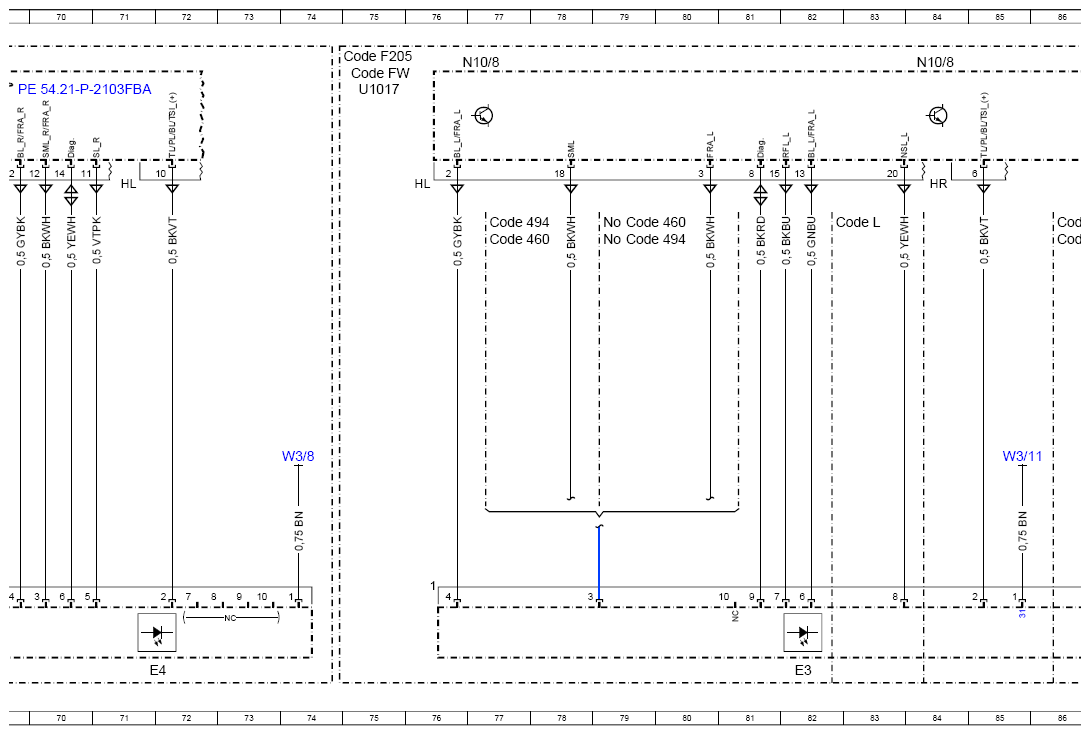

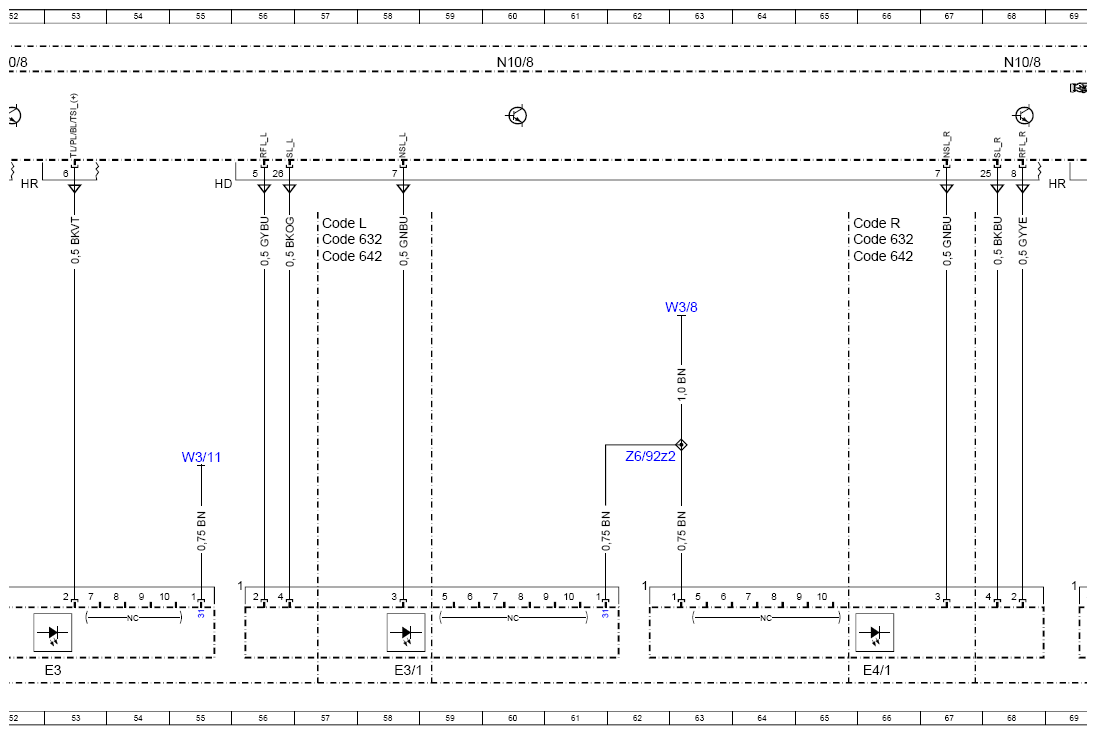

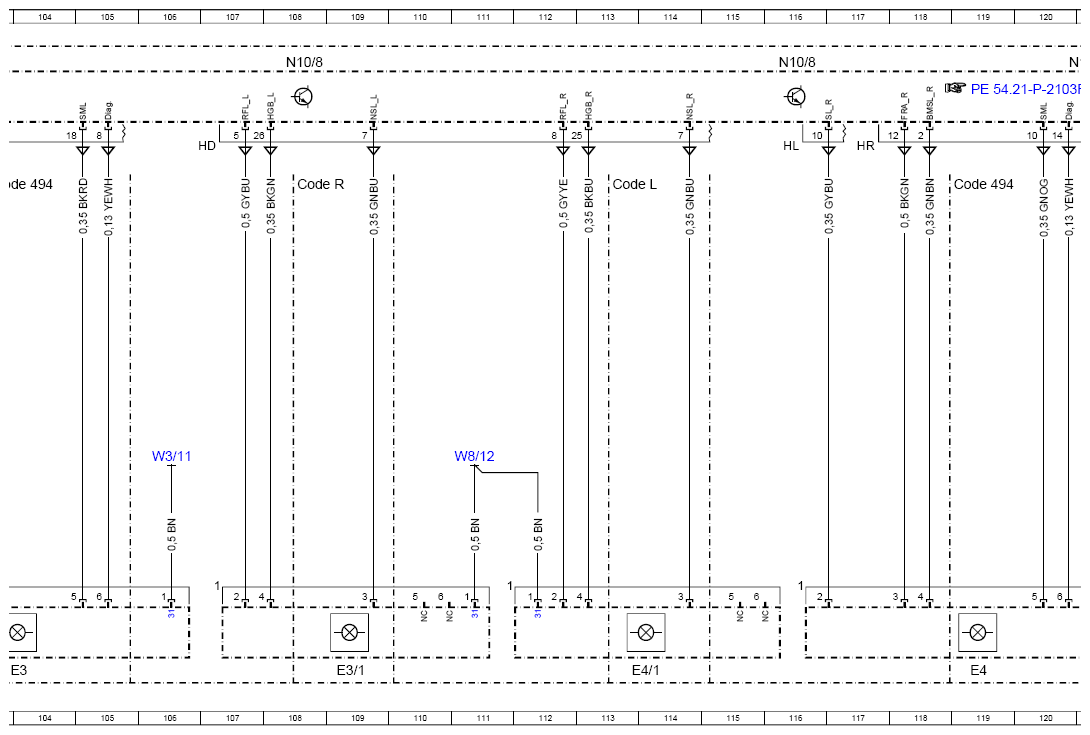

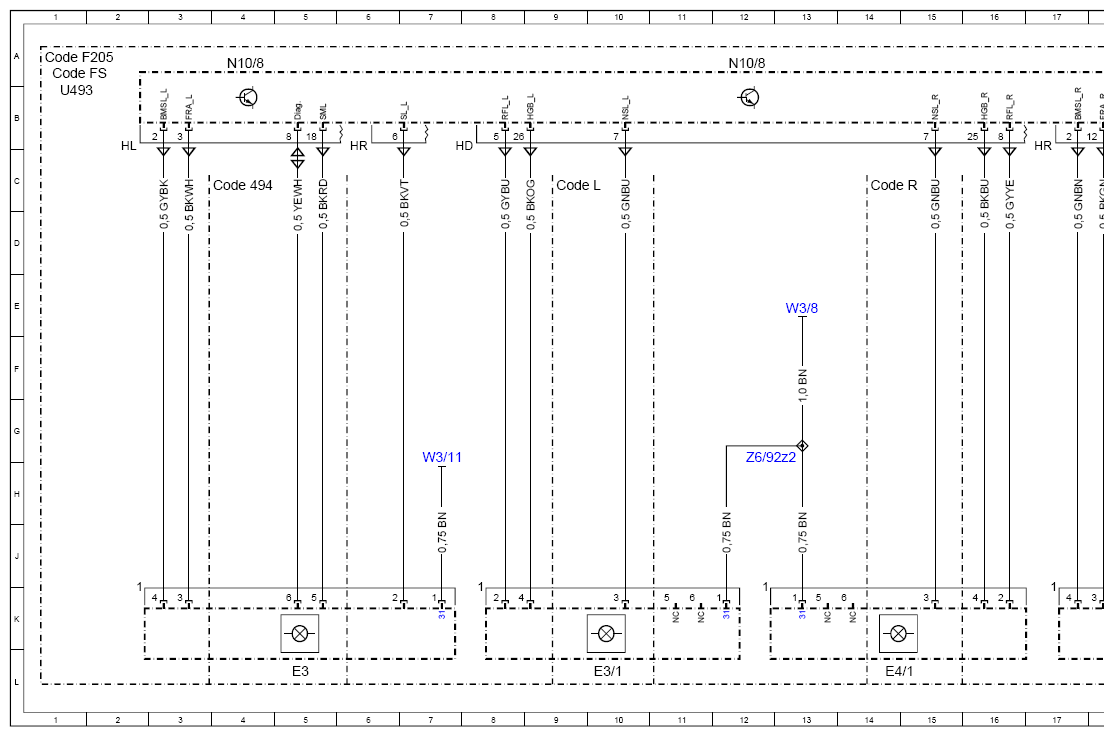

Lamp unit E3, E4
Model 253 (except 253.99)
up to model year 2020

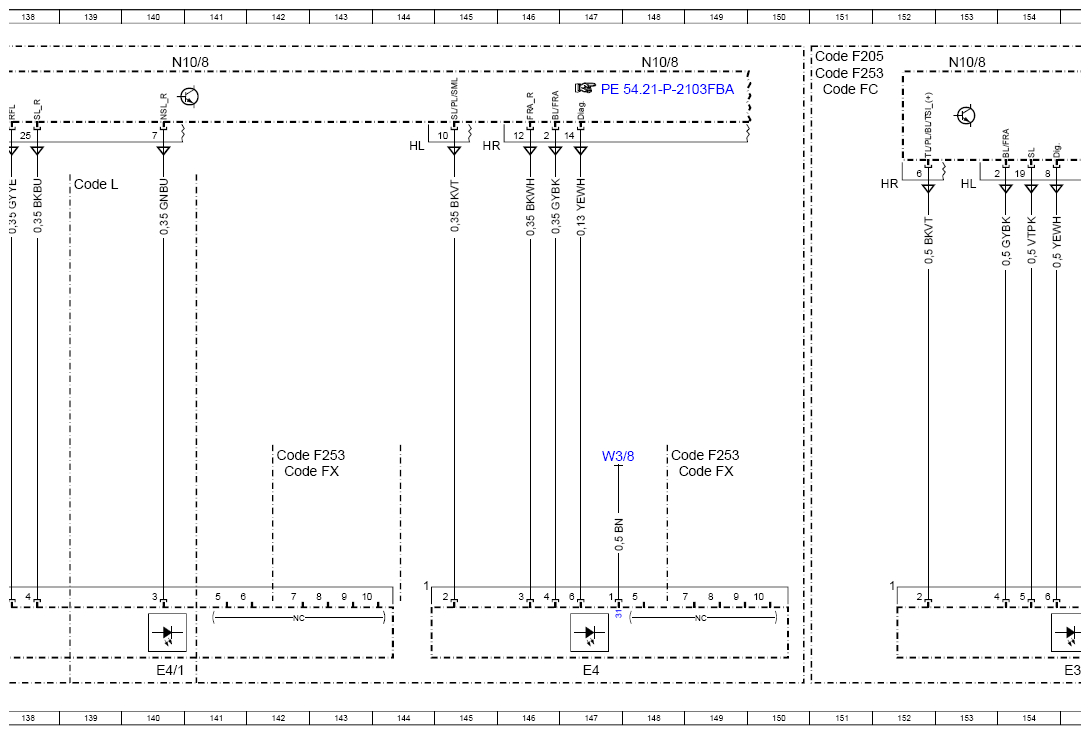

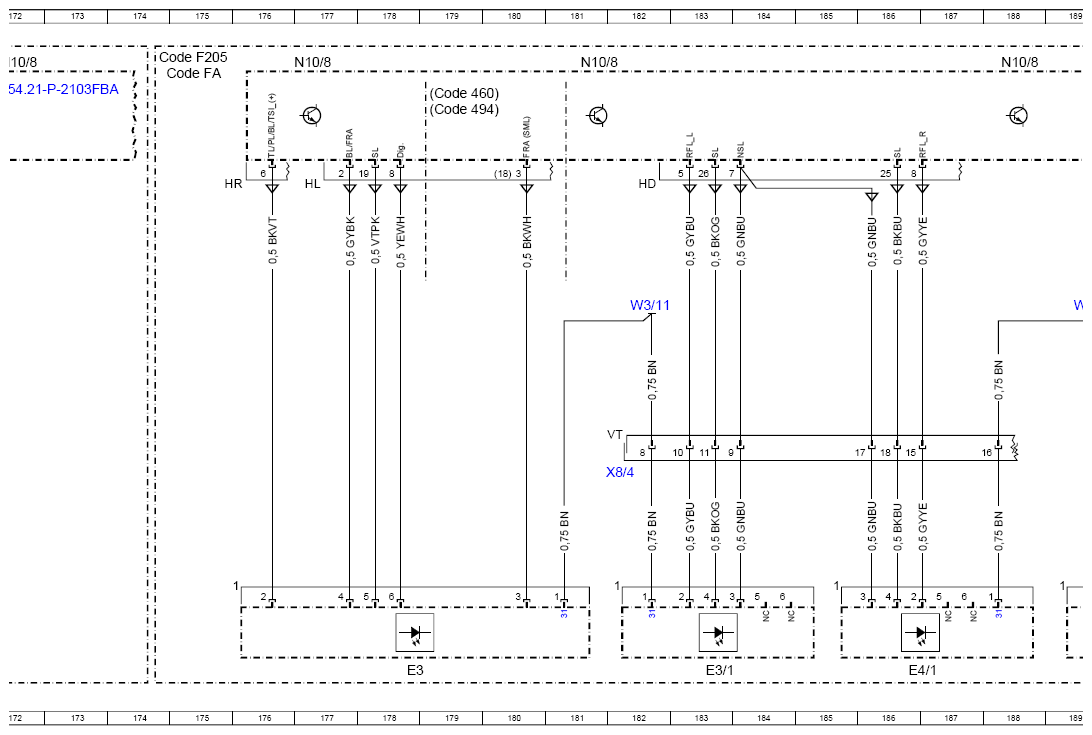

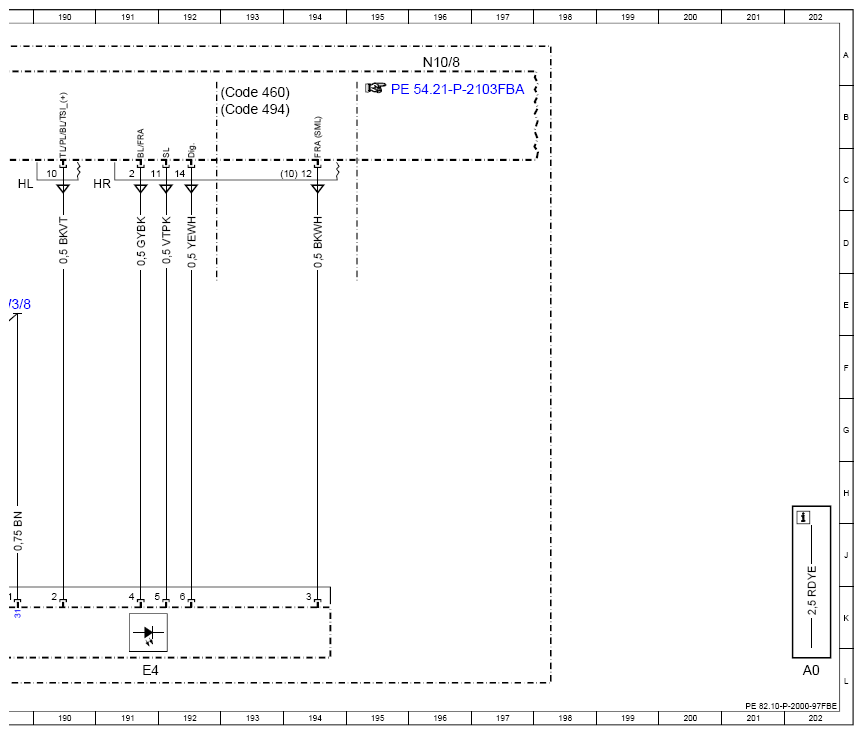

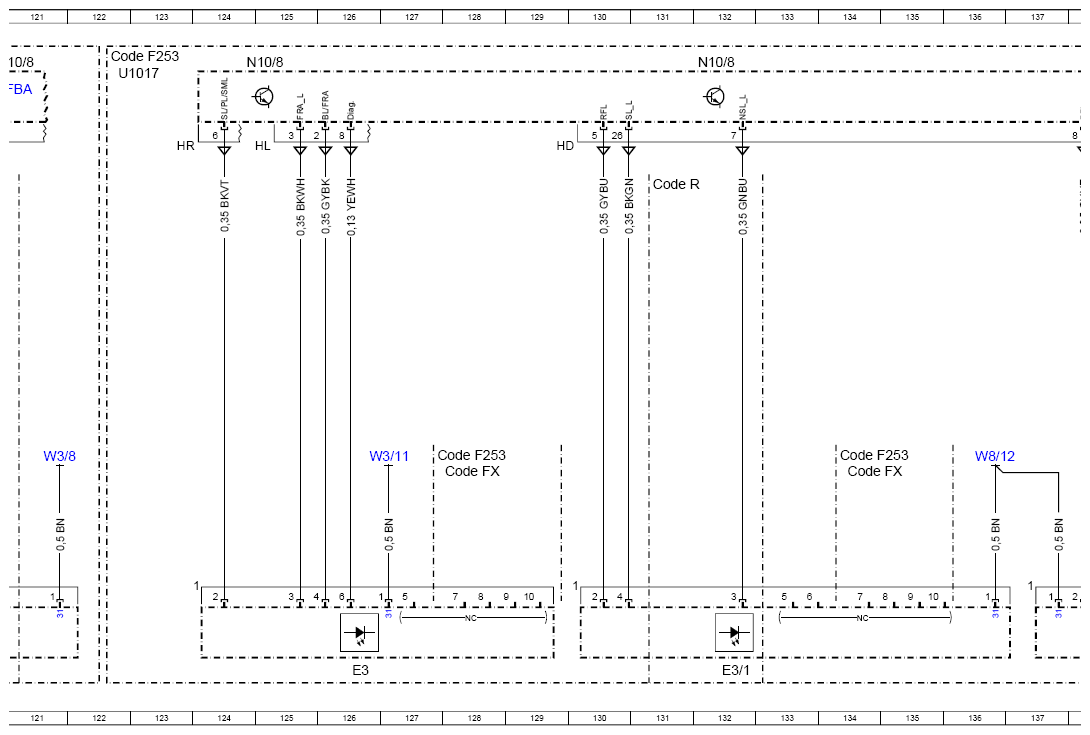

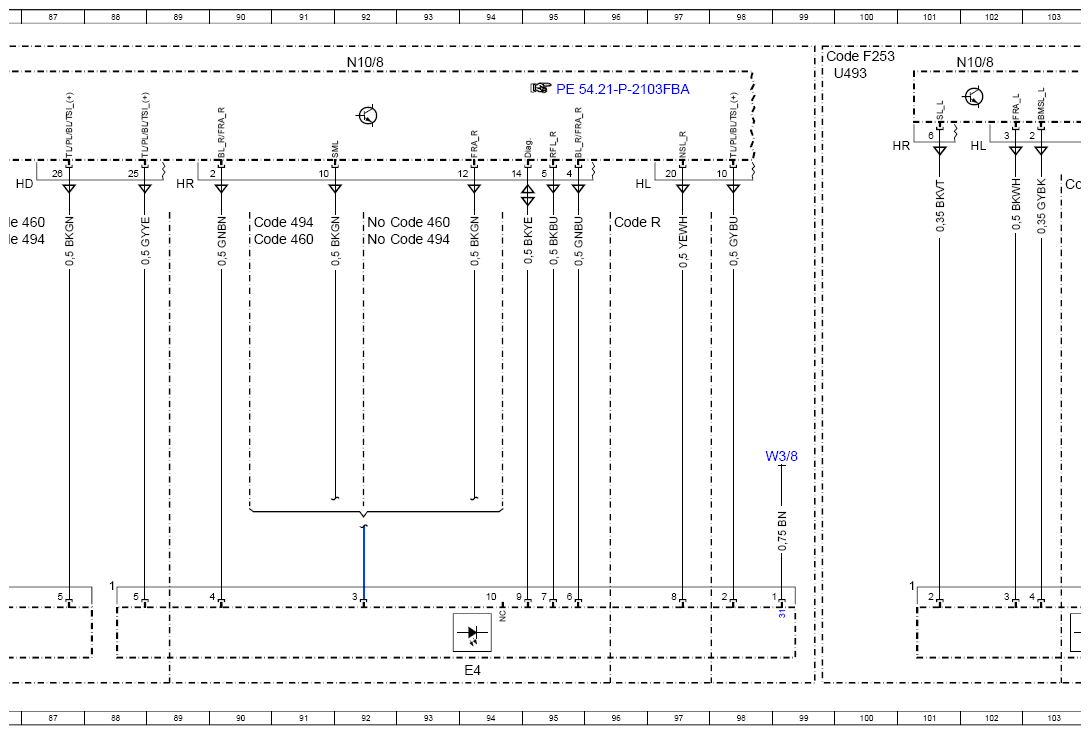

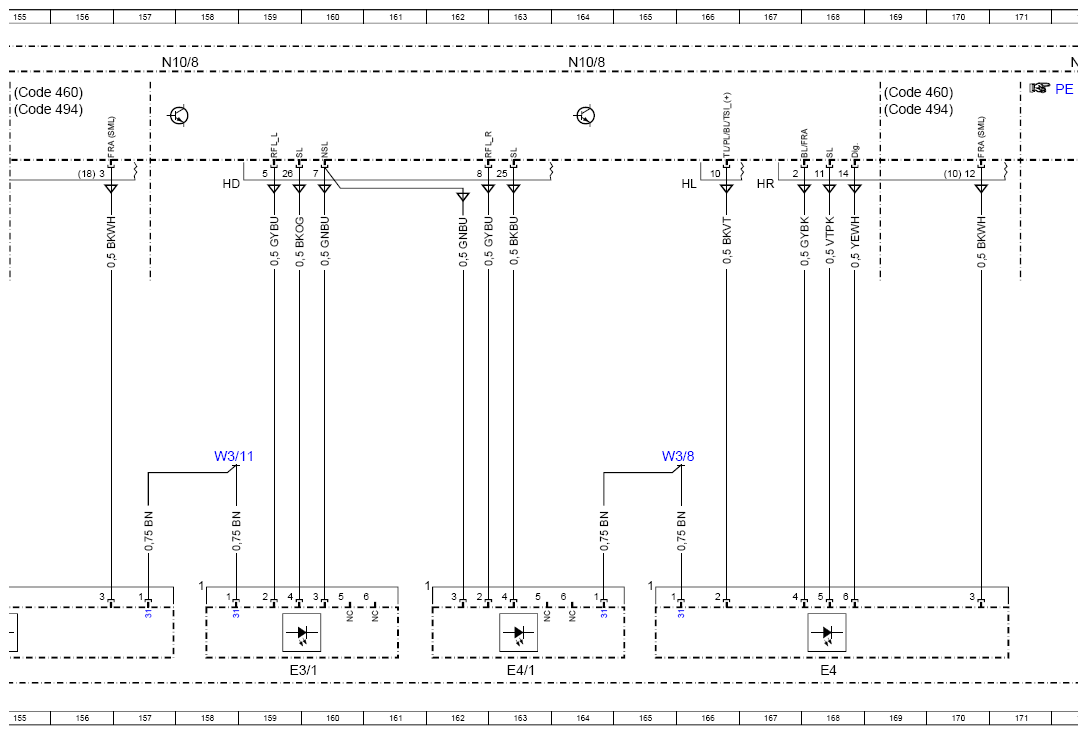

Lamp unit E3, E4
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Use of wiring diagrams | 202L |
| Code 460 | Canada version | 37C |
| Code 460 | Canada version | 30C |
| Code 460 | Canada version | 27C |
| Code 460 | Canada version | 25C |
| Code 460 | Canada version | 42C |
| Code 460 | Canada version | 39C |
| Code 460 | Canada version | 77D |
| Code 460 | Canada version | 79D |
| Code 460 | Canada version | 86D |
| Code 460 | Canada version | 92D |
| Code 460 | Canada version | 90D |
| Code 460 | Canada version | 155B |
| Code 460 | Canada version | 169B |
| Code 460 | Canada version | 179B |
| Code 460 | Canada version | 192B |
| Code 494 | usa version | 37D |
| Code 494 | USA version | 4C |
| Code 494 | USA version | 18C |
| Code 494 | USA version | 30D |
| Code 494 | USA version | 25D |
| Code 494 | USA version | 27D |
| Code 494 | USA version | 42D |
| Code 494 | USA version | 39D |
| Code 494 | USA version | 77D |
| Code 494 | USA version | 79D |
| Code 494 | usa version | 90D |
| Code 494 | USA version | 86D |
| Code 494 | USA version | 92D |
| Code 494 | USA version | 103C |
| Code 494 | USA version | 119C |
| Code 494 | USA version | 155B |
| Code 494 | USA version | 169B |
| Code 494 | USA version | 179B |
| Code 494 | USA version | 192B |
| Code 632 | Static LED headlamp, right-hand traffic | 57D |
| Code 632 | Static LED headlamp, right-hand traffic | 65D |
| Code 642 | Dynamic LED headlamps, right-hand traffic | 57D |
| Code 642 | Dynamic LED headlamps, right-hand traffic | 65D |
| Code F205 | MODEL SERIES 205 | 1A |
| Code F205 | MODEL SERIES 205 | 23A |
| Code F205 | MODEL SERIES 205 | 49A |
| Code F205 | MODEL SERIES 205 | 75A |
| Code F205 | MODEL SERIES 205 | 151A |
| Code F205 | MODEL SERIES 205 | 174A |
| Code F253 | MODEL SERIES 253 | 99A |
| Code F253 | MODEL SERIES 253 | 127G |
| Code F253 | MODEL SERIES 253 | 148G |
| Code F253 | MODEL SERIES 253 | 134G |
| Code F253 | MODEL SERIES 253 | 142G |
| Code F253 | MODEL SERIES 253 | 122A |
| Code F253 | MODEL SERIES 253 | 151A |
| Code FA | CABRIOLET | 174A |
| Code FC | COUPE | 151B |
| Code FS | STATION WAGON | 1A |
| Code FS | STATION WAGON | 49A |
| Code FV | LONG SEDAN | 23B |
| Code FW | SEDAN | 23A |
| Code FW | SEDAN | 75A |
| Code FX | SPORT-UTILITY-VEHICLE | 128H |
| Code FX | SPORT-UTILITY-VEHICLE | 148H |
| Code FX | SPORT-UTILITY-VEHICLE | 134H |
| Code FX | SPORT-UTILITY-VEHICLE | 142H |
| Code L | LEFT-HAND DRIVE | 9C |
| Code L | LEFT-HAND DRIVE | 33C |
| Code L | LEFT-HAND DRIVE | 57D |
| Code L | LEFT-HAND DRIVE | 82D |
| Code L | LEFT-HAND DRIVE | 113C |
| Code L | LEFT-HAND DRIVE | 139C |
| Code R | RIGHT-HAND DRIVE | 14C |
| Code R | RIGHT-HAND DRIVE | 45C |
| Code R | RIGHT-HAND DRIVE | 65D |
| Code R | RIGHT-HAND DRIVE | 96D |
| Code R | RIGHT-HAND DRIVE | 108C |
| Code R | RIGHT-HAND DRIVE | 131C |
| E3 | Left rear lamp unit | 5L |
| E3 | Left rear lamp unit | 30L |
| E3 | Left rear lamp unit | 53L |
| E3 | Left rear lamp unit | 82L |
| E3 | Left rear lamp unit | 104L |
| E3 | Left rear lamp unit | 126L |
| E3 | Left rear lamp unit | 155L |
| E3 | Left rear lamp unit | 178L |
| E3/1 | Inner left rear lamp unit | 10L |
| E3/1 | Inner left rear lamp unit | 58L |
| E3/1 | Inner left rear lamp unit | 109L |
| E3/1 | Inner left rear lamp unit | 132L |
| E3/1 | Inner left rear lamp unit | 159L |
| E3/1 | Inner left rear lamp unit | 183L |
| E4 | Right rear lamp unit | 19L |
| E4 | Right rear lamp unit | 42L |
| E4 | Right rear lamp unit | 71L |
| E4 | Right rear lamp unit | 94L |
| E4 | Right rear lamp unit | 119L |
| E4 | Right rear lamp unit | 147L |
| E4 | Right rear lamp unit | 168L |
| E4 | Right rear lamp unit | 191L |
| E4/1 | Inner right rear lamp unit | 14L |
| E4/1 | Inner right rear lamp unit | 66L |
| E4/1 | Inner right rear lamp unit | 113L |
| E4/1 | Inner right rear lamp unit | 140L |
| E4/1 | Inner right rear lamp unit | 163L |
| E4/1 | Inner right rear lamp unit | 186L |
| N10/8 | Rear SAM control unit | 102A |
| N10/8 | Rear SAM control unit | 4A |
| N10/8 | Rear SAM control unit | 12A |
| N10/8 | Rear SAM control unit | 20A |
| N10/8 | Rear SAM control unit | 28A |
| N10/8 | Rear SAM control unit | 36A |
| N10/8 | Rear SAM control unit | 44A |
| N10/8 | Rear SAM control unit | 52A |
| N10/8 | Rear SAM control unit | 60A |
| N10/8 | Rear SAM control unit | 68A |
| N10/8 | Rear SAM control unit | 77A |
| N10/8 | Rear SAM control unit | 84A |
| N10/8 | Rear SAM control unit | 92A |
| N10/8 | Rear SAM control unit | 108A |
| N10/8 | Rear SAM control unit | 116A |
| N10/8 | Rear SAM control unit | 121A |
| N10/8 | Rear SAM control unit | 125A |
| N10/8 | Rear SAM control unit | 132A |
| N10/8 | Rear SAM control unit | 140A |
| N10/8 | Rear SAM control unit | 148A |
| N10/8 | Rear SAM control unit | 153A |
| N10/8 | Rear SAM control unit | 157A |
| N10/8 | Rear SAM control unit | 164A |
| N10/8 | Rear SAM control unit | 172A |
| N10/8 | Rear SAM control unit | 177A |
| N10/8 | Rear SAM control unit | 181A |
| N10/8 | Rear SAM control unit | 188A |
| N10/8 | Rear SAM control unit | 196A |
| U1017 | Valid for lamp unit (LED) | 49B |
| U1017 | Valid for lamp unit (LED) | 75B |
| U1017 | Valid for lamp unit (LED) | 122A |
| U493 | Valid for halogen lamp unit | 1b |
| U493 | Valid for halogen lamp unit | 23B |
| U493 | Valid for halogen lamp unit | 99A |
| W3/11 | Left rear wheel well ground point | 7H |
| W3/11 | Left rear wheel well ground point | 35H |
| W3/11 | Left rear wheel well ground point | 55H |
| W3/11 | Left rear wheel well ground point | 85H |
| W3/11 | Left rear wheel well ground point | 106H |
| W3/11 | Left rear wheel well ground point | 126H |
| W3/11 | Left rear wheel well ground point | 158H |
| W3/11 | Left rear wheel well ground point | 182E |
| W3/8 | Right rear wheel well ground point | 22H |
| W3/8 | Right rear wheel well ground point | 48H |
| W3/8 | Right rear wheel well ground point | 74H |
| W3/8 | Right rear wheel well ground point | 99H |
| W3/8 | Right rear wheel well ground point | 13E |
| W3/8 | Right rear wheel well ground point | 63E |
| W3/8 | Right rear wheel well ground point | 121H |
| W3/8 | Right rear wheel well ground point | 147H |
| W3/8 | Right rear wheel well ground point | 165H |
| W3/8 | Right rear wheel well ground point | 189E |
| W8/12 | Upper right liftgate ground point | 111H |
| W8/12 | Upper right liftgate ground point | 136H |
| X8/4 | Trunk lid/liftgate electrical connector | 182H |
| Z6/92z2 | Trunk lid ground connection connector sleeve | 12G |
| Z6/92z2 | Trunk lid ground connection connector sleeve | 62G |
