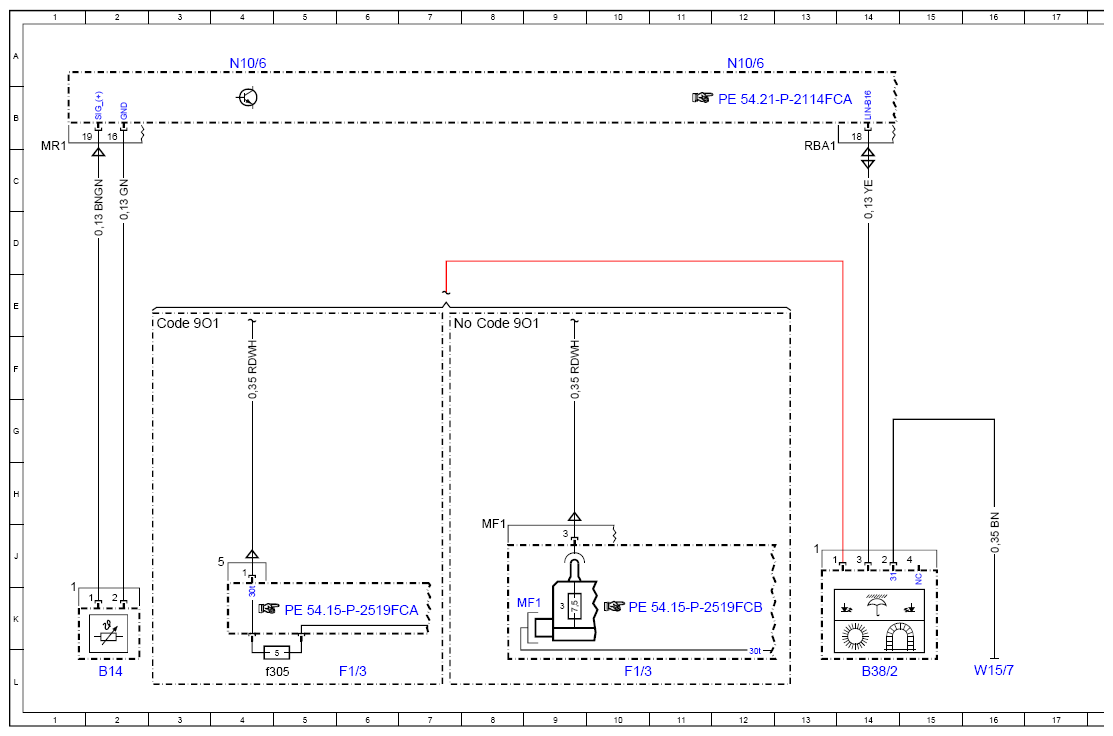

Wiring Diagram For Vehicle Surroundings Sensors - PE82.00-P-2002-97FCA
WARNING: This page is about a different car, the 2023 Mercedes-Benz GLC300, 2022 Mercedes-Benz GLC300, 2021 Mercedes-Benz GLC300, 2020 Mercedes-Benz GLC350e, and 2020 Mercedes-Benz GLC300. However, it is still accessible from the selected car via links, so may be relevant.
Model 253 (except 253.99)
as of model year 2020
Model 253.99 as of model year 2019
with code 9O1 (Fuel cell pre-installation)
| Code: | Designation: | Position: |
|---|---|---|

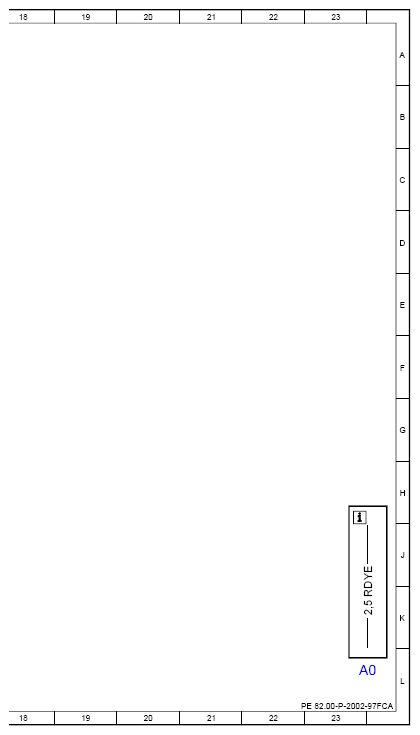

| A0 | Use of wiring diagrams | 23L |
| B14 | Outside temperature sensor | 2L |
| B38/2 | Rain/light sensor with additional functions | 14L |
| Code 9O1 | Fuel cell retrofitting | 3E |
| Code 9O1 | Fuel cell retrofitting | 8E |
| F1/3 | Passenger-side A-pillar fuse box | 6L |
| F1/3 | Passenger-side A-pillar fuse box | 10L |
| F1/3MF1 | Multiple fuse 1 | 9K |
| F1/3f305 | Fuse 305 | 4L |
| N10/6 | Front SAM control unit | 4A |
| N10/6 | Front SAM control unit | 12A |
| W15/7 | Right front footwell ground point | 16L |
