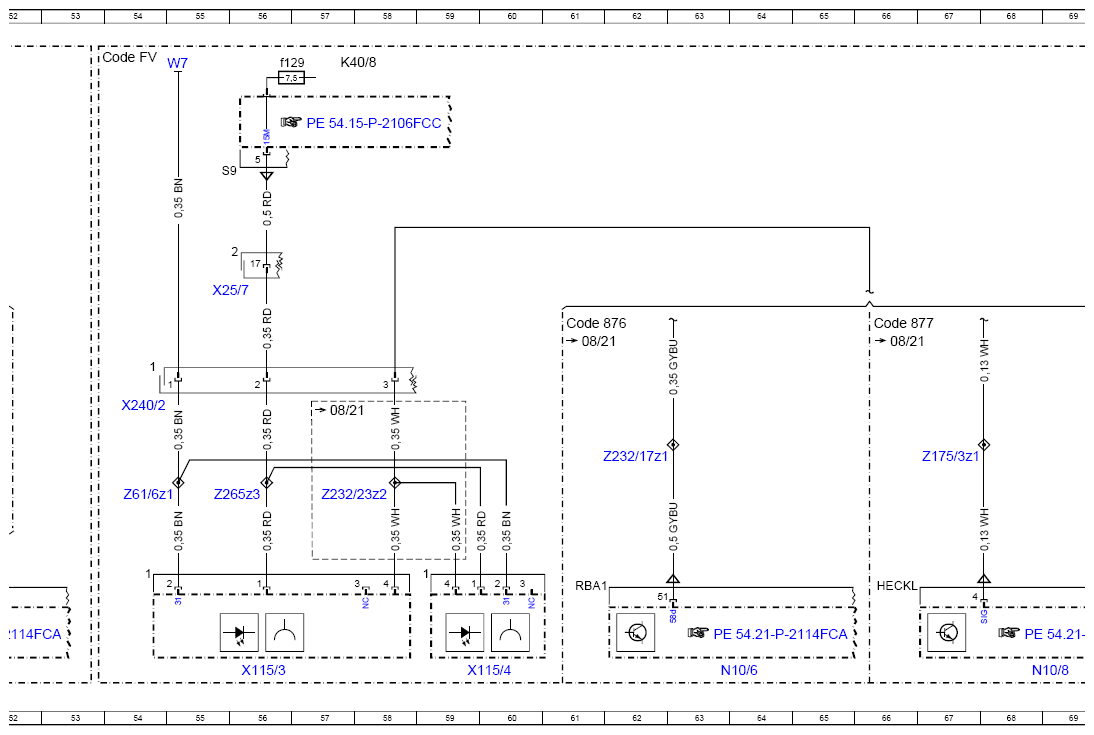

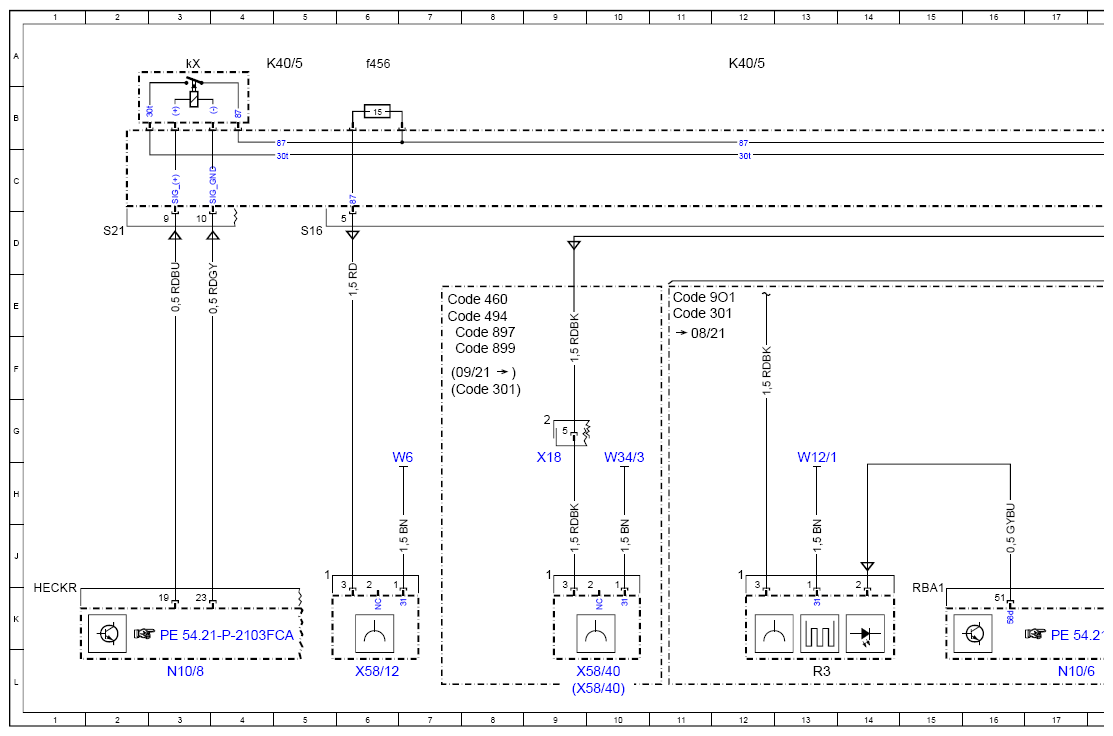

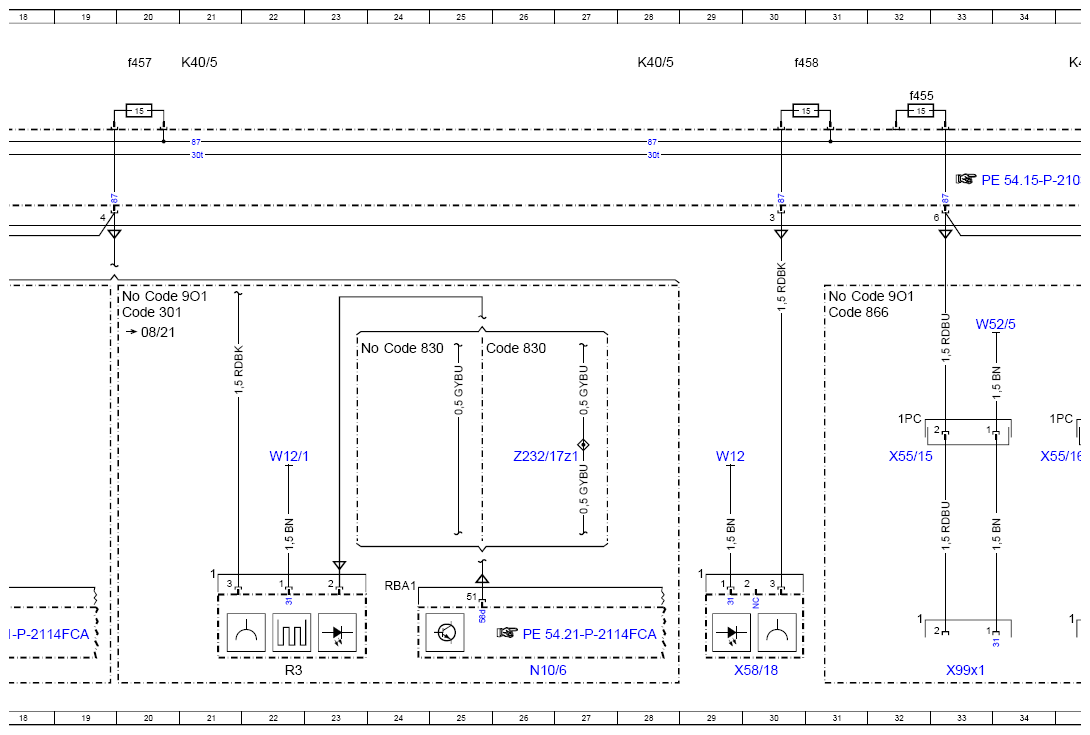

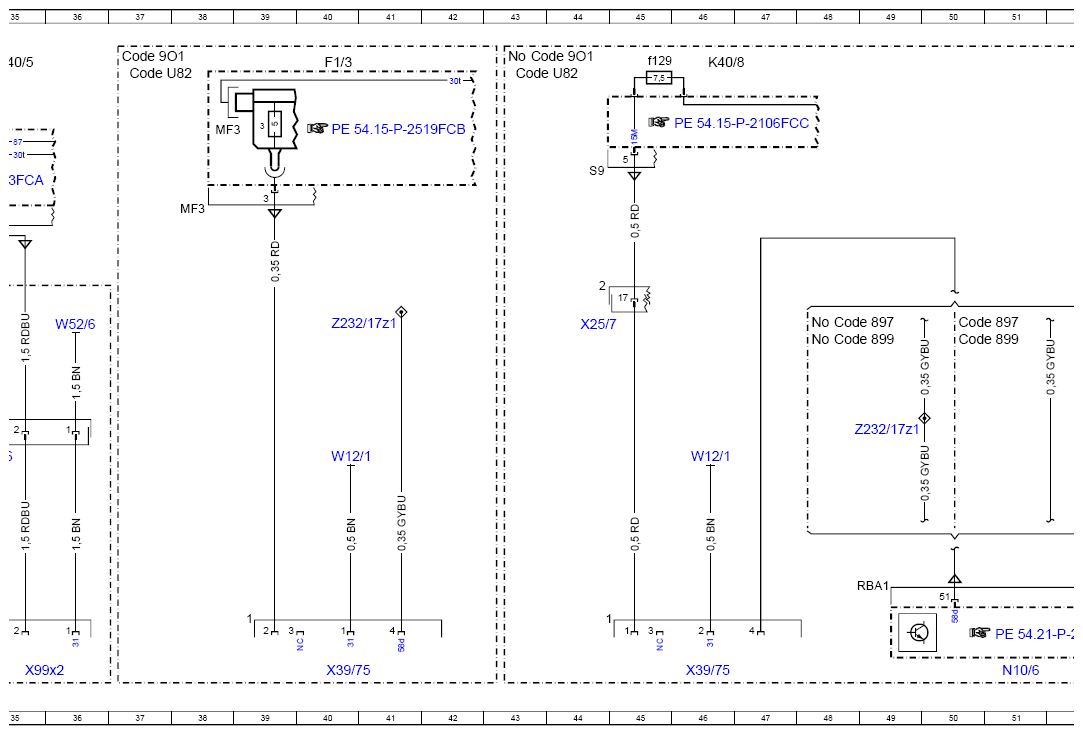

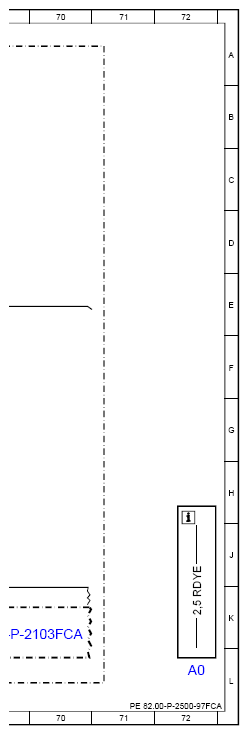

Wiring Diagram For Vehicle Interior Sockets - PE82.00-P-2500-97FCA
WARNING: This page is about a different car, the 2023 Mercedes-Benz GLC300, 2022 Mercedes-Benz GLC300, 2021 Mercedes-Benz GLC300, 2020 Mercedes-Benz GLC350e, and 2020 Mercedes-Benz GLC300. However, it is still accessible from the selected car via links, so may be relevant.
Model 253 (except 253.99) as of model year 2020
Model 253.99 as of model year 2019
with code 9O1 (Fuel cell pre-installation)
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Use of wiring diagrams | 72L |
| Code 301 | Smoker's package | 11E |
| Code 301 | Smoker's package | 20E |
| Code 301 | Smoker's package | 7F |
| Code 460 | Canada version | 7E |
| Code 494 | USA version | 7E |
| Code 830 | Additional parts for China vehicles | 24F |
| Code 830 | Additional parts for China vehicles | 25F |
| Code 866 | Rear entertainment preinstallation | 31E |
| Code 876 | Interior lights package | 61E |
| Code 877 | Ambiance illumination | 66E |
| Code 897 | Wireless mobile phone charging | 7F |
| Code 897 | Wireless mobile phone charging | 50E |
| Code 897 | Wireless mobile phone charging | 48E |
| Code 899 | Wireless phone charging at front and antenna | 7F |
| Code 899 | Wireless phone charging at front and antenna | 50F |
| Code 899 | Wireless phone charging at front and antenna | 48F |
| Code 9O1 | Fuel cell retrofitting | 11E |
| Code 9O1 | Fuel cell retrofitting | 20E |
| Code 9O1 | Fuel cell retrofitting | 31E |
| Code 9O1 | Fuel cell retrofitting | 37A |
| Code 9O1 | Fuel cell retrofitting | 43A |
| Code FV | LONG SEDAN | 53A |
| Code U82 | USB port in rear passenger compartment | 37A |
| Code U82 | USB port in rear passenger compartment | 43A |
| F1/3 | Passenger-side A-pillar fuse box | 40A |
| F1/3MF3 | Multiple fuse 3 | 38B |
| K40/5 | Rear fuse and relay module | 5A |
| K40/5 | Rear fuse and relay module | 12A |
| K40/5 | Rear fuse and relay module | 28A |
| K40/5 | Rear fuse and relay module | 21A |
| K40/5 | Rear fuse and relay module | 35A |
| K40/5f455 | Fuse 455 | 32B |
| K40/5f456 | Fuse 456 | 6A |
| K40/5f457 | Fuse 457 | 20A |
| K40/5f458 | Fuse 458 | 30A |
| K40/5kX | 1st seat row/trunk refrigerator box and power outlet relay | 3A |
| K40/8 | Engine fuse and relay module | 46A |
| K40/8 | Engine fuse and relay module | 57A |
| K40/8f129 | Fuse 129 | 45A |
| K40/8f129 | Fuse 129 | 56A |
| N10/6 | Front SAM control unit | 17L |
| N10/6 | Front SAM control unit | 26L |
| N10/6 | Front SAM control unit | 51L |
| N10/6 | Front SAM control unit | 64L |
| N10/8 | Rear SAM control unit | 3L |
| N10/8 | Rear SAM control unit | 68L |
| R3 | Front cigarette lighter with ashtray illumination | 13L |
| R3 | Front cigarette lighter with ashtray illumination | 22L |
| W12 | Ground point (center console) | 29H |
| W12/1 | Right center console ground point | 13H |
| W12/1 | Right center console ground point | 22H |
| W12/1 | Right center console ground point | 40H |
| W12/1 | Right center console ground point | 46H |
| W34/3 | Right footwell ground point | 10H |
| W52/5 | Left center longitudinal member ground point | 33E |
| W52/6 | Right center longitudinal member ground point | 36E |
| W6 | Left wheel arch trunk ground point | 7H |
| W7 | Right wheelhouse trunk ground point | 55A |
| X115/3 | Left rear passenger compartment USB port | 56L |
| X115/4 | Right rear passenger compartment USB port | 59L |
| X18 | Cockpit wiring harness and frame floor assembly electrical connector | 9H |
| X240/2 | 2nd seat row armrest electrical connector | 54G |
| X25/7 | Engine compartment/frame floor assembly electrical connector | 44E |
| X25/7 | Engine compartment/frame floor assembly electrical connector | 56E |
| X39/75 | Rear USB electrical connector | 40L |
| X39/75 | Rear USB electrical connector | 46L |
| X55/15 | Driver seat electrical connector | 32H |
| X55/16 | Front passenger seat electrical connector | 35H |
| X58/12 | Luggage compartment socket | 6L |
| X58/18 | Right rear center console 12V socket | 30L |
| X58/40 | Front passenger footwell socket | 10L |
| X58/40 | Front passenger footwell socket | 9L |
| X99x1 | Left tablet PC electrical connector | 33L |
| X99x2 | Right tablet PC electrical connector | 35L |
| Z175/3z1 | Voltage supply connector sleeve | 67G |
| Z232/17z1 | Center console ambiance illumination connector sleeve (yellow) | 41E |
| Z232/17z1 | Center console ambiance illumination connector sleeve (yellow) | 26G |
| Z232/17z1 | Center console ambiance illumination connector sleeve (yellow) | 49G |
| Z232/17z1 | Center console ambiance illumination connector sleeve (yellow) | 62G |
| Z232/23z2 | Ambient lighting footwell end sleeve | 58H |
| Z265z3 | Terminal 30t connector sleeve | 56H |
| Z61/6z1 | 2nd seat row ground connection end sleeve | 54H |
