Wiring Diagram Of Ambiance Illumination Control Unit - PE82.20-P-2101-97FCA
WARNING: This page is about a different car, the 2023 Mercedes-Benz GLC300, 2022 Mercedes-Benz GLC300, 2021 Mercedes-Benz GLC300, 2020 Mercedes-Benz GLC350e, and 2020 Mercedes-Benz GLC300. However, it is still accessible from the selected car via links, so may be relevant.
Model 253 (except 253.99) as of model year 2020
with code 877 (Ambient lighting)
Control unit N162
Model 253.99 as of model year 2019
with code 877 (Ambient lighting)
with code 9O1 (Fuel cell pre-installation)
Control unit N162
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Use of wiring diagrams | 113L |
| CAN B | Interior CAN | 19K |
| Code 9O1 | Fuel cell retrofitting | 6D |
| Code 9O1 | Fuel cell retrofitting | 11D |
| Code 9O1 | Fuel cell retrofitting | 54D |
| Code 9O1 | Fuel cell retrofitting | 54D |
| Code 9O1 | Fuel cell retrofitting | 67F |
| Code 9O1 | Fuel cell retrofitting | 67F |
| Code FV | LONG SEDAN | 48J |
| Code L | LEFT-HAND DRIVE | 16E |
| Code L | LEFT-HAND DRIVE | 43E |
| Code R | RIGHT-HAND DRIVE | 16F |
| Code R | RIGHT-HAND DRIVE | 43E |
| E17/43 | Left front door ambiance illumination | 24L |
| E17/44 | Right front door ambiance illumination | 30L |
| E17/45 | Left rear door ambiance illumination | 35L |
| E17/46 | Right rear door ambiance illumination | 41L |
| E17/55 | Left front door handle ambiance illumination | 24L |
| E17/56 | Right front door handle ambiance illumination | 30L |
| E17/57 | Left rear door handle ambiance illumination | 35L |
| E17/58 | Right rear door handle ambiance illumination | 41L |
| E20/18 | Front center console cup holder ambiance illumination | 74L |
| E43/29 | Left rear center console ambiance illumination | 49L |
| E43/30 | Right rear center console ambiance illumination | 49L |

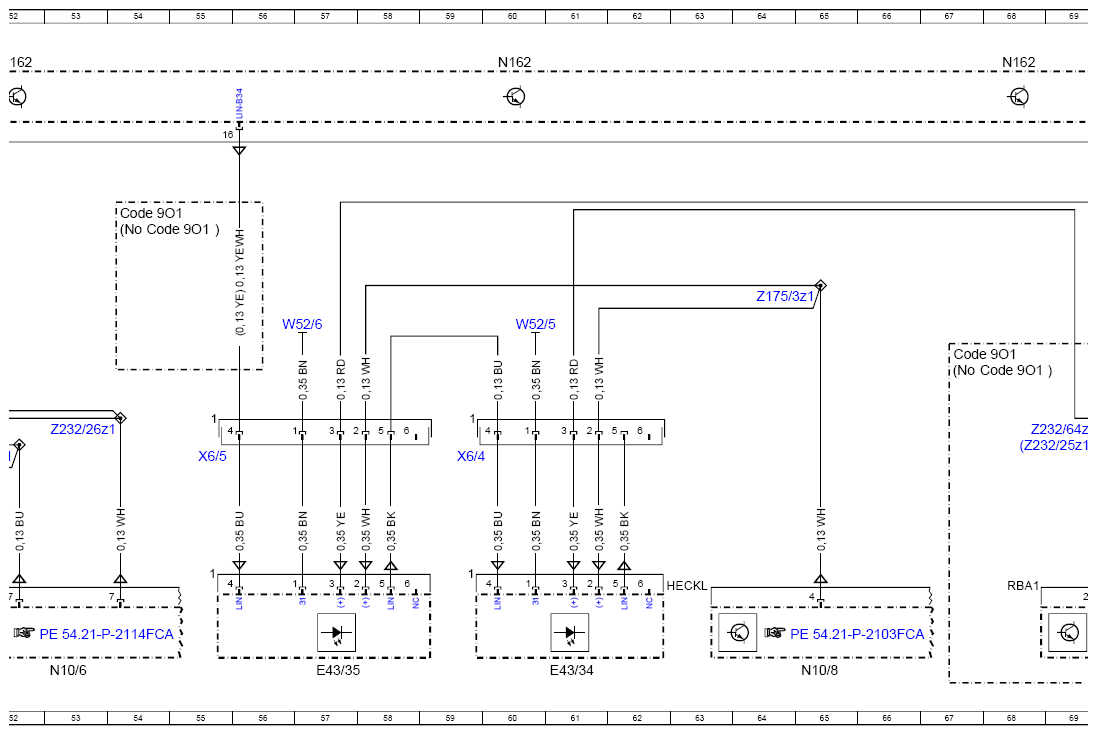

| E43/34 | Left rear footwell illumination ambiance illumination (LED) | 61L |
| E43/35 | Right rear footwell illumination ambiance illumination (LED) | 57L |

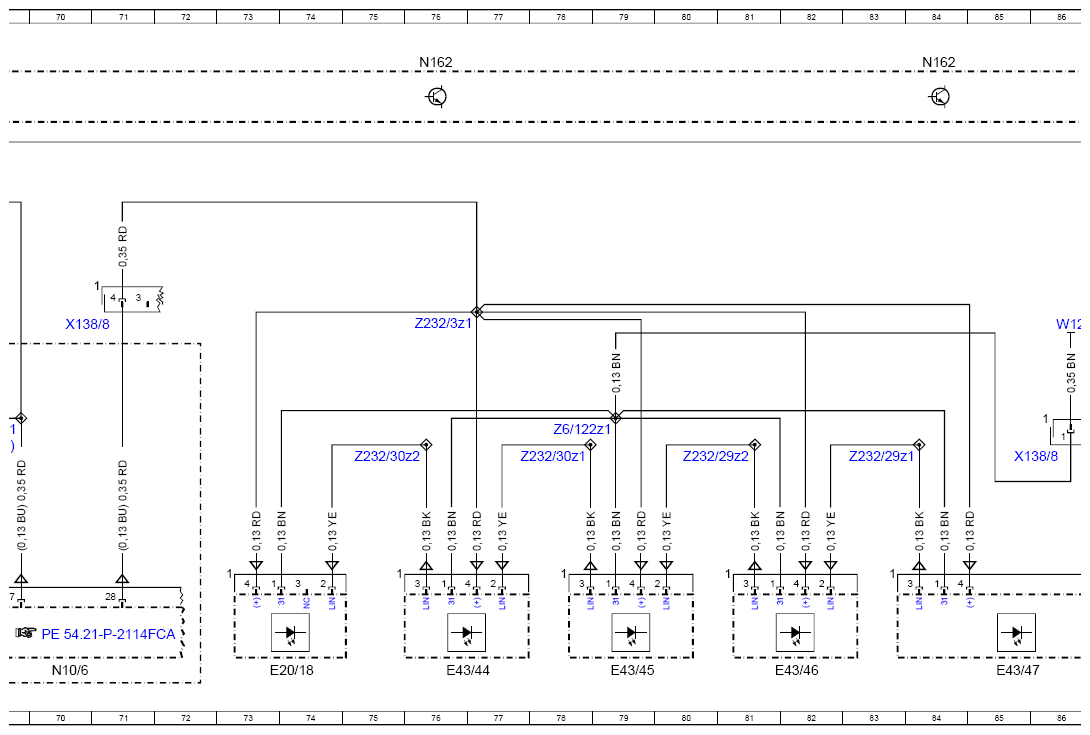

| E43/44 | Left upper center console trim plate ambiance illumination (LED) | 76L |
| E43/45 | Right upper center console trim plate ambiance illumination (LED) | 79L |
| E43/46 | Lower left center console ambient lighting | 82L |
| E43/47 | Lower right center console ambient lighting | 85L |

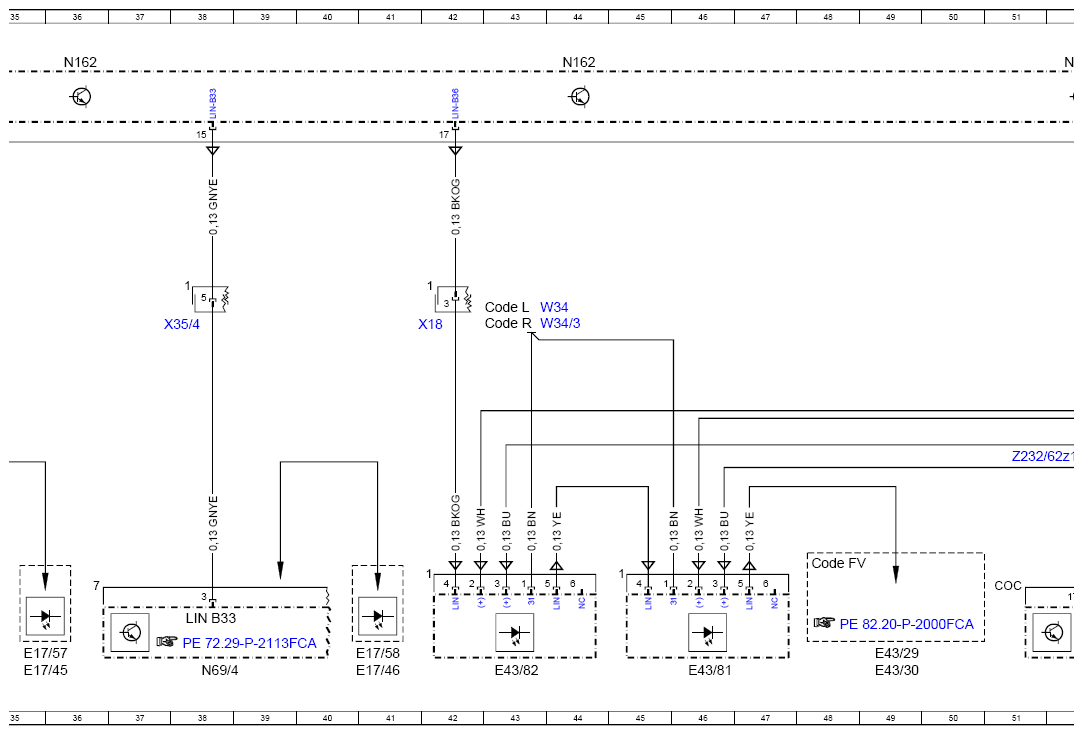

| E43/81 | Left front footwell ambiance illumination | 46L |
| E43/82 | Right front footwell ambiance illumination | 43L |

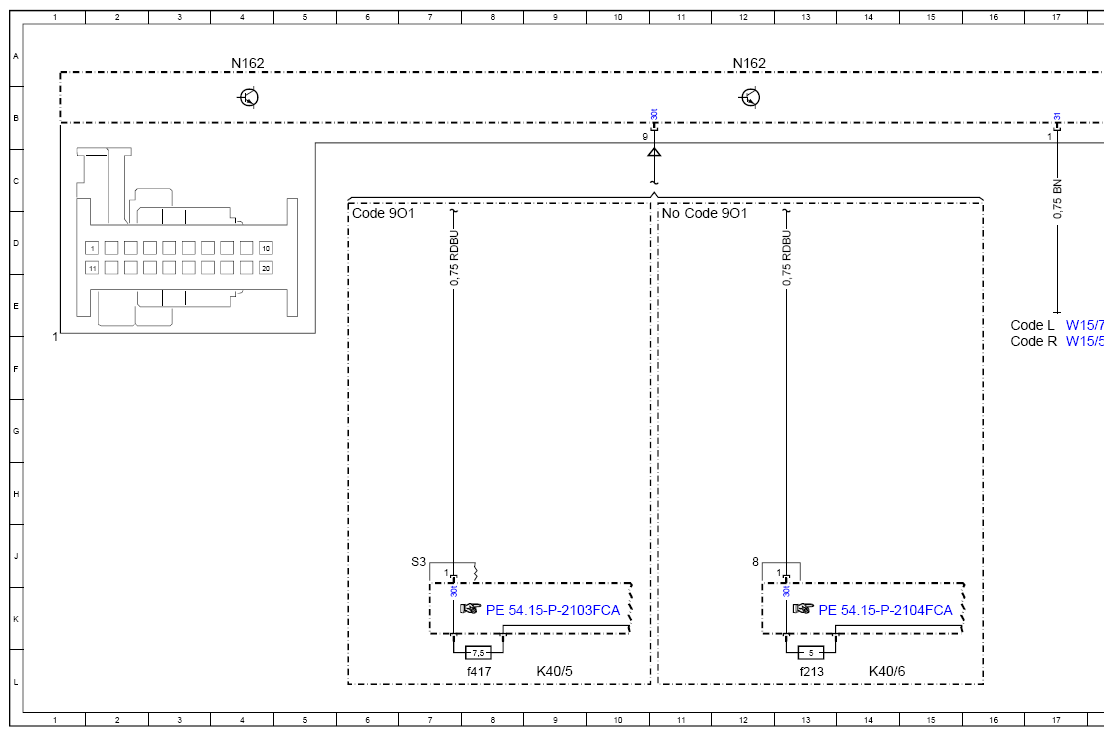

| K40/5 | Rear fuse and relay module | 9L |
| K40/5f417 | Fuse 417 | 8L |
| K40/6 | Driver-side fuse and relay module | 14L |
| K40/6f213 | Fuse 213 | 13L |

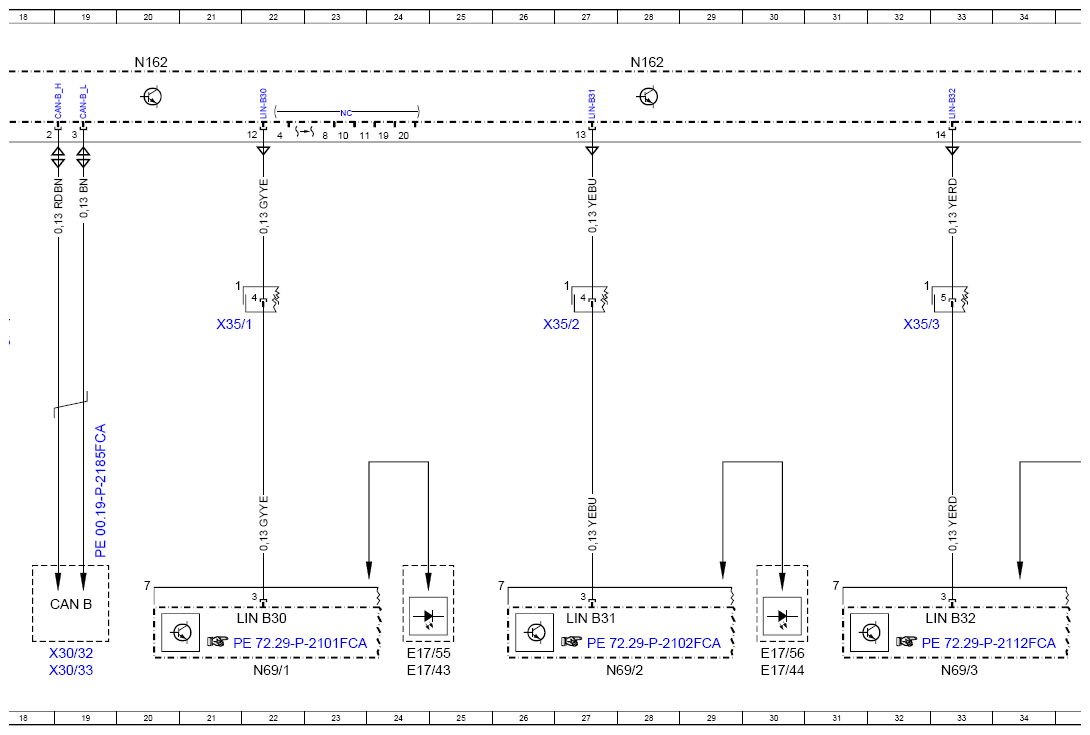

| LIN B30 | Left front door ambiance illumination LIN | 22K |
| LIN B31 | Right front door ambiance illumination LIN | 27K |
| LIN B32 | Left rear door ambiance illumination LIN | 33K |
| LIN B33 | Right rear door ambiance illumination LIN | 38K |
| N10/6 | Front SAM control unit | 53L |
| N10/6 | Front SAM control unit | 70L |
| N10/8 | Rear SAM control unit | 65L |

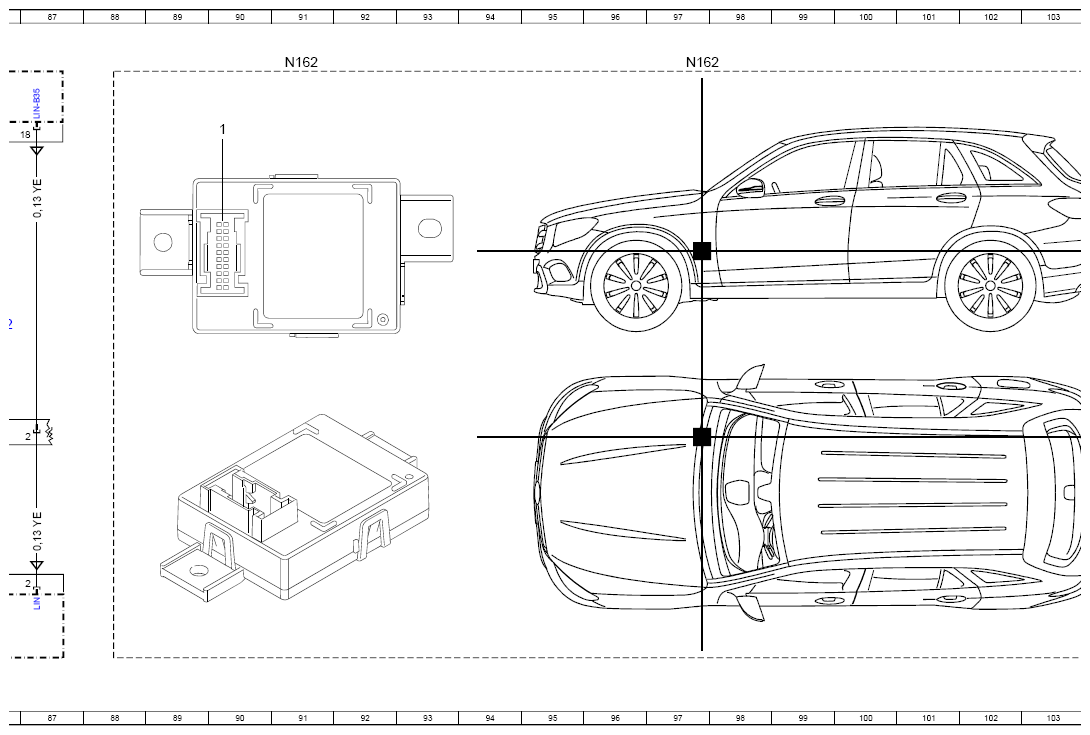

| N162 | Ambiance illumination control unit | 4A |
| N162 | Ambiance illumination control unit | 12A |
| N162 | Ambiance illumination control unit | 20A |
| N162 | Ambiance illumination control unit | 28A |
| N162 | Ambiance illumination control unit | 36A |
| N162 | Ambiance illumination control unit | 44A |
| N162 | Ambiance illumination control unit | 52A |
| N162 | Ambiance illumination control unit | 60A |
| N162 | Ambiance illumination control unit | 68A |
| N162 | Ambiance illumination control unit | 84A |
| N162 | Ambiance illumination control unit | 76A |
| N162 | Ambiance illumination control unit | 91A |
| N162 | Ambiance illumination control unit | 97A |
| N69/1 | Left front door control unit | 22L |
| N69/2 | Right front door control unit | 27L |
| N69/3 | Left rear door control unit | 33L |
| N69/4 | Right rear door control unit | 38L |
| W12 | Ground point (center console) | 86E |
| W15/5 | Left front footwell ground point | 17F |
| W15/7 | Right front footwell ground point | 17E |
| W34 | Left footwell ground point | 43E |
| W34/3 | Right footwell ground point | 43E |
| W52/5 | Left center longitudinal member ground point | 60E |
| W52/6 | Right center longitudinal member ground point | 56E |
| X138/8 | Upper center console trim plate electrical connector | 86H |
| X138/8 | Upper center console trim plate electrical connector | 70E |
| X18 | Cockpit wiring harness and frame floor assembly electrical connector | 42E |
| X30/32 | Left interior CAN (CAN B) potential distributor electrical connector | 19L |
| X30/33 | Right interior CAN (CAN B) potential distributor electrical connector | 19L |
| X35/1 | Driver door electrical connector | 21E |
| X35/2 | Front passenger door electrical connector | 27E |
| X35/3 | Left rear door electrical connector | 32E |
| X35/4 | Right rear door electrical connector | 38E |
| X6/4 | Driver footwell lamp electrical connector | 59H |
| X6/5 | Front passenger footwell lamp electrical connector | 55H |
| Z175/3z1 | Footwell illumination connector sleeve, vehicle interior | 64E |
| Z232/25z1 | Ambiance illumination footwell connector sleeve (blue) | 69G |
| Z232/26z1 | Cockpit ambiance illumination connector sleeve (warm/white) | 53G |
| Z232/29z1 | Ambient lighting LIN end sleeve | 83G |
| Z232/29z2 | Ambient lighting LIN end sleeve | 80G |
| Z232/30z1 | Ambient lighting LIN end sleeve | 78G |
| Z232/30z2 | Ambient lighting LIN end sleeve | 75G |
| Z232/3z1 | Center console ambiance illumination connector sleeve (LED/k2) | 76E |
| Z232/62z1 | Cockpit ambiance illumination power supply 1 connector sleeve | 51G |
| Z232/64z1 | Voltage supply connector sleeve | 69G |
| Z6/122z1 | Center console ground point connector sleeve | 78G |
