Wiring Diagram Interior Illumination - PE82.20-P-2000-97FCA
WARNING: This page is about a different car, the 2023 Mercedes-Benz GLC300, 2022 Mercedes-Benz GLC300, 2021 Mercedes-Benz GLC300, 2020 Mercedes-Benz GLC350e, and 2020 Mercedes-Benz GLC300. However, it is still accessible from the selected car via links, so may be relevant.
Model 253 (except 253.99) as of model year 2020
Model 253.99 as of model year 2019
with code 9O1 (Fuel cell pre-installation)
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Use of wiring diagrams | 72L |
| Code 876 | Interior lights package | 9D |
| Code 876 | Interior lights package | 13D |
| Code 876 | Interior lights package | 19D |
| Code 876 | Interior lights package | 52D |
| Code 876 | Interior lights package | 55D |
| Code 877 | Ambiance illumination | 13D |
| Code 877 | Ambiance illumination | 19D |
| Code 877 | Ambiance illumination | 52D |
| Code 877 | Ambiance illumination | 55D |
| Code FC | COUPE | 1D |
| Code FV | LONG SEDAN | 5D |
| Code FV | LONG SEDAN | 33D |
| Code FV | LONG SEDAN | 55D |
| Code FX | SPORT-UTILITY-VEHICLE | 1D |
| Code L | LEFT-HAND DRIVE | 28G |
| Code R | RIGHT-HAND DRIVE | 28G |
| Code U25 | Illuminated door sills | 1D |
| Code U25 | Illuminated door sills | 5D |

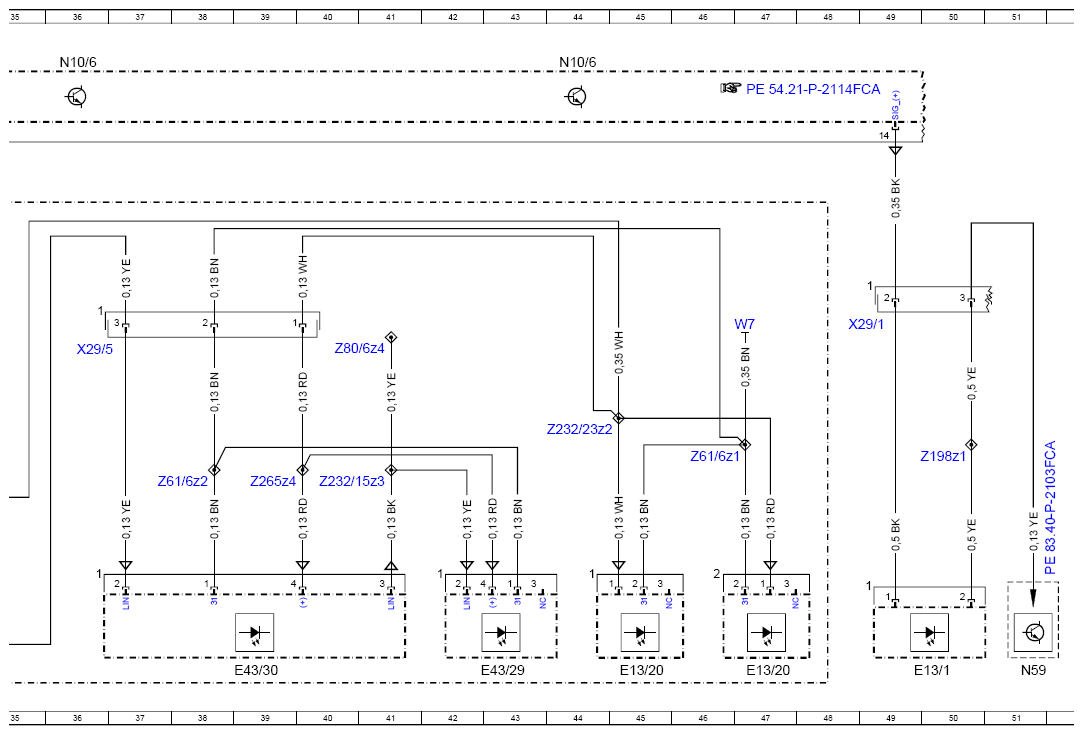

| E13/1 | Glove box lamp | 50L |
| E13/20 | Left rear center console illumination | 45L |
| E13/20 | Left rear center console illumination | 47L |
| E13/3 | Stowage compartment illumination | 21L |
| E17/17 | Left rear footwell lamp | 57L |
| E17/18 | Right rear footwell lamp | 60L |

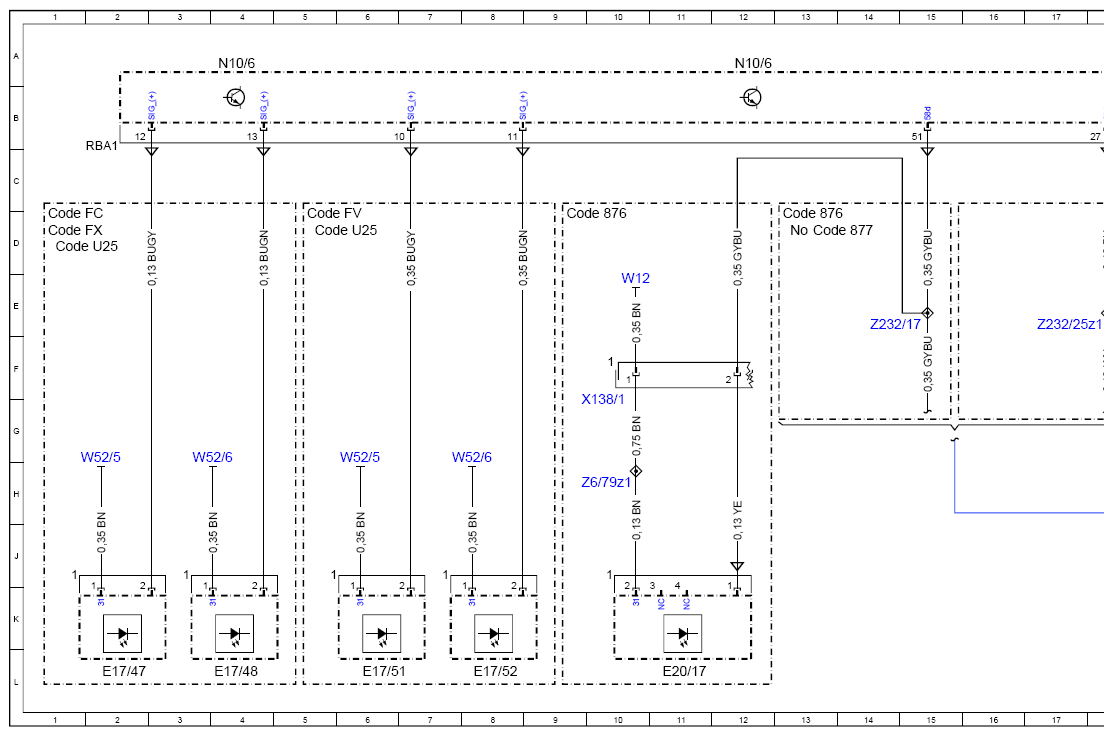

| E17/47 | Left front illuminated door sill molding | 2L |
| E17/48 | Right front illuminated door sill molding | 4L |
| E17/51 | Left rear illuminated door sill molding | 6L |
| E17/52 | Right rear illuminated door sill molding | 8L |

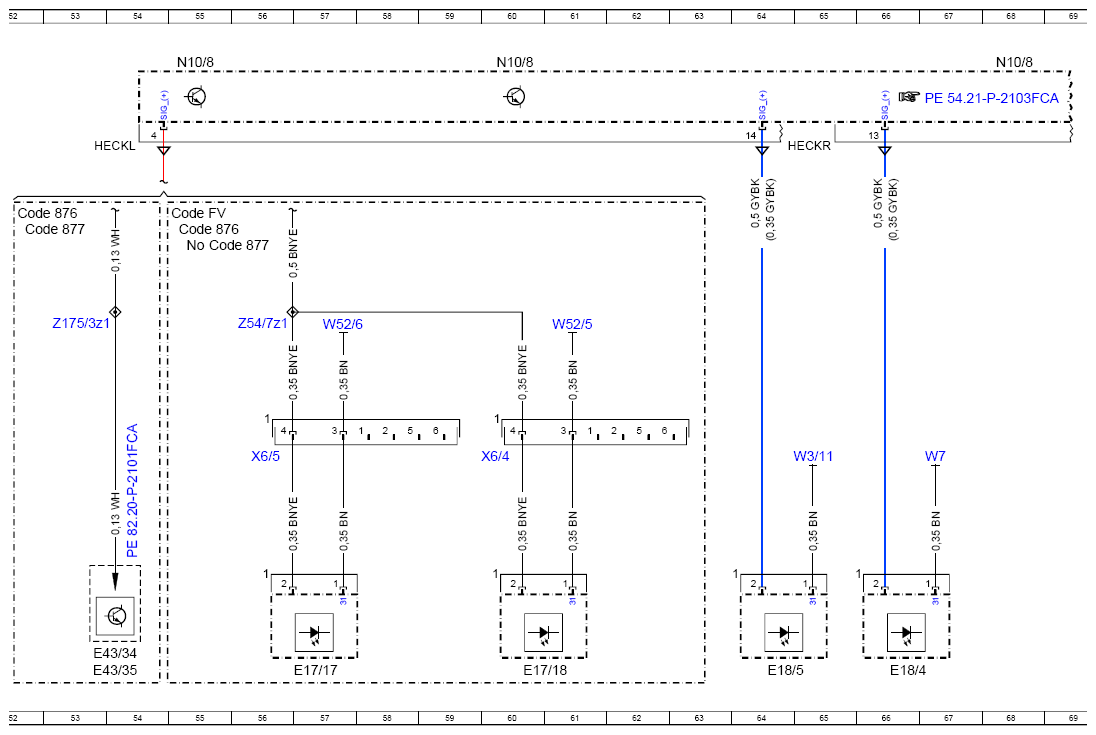

| E18/4 | Right luggage compartment lamp | 66L |
| E18/5 | Left luggage compartment lamp | 64L |
| E20/17 | Center console cup holder illumination | 11L |
| E43/29 | Left rear center console ambiance illumination | 43L |
| E43/30 | Right rear center console ambiance illumination | 39L |
| E43/34 | Left rear footwell illumination ambiance illumination (LED) | 53L |
| E43/35 | Right rear footwell illumination ambiance illumination (LED) | 53L |
| E43/81 | Left front footwell ambiance illumination | 31L |
| E43/82 | Right front footwell ambiance illumination | 28L |
| N10/6 | Front SAM control unit | 4A |
| N10/6 | Front SAM control unit | 12A |
| N10/6 | Front SAM control unit | 20A |
| N10/6 | Front SAM control unit | 28A |
| N10/6 | Front SAM control unit | 36A |
| N10/6 | Front SAM control unit | 44A |
| N10/8 | Rear SAM control unit | 60A |
| N10/8 | Rear SAM control unit | 55A |
| N10/8 | Rear SAM control unit | 68A |

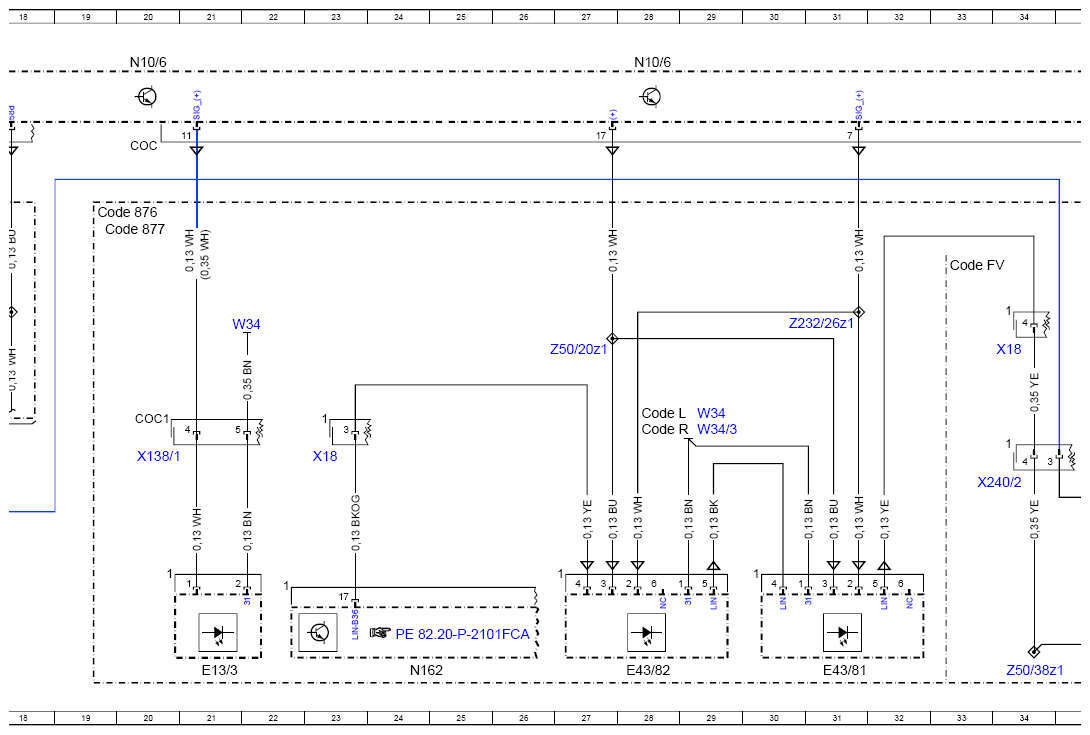

| N162 | Ambiance illumination control unit | 24L |
| N59 | Perfume atomizer generator | 51L |
| W12 | Ground point (center console) | 10E |
| W3/11 | Left rear wheel well ground point | 65H |
| W34 | Left footwell ground point | 29G |
| W34 | Left footwell ground point | 21E |
| W34/3 | Right footwell ground point | 29G |
| W52/5 | Left center longitudinal member ground point | 2H |
| W52/5 | Left center longitudinal member ground point | 6H |
| W52/5 | Left center longitudinal member ground point | 61E |
| W52/6 | Right center longitudinal member ground point | 3H |
| W52/6 | Right center longitudinal member ground point | 8H |
| W52/6 | Right center longitudinal member ground point | 57E |
| W7 | Right wheelhouse trunk ground point | 67H |
| W7 | Right wheelhouse trunk ground point | 47E |
| X138/1 | Front center console electrical connector | 10G |
| X138/1 | Front center console electrical connector | 20H |
| X18 | Cockpit wiring harness and frame floor assembly electrical connector | 23H |
| X18 | Cockpit wiring harness and frame floor assembly electrical connector | 34F |
| X240/2 | 2nd seat row armrest electrical connector | 34H |
| X29/1 | Glove compartment electrical connector | 49E |
| X29/5 | Armrest stowage compartment interior illumination electrical connector | 36F |
| X6/4 | Driver footwell lamp electrical connector | 60H |
| X6/5 | Front passenger footwell lamp electrical connector | 56H |
| Z175/3z1 | Voltage supply connector sleeve | 53E |
| Z198z1 | Signal line connector sleeve (varying potential) | 50G |
| Z232/15z3 | Left rear door connector sleeve for trim piece ambiance illumination (red) | 40H |
| Z232/17 | Ambiance illumination connector sleeve | 14E |
| Z232/23z2 | Ambient lighting footwell end sleeve | 44G |
| Z232/25z1 | Ambiance illumination footwell connector sleeve (blue) | 17E |
| Z232/26z1 | Cockpit ambiance illumination connector sleeve (warm/white) | 31E |
| Z265z4 | Terminal 30t connector sleeve | 39H |
| Z50/20z1 | Cockpit connector sleeve, footwell lighting | 27F |
| Z50/38z1 | Instrument panel LIN connector sleeve | 34L |
| Z54/7z1 | Footwell illumination connector sleeve | 56E |
| Z6/79z1 | Circuit 31 connector sleeve | 10H |
| Z61/6z1 | 2nd seat row ground connection end sleeve | 46G |
| Z61/6z2 | 2nd seat row ground connection end sleeve | 38H |
| Z80/6z4 | LIN B37 end sleeve | 41F |
