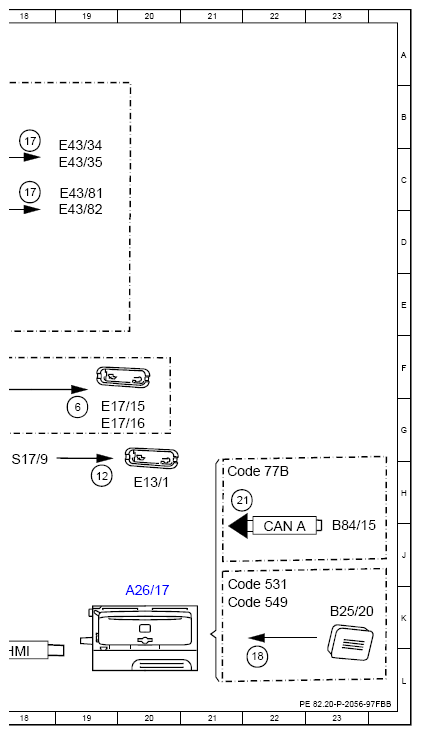

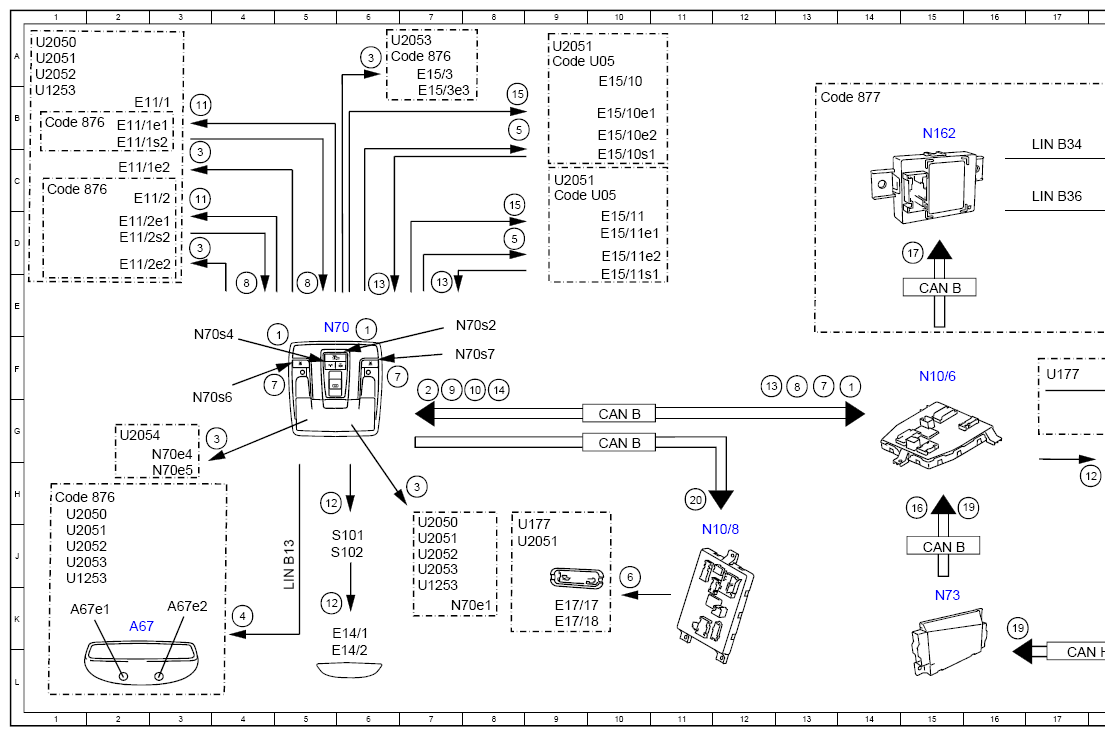

Electrical Function Schematic For Manual Interior Lights Control - PE82.20-P-2056-97FBB
WARNING: This page is about a different car, the 2023 Mercedes-Benz GLC300, 2022 Mercedes-Benz GLC300, 2021 Mercedes-Benz GLC300, 2020 Mercedes-Benz GLC350e, and 2020 Mercedes-Benz GLC300. However, it is still accessible from the selected car via links, so may be relevant.
Model 205 as of model year 2019
Model 253 (except 253.99) as of model year 2020
Model 253.99
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Dome lamp button, status | 14F |
| 1 | Dome lamp button, status | 5F |
| 1 | Dome lamp button, status | 6E |
| 10 | Rear passenger compartment reading lamp, request | 8G |
| 11 | Rear reading lamp, actuation | 3B |
| 11 | Rear reading lamp, actuation | 3C |
| 12 | Power supply, status ON | 17H |
| 12 | Power supply, status ON | 5H |
| 12 | Power supply, status ON | 19H |
| 12 | Power supply, status ON | 5K |
| 13 | Rear passenger compartment vanity mirror illumination switch, status | 6E |
| 13 | Rear passenger compartment vanity mirror illumination switch, status | 7E |
| 13 | Rear passenger compartment vanity mirror illumination switch, status | 12G |
| 14 | Rear passenger compartment vanity mirror illumination, request | 8G |
| 15 | Rear passenger compartment vanity mirror illumination, actuation | 8B |
| 15 | Rear passenger compartment vanity mirror illumination, actuation | 8D |
| 16 | Circuit 15, status | 15H |
| 17 | Ambience illumination, request | 15D |
| 17 | Ambience illumination, request | 18B |
| 18 | Voice input, signal | 22L |
| 19 | Operation, signal | 16K |
| 19 | Operation, signal | 15H |
| 2 | Interior lamp, request | 7F |
| 20 | Footwell lamp request | 11H |
| 21 | Hand-detection sensor, signal | 22H |
| 3 | Interior lamp, actuation | 7H |
| 3 | Interior lamp, actuation | 3D |
| 3 | Interior lamp, actuation | 3C |
| 3 | Interior lamp, actuation | 4G |
| 3 | Interior lamp, actuation | 6A |
| 4 | Front reading lamp, actuation | 4K |
| 5 | Rear passenger compartment vanity mirror dome lamp, actuation | 8B |
| 5 | Rear passenger compartment vanity mirror dome lamp, actuation | 8D |
| 6 | Footwell lamp, actuation | 19G |
| 6 | Footwell lamp, actuation | 10J |
| 7 | Front reading lamp button, status | 5F |
| 7 | Front reading lamp button, status | 6F |
| 7 | Front reading lamp button, status | 13G |
| 8 | Rear passenger compartment reading lamp button, status | 4E |
| 8 | Rear passenger compartment reading lamp button, status | 5E |
| 8 | Rear passenger compartment reading lamp button, status | 13G |
| 9 | Front reading lamp, request | 7G |
| A26/17 | Head unit | 20K |
| A67 | Inside rearview mirror | 2K |
| A67e1 | Left reading lamp | 1K |
| A67e2 | Right reading lamp | 3K |
| B25/20 | Driver hands-free system microphone | 23K |
| B84/15 | Hand motion sensor | 23J |
| CAN A | Telematics CAN | 22J |
| CAN B | Interior CAN | 15J |
| CAN B | Interior CAN | 10G |
| CAN B | Interior CAN | 15E |
| CAN B | Interior CAN | 10G |
| CAN HMI | User interface CAN | 17L |
| Code 531 | COMAND APS | 21K |
| Code 549 | Connect 20 HIGH (NTG6) | 21K |
| Code 77B | Contact less gesture control at front | 21H |
| Code 876 | Interior lights package | 1B |
| Code 876 | Interior lights package | 1C |
| Code 876 | Interior lights package | 1H |
| Code 876 | Interior lights package | 6A |
| Code 877 | Ambiance illumination | 13B |
| Code U05 | Make-up mirror in rear passenger compartment | 9C |
| Code U05 | Make-up mirror in rear passenger compartment | 9A |
| E11/1 | Left rear dome lamp | 2B |
| E11/1e1 | Left rear reading lamp | 2B |
| E11/1e2 | Left rear interior lamp | 2C |
| E11/1s2 | Left rear reading lamp button | 2B |
| E11/2 | Right rear dome lamp | 2C |
| E11/2e1 | Right rear reading lamp | 2D |
| E11/2e2 | Right rear interior lamp | 2D |
| E11/2s2 | Right rear reading lamp button | 2D |
| E13/1 | Glove box lamp | 20H |
| E14/1 | Left sun visor mirror lamp | 6K |
| E14/2 | Right sun visor mirror lamp | 6L |
| E15/10 | Left rear vanity mirror unit | 10A |
| E15/10e1 | Left rear vanity mirror illumination | 10B |
| E15/10e2 | Left rear vanity mirror dome lamp | 10B |
| E15/10s1 | Left rear vanity mirror illumination switch | 10C |
| E15/11 | Right rear vanity mirror unit | 10D |
| E15/11e1 | Right rear vanity mirror illumination | 10D |
| E15/11e2 | Right rear vanity mirror dome lamp | 10D |
| E15/11s1 | Right rear vanity mirror illumination switch | 10E |
| E15/3 | Rear dome lamp | 7A |
| E15/3e3 | Rear interior lamp | 7B |
| E17/15 | Right front footwell lamp | 19G |
| E17/16 | Left front footwell lamp | 19G |
| E17/17 | Left rear footwell lamp | 9K |
| E17/18 | Right rear footwell lamp | 9K |
| E43/34 | Left rear footwell illumination ambiance illumination (LED) | 19C |
| E43/35 | Right rear footwell illumination ambiance illumination (LED) | 19C |
| E43/81 | Left front footwell ambiance illumination | 19C |
| E43/82 | Right front footwell ambiance illumination | 19D |
| LIN B13 | Roof LIN | 5J |
| LIN B34 | Cockpit ambiance illumination LIN | 17B |
| LIN B36 | Roof ambiance illumination LIN | 17C |
| N10/6 | Front SAM control unit | 15F |
| N10/8 | Rear SAM control unit | 11J |
| N162 | Ambiance illumination control unit | 15B |
| N70 | Overhead control panel control unit | 5E |
| N70e1 | Front dome lamp | 7K |
| N70e4 | Left interior/reading lamp | 3G |
| N70e5 | Right interior/reading lamp | 3H |
| N70s2 | Rear dome lamp button | 8E |
| N70s4 | Front dome lamp button | 3F |
| N70s6 | Left front reading lamp button | 3G |
| N70s7 | Right front reading lamp button | 8F |
| N73 | Electronic ignition switch control unit | 15K |
| S101 | Left front mirror lamp switch | 6J |
| S102 | Right front mirror lamp switch | 6J |
| S17/9 | Glove box lamp switch | 18H |
| U1253 | Valid for model 253 | 1J |
| U1253 | Valid for model 253 | 1B |
| U1253 | Valid for model 253 | 7K |
| U177 | Not valid for ambiance illumination | 17F |
| U177 | Not valid for ambiance illumination | 8J |
| U2050 | Valid for model 205.0 | 1H |
| U2050 | Valid for model 205.0 | 1A |
| U2050 | Valid for model 205.0 | 7J |
| U2051 | Valid for model 205.1 | 9C |
| U2051 | Valid for model 205.1 | 9A |
| U2051 | Valid for model 205.1 | 1J |
| U2051 | Valid for model 205.1 | 1A |
| U2051 | Valid for model 205.1 | 8J |
| U2051 | Valid for model 205.1 | 7J |
| U2052 | Valid for model 205.2 | 1J |
| U2052 | Valid for model 205.2 | 1A |
| U2052 | Valid for model 205.2 | 7J |
| U2053 | Valid for model 205.3 | 1J |
| U2053 | Valid for model 205.3 | 6A |
| U2053 | Valid for model 205.3 | 7J |
| U2054 | Valid for model 205.4 | 2G |
