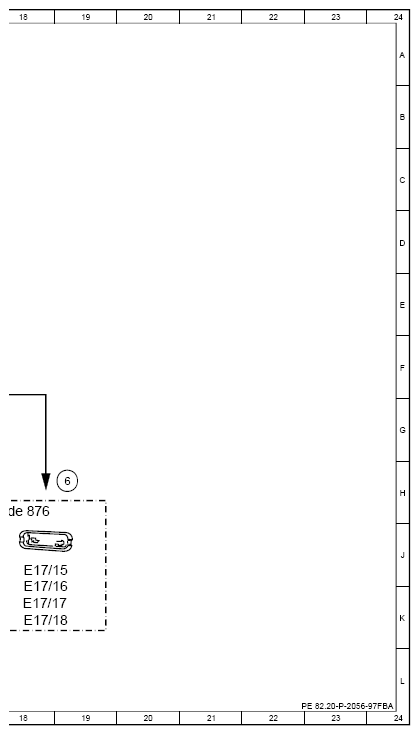

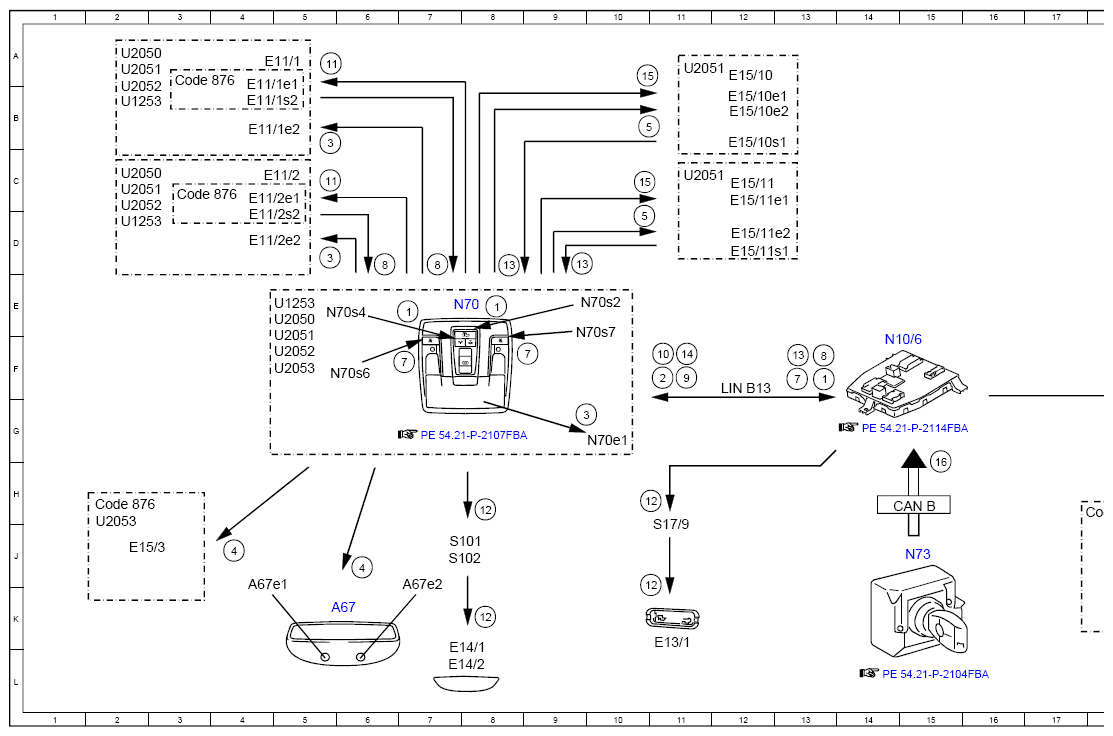

Electrical Function Schematic For Manual Interior Lights Control - PE82.20-P-2056-97FBA
WARNING: This page is about a different car, the 2023 Mercedes-Benz GLC300, 2022 Mercedes-Benz GLC300, 2021 Mercedes-Benz GLC300, 2020 Mercedes-Benz GLC350e, and 2020 Mercedes-Benz GLC300. However, it is still accessible from the selected car via links, so may be relevant.
Model 205 up to model year 2019
Model 253 (except 253.99) up to model year 2020
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Dome lamp button, status | 13F |
| 1 | Dome lamp button, status | 7E |
| 1 | Dome lamp button, status | 8E |
| 1 | Dome lamp button, status | 13E |
| 10 | Rear passenger compartment reading lamp, request | 11F |
| 11 | Rear reading lamp, actuation | 5A |
| 11 | Rear reading lamp, actuation | 5C |
| 12 | Power supply, status ON | 10H |
| 12 | Power supply, status ON | 8H |
| 12 | Power supply, status ON | 10K |
| 12 | Power supply, status ON | 8K |
| 13 | Rear passenger compartment vanity mirror illumination switch, status | 8D |
| 13 | Rear passenger compartment vanity mirror illumination switch, status | 9D |
| 13 | Rear passenger compartment vanity mirror illumination switch, status | 13F |
| 14 | Rear passenger compartment vanity mirror illumination, request | 11F |
| 15 | Rear passenger compartment vanity mirror illumination, actuation | 10B |
| 15 | Rear passenger compartment vanity mirror illumination, actuation | 10C |
| 16 | Circuit 15, status | 15H |
| 2 | Interior lamp, request | 11F |
| 3 | Interior lamp, actuation | 9G |
| 3 | Interior lamp, actuation | 5D |
| 3 | Interior lamp, actuation | 5B |
| 3 | Interior lamp, actuation | - |
| 3 | Interior lamp, actuation | - |
| 3 | Interior lamp, actuation | - |
| 4 | Front reading lamp, actuation | 6J |
| 5 | Rear passenger compartment vanity mirror dome lamp, actuation | - |
| 5 | Rear passenger compartment vanity mirror dome lamp, actuation | - |
| 6 | Footwell lamp, actuation | 19H |
| 7 | Front reading lamp button, status | 7F |
| 7 | Front reading lamp button, status | 9F |
| 7 | Front reading lamp button, status | 13G |
| 7 | Front reading lamp button, status | - |
| 7 | Front reading lamp button, status | - |
| 8 | Rear passenger compartment reading lamp button, status | 6D |
| 8 | Rear passenger compartment reading lamp button, status | 7D |
| 8 | Rear passenger compartment reading lamp button, status | 13F |
| 9 | Front reading lamp, request | - |
| A67 | Inside rearview mirror | 5K |
| A67e1 | Left reading lamp | 4K |
| A67e2 | Right reading lamp | 7K |
| CAN B | Interior CAN | 15H |
| Code 876 | Interior lights package | 3A |
| Code 876 | Interior lights package | 17H |
| Code 876 | Interior lights package | 3C |
| Code 876 | Interior lights package | 2H |
| E11/1 | Left rear dome lamp | 4A |
| E11/1e1 | Left rear reading lamp | 4B |
| E11/1e2 | Left rear interior lamp | 4B |
| E11/1s2 | Left rear reading lamp button | 4B |
| E11/2 | Right rear dome lamp | 4C |
| E11/2e1 | Right rear reading lamp | 4C |
| E11/2e2 | Right rear interior lamp | 4D |
| E11/2s2 | Right rear reading lamp button | 4D |
| E13/1 | Glove box lamp | 11K |
| E14/1 | Left sun visor mirror lamp | 7L |
| E14/2 | Right sun visor mirror lamp | 7L |
| E15/10 | Left rear vanity mirror unit | 12A |
| E15/10e1 | Left rear vanity mirror illumination | 12B |
| E15/10e2 | Left rear vanity mirror dome lamp | 12B |
| E15/10s1 | Left rear vanity mirror illumination switch | 12B |
| E15/11 | Right rear vanity mirror unit | 12C |
| E15/11e1 | Right rear vanity mirror illumination | 12C |
| E15/11e2 | Right rear vanity mirror dome lamp | 12D |
| E15/11s1 | Right rear vanity mirror illumination switch | 12D |
| E15/3 | Rear dome lamp | 2J |
| E17/15 | Right front footwell lamp | 18J |
| E17/16 | Left front footwell lamp | 18K |
| E17/17 | Left rear footwell lamp | 18K |
| E17/18 | Right rear footwell lamp | 18K |
| LIN B13 | Roof LIN | 12F |
| N10/6 | Front SAM control unit | 14F |
| N70 | Overhead control panel control unit | 7E |
| N70 | Overhead control panel control unit | - |
| N70e1 | Front dome lamp | 10G |
| N70e4 | Left interior/reading lamp | - |
| N70e5 | Right interior/reading lamp | - |
| N70s2 | Rear dome lamp button | 10E |
| N70s4 | Front dome lamp button | 6E |
| N70s4 | Front dome lamp button | - |
| N70s6 | Left front reading lamp button | 6F |
| N70s6 | Left front reading lamp button | - |
| N70s7 | Right front reading lamp button | 10F |
| N70s7 | Right front reading lamp button | - |
| N73 | Electronic ignition switch control unit | 15J |
| S101 | Left front mirror lamp switch | 7J |
| S102 | Right front mirror lamp switch | 7J |
| S17/9 | Glove box lamp switch | 11J |
| U1253 | Valid for model 253 | 2B |
| U1253 | Valid for model 253 | 2D |
| U1253 | Valid for model 253 | 5E |
| U2050 | Valid for model 205.0 | 2A |
| U2050 | Valid for model 205.0 | 2C |
| U2050 | Valid for model 205.0 | 5E |
| U2051 | Valid for model 205.1 | 11C |
| U2051 | Valid for model 205.1 | 11A |
| U2051 | Valid for model 205.1 | 2A |
| U2051 | Valid for model 205.1 | 2C |
| U2051 | Valid for model 205.1 | 5F |
| U2052 | Valid for model 205.2 | 2B |
| U2052 | Valid for model 205.2 | 2C |
| U2052 | Valid for model 205.2 | 5F |
| U2053 | Valid for model 205.3 | 2J |
| U2053 | Valid for model 205.3 | 5F |
| U2054 | Valid for model 205.4 | - |
