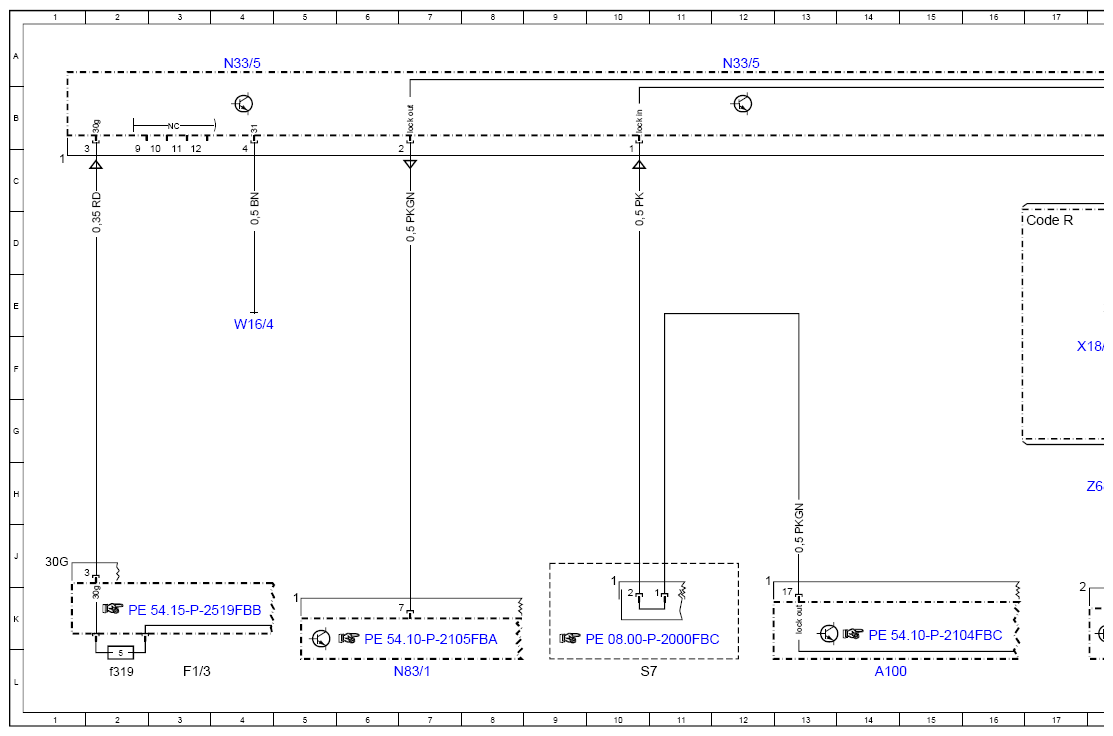

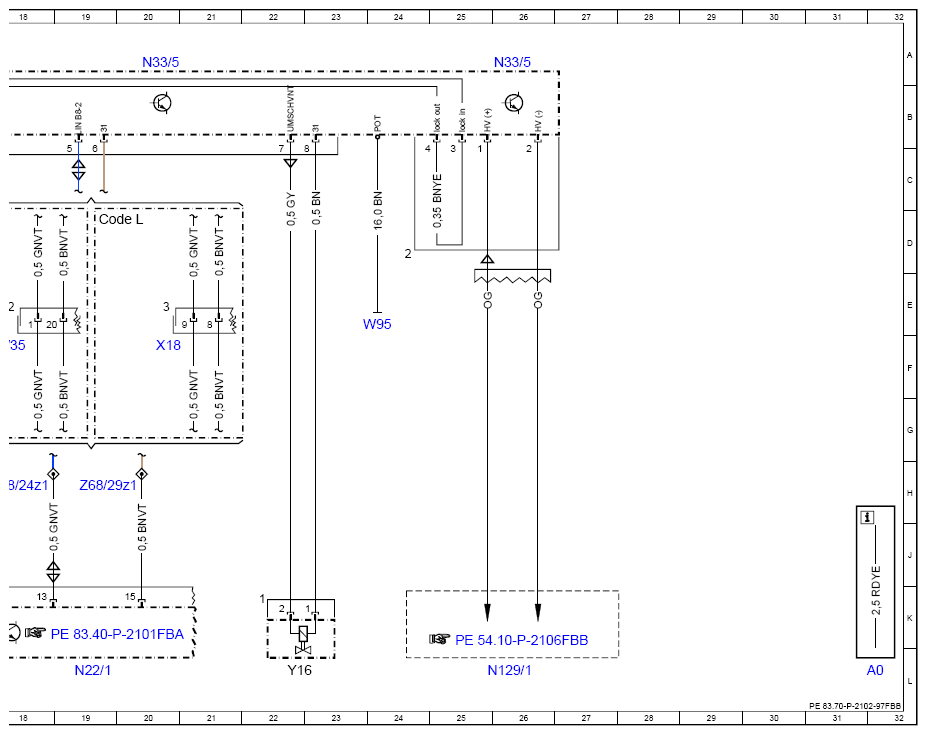

Wiring Diagram Of Heater Booster Control Unit - PE83.70-P-2102-97FBB
WARNING: This page is about a different car, the 2023 Mercedes-Benz GLC300, 2022 Mercedes-Benz GLC300, 2021 Mercedes-Benz GLC300, 2020 Mercedes-Benz GLC350e, and 2020 Mercedes-Benz GLC300. However, it is still accessible from the selected car via links, so may be relevant.
Model 253 (except 253.99)
up to model year 2020
with code ME05 (HYBRID DRIVE 80KW VARIANT (INCLUDING PLUGIN)) N33/5
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Use of wiring diagrams | 32L |
| A100 | High-voltage battery module | 14L |
| Code L | LEFT-HAND DRIVE | 19D |
| Code R | RIGHT-HAND DRIVE | 17D |
| F1/3 | Passenger-side A-pillar fuse box | 3L |
| F1/3f319 | Fuse 319 | 2L |
| N129/1 | Power electronics control unit | 26L |
| N22/1 | Climate control control unit | 19L |
| N33/5 | High-voltage PTC heater | 4A |
| N33/5 | High-voltage PTC heater | 12A |
| N33/5 | High-voltage PTC heater | 20A |
| N33/5 | High-voltage PTC heater | 26A |
| N83/1 | DC/DC converter control unit | 7L |
| S7 | High-voltage disconnect device | 10L |
| W16/4 | Right major assembly compartment ground point | 4E |
| W95 | Right front strut ground connection | 24E |
| X18 | Cockpit wiring harness and frame floor assembly electrical connector | 20F |
| X18/35 | Cockpit wiring harness and frame floor assembly electrical connector | 18F |
| Y16 | Stationary heater switchover valve | 22L |
| Z68/24z1 | Connector sleeve, data line for climate control LIN 2 | 18H |
| Z68/29z1 | Connector sleeve, ground line for climate control LIN 1 and climate control LIN 2 | 19H |
