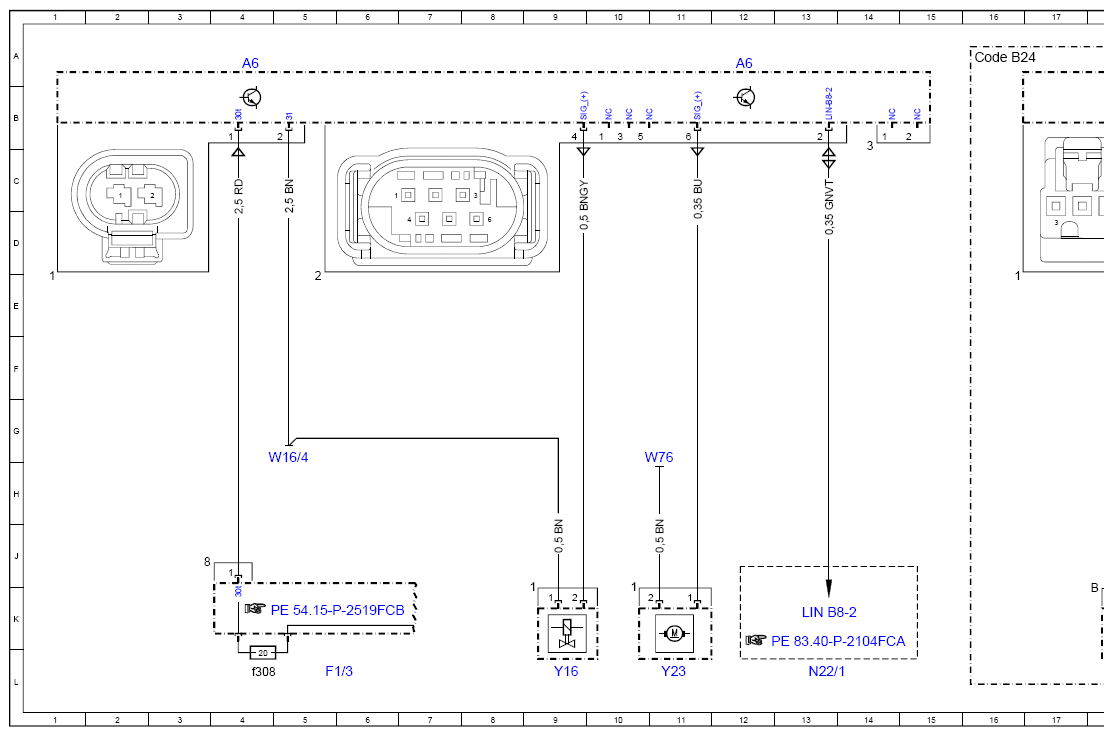

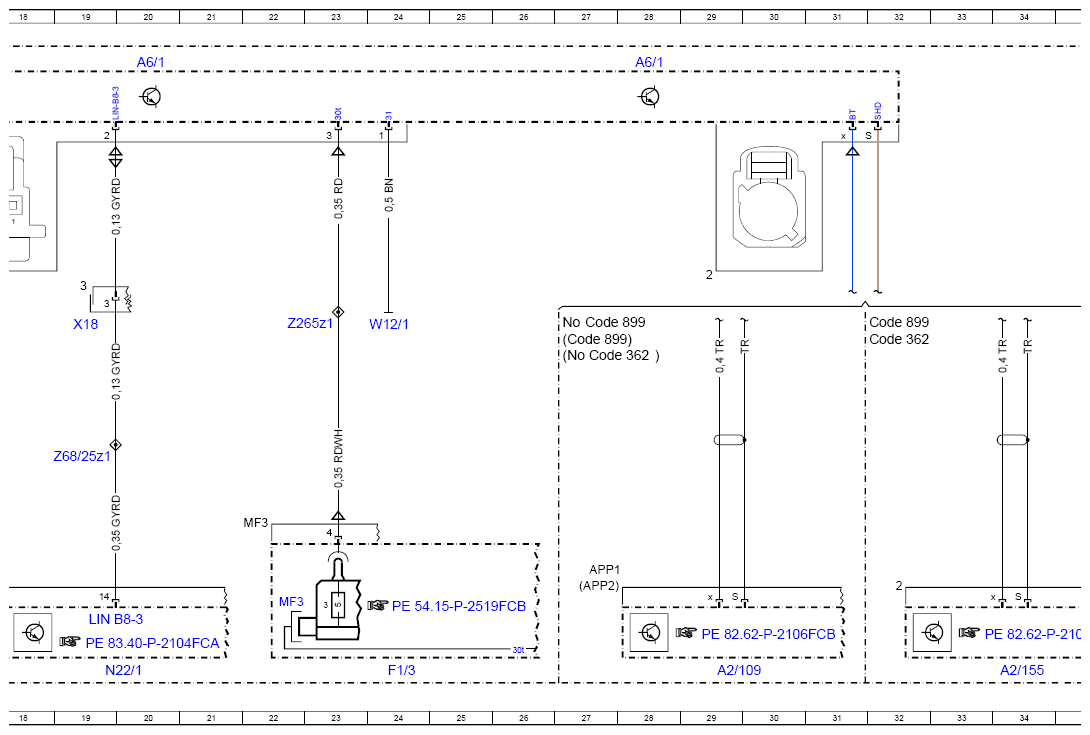

Wiring Diagram For Stationary Heater Control Unit - PE83.70-P-2104-97FCA
WARNING: This page is about a different car, the 2023 Mercedes-Benz GLC300, 2022 Mercedes-Benz GLC300, 2021 Mercedes-Benz GLC300, 2020 Mercedes-Benz GLC350e, and 2020 Mercedes-Benz GLC300. However, it is still accessible from the selected car via links, so may be relevant.
Model 253 (except 253.99)
as of model year 2020
with code 228 (Auxiliary heater) A6, A6/1
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Use of wiring diagrams | 64L |
| A2/109 | Telephone antenna splitter | 29L |
| A2/155 | Telephone and stationary heater antenna changeover switch | 34L |

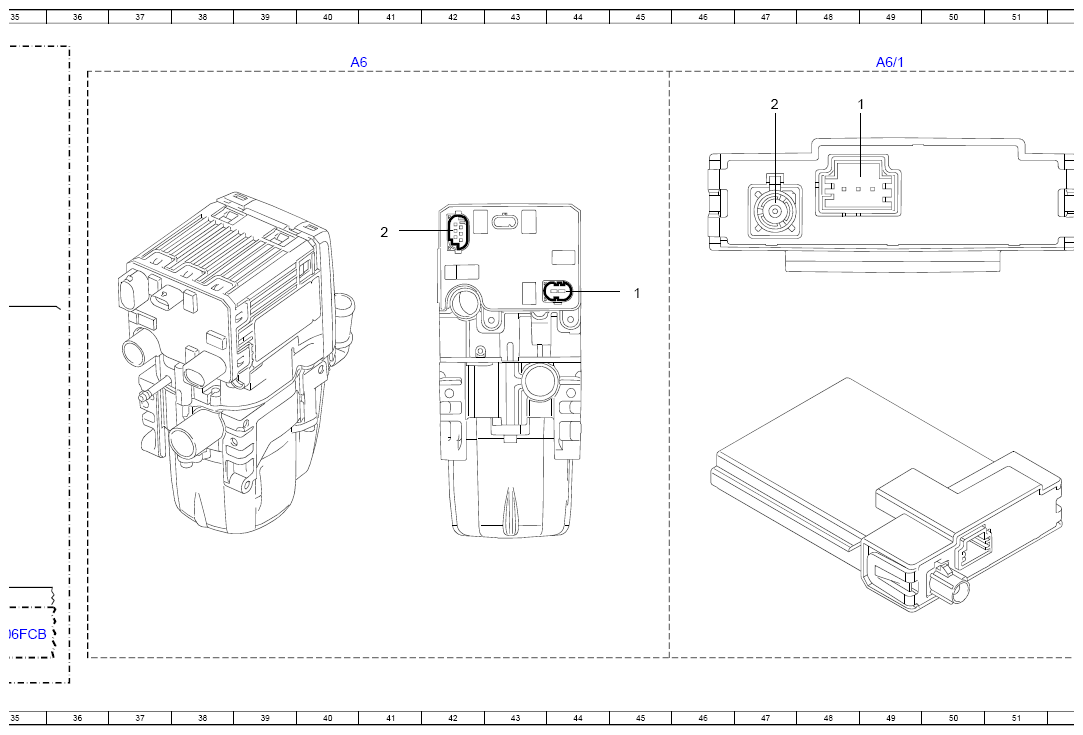

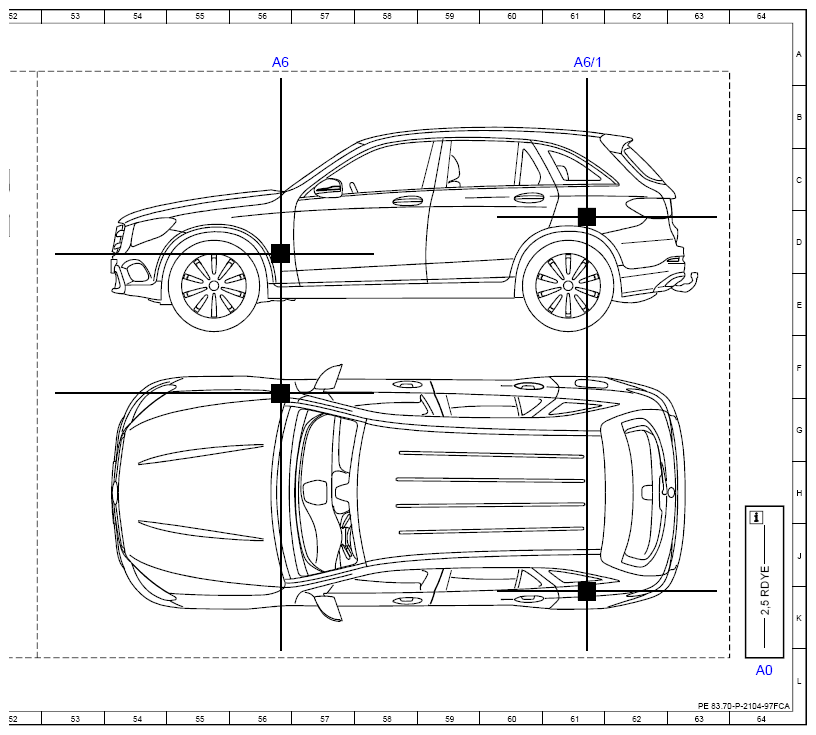

| A6 | Stationary heater unit | 4A |
| A6 | Stationary heater unit | 12A |
| A6 | Stationary heater unit | 40A |
| A6 | Stationary heater unit | 56A |
| A6/1 | Stationary heater radio remote control receiver | 20A |
| A6/1 | Stationary heater radio remote control receiver | 28A |
| A6/1 | Stationary heater radio remote control receiver | 49A |
| A6/1 | Stationary heater radio remote control receiver | 61A |
| Code 362 | HERMES LTE | 27F |
| Code 362 | HERMES LTE | 32F |
| Code 899 | Wireless phone charging at front and antenna | 27F |
| Code 899 | Wireless phone charging at front and antenna | 27E |
| Code 899 | Wireless phone charging at front and antenna | 32E |
| Code B24 | Radio remote control for stationary heater | 16A |
| F1/3 | Passenger-side A-pillar fuse box | 5L |
| F1/3 | Passenger-side A-pillar fuse box | 24L |
| F1/3MF3 | Multiple fuse 3 | 22K |
| F1/3f308 | Fuse 308 | 4L |
| LIN B8-2 | Climate control LIN 2 | 13K |
| LIN B8-3 | AC operation LIN | 19K |
| N22/1 | Climate control control unit | 13L |
| N22/1 | Climate control control unit | 19L |
| W12/1 | Right center console ground point | 24E |
| W16/4 | Right major assembly compartment ground point | 5H |
| W76 | Fuel pump ground point | 11H |
| X18 | Cockpit wiring harness and frame floor assembly electrical connector | 19E |
| Y16 | Stationary heater switchover valve | 9L |
| Y23 | Stationary heater fuel pump | 11L |
| Z265z1 | Terminal 30t connector sleeve | 23E |
| Z68/25z1 | Connector sleeve, data line, A/C control panel LIN | 19G |
