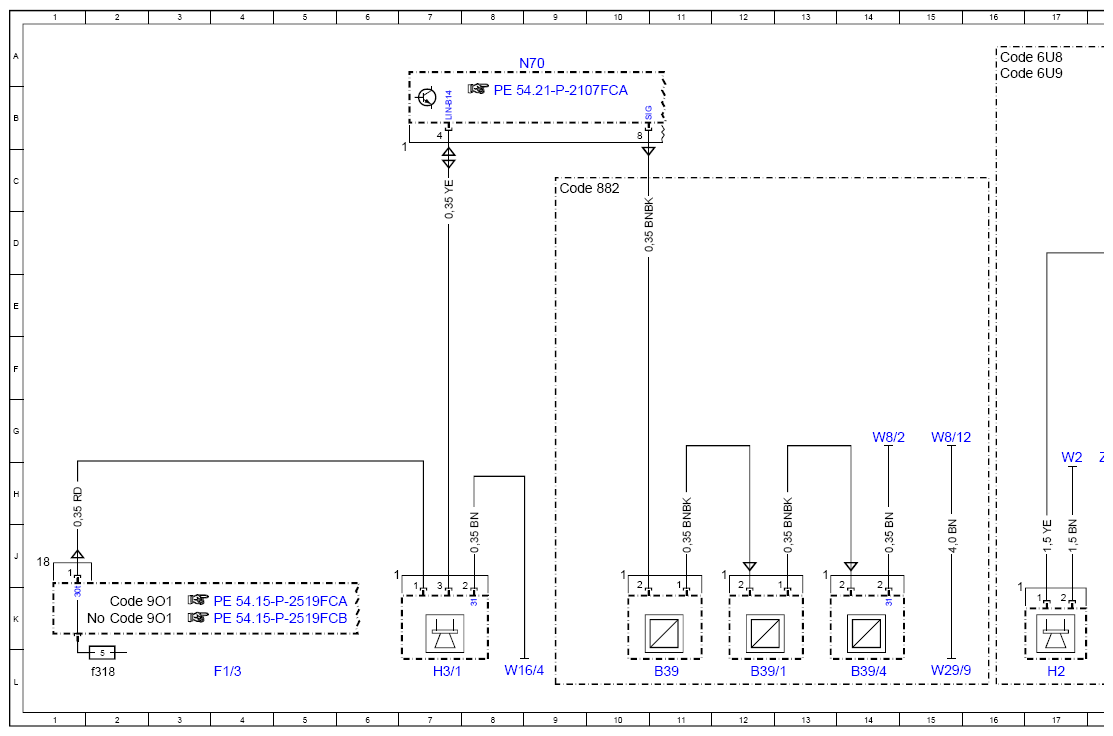

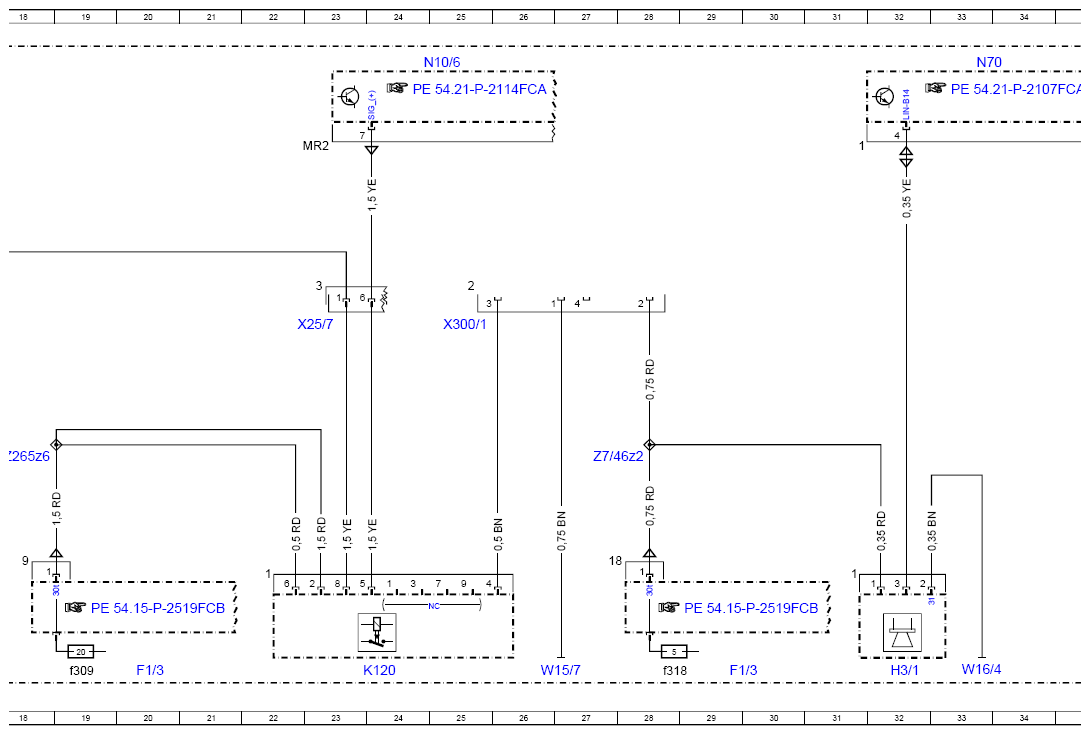

Wiring Diagram Of Anti-Theft Alarm System (ATA) - PE80.50-P-2000-97FCA
WARNING: This page is about a different car, the 2023 Mercedes-Benz GLC300, 2022 Mercedes-Benz GLC300, 2021 Mercedes-Benz GLC300, 2020 Mercedes-Benz GLC350e, and 2020 Mercedes-Benz GLC300. However, it is still accessible from the selected car via links, so may be relevant.
Model 253 (except 253.99) as of Model year 2020
with code 551 (Anti-theft warning system)
with code P54 (Anti-Theft Protection package)
Model 253.99 as of Model year 2019
with code 551 (Anti-theft warning system)
with code 9O1 (Fuel cell pre-installation)
with code P54 (Anti-Theft Protection package)
| Code: | Designation: | Position: |
|---|---|---|

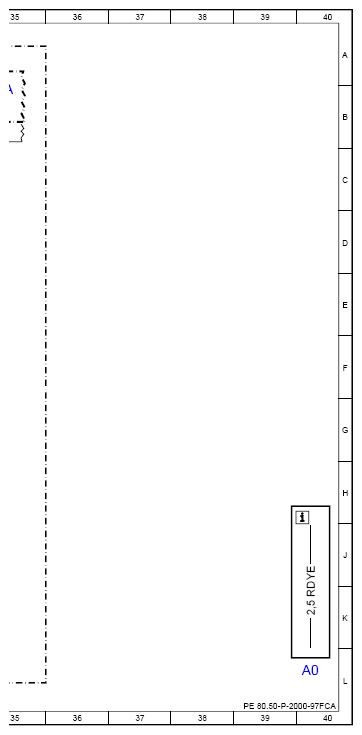

| A0 | Use of wiring diagrams | 40L |
| B39 | Left rear window glass breakage sensor | 11L |
| B39/1 | Right rear window glass breakage sensor | 12L |
| B39/4 | Rear window glass breakage sensor | 14L |
| Code 6U8 | 16A | |
| Code 6U9 | 16A | |
| Code 882 | Interior protection and tow-away protection | 9C |
| Code 9O1 | Fuel cell retrofitting | 2K |
| Code 9O1 | Fuel cell retrofitting | 2K |
| F1/3 | Passenger-side A-pillar fuse box | 4L |
| F1/3 | Passenger-side A-pillar fuse box | 20L |
| F1/3 | Passenger-side A-pillar fuse box | 29L |
| F1/3f309 | Fuse 309 | 19L |
| F1/3f318 | Fuse 318 | 2L |
| F1/3f318 | Fuse 318 | 28L |
| H2 | Left fanfare horn | 17L |
| H3/1 | Alarm siren | 7L |
| H3/1 | Alarm siren | 32L |
| K120 | 24L | |
| N10/6 | Front SAM Control unit | 25A |
| N70 | Overhead control panel Control unit | 9A |
| N70 | Overhead control panel Control unit | 33A |
| W15/7 | Right front footwell ground point | 26L |
| W16/4 | Right major assembly compartment ground point | 8L |
| W16/4 | Right major assembly compartment ground point | 33L |
| W2 | Right front ground point (at lamp unit) | 17H |
| W29/9 | Right D-pillar ground point | 15L |
| W8/12 | Upper right liftgate ground point | 15G |
| W8/2 | Right tailgate ground point | 14G |
| X25/7 | Engine compartment/frame floor assembly electrical connector | 23E |
| X300/1 | 25E | |
| Z265z6 | 18G | |
| Z7/46z2 | 28G |
