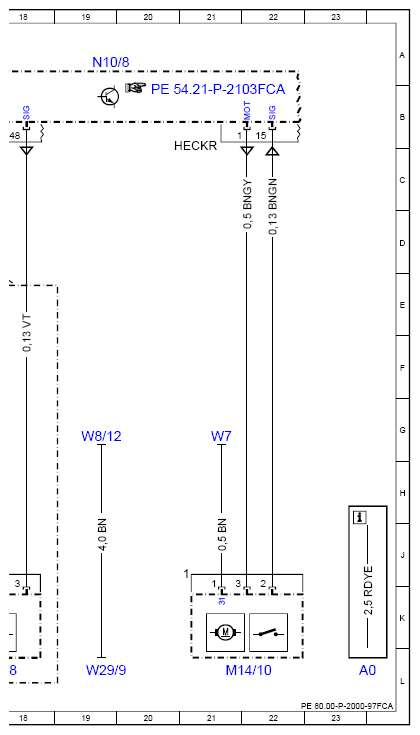

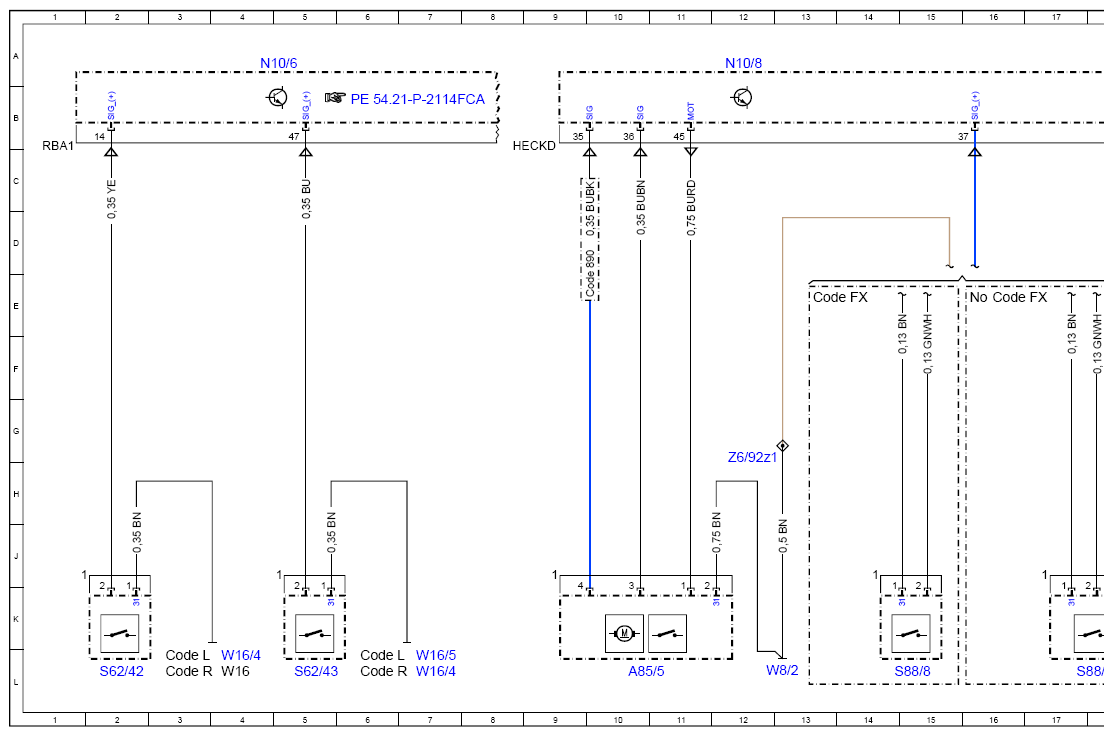

Wiring Diagram For Locking System - PE80.00-P-2000-97FCA
WARNING: This page is about a different car, the 2023 Mercedes-Benz GLC300, 2022 Mercedes-Benz GLC300, 2021 Mercedes-Benz GLC300, 2020 Mercedes-Benz GLC350e, and 2020 Mercedes-Benz GLC300. However, it is still accessible from the selected car via links, so may be relevant.
Model 253 (except 253.99) as of Model year 2020
Model 253.99 as of Model year 2019
with code 9O1 (Fuel cell pre-installation)
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Use of wiring diagrams | 23L |
| A85/5 | Trunk lid/liftgate lock | 10L |
| Code 890 | EASY-PACK liftgate | 10E |
| Code FX | SPORT-UTILITY-VEHICLE | 16E |
| Code FX | SPORT-UTILITY-VEHICLE | 13E |
| Code L | LEFT-HAND DRIVE | 3L |
| Code L | LEFT-HAND DRIVE | 6L |
| Code R | RIGHT-HAND DRIVE | 3L |
| Code R | RIGHT-HAND DRIVE | 6L |
| M14/10 | Tank cap central locking actuator | 21L |
| N10/6 | Front SAM Control unit | 4A |
| N10/8 | Rear SAM Control unit | 12A |
| N10/8 | Rear SAM Control unit | 19A |
| S62/42 | Passenger side engine hood contact switch | 2L |
| S62/43 | Driver side engine hood contact switch | 5L |
| S88/8 | Trunk lid/liftgate external operation switch | 15L |
| S88/8 | Trunk lid/liftgate external operation switch | 17L |
| W16 | Major assembly compartment ground point | 4L |
| W16/4 | Right major assembly compartment ground point | 4L |
| W16/4 | Right major assembly compartment ground point | 7L |
| W16/5 | Left major assembly compartment electronics ground point | 7L |
| W29/9 | Right D-pillar ground point | 19L |
| W7 | Right wheelhouse trunk ground point | 21G |
| W8/12 | Upper right liftgate ground point | 19G |
| W8/2 | Right tailgate ground point | 13L |
| Z6/92z1 | Trunk lid ground line connector sleeve | 12G |
