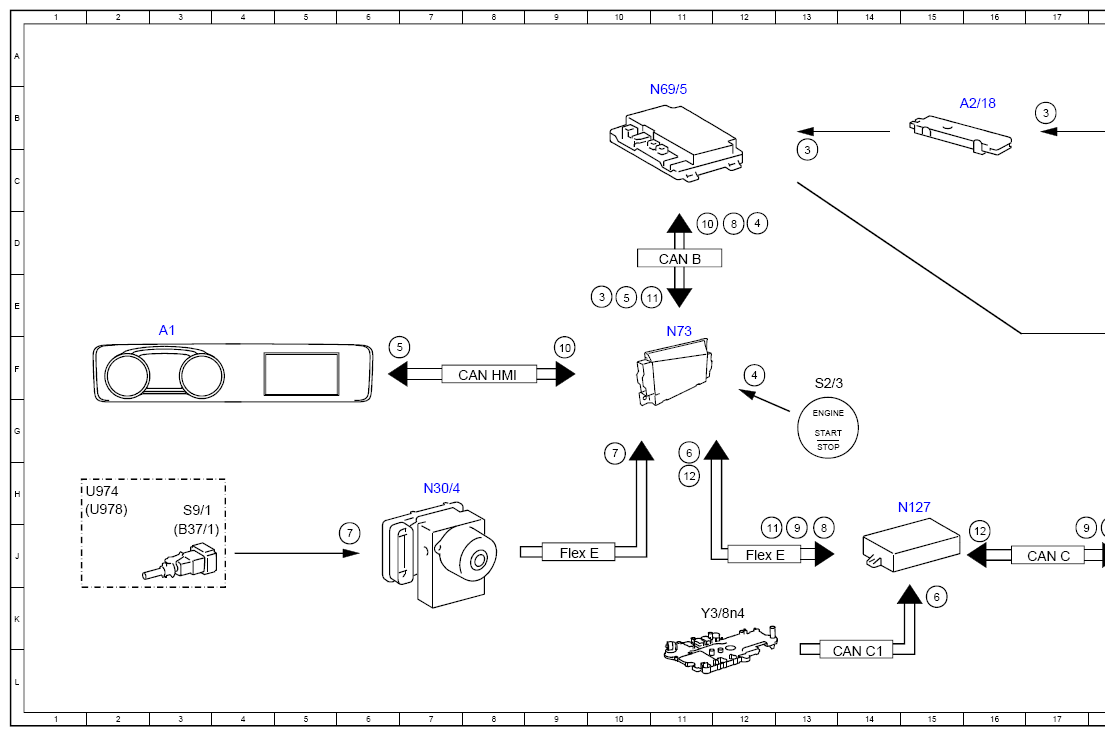

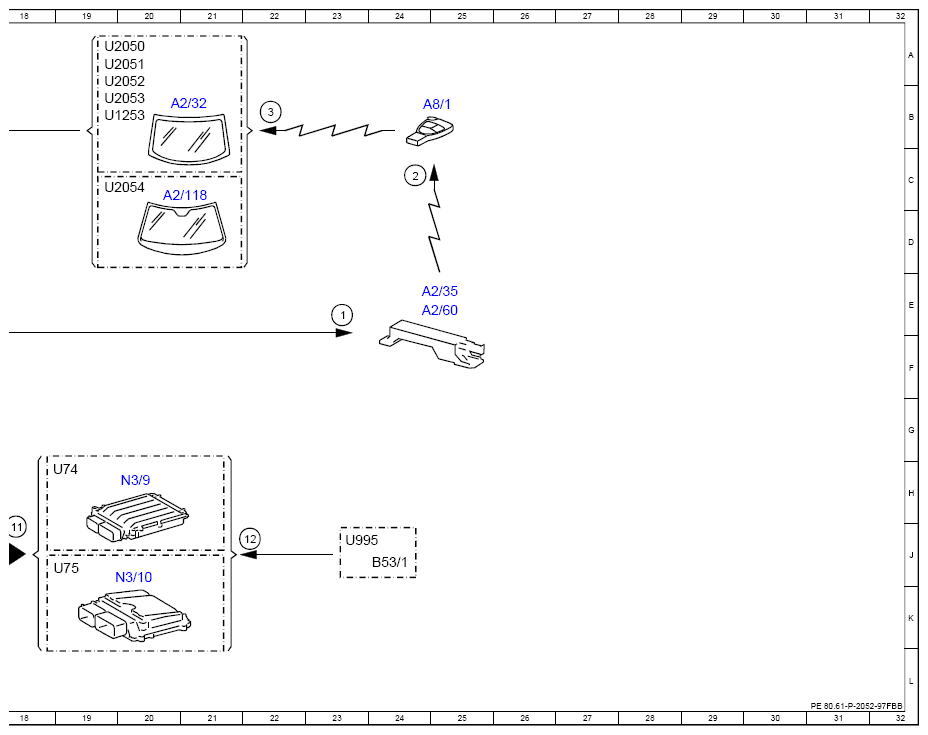

Function Schematic For Electric Keyless-Go Engine Start/Stop - PE80.61-P-2052-97FBB
WARNING: This page is about a different car, the 2023 Mercedes-Benz GLC300, 2022 Mercedes-Benz GLC300, 2021 Mercedes-Benz GLC300, 2020 Mercedes-Benz GLC350e, and 2020 Mercedes-Benz GLC300. However, it is still accessible from the selected car via links, so may be relevant.
Model 205 as of Model year 2019 with code 893 (KEYLESS-Start)
Model 253 (except 253.99) as of Model year 2020 with code 893 (KEYLESS-Start)
Model 253.99 with code 893 (KEYLESS-Start)
| Code: | Designation: | Position: |
| 1 | KEYLESS-GO antenna, actuation | 23E |
| 10 | Vehicle speed, signal | 9F |
| 10 | Vehicle speed, signal | 11D |
| 11 | Engine stop, request | 12J |
| 11 | Engine stop, request | 18J |
| 11 | Engine stop, request | 10E |
| 12 | Clutch pedal sensor, signal | 16J |
| 12 | Clutch pedal sensor, signal | 11H |
| 12 | Clutch pedal sensor, signal | 22J |
| 2 | Transmitter key, request | 24C |
| 3 | Access authorization code, signal | 10E |
| 3 | Access authorization code, signal | 13C |
| 3 | Access authorization code, signal | 17B |
| 3 | Access authorization code, signal | 22B |
| 4 | KEYLESS-GO start/stop button, status | 12F |
| 4 | KEYLESS-GO start/stop button, status | 12D |
| 5 | Instrument cluster, message | 6F |
| 5 | Instrument cluster, message | 10E |
| 6 | Selector lever position, status | 15K |
| 6 | Selector lever position, status | 11G |
| 7 | Service brake, status | 10G |
| 7 | Service brake, status | 6J |
| 8 | Circuit 15C, status | 13J |
| 8 | Circuit 15C, status | 12D |
| 9 | Circuit 50, status | 13J |
| 9 | Circuit 50, status | 17J |
| A1 | Instrument cluster | 3E |
| A2/118 | Windshield antenna | 20C |
| A2/18 | FM 1, AM, CL [ZV] and KEYLESS GO antenna amplifier | 15B |
| A2/32 | Rear window antenna | 20B |
| A2/35 | Trunk KEYLESS GO antenna | 24E |
| A2/60 | Center console KEYLESS-GO antenna | 24E |
| A8/1 | Transmitter key | 24B |
| B37/1 | Pedal angle sensor | 3J |
| B53/1 | Clutch pedal sensor | 24J |
| CAN B | Interior CAN | 11D |
| CAN C | Engine CAN | 17J |
| CAN C1 | Drive train CAN | 14L |
| CAN MMI | User Interface CAN | 8F |
| Flex E | Chassis FlexRay | 9J |
| Flex E | Chassis FlexRay | 12J |
| N127 | Drivetrain Control unit | 14H |
| N3/10 | ME-SFI [ME] Control unit | 20J |
| N3/9 | CDI Control unit | 20H |
| N30/4 | Electronic Stability Program Control unit | 7H |
| N69/5 | KEYLESS-GO Control unit | 10B |
| N73 | Electronic ignition switch Control unit | 11E |
| S2/3 | KEYLESS GO start/stop button | 13F |
| S9/1 | Stop lamp switch | 3H |
| U1253 | Valid for Model 253 | 19B |
| U2050 | Valid for Model 205.0 | 19A |
| U2051 | Valid for Model 205.1 | 19A |
| U2052 | Valid for Model 205. 2 | 19B |
| U2053 | Valid for Model 205.3 | 19B |
| U2054 | Valid for Model 205.4 | 19C |
| U74 | Valid for diesel engines | 18H |
| U75 | Valid for gasoline engines | 18J |
| U974 | Not valid for hybrid drive | 2H |
| U978 | Valid for hybrid drive | 2H |
| U995 | Valid for transmission 716 | 23J |
| Y3/8n4 | Fully integrated transmission control Control unit | 11K |
