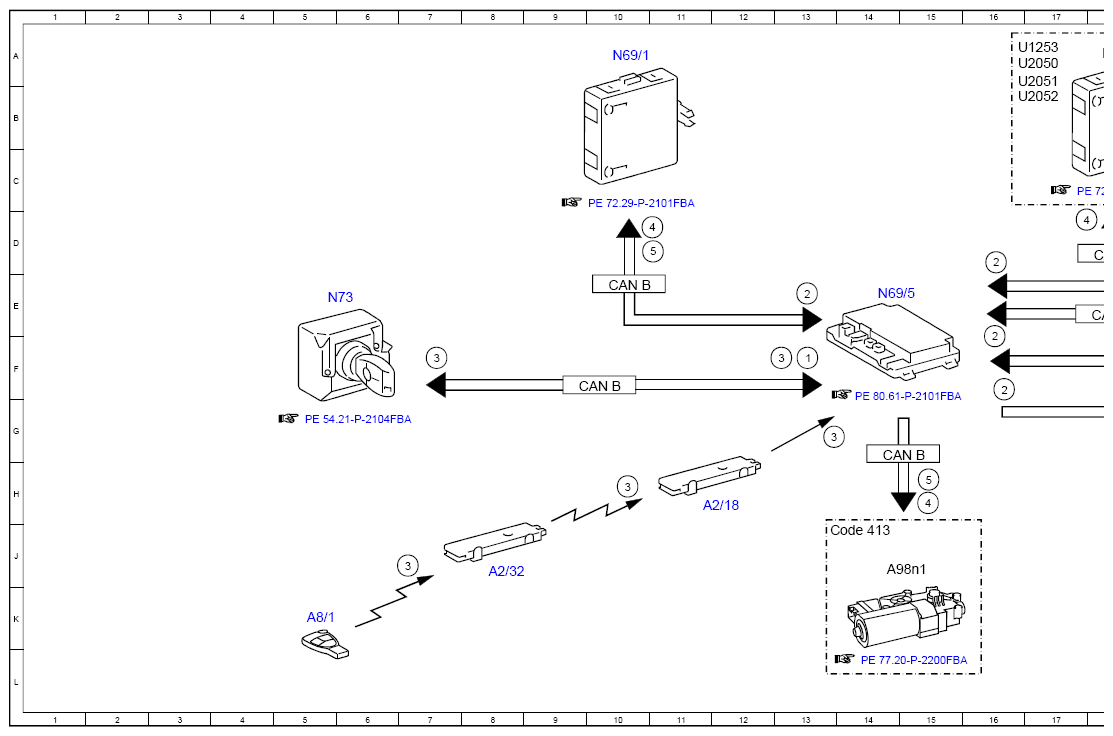

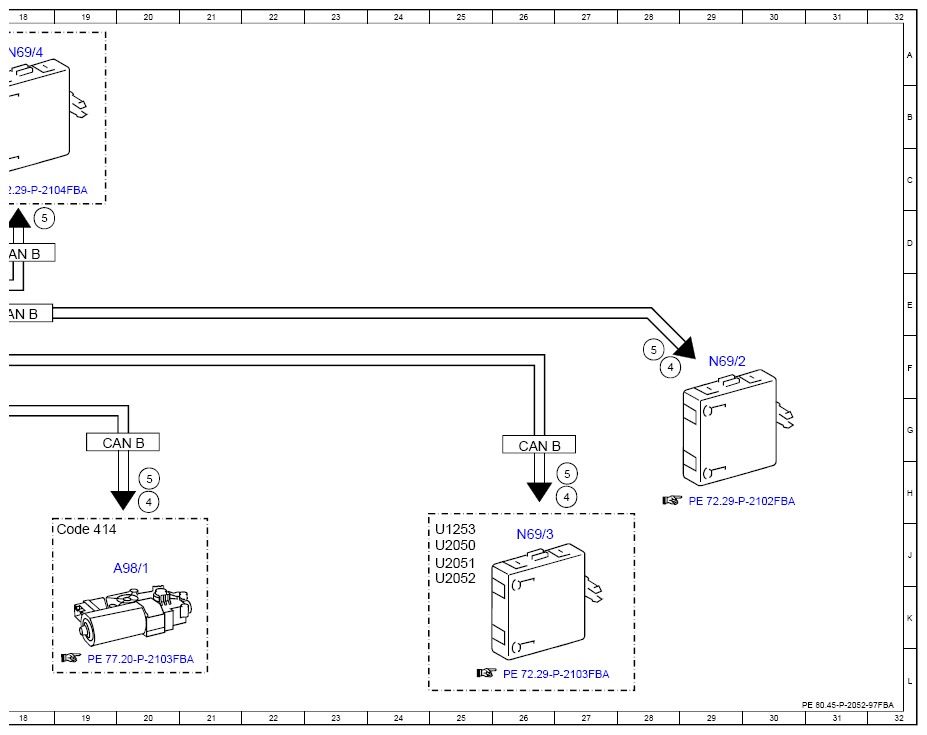

Function Schematic For Electric Convenience Opening/Closing With Transmitter Key - PE80.45-P-2052-97FBA
WARNING: This page is about a different car, the 2023 Mercedes-Benz GLC300, 2022 Mercedes-Benz GLC300, 2021 Mercedes-Benz GLC300, 2020 Mercedes-Benz GLC350e, and 2020 Mercedes-Benz GLC300. However, it is still accessible from the selected car via links, so may be relevant.
Model 205, 253 with code 889 (KEYLESS-GO)
| Code: | Designation: | Position: |
| 1 | Circuit 15, status | 13F |
| 2 | Door rotary tumbler switch, status | 13E |
| 2 | Door rotary tumbler switch, status | 16F |
| 2 | Door rotary tumbler switch, status | 16F |
| 3 | Access authorization code, signal | 13F |
| 3 | Access authorization code, signal | 7F |
| 3 | Access authorization code, signal | 13G |
| 3 | Access authorization code, signal | 10H |
| 3 | Access authorization code, signal | 7J |
| 4 | Convenience feature, status | 28F |
| 4 | Convenience feature, status | 17D |
| 4 | Convenience feature, status | 27H |
| 4 | Convenience feature, status | 15H |
| 4 | Convenience feature, status | 11D |
| 4 | Convenience feature, status | 20H |
| 5 | Convenience feature direction, signal | 28F |
| 5 | Convenience feature direction, signal | 18D |
| 5 | Convenience feature direction, signal | 27H |
| 5 | Convenience feature direction, signal | 15H |
| 5 | Convenience feature direction, signal | 11D |
| 5 | Convenience feature direction, signal | 20H |
| A2/18 | FM 1, AM, CL [ZV] and KEYLESS GO antenna amplifier | 11H |
| A2/32 | Rear window antenna | 8J |
| A8/1 | Transmitter key | 5K |
| A98/1 | Sliding roof control module | 19J |
| A98n1 | Panoramic sliding roof Control unit | 14J |
| CAN B | Interior CAN | 10F |
| CAN B | Interior CAN | 18E |
| CAN B | Interior CAN | 10E |
| CAN B | Interior CAN | 14G |
| CAN B | Interior CAN | 18D |
| CAN B | Interior CAN | 26G |
| CAN B | Interior CAN | 19G |
| Code 413 | Panoramic sliding sunroof | 13J |
| Code 414 | Sliding roof | 19J |
| N69/1 | Left front door Control unit | 10A |
| N69/2 | Right front door Control unit | 29F |
| N69/3 | Left rear door Control unit | 26J |
| N69/4 | Right rear door Control unit | 18A |
| N69/5 | KEYLESS-GO Control unit | 14E |
| N73 | Electronic ignition switch Control unit | 5E |
| U1253 | Valid for Model 253 | 25J |
| U1253 | Valid for Model 253 | 16A |
| U2050 | Valid for Model 205.0 | 25J |
| U2050 | Valid for Model 205.0 | 16A |
| U2051 | Valid for Model 205.1 | 25J |
| U2051 | Valid for Model 205.1 | 16A |
| U2052 | Valid for Model 205.2 | 25J |
| U2052 | Valid for Model 205.2 | 16B |
