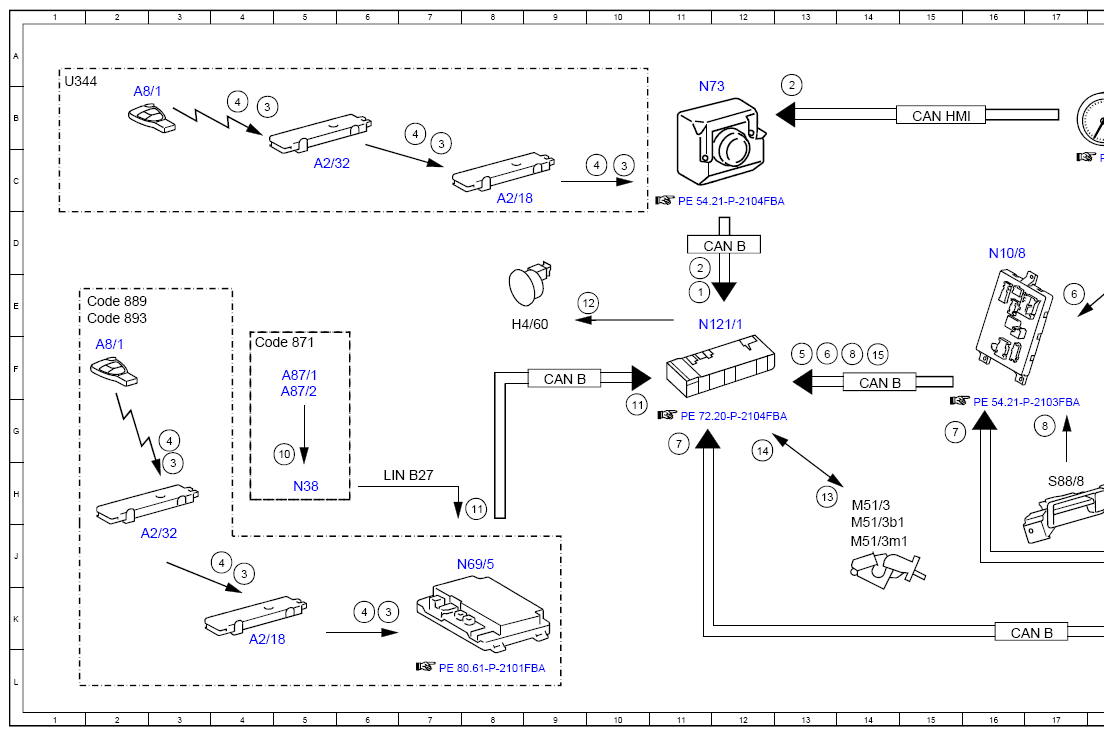

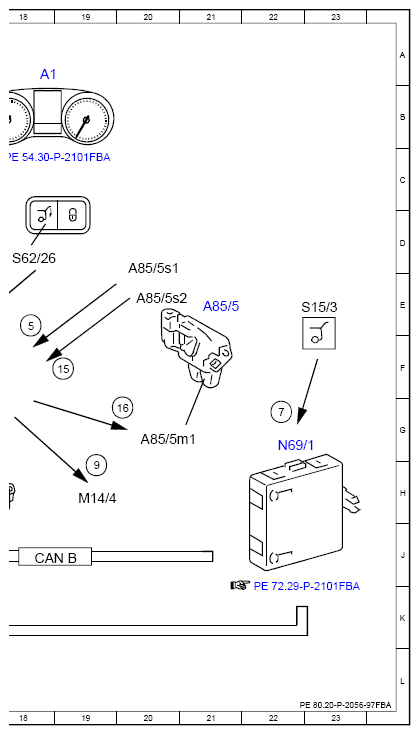

Electrical Function Schematic For Liftgate Control - PE80.20-P-2056-97FBA
WARNING: This page is about a different car, the 2023 Mercedes-Benz GLC300, 2022 Mercedes-Benz GLC300, 2021 Mercedes-Benz GLC300, 2020 Mercedes-Benz GLC350e, and 2020 Mercedes-Benz GLC300. However, it is still accessible from the selected car via links, so may be relevant.
Model 205.2, 253 with code 890 (EASY-PACK-tailgate)
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Circuit 15, status | 11E |
| 10 | Rear switching module sensor, signal | 5G |
| 11 | Open trunk lid/liftgate, request | 8H |
| 11 | Open trunk lid/liftgate, request | 10G |
| 12 | Warning buzzer, actuation | 9E |
| 13 | Trunk lid/liftgate control drive unit, actuation | 13H |
| 14 | Position data, signal | 12G |
| 15 | Trunk lid/liftgate lock safety catch switch, status | 14F |
| 15 | Trunk lid/liftgate lock safety catch switch, status | 19F |
| 16 | Trunk lid/liftgate lock motor, actuation | 20G |
| 2 | Vehicle speed, signal | 11D |
| 2 | Vehicle speed, signal | 13B |
| 3 | Transmitter key, signal | 6K |
| 3 | Transmitter key, signal | 3H |
| 3 | Transmitter key, signal | 4J |
| 3 | Transmitter key, signal | 10C |
| 3 | Transmitter key, signal | 7B |
| 3 | Transmitter key, signal | 4B |
| 4 | Access authorization code, signal | 6K |
| 4 | Access authorization code, signal | 3G |
| 4 | Access authorization code, signal | 4J |
| 4 | Access authorization code, signal | 10C |
| 4 | Access authorization code, signal | 7B |
| 4 | Access authorization code, signal | 4B |
| 5 | Trunk lid/liftgate lock main catch switch, status | 132F |
| 5 | Trunk lid/liftgate lock main catch switch, status | 18E |
| 6 | Trunk lid/liftgate control button, status | 13F |
| 6 | Trunk lid/liftgate control button, status | 17E |
| 7 | Driver-side trunk lid/liftgate control button, status | 22G |
| 7 | Driver-side trunk lid/liftgate control button, status | 11G |
| 7 | Driver-side trunk lid/liftgate control button, status | 15G |
| 8 | Trunk lid/liftgate external operation switch, status | 14F |
| 8 | Trunk lid/liftgate external operation switch, status | 17G |
| 9 | Trunk lid/liftgate lock element, actuation | 19H |
| A1 | Instrument cluster | 18A |
| A2/18 | FM 1, AM, CL [ZV] and KEYLESS GO antenna amplifier | 8C |
| A2/18 | FM 1, AM, CL [ZV] and KEYLESS GO antenna amplifier | 4K |
| A2/32 | Rear window antenna | 5C |
| A2/32 | Rear window antenna | 2J |
| A8/1 | Transmitter key | 2B |
| A8/1 | Transmitter key | 2F |
| A85/5 | Trunk lid/liftgate lock | 21E |
| A85/5m1 | Trunk lid/liftgate lock motor | 20G |
| A85/5s1 | Trunk lid/liftgate lock main catch switch | 20D |
| A85/5s2 | Trunk lid/liftgate lock safety catch switch | 20E |
| A87/1 | Rear switching module upper sensor | 5F |
| A87/2 | Rear switching module lower sensor | 5F |
| CAN B | Interior CAN | 12D |
| CAN B | Interior CAN | 14F |
| CAN B | Interior CAN | 9F |
| CAN B | Interior CAN | 16K |
| CAN B | Interior CAN | 18J |
| CAN HMI | User interface CAN | 15B |
| Code 871 | Sensor system for trunk lid opening/closing | 4F |
| Code 889 | KEYLESS-GO | 2E |
| Code 893 | KEYLESS-GO start function | 2E |
| H4/60 | Trunk lid/liftgate control warning buzzer | 8E |
| LIN B27 | KEYLESS-GO LIN | 6H |
| M14/4 | Tailgate locking element | 19H |
| M51/3 | Trunk lid/liftgate control drive unit | 14H |
| M51/3b1 | Trunk lid/liftgate control Hall sensor | 14J |
| M51/3m1 | Trunk lid/liftgate control electric motor | 14J |
| N10/8 | Rear SAM Control unit | 16D |
| N121/1 | Tailgate control Control unit | 11E |
| N38 | Rear switching module | 5H |
| N69/1 | Left front door Control unit | 22G |
| N69/5 | KEYLESS-GO Control unit | 7J |
| N73 | Electronic ignition switch Control unit | 11B |
| S15/3 | Driver trunk lid/liftgate control button | 23E |
| S62/26 | Trunk lid/liftgate control button | 18D |
| S88/8 | Trunk lid/liftgate external operation switch | 17H |
| U344 | Not valid for KEYLESS GO | 1A |
