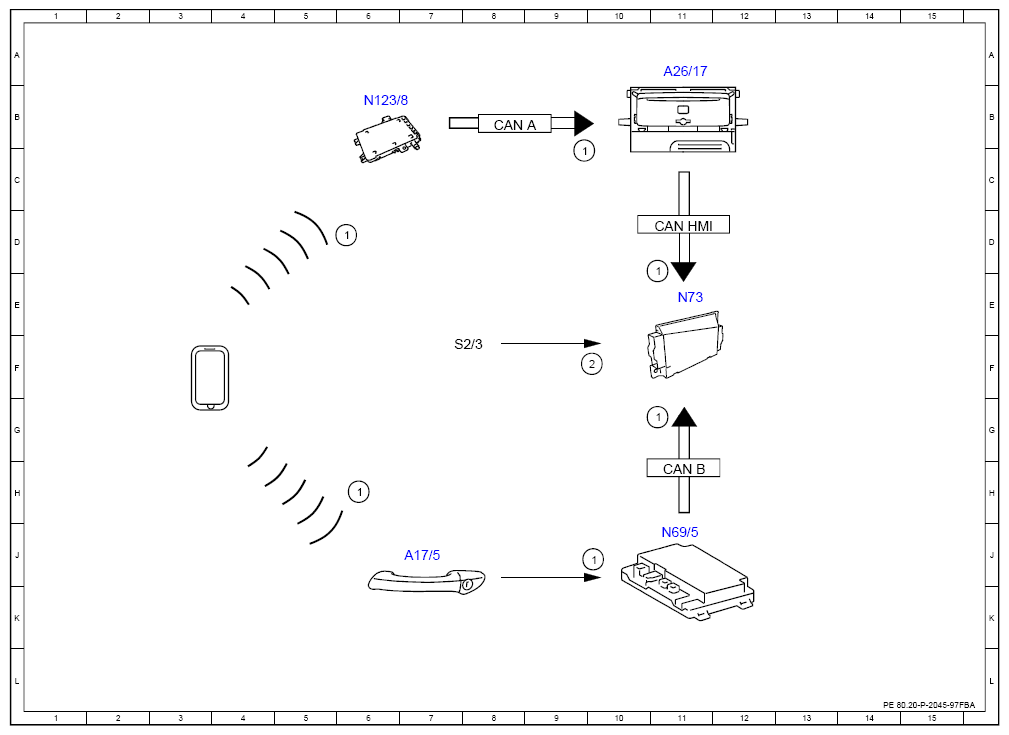

Electrical Function Schematic For Digital Key In Smartphone - PE80.20-P-2045-97FBA
WARNING: This page is about a different car, the 2023 Mercedes-Benz GLC300, 2022 Mercedes-Benz GLC300, 2021 Mercedes-Benz GLC300, 2020 Mercedes-Benz GLC350e, and 2020 Mercedes-Benz GLC300. However, it is still accessible from the selected car via links, so may be relevant.
Model 205 as of Model year 2019
with code 896 (Vehicle access and drive authorization via mobile phone)
Model 253 as of Model year 2020
with code 896 (Vehicle access and drive authorization via mobile phone)
| Code: | Designation: | Position: |
| 1 | Access authorization code, signal | 6D |
| 1 | Access authorization code, signal | 9C |
| 1 | Access authorization code, signal | 11E |
| 1 | Access authorization code, signal | 11G |
| 1 | Access authorization code, signal | 10J |
| 1 | Access authorization code, signal | 6H |
| 2 | KEYLESS-GO start/stop button, status | 10F |
| A17/5 | Driver door KEYLESS-GO door handle | 7J |
| A26/17 | Head unit | 11A |
| CAN A | Telematics CAN | 8B |
| CAN B | Interior CAN | 11H |
| CAN HMI | User Interface CAN | 11D |
| N123/8 | Mobile phone cradle Control unit | 6B |
| N69/5 | KEYLESS-GO Control unit | 11J |
| N73 | Electronic Ignition switch Control unit | 11E |
| S2/3 | KEYLESS GO start/stop button | 7F |
