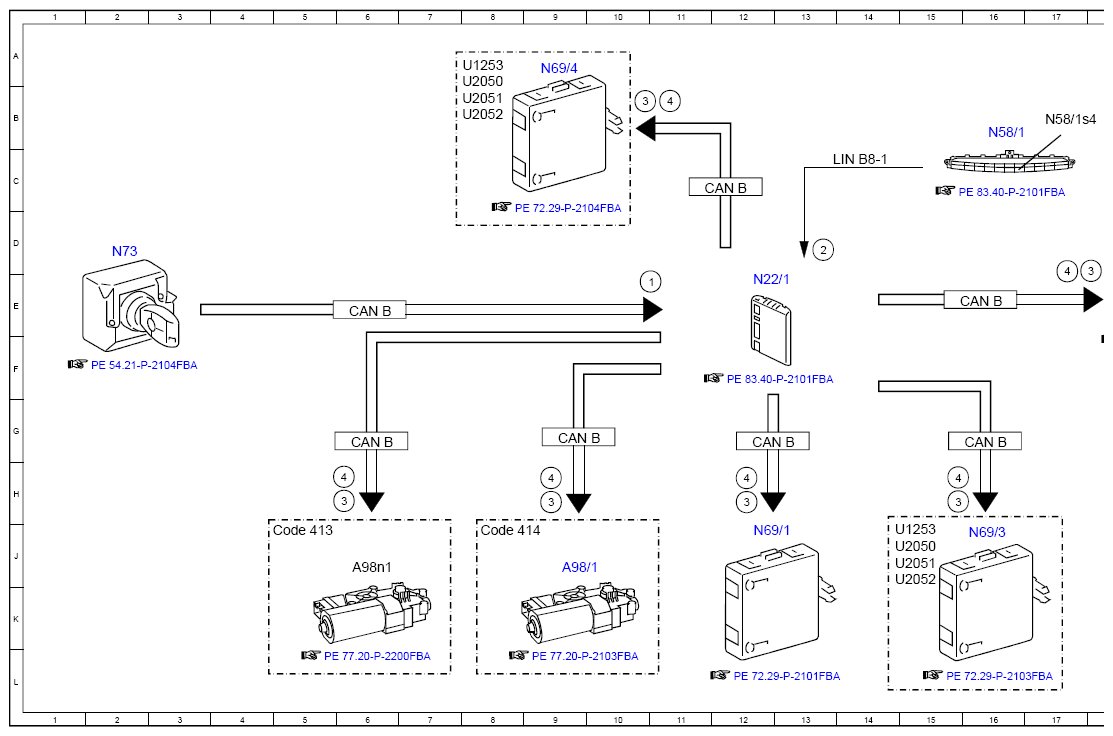

Electrical Function Schematic For Convenience Opening/Closing Via Recirculated Air Function - PE80.45-P-2053-97FBA
WARNING: This page is about a different car, the 2023 Mercedes-Benz GLC300, 2022 Mercedes-Benz GLC300, 2021 Mercedes-Benz GLC300, 2020 Mercedes-Benz GLC350e, and 2020 Mercedes-Benz GLC300. However, it is still accessible from the selected car via links, so may be relevant.
Model 205, 253 except code 494 (US version)
| Code: | Designation: | Position: |
| 1 | Circuit 15, status | 10E |
| 2 | Comfort closing/opening, request | 13D |
| 3 | Convenience feature, status | 10B |
| 3 | Convenience feature, status | 18E |
| 3 | Convenience feature, status | 15H |
| 3 | Convenience feature, status | 12H |
| 3 | Convenience feature, status | 6H |
| 3 | Convenience feature, status | 9H |
| 4 | Convenience feature direction, signal | 11B |
| 4 | Convenience feature direction, signal | 17E |
| 4 | Convenience feature direction, signal | 15H |
| 4 | Convenience feature direction, signal | 12H |
| 4 | Convenience feature direction, signal | 6H |
| 4 | Convenience feature direction, signal | 9H |
| A98/1 | Sliding roof control module | 9J |
| A98n1 | Panoramic sliding roof Control unit | 6J |
| CAN B | Interior CAN | 12C |
| CAN B | Interior CAN | 16E |
| CAN B | Interior CAN | 16G |
| CAN B | Interior CAN | 6E |
| CAN B | Interior CAN | 6G |
| CAN B | Interior CAN | 12G |
| CAN B | Interior CAN | 9G |
| Code 413 | Panoramic sliding sunroof | 4J |
| Code 414 | Sliding roof | 8J |
| LIN B8-1 | Climate control LIN 1 | 14C |
| N22/1 | Climate control Control unit | 12E |
| N58/1 | Climate control operating unit | 16B |
| N58/1s4 | Air recirculation mode button | 17B |
| N69/1 | Left front door Control unit | 12J |

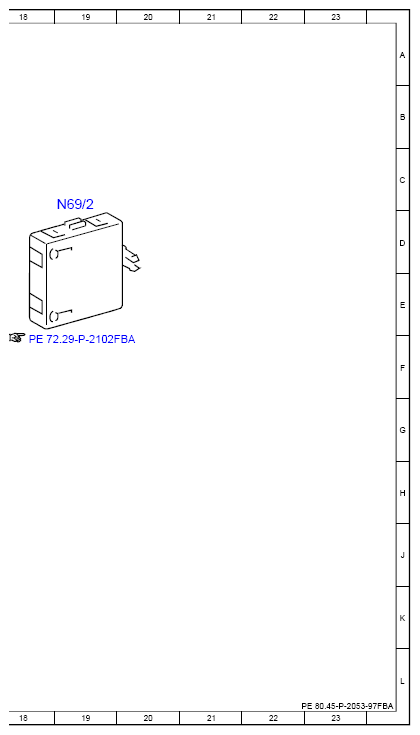

| N69/2 | Right front door Control unit | 19C |
| N69/3 | Left rear door Control unit | 16J |
| N69/4 | Right rear door Control unit | 9A |
| N73 | Electronic ignition switch Control unit | 2D |
| U1253 | Valid for Model 253 | 14J |
| U1253 | Valid for Model 253 | 8A |
| U2050 | Valid for Model 205.0 | 14J |
| U2050 | Valid for Model 205.0 | 8A |
| U2051 | Valid for Model 205.1 | 14J |
| U2051 | Valid for Model 205.1 | 8B |
| U2052 | Valid for Model 205.2 | 14J |
| U2052 | Valid for Model 205.2 | 8B |
