Electrical Function Schematic For Comfort Closing Via Keyless-Go - PE80.45-P-2054-97FBA
WARNING: This page is about a different car, the 2023 Mercedes-Benz GLC300, 2022 Mercedes-Benz GLC300, 2021 Mercedes-Benz GLC300, 2020 Mercedes-Benz GLC350e, and 2020 Mercedes-Benz GLC300. However, it is still accessible from the selected car via links, so may be relevant.
Model 205, 253 with code 889 (KEYLESS-GO)

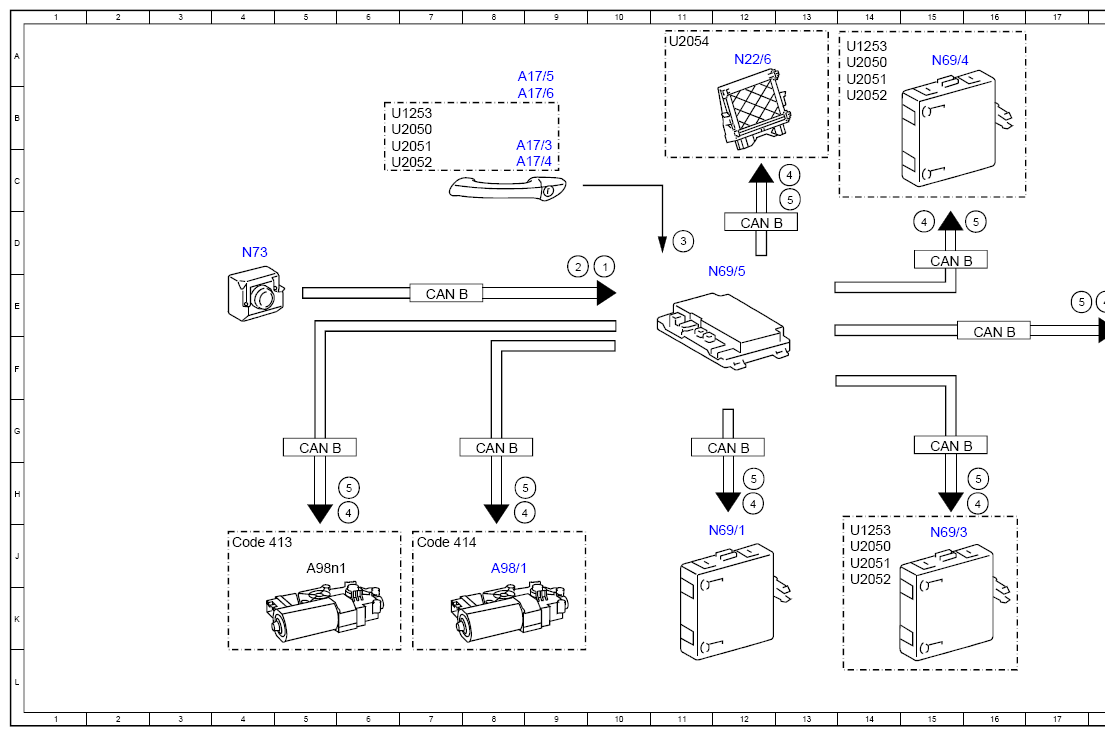

| Code: | Designation: | Position: |
| 1 | Circuit 15, status | 10D |
| 2 | Central locking, status | 9D |
| 3 | KEYLESS-GO door handle, status | 11D |
| 4 | Convenience feature, status | 15D |
| 4 | Convenience feature, status | 18E |
| 4 | Convenience feature, status | 16H |
| 4 | Convenience feature, status | 6H |
| 4 | Convenience feature, status | 12H |
| 4 | Convenience feature, status | 8H |
| 4 | Convenience feature, status | 13C |
| 5 | Convenience feature direction, signal | 16D |
| 5 | Convenience feature direction, signal | 17E |
| 5 | Convenience feature direction, signal | 16H |
| 5 | Convenience feature direction, signal | 6H |
| 5 | Convenience feature direction, signal | 12H |
| 5 | Convenience feature direction, signal | 8H |
| 5 | Convenience feature direction, signal | 13C |
| A17/3 | Left rear KEYLESS GO door handle | 9C |
| A17/4 | Right rear KEYLESS GO door handle | 9C |
| A17/5 | Driver door KEYLESS-GO door handle | 9A |
| A17/6 | Front passenger door KEYLESS-GO door handle | 9B |
| A98/1 | Sliding roof control module | 8J |
| A98n1 | Panoramic sliding roof Control unit | 5J |
| CAN B | Interior CAN | 16E |
| CAN B | Interior CAN | 15D |
| CAN B | Interior CAN | 15G |
| CAN B | Interior CAN | 7E |
| CAN B | Interior CAN | 5G |
| CAN B | Interior CAN | 12G |
| CAN B | Interior CAN | 8G |
| CAN B | Interior CAN | 12D |
| Code 413 | Panoramic sliding sunroof | 4J |
| Code 414 | Sliding roof | 7J |
| N22/6 | Rear Control unit | 12A |
| N69/1 | Left front door Control unit | 12J |

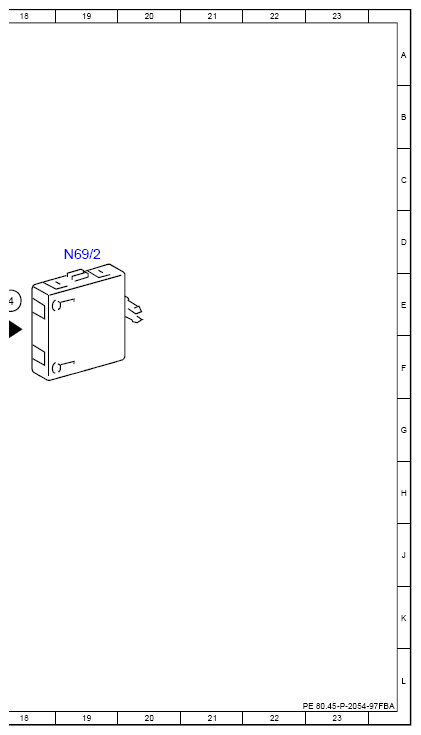

| N69/2 | Right front door Control unit | 19D |
| N69/3 | Left rear door Control unit | 15J |
| N69/4 | Right rear door Control unit | 15A |
| N69/5 | KEYLESS-GO Control unit | 11E |
| N73 | Electronic ignition switch Control unit | 4D |
| U1253 | Valid for Model 253 | 14A |
| U1253 | Valid for Model 253 | 14J |
| U1253 | Valid for Model 253 | 6B |
| U2050 | Valid for Model 205.0 | 14A |
| U2050 | Valid for Model 205.0 | 14J |
| U2050 | Valid for Model 205.0 | 6B |
| U2051 | Valid for Model 205.1 | 14A |
| U2051 | Valid for Model 205.1 | 14J |
| U2051 | Valid for Model 205.1 | 6C |
| U2052 | Valid for Model 205.2 | 14B |
| U2052 | Valid for Model 205.2 | 14J |
| U2052 | Valid for Model 205.2 | 6C |
| U2054 | Valid for Model 205.4 | 11A |
