Remove/Install Keyless-Go Control unit - AR80.61-P-0002LWG
WARNING: This page is about a different car, the 2023 Mercedes-Benz GLC300, 2022 Mercedes-Benz GLC300, 2021 Mercedes-Benz GLC300, 2020 Mercedes-Benz GLC350e, and 2020 Mercedes-Benz GLC300. However, it is still accessible from the selected car via links, so may be relevant.
Model 253
with code 889 (KEYLESS-GO)
Model 253
with code 893 (KEYLESS-Start)
| Risk of injury caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof. | No parts of the body or limbs should be within the operating area when the components are moving. | AS00.00-Z-0011-01A | |
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Notes on HANDS-FREE ACCESS | AH80.61-P-0001-01A | ||
| Remove/install | |||
| 1 | Perform initial startup for KEYLESS-GO Control unit (N69/5) | When replacing KEYLESS-GO Control unit (N695). | |
| 2 | Remove left side load compartment lining | Model 253 (except 253.992/993) with code 889 (KEYLESS-GO) with code 893 (KEYLESS-Start) |
AR68.30-P-1180LWG |
| Model 253.992/993 with code 889 (KEYLESS-GO) with code 893 (KEYLESS-Start) |
AR68.30-P-1180RFW | ||

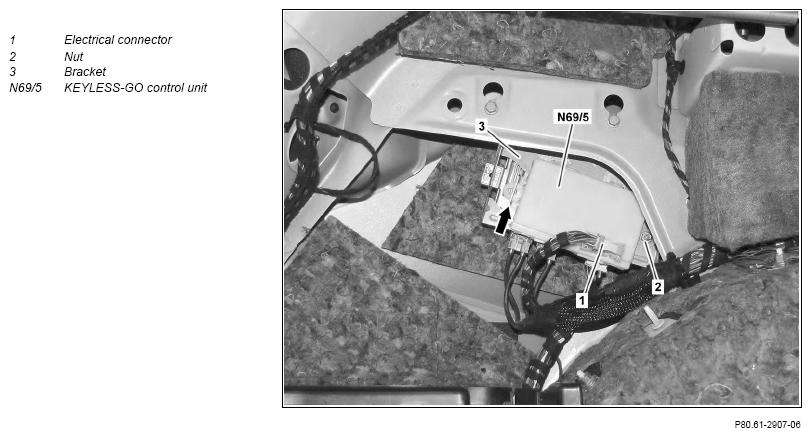

| 3 | Release and disconnect electrical connection (1) | ||
| 4 | Unscrew nut (2) | ||
| 5 | Remove KEYLESS GO Control unit (N69/5) from bracket (3) | ||
| 6 | Install in the reverse order |
