Remove/Install Keyless-Go Antenna In Load Compartment - AR80.61-P-0033LWG
WARNING: This page is about a different car, the 2023 Mercedes-Benz GLC300, 2022 Mercedes-Benz GLC300, 2021 Mercedes-Benz GLC300, 2020 Mercedes-Benz GLC350e, and 2020 Mercedes-Benz GLC300. However, it is still accessible from the selected car via links, so may be relevant.
Model 253 (except 253.311/353/354/911/953/954)
with code 889 (KEYLESS-GO)
Model 293
with code 889 (KEYLESS-GO)

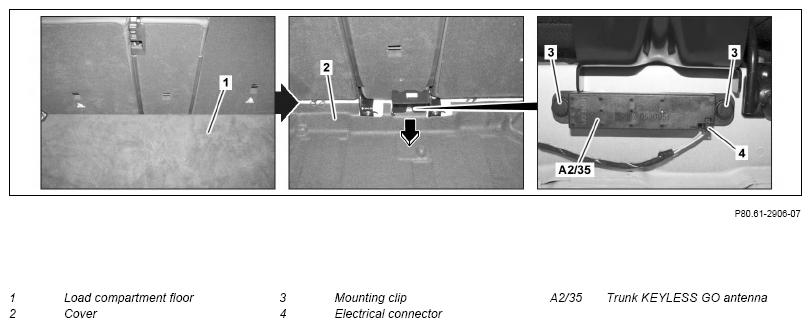

Fig 1: Keyless-Go Antenna In Load Compartment Components Location - Model 253 (Except 253.311/353/354/911/953/954) With Code 889
Shown on Model 253 with code 889 (KEYLESS-GO)
| Risk of injury caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof. | No parts of the body or limbs should be within the operating area when the components are moving. | AS00.00-Z-0011-01A | |
| Topical note | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Notes on HANDS-FREE ACCESS | AH80.61-P-0001-01A | ||
| Remove/install | |||
| 1 | Switch off ignition and store transmitter key outside of transmission range (min. 2 m). | ||
| 2 | Remove load compartment floor (1). | ||
| 3 | Fold back trim (2) until trunk KEYLESS-GO antenna (A2/35) is accessible. | ||
| 4 | Release and disconnect electrical connector (4). | ||
| 5 | Remove retaining clips (3). | Fig 2 | |
| 6 | Remove trunk KEYLESS-GO antenna (A2/35) | ||
| 7 | Install in the reverse order |
