Remove/Install Keyless-Go Antenna In Load Compartment - AR80.61-P-0033LVH
WARNING: This page is about a different car, the 2023 Mercedes-Benz GLC300, 2022 Mercedes-Benz GLC300, 2021 Mercedes-Benz GLC300, 2020 Mercedes-Benz GLC350e, and 2020 Mercedes-Benz GLC300. However, it is still accessible from the selected car via links, so may be relevant.
Model 253.311/353/354/911/953/954
with code 889 (KEYLESS-GO)
Model 253.311/353/354/911/953/954
with code 893 (KEYLESS-Start)

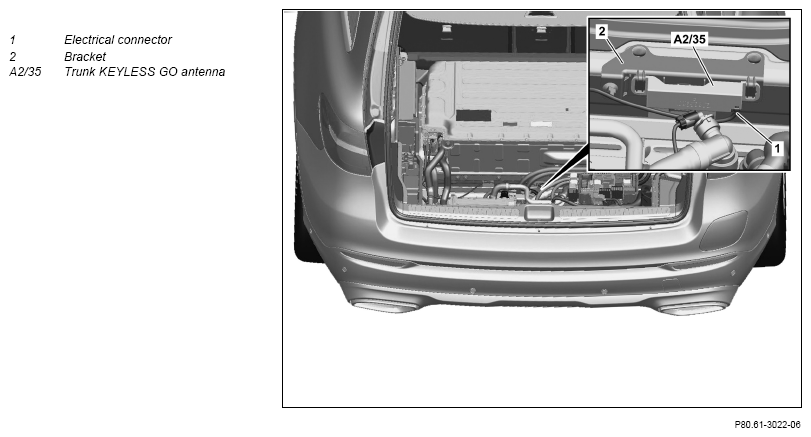

Fig 1: Keyless-Go Antenna In Load Compartment Components Location - Model 253.953 With Code 889; 893
| Risk of injury caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof. | No parts of the body or limbs should be within the operating area when the components are moving. | AS00.00-Z-0011-01A | |
| Risk of death when working on component parts and systems with U >= 30 V alternating voltage (AC) or U >= 60 V direct voltage (DC) | Do not touch damaged or defective live component parts and lines or non-insulated electrical connections and lines. | AS00.00-Z-0035-01A | |
| Topical note | General information on handling vehicles with high-voltage on-board electrical system and/or lithium-ion battery and/or gaseous-fuel drive system | AH00.00-Z-0300-01A | |
| Topical note | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Topical note | Notes on battery | AH54.10-P-0001-01A | |
| Notes on HANDS-FREE ACCESS | AH80.61-P-0001-01A | ||
| Remove/install | |||
| 1 | Perform power disconnect of high-voltage on-board electrical system. | AR54.10-P-1150LVH | |
| 2 | Fold up load compartment floor and secure. | ||
| 3 | Remove load compartment trim. | ||
| 4 | Release electrical connector (1) and disconnect. | ||
| 5 | Release bracket (2), extend trunk KEYLESS-GO antenna (A2/35) downward, and remove. | ||
| 6 | Install in the reverse order. |
