Remove/Install DAS 4 Alarm Siren - AR80.50-P-9842LWO
WARNING: This page is about a different car, the 2023 Mercedes-Benz GLC300, 2022 Mercedes-Benz GLC300, 2021 Mercedes-Benz GLC300, 2020 Mercedes-Benz GLC350e, and 2020 Mercedes-Benz GLC300. However, it is still accessible from the selected car via links, so may be relevant.
Model 213 with engine 177, 256, 264, 274, 276
with code 228 (Auxiliary heater)
with code 2U8 (Alternative refrigerant)
with code 882 (Interior protection and tow-away protection)
Model 238 with engine 256, 264, 274, 276
with code 228 (Auxiliary heater)
with code 2U8 (Alternative refrigerant)
with code 882 (Interior protection and tow-away protection)
Model 253 with engine 177, 274, 276
with code 228 (Auxiliary heater)
with code 2U8 (Alternative refrigerant)
with code 882 (Interior protection and tow-away protection)
| Remove | |||
| 1 | Perform commissioning of alarm siren (H3/1) | When replacing alarm siren (H3/1). | |
| Model 238 | AD00.00-P-2000-06LWO | ||
| Model 213, 253 | AD00.00-P-2000-04B | ||
| 2 | Deactivate anti-theft alarm system (ATA) | ||
| 3 | Remove bracket (1) with inerting system cartridge (2) | AR86.10-P-0106LWE | |
| 4 | Unscrew nut (3) and remove alarm siren (H3/1) with bracket (4) from bracket (1) | ||
| The high voltage used for electric welding presents a lethal hazard. Risk of explosion from welding in areas close to highly inflammable materials. Risk of injury from weld splatter and UV-light when welding. Risk of poisoning from inhaling welding gases | Use insulating mats. Wear protective clothing, safety glasses and a protective mask. Remove highly inflammable materials from the hazard area. Use air extraction system. | AS00.00-Z-0007-01A | |
| 5 | Screw commercially available nut onto threaded pin (5) and weld with two tack weld points with theft-proof nut (6) | When replacing alarm siren (H3/1). | |
| 000 588 02 84 00 Welder | WS60.00-P-0022K | ||
| 6 | Unscrew commercially available nut together with theft-proof nut (6) and remove bracket (4) from alarm siren (H3/1) | When replacing alarm siren (H3/1). | |
| Install | |||
| 7 | Tighten bracket (4) with new theft-proof nut (6) on alarm siren (H3/1) | When replacing alarm siren (H3/1). | |
| *BA80.50-P-1002-01D | |||

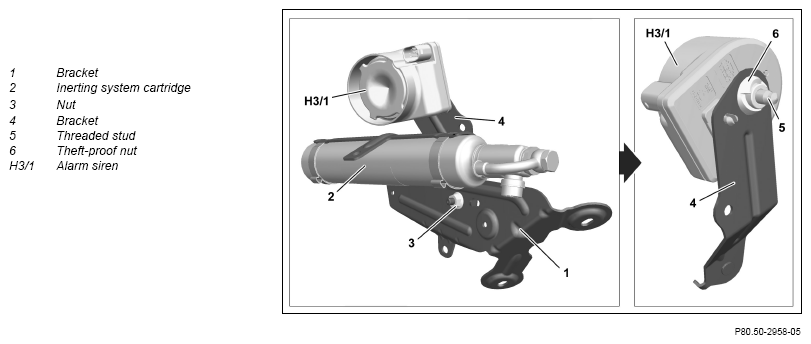

| Fig 1 | |||
| 8 | Position alarm siren (H3/1) with bracket (4) on bracket (1) and tighten nut (3) | ||
| *BA80.50-P-1003-01D | |||
| 9 | Install bracket (1) with inerting system cartridge (2) | AR86.10-P-0106LWE |
ANTI-THEFT ALARM SYSTEM
| Number | Designation | Model 213 | Model 238 | |
|---|---|---|---|---|
| BA80.50-P-1002-01D | Nut, horn to bracket | Nm | 10 | 10 |
ANTI-THEFT ALARM SYSTEM
| Number | Designation | Model 253 | |
|---|---|---|---|
| BA80.50-P-1002-01D | Nut, horn to bracket | Nm | 10 |
ANTI-THEFT ALARM SYSTEM
| Number | Designation | Model 213 | Model 238 | |
|---|---|---|---|---|
| BA80.50-P-1003-01D | Nut, bracket for horn to body/bracket | Nm | 6 | 6 |
ANTI-THEFT ALARM SYSTEM
| Number | Designation | Model 253 | |
|---|---|---|---|
| BA80.50-P-1003-01D | Nut, bracket for horn to body/bracket | Nm | 6 |
