Remove/Install DAS 4 Alarm Siren - AR80.50-P-9842LWE
WARNING: This page is about a different car, the 2023 Mercedes-Benz GLC300, 2022 Mercedes-Benz GLC300, 2021 Mercedes-Benz GLC300, 2020 Mercedes-Benz GLC350e, and 2020 Mercedes-Benz GLC300. However, it is still accessible from the selected car via links, so may be relevant.
Model 213, 238, 253
with code 228 (Auxiliary heater)
with code 882 (Interior protection and tow-away protection) except code 2U8 (Alternative refrigerant)
| Remove | |||
| 1 | Perform commissioning of alarm siren (H3/1) | When replacing alarm siren (H3/1). | |
| Model 238 with code 228 (Auxiliary heater) with code 882 (Interior protection and tow-away protection) except code 2U8 (Alternative refrigerant) |
AD00.00-P-2000-06LWO | ||
| Model 213, 253 with code 228 (Auxiliary heater) with code 882 (Interior protection and tow-away protection) except code 2U8 (Alternative refrigerant) |
AD00.00-P-2000-04B | ||
| 2 | Deactivate anti-theft alarm system (ATA) | ||
| 3 | Remove rear section of fender liner in right fender | Model 253 with code 228 (Auxiliary heater) with code 882 (Interior protection and tow-away protection) except code 2U8 (Alternative refrigerant) |
AR88.10-P-1300LW |
| Model 213, 238 with code 228 (Auxiliary heater) with code 882 (Interior protection and tow-away protection) except code 2U8 (Alternative refrigerant) |
AR88.10-P-1300LWE | ||

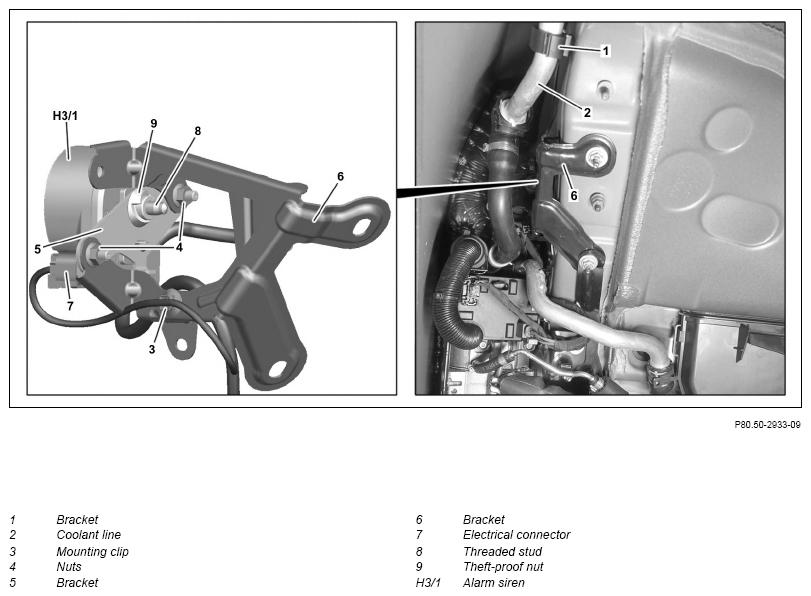

| 4 | Unhook coolant line (2) from bracket (1) | ||
| 5 | Unclip retaining clip (3) from bracket (6) together with electrical line | ||
| 6 | Unscrew nuts (4) | ||
| 7 | Remove alarm siren (H3/1) with bracket (5) and disconnect electrical connector (7) | ||
| The high voltage used for electric welding presents a lethal hazard. Risk of explosion from welding in areas close to highly inflammable materials. Risk of injury from weld splatter and UV-light when welding. Risk of poisoning from inhaling welding gases | Use insulating mats. Wear protective clothing, safety glasses and a protective mask. Remove highly inflammable materials from the hazard area. Use air extraction system. | AS00.00-Z-0007-01A | |
| 8 | Screw commercially available nuts to threaded pins (8) and weld with two tack weld points with theft-proof nut (9) | When replacing alarm siren (H3/1). | |
| 000 588 02 84 00 Welder | WS60.00-P-0022K | ||
| 9 | Unscrew commercially available nut together with theft-proof nut (9) and remove bracket (5) from alarm siren (H3/1) | When replacing alarm siren (H3/1). | |
| Install | |||
| 10 | Tighten bracket (5) with new theft-proof nut (9) on alarm siren (H3/1) | When replacing alarm siren (H3/1). |
*BA80.50-P-1002-01D |
| Fig 2 | |||
| 11 | Connect electrical connector (7) | ||
| 12 | Position alarm siren (H3/1) with bracket (5) on bracket (6) and tighten nuts (4) | *BA80.50-P-1003-01D | |
| 13 | Clip retaining clip (3) into bracket (6) with electrical line | ||
| 14 | Hook coolant line (2) into bracket (1) | ||
| 15 | Install rear section of fender liner in right fender | Model 253 with code 228 (Auxiliary heater) with code 882 (Interior protection and tow-away protection) except code 2U8 (Alternative refrigerant) |
AR88.10-P-1300LW |
| Model 213, 238 with code 228 (Auxiliary heater) with code 882 (Interior protection and tow-away protection) except code 2U8 (Alternative refrigerant) |
AR88.10-P-1300LWE |
ANTI-THEFT ALARM SYSTEM
| Number | Designation | Model 213 | Model 238 | |
|---|---|---|---|---|
| BA80.50-P-1002-01D | Nut, horn to bracket | Nm | 10 | 10 |
ANTI-THEFT ALARM SYSTEM
| Number | Designation | Model 253 | |
|---|---|---|---|
| BA80.50-P-1002-01D | Nut, horn to bracket | Nm | 10 |
ANTI-THEFT ALARM SYSTEM
| Number | Designation | Model 213 | Model 238 | |
|---|---|---|---|---|
| BA80.50-P-1003-01D | Nut, bracket for horn to body/bracket | Nm | 6 | 6 |
ANTI-THEFT ALARM SYSTEM
| Number | Designation | Model 253 | |
|---|---|---|---|
| BA80.50-P-1003-01D | Nut, bracket for horn to body/bracket | Nm | 6 |
