Keyless Go, Function - GF80.61-P-0005RF

WARNING: This page is about a different car, the 2023 Mercedes-Benz GLC300, 2022 Mercedes-Benz GLC300, 2021 Mercedes-Benz GLC300, 2020 Mercedes-Benz GLC350e, and 2020 Mercedes-Benz GLC300. However, it is still accessible from the selected car via links, so may be relevant.

Model 205 up to Model year 2019 with code 889 (KEYLESS-GO)

Model 205 up to Model year 2019 with code 893 (KEYLESS-Start)

Model 253 (except 253.99) up to Model year 2020 with code 889 (KEYLESS-GO)

Model 253 (except 253.99) up to Model year 2020 with code 893 (KEYLESS-Start)

with CODE 893 (KEYLESS-GO start function)

G14187708Courtesy of MERCEDES-BENZ USA
G14187709Courtesy of MERCEDES-BENZ USA

With code 889 (KEYLESS-GO)

The KEYLESS-GO Control unit transmits coded requests to the transmitter key via the center console KEYLESS-GO antenna and the KEYLESS-GO trunk antenna. The transmitter key decodes these requests and transmits coded responses, when it is in area C or D. The KEYLESS-GO Control unit receives the response of the transmitter key via the rear window antenna and the FM 1, AM, CL [ZV] and KEYLESS-GO antenna amplifier, checks the plausibility and sends this via the interior CAN to the electronic ignition lock Control unit. If the evaluation is positive, the electronic ignition lock Control unit authorizes the transmitter key.

KEYLESS-GO, general

The KEYLESS-GO comfort feature allows keyless locking/unlocking of the vehicle (with code (889) KEYLESS-GO) as well as starting and switching off the engine without inserting the transmitter key into the electronic ignition lock Control unit. It is sufficient to just carry the transmitter key.

IMPORTANTIMPORTANT Operation of the central locking (CL) and starting and stopping of the engine via the transmitter key remain possible at the same time as the KEYLESS-GO functions.

The KEYLESS-GO system includes the following partial functions:

IMPORTANTIMPORTANT Model 205 up to Model year 2019 with code 551 (Standard anti-theft alarm system (ATA)) with code 889 (KEYLESS-GO)

Model 205 up to Model year 2019 with code 551 (Standard anti-theft alarm system (ATA)) with code 893 (KEYLESS-Start)

Model 253 (except 253.99) up to Model year 2020 with code 551 (Standard anti-theft alarm system (ATA)) with code 889 (KEYLESS-GO)

Model 253 (except 253.99) up to Model year 2020 with code 551 (Standard anti-theft alarm system (ATA)) with code 893 (KEYLESS-Start)

The anti-theft alarm (ATA [EDW]) behaves in the same way as if the car were unlocked and locked with the transmitter key.

Function sequence for position finding of transmitter key

To reliably or securely realize the locking/unlocking (with CODE 889 (KEYLESS-GO)) and engine start/stop function, it is necessary to determine the position of and authorize the transmitter key.

The following illustration indicates the components with the KEYLESS-GO Control unit uses to detect the area around the vehicle or in the vehicle where the transmitter key is located.

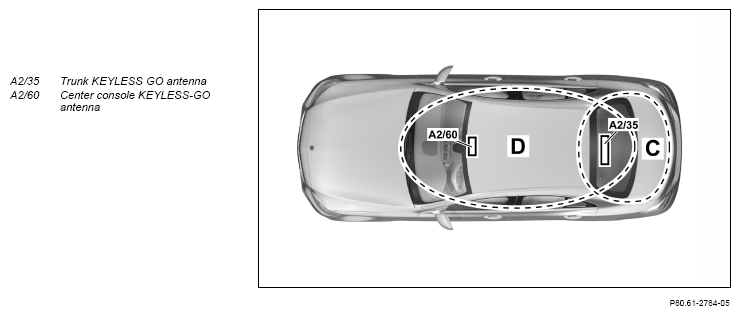

Shown on Model 205.0 with code (893) KEYLESS-GO start function

G13955610Courtesy of MERCEDES-BENZ USA

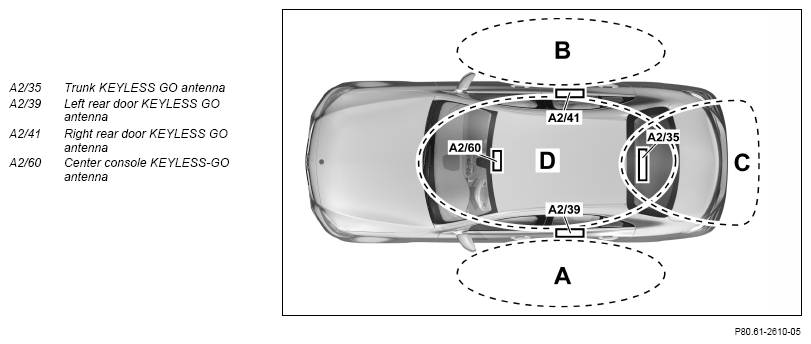

Model 205.0/1/2, 253, shown on Model 205.0 with CODE 889 (KEYLESS-GO)

G14187710Courtesy of MERCEDES-BENZ USA

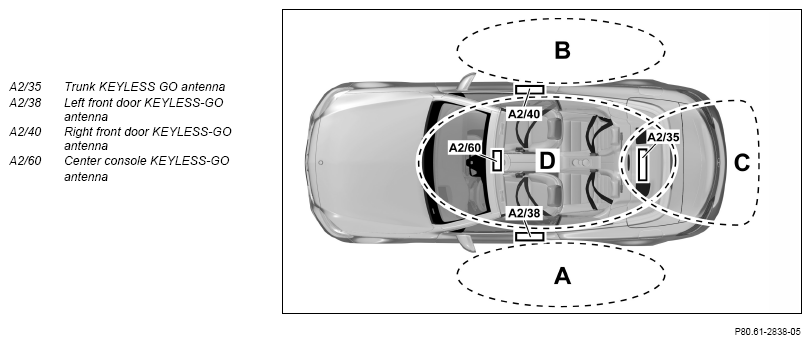

Model 205.3/4, shown on Model 205.4 with CODE 889 (KEYLESS-GO)

G14187711Courtesy of MERCEDES-BENZ USA

The position is determined when a capacitive sensor in a KEYLESS-GO door handle or the trunk lid/liftgate external operation switch is actuated. The KEYLESS-GO Control unit directly reads in the signals from the capacitive sensors.

The rear SAM Control unit reads in the status of the trunk lid/liftgate external operation switch directly and sends this via interior CAN to the KEYLESS-GO Control unit. Then the KEYLESS-GO Control unit transmits coded requests to the transmitter key via the KEYLESS-GO antennas. The transmitter key decodes these requests and transmits coded requests correspondingly when it is located in area A, B, C or D. The KEYLESS-GO Control unit receives the response of the transmitter key via the rear window antenna and the FM 1, AM, CL [ZV] and KEYLESS-GO antenna amplifier, checks the plausibility and sends this via the interior CAN to the electronic ignition lock Control unit.

If the evaluation is positive, the electronic ignition lock Control unit authorizes the transmitter key (vehicle is locked or unlocked).

If the vehicle is loaded with unusual material (high volumes of metal) the long wave frequencies emitted by the KEYLESS-GO antennas for the KEYLESS-GO Control unit are reflected or absorbed to a high degree, which can lead to erroneous detection. The maximum overlap between the detected inside and outside area (measured at the side window) is approx. s = 10 cm. I.E., above s = 10 cm position detection is correct and the transmitter key is definitively located in the detected range. Below s = 10 cm (Gray area) the position detection for the transmitter key may be faulty, and this means it is not possible to reliably determine, whether the transmitter key is located inside or outside the vehicle.

Additional function requirements for locking/unlocking (with code (889) KEYLESS-GO)

The electronic ignition lock Control unit sends the circuit 15 status over the interior CAN to the KEYLESS-GO Control unit.

Function sequence for locking/unlocking (with code (889) KEYLESS-GO)

The locking/unlocking function allows the vehicle to be opened and closed via the CL.

The following control elements are available:

IMPORTANTIMPORTANT The sensor units in the KEYLESS-GO door handles are switched off when circuit 15 is switched on. Activation takes place when circuit 15 is switched off and a door is opened.

The locking/unlocking function comprises the following subfunctions:

Function sequence for preadjustment of unlocking mode

Basically the following types of unlocking are differentiated:

Only the driver door is unlocked by reaching into the left front KEYLESS-GO door handle or pulling the left front KEYLESS-GO door handle. The opening request from the fuel filler flap is enabled additionally.

IMPORTANTIMPORTANT Operating the trunk lid/liftgate external operation switch only opens the trunk lid or the liftgate.

If a KEYLESS-GO door handle is operated at the front passenger door or one of the rear doors (Model 205.0/1/2, 253) during selective unlocking, global opening takes place.

Simultaneously pressing the lock/unlock buttons on the transmitter key for t = 5 s switches the system between two types of unlocking. The LED on the transmitter key comes on twice to confirm this change.

Function sequence for locking/unlocking one vehicle door

Unlocking possibilities:

Option for opening trunk lid or liftgate:

Locking possibilities:

Example globally unlocking at left front door:

When you reach into the left front KEYLESS-GO door handle, the capacitive sensor (recessed sensor area) in the door handle recognizes this. The KEYLESS-GO Control unit reads in the signal from the capacitive sensor and transmits a wake-up signal via the left rear door KEYLESS-GO antenna (Model 205.0/1/2, 253) or the left front door KEYLESS-GO antenna (Model 205.3/4) to the transmitter key.

The transmitter key sends its access authorization code and its position via the rear window antenna and the FM 1, AM, CL [ZV] and KEYLESS-GO antenna amplifier to the KEYLESS-GO Control unit. The KEYLESS-GO control transmits this data to the electronic ignition lock Control unit via the interior CAN. The electronic ignition switch Control unit checks the access authorization of the transmitter key.

If it is defined as valid, the electronic ignition lock Control unit transmits the request "Open CL" via the interior CAN to the following Control units:

The left front door Control unit unlocks the left front door lock via the left front doors central locking motor. The right front door Control unit unlocks the right front door lock via the right front door central locking motor.

Model 205.0/1/2, 253:

The left rear door Control unit unlocks the left rear door lock via the left rear door central locking motor. The right rear door Control unit unlocks the right rear door lock via the right rear door central locking motor.

Model 205.4:

The rear SAM Control unit locks or unlocks the stowage compartment in the center console via the stowage compartment central locking actuator motor.

Opening of the trunk lid or the liftgate via the trunk lid/liftgate external operation switch is enabled accordingly by the rear SAM Control unit. The rear SAM Control unit enables the opening request from the tank cap central locking actuator.

On vehicles with code (885) Extended theft protection, the following components are actuated additionally:

IMPORTANTIMPORTANT The vehicle cannot be locked if a door is open.

Function sequence for acoustic locking feedback

The acoustic locking feedback function is selected via the control level in the head unit. The function is selected via the Audio/COMAND control panel and is displayed on the Audio/COMAND display.

The Audio/COMAND control panel sends the adjustment request via telematics CAN to the head unit. The head unit generates the corresponding image data and sends a switch-on request to the Audio/COMAND display via telematics CAN. The image data is sent via the LVDS line to the Audio/COMAND display.

The head unit sends the status of the acoustic locking feedback function via user interface CAN, electronic ignition lock Control unit and chassis CAN to the front SAM Control unit.

When the acoustic locking feedback function is activated, the front SAM Control unit momentarily actuates the left horn and the right horn via the horn relay after successful locking. For this purpose the electronic ignition lock Control unit sends the "Lock" request via interior CAN to the front SAM Control unit.

There is no signal for unlocking. If a door is still open when locking, there is no acoustic feedback.

Function sequence for optical locking feedback

After the CL is locked or unlocked successfully, a visual feedback is output via the turn signals.

The electronic ignition lock Control unit transmits the request "Lock" or "Unlock" to the front SAM Control unit via the interior CAN. The front SAM Control unit then activates the hazard warning flasher function. All turn signals are actuated synchronously on the vehicle.

One flashing cycle is output when unlocking. Three flashing cycles are output when locking.

If a door is still open when locking, there is no visual feedback.

Additional function requirements for unlocking and opening trunk lid or liftgate

Function sequence for unlocking and opening trunk lid or liftgate

Trunk lid/liftgate external operation switch:

Operating the trunk lid/liftgate external operation switch unlocks and opens the trunk lid or the liftgate. The rear SAM Control unit reads in the status of the trunk lid/liftgate external operation switch directly and sends this via interior CAN to the KEYLESS-GO Control unit.

With CODE 871 (HANDS-FREE ACCESS):

The function is actuated by foot motion ("kicking motion") in the rear of the rear switching module below the bumper. The rear switching module directly reads in the signals from rear switching module sensors, evaluates them and transmits the corresponding request to the KEYLESS-GO Control unit via the KEYLESS-GO LIN.

In both cases the KEYLESS-GO Control unit then actuates the trunk KEYLESS-GO antenna, which transmits a wakeup signal to the transmitter key. The transmitter key sends its access authorization code and its position via the rear window antenna and the FM 1, AM, CL [ZV] and KEYLESS-GO antenna amplifier to the KEYLESS-GO Control unit. The KEYLESS-GO Control unit transmits the access authorization code via the interior CAN to the electronic ignition lock Control unit. If the access authorization is valid, the electronic ignition switch Control unit sends request "Open trunk lid/liftgate" to the rear SAM Control unit via interior CAN. The rear SAM Control unit then actuates the trunk lid/liftgate lock motor in the trunk lid/liftgate lock to unlock the trunk lid or the liftgate.

Additional function requirement for closing trunk lid or liftgate and locking vehicle

Function sequence for closing trunk lid or liftgate and locking vehicle

Trunk lid/liftgate control button (Model 205.0/1/3 with CODE 881 (Remote trunk closing) or Model 205.2, 253 with CODE 890 (EASY-PACK liftgate)):

The rear SAM Control unit reads in the status of the trunk lid/liftgate control button directly and transmits it via interior CAN to the trunk lid Control unit or the liftgate Control unit, which initiates closing of the trunk lid or the liftgate.

With CODE 871 (HANDS-FREE ACCESS):

The function is actuated by foot motion ("kicking motion") in the rear of the rear switching module below the bumper. The rear switching module directly reads in the signals from rear switching module sensors, evaluates them and transmits the corresponding request to the KEYLESS-GO Control unit via the KEYLESS-GO LIN.

Additional function prerequisites for Engine Start/Stop

Function sequence for engine start/stop

The function engine start/stop enables to engine to be started and switched off via the KEYLESS-GO start/stop button.

The partial function start/stop engine comprises the following partial functions:

Function sequence for interrogation of transmitter key

The KEYLESS-GO Control unit starts the check for an authorized transmitter key under the following conditions:

If the vehicle stops and no door is opened, no new interrogation takes place as well.

If no valid transmitter key is recognized in the vehicle interior when the transmitter key is queried in order to start the engine, "Please insert key" is displayed on the instrument cluster in white text after the KEYLESS-GO start/stop button has been pressed five times. If a transmitter key is not recognized in the vehicle interior when starting the vehicle, the message "Key not recognized" appears in red lettering in the instrument cluster. In this case it is possible to switch off the engine, however, it cannot be started. The message remains until it is acknowledged by the driver by changing the door status or with circuit 50 OFF.

Additional function requirements for starting engine

Function sequence for starting engine

The engine is started when the KEYLESS-GO start/stop button is pressed.

The electronic ignition lock Control unit directly reads in this request and transmits the status "Start/stop button pressed" via the interior CAN to the KEYLESS-GO Control unit.

The KEYLESS-GO Control unit evaluates this and transmits wake-up and location-finding signals to the transmitter key via the center console KEYLESS-GO antenna. The transmitter key sends its drive authorization code and its position via the rear window antenna and the FM 1, AM, CL [ZV] and KEYLESS-GO antenna amplifier to the KEYLESS-GO Control unit. The KEYLESS-GO control transmits this data to the electronic ignition lock Control unit via the interior CAN. The electronic ignition switch Control unit checks the drive authorization code of the transmitter key. If this is defined as valid, the electronic ignition lock Control unit sends the status circuit 50 On via the chassis FlexRay, the drive train Control unit and engine CAN to the CDI Control unit or the ME-SFI [ME] Control unit.

Function sequence for display of fault messages

The KEYLESS-GO Control unit transmits the request to output an error message via the interior CAN, electronic ignition lock Control unit and user interface CAN to the instrument cluster.

The following situations lead to the output of fault messages:

Function sequence for circuit switching

If the foot brake is not depressed when the KEYLESS-GO start/stop button is actuated, only circuit 15R is switched on. Repeated actuation of the KEYLESS-GO start/stop button activates circuit 15. Actuating again, switches off circuit 15R and circuit 15. When the driver door is closed, circuit 15C remains switched on for t = 30 min.

Function sequence for shutting off engine

When the KEYLESS-GO start/stop button is pressed when the engine is running, the engine is requested to shut down. The electronic ignition lock Control unit detects when the KEYLESS-GO start/stop button is pressed and transmits the status "Start/stop button pressed" to the KEYLESS-GO Control unit via the interior CAN. The KEYLESS-GO Control unit evaluates this and transmits the request "Shut off engine" via the interior CAN, electronic ignition lock Control unit and chassis Flex-Ray, drive train Control unit and engine CAN to the CDI Control unit and ME-SFI Control unit.

The CDI Control unit or ME-SFI Control unit then shuts off the engine depending on the vehicle speed.

Switching off engine depending on vehicle speed:

The vehicle speed is sent by the instrument cluster via user interface CAN, the electronic ignition lock Control unit and interior CAN to the KEYLESS-GO Control unit.

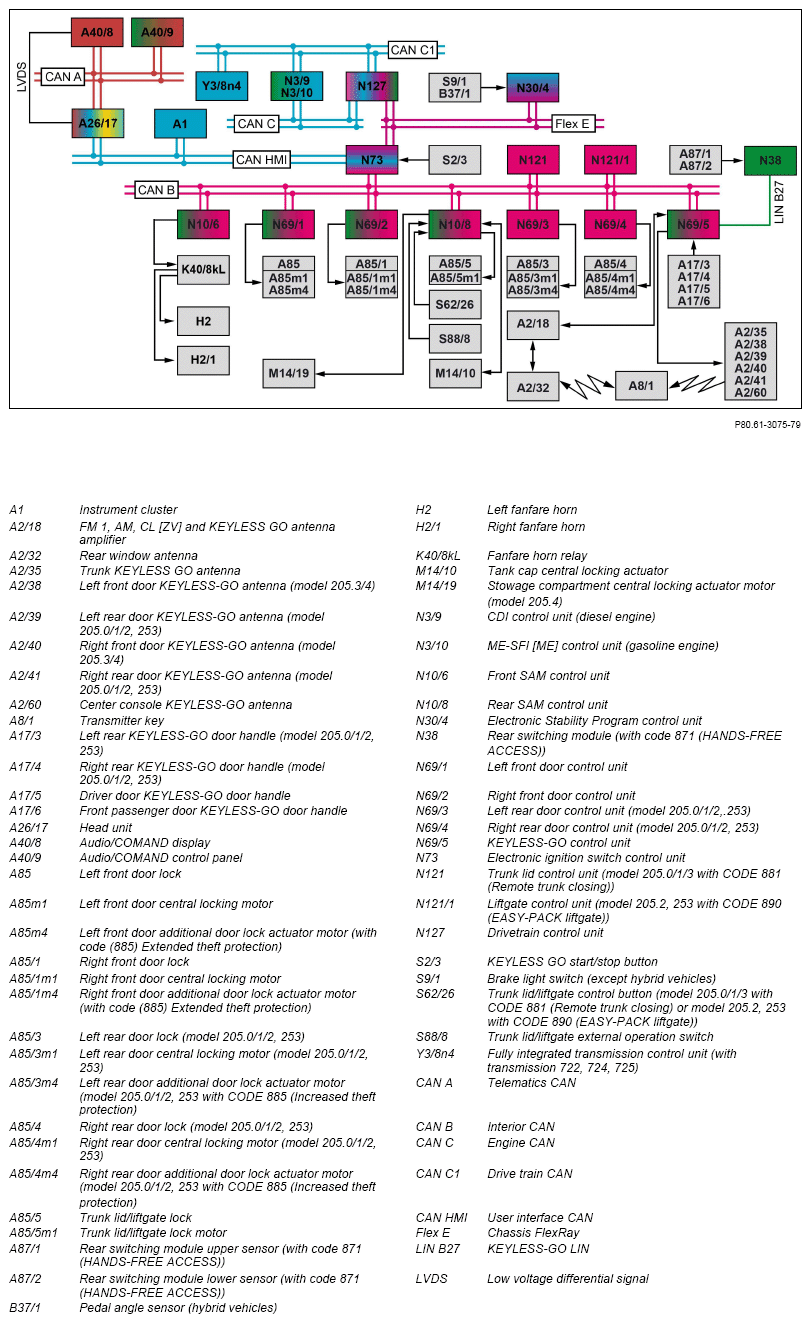

  Electrical function diagram for Keyless Go Model 205 up to Model year 2019 with code 889 (KEYLESS-GO) Model 253 (except 253.99) up to Model year 2020 with code 889 (KEYLESS-GO) PE80.61-P-2050-97FBA

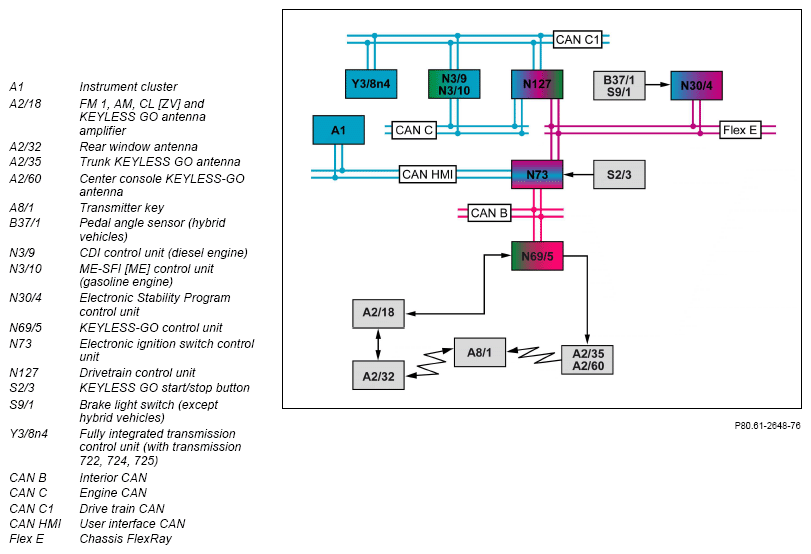

  Electrical function schematic for KEYLESS-GO engine start/stop Model 205 up to Model year 2019 with code 893 (KEYLESS-Start) Model 253 (except 253.99) up to Model year 2020 with code 893 (KEYLESS-Start) PE80.61-P-2052-97FBA
  Overview of system components for theft protection and locking   GF80.00-P-9999RF
