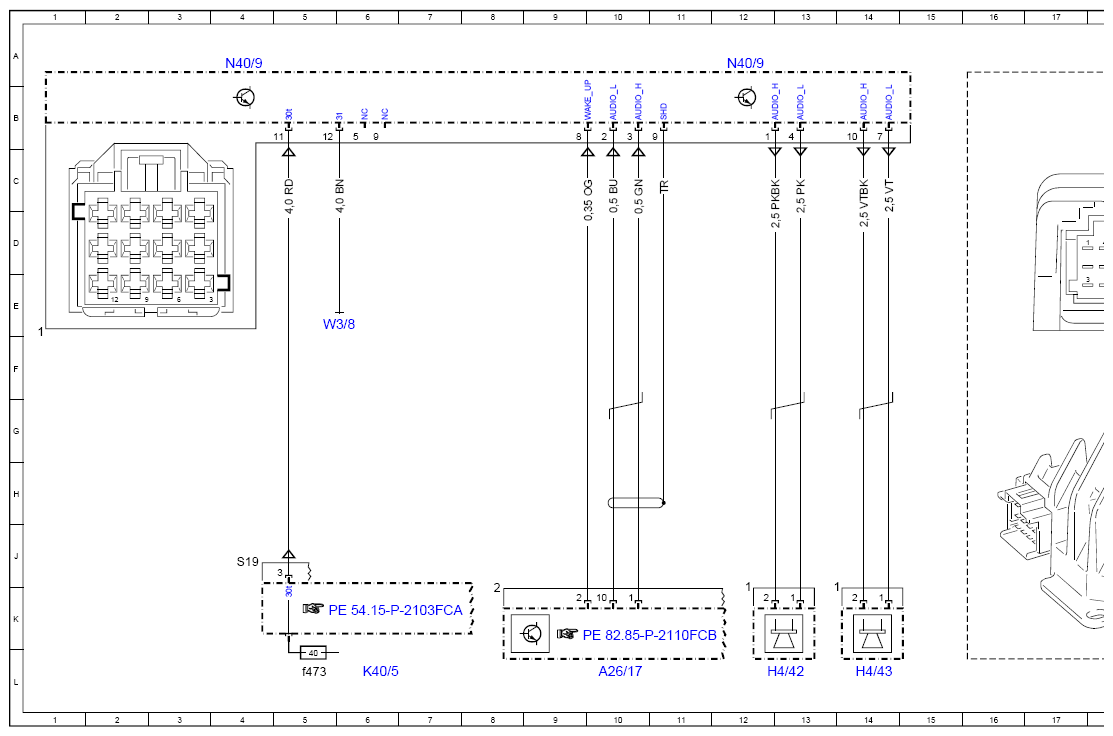

Wiring Diagram For Woofer Amplifier - PE82.62-P-2110-97FCA
WARNING: This page is about a different car, the 2023 Mercedes-Benz GLC300, 2022 Mercedes-Benz GLC300, 2021 Mercedes-Benz GLC300, 2020 Mercedes-Benz GLC350e, and 2020 Mercedes-Benz GLC300. However, it is still accessible from the selected car via links, so may be relevant.
Model 253 (except 253.99) as of model year 2020
with code 853 ("Midline" sound system)
Control unit N40/9
| Code: | Designation: | Position: |
|---|---|---|

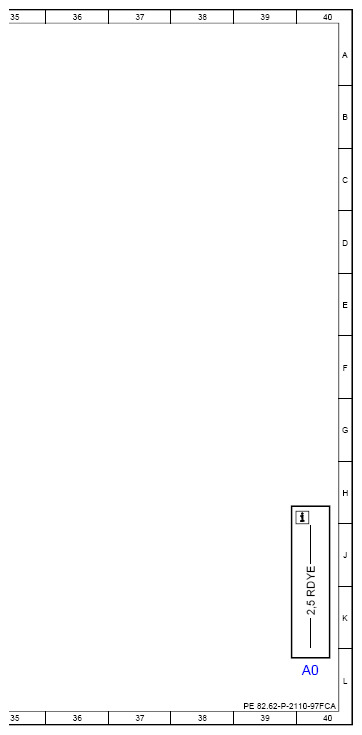

| A0 | Use of wiring diagrams | 40L |
| A26/17 | Head unit | 10L |
| H4/42 | Left footwell woofer | 13L |
| H4/43 | Right footwell woofer | 14L |
| K40/5 | Rear fuse and relay module | 6L |
| K40/5f473 | Fuse 473 | 5L |

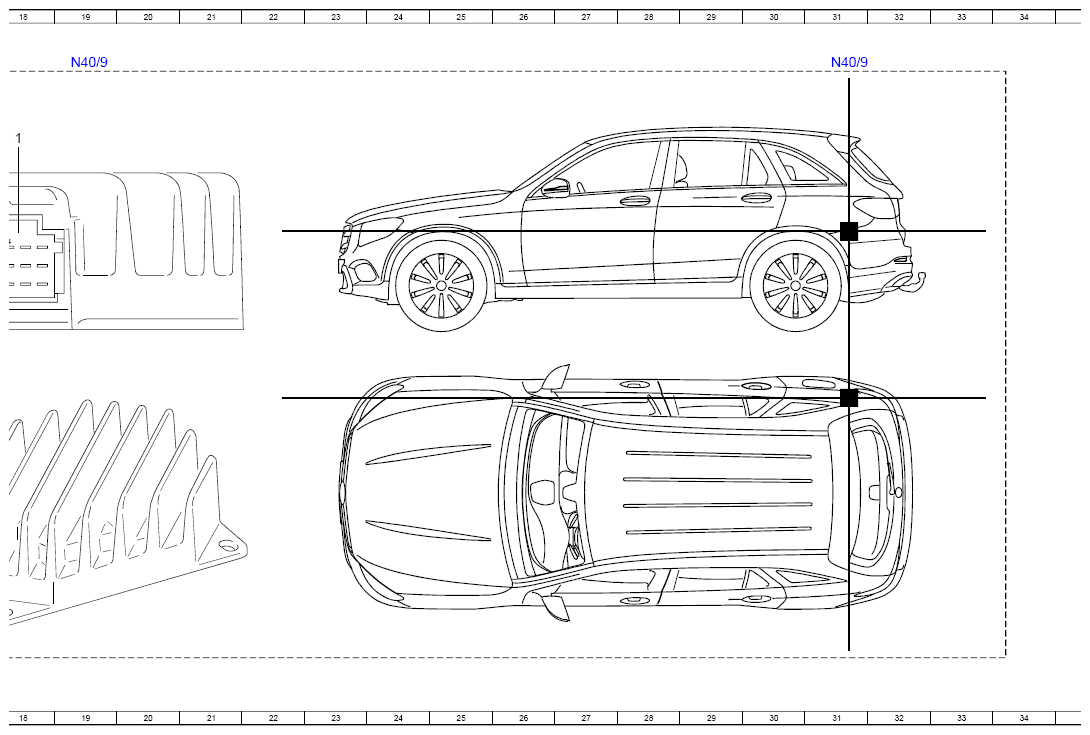

| N40/9 | Subwoofer amplifier | 4A |
| N40/9 | Subwoofer amplifier | 12A |
| N40/9 | Subwoofer amplifier | 19A |
| N40/9 | Subwoofer amplifier | 31A |
| W3/8 | Right rear wheel well ground point | 5E |
