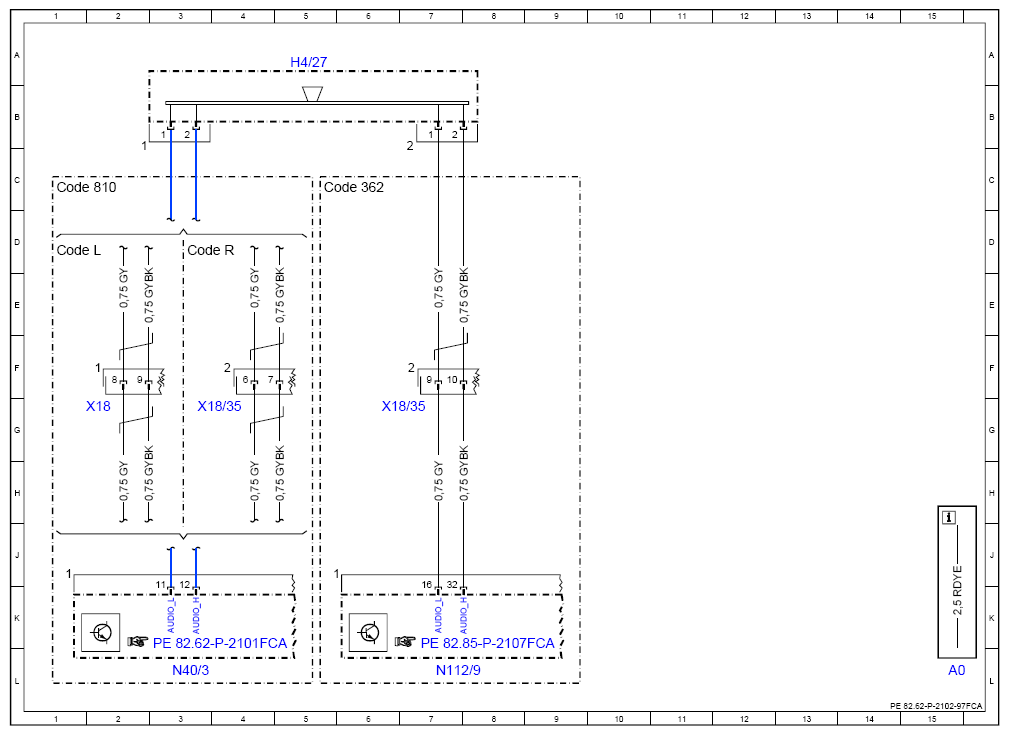

Wiring Diagram For Loudspeakers - PE82.62-P-2102-97FCA
WARNING: This page is about a different car, the 2023 Mercedes-Benz GLC300, 2022 Mercedes-Benz GLC300, 2021 Mercedes-Benz GLC300, 2020 Mercedes-Benz GLC350e, and 2020 Mercedes-Benz GLC300. However, it is still accessible from the selected car via links, so may be relevant.
Model 253 (except 253.99) as of model year 2020
with code 362 (HERMES communications module LTE)
with code 810 (Premium sound system)
Model 253.99 as of model year 2019
with code 362 (HERMES communications module LTE)
with code 810 (Premium sound system)
with code 9O1 (Fuel cell pre-installation)
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Use of wiring diagrams | 15L |
| Code 362 | HERMES LTE | 5C |
| Code 810 | Sound system | 1C |
| Code L | LEFT-HAND DRIVE | 1D |
| Code R | RIGHT-HAND DRIVE | 3D |
| H4/27 | Center instrument panel speaker | 5A |
| N112/9 | HERMES control unit | 7L |
| N40/3 | Sound system amplifier control unit | 3L |
| X18 | Cockpit wiring harness and frame floor assembly electrical connector | 2G |
| X18/35 | Cockpit wiring harness and frame floor assembly electrical connector | 4G |
| X18/35 | Cockpit wiring harness and frame floor assembly electrical connector | 7G |
