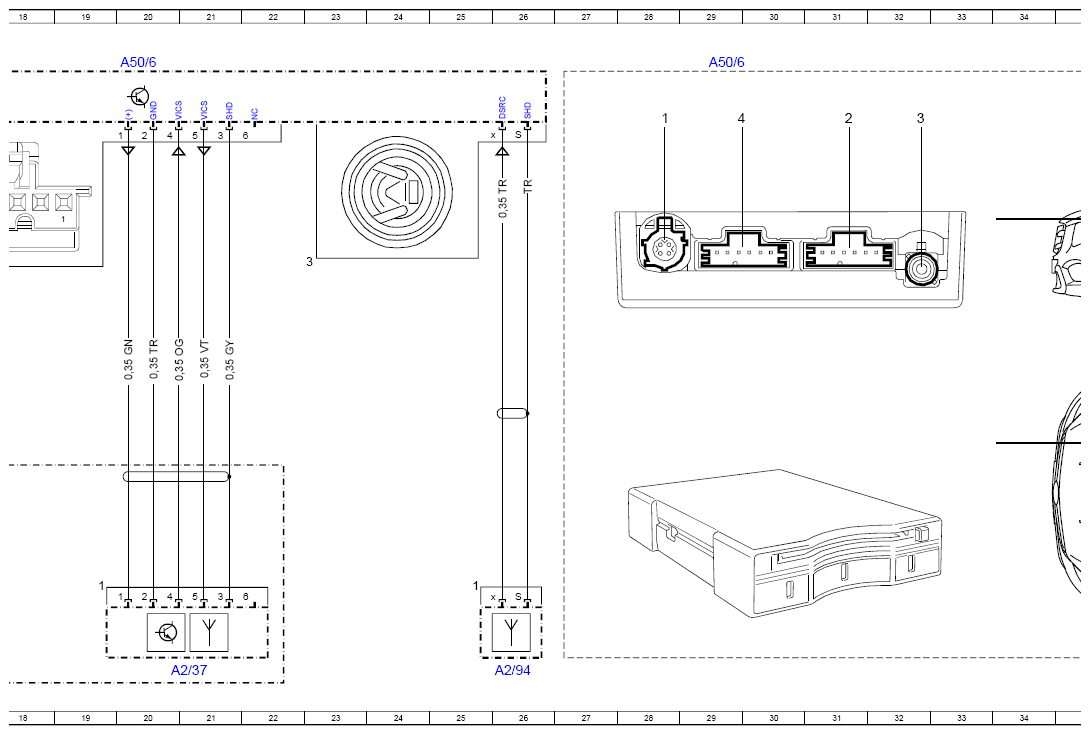

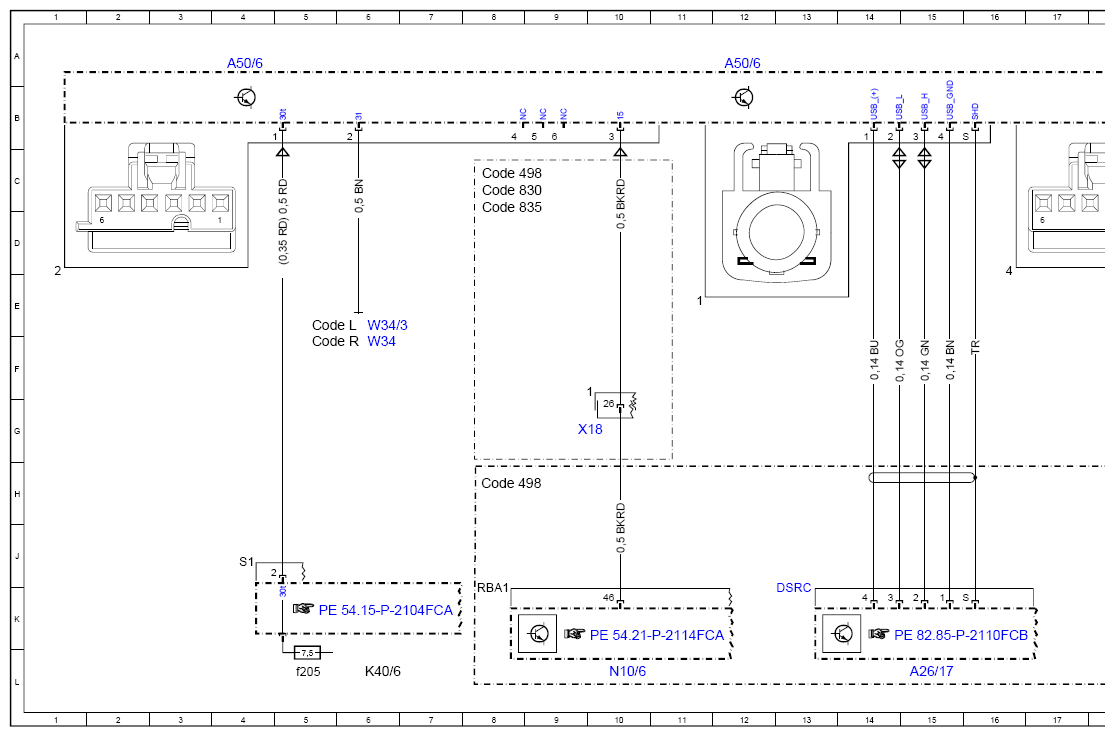

Wiring Diagram For Dedicated Short-Range Communications Control Unit - PE82.88-P-2101-97FCB
WARNING: This page is about a different car, the 2023 Mercedes-Benz GLC300, 2022 Mercedes-Benz GLC300, 2021 Mercedes-Benz GLC300, 2020 Mercedes-Benz GLC350e, and 2020 Mercedes-Benz GLC300. However, it is still accessible from the selected car via links, so may be relevant.
Model 253 (except 253.99) as of model year 2020
with code 498 (Japanese version)
with code 830 (China version)
A50/6
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Use of wiring diagrams | 48L |
| A2/37 | Vehicle Information and Communication System (VICS) control unit | 21L |
| A2/94 | DSRC antenna | 26L |
| A26/17 | Head unit | 15L |

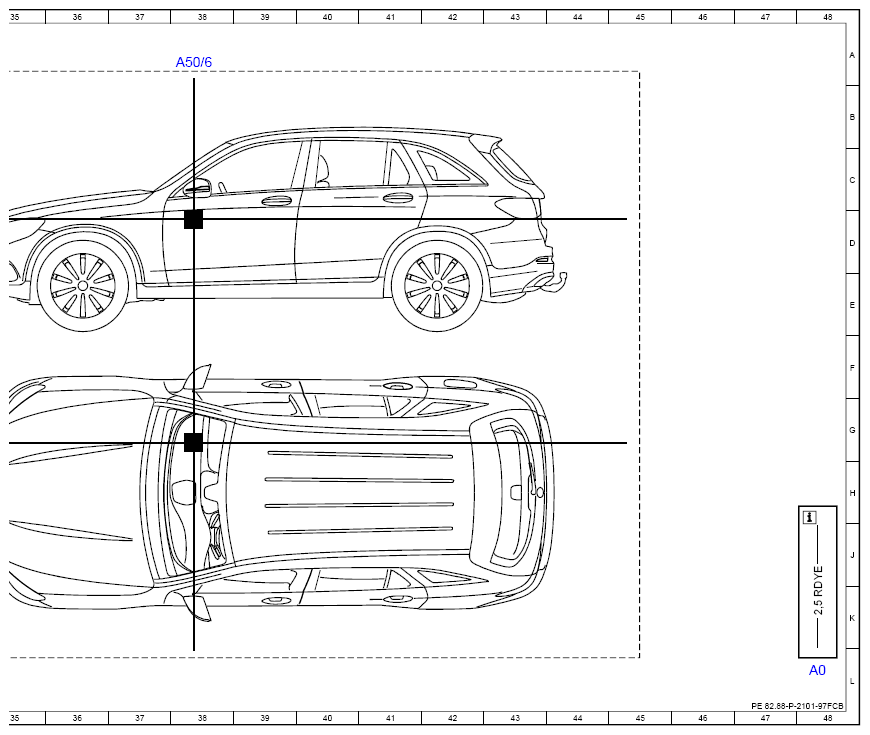

| A50/6 | Dedicated Short-Range Communications control unit | 4A |
| A50/6 | Dedicated Short-Range Communications control unit | 12A |
| A50/6 | Dedicated Short-Range Communications control unit | 20A |
| A50/6 | Dedicated Short-Range Communications control unit | 29A |
| A50/6 | Dedicated Short-Range Communications control unit | 38A |
| Code 498 | Japan version | 8H |
| Code 498 | Japan version | 8C |
| Code 830 | Additional parts for China vehicles | 8C |
| Code 835 | Additional parts for South Korea vehicles | 8D |
| Code L | LEFT-HAND DRIVE | 5E |
| Code R | RIGHT-HAND DRIVE | 5F |
| K40/6 | Driver-side fuse and relay module | 6L |
| K40/6f205 | Fuse 205 | 5L |
| N10/6 | Front SAM control unit | 10L |
| W34 | Left footwell ground point | 6F |
| W34/3 | Right footwell ground point | 6E |
| X18 | Cockpit wiring harness and frame floor assembly electrical connector | 10G |
