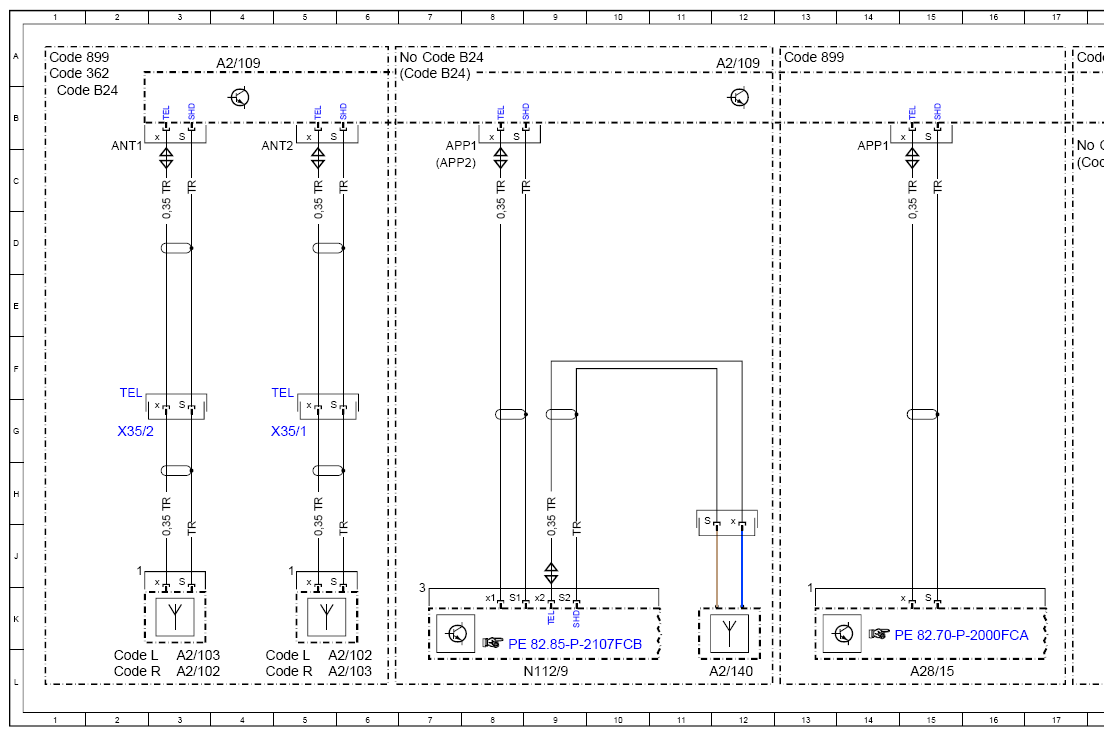

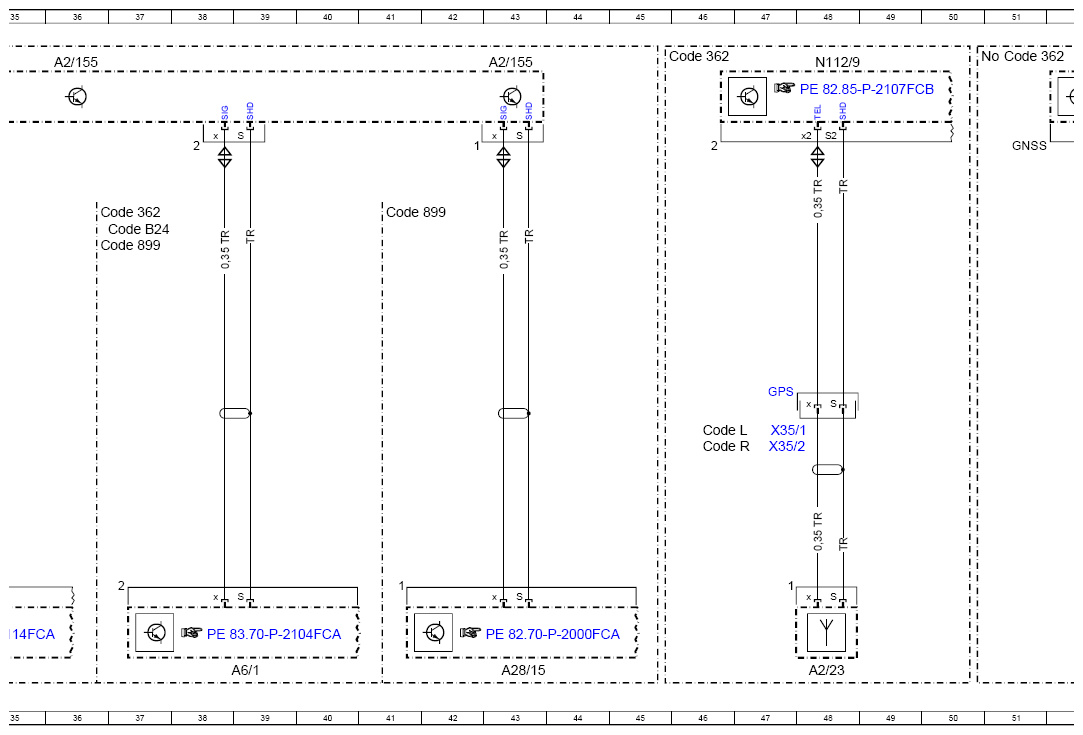

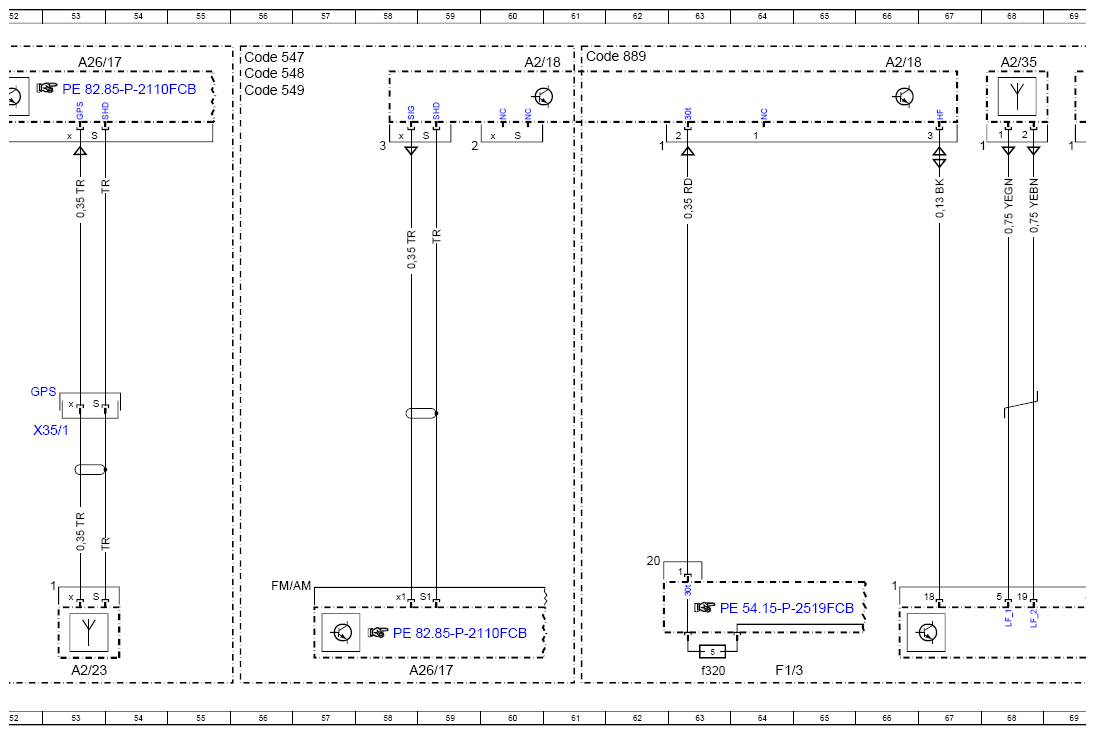

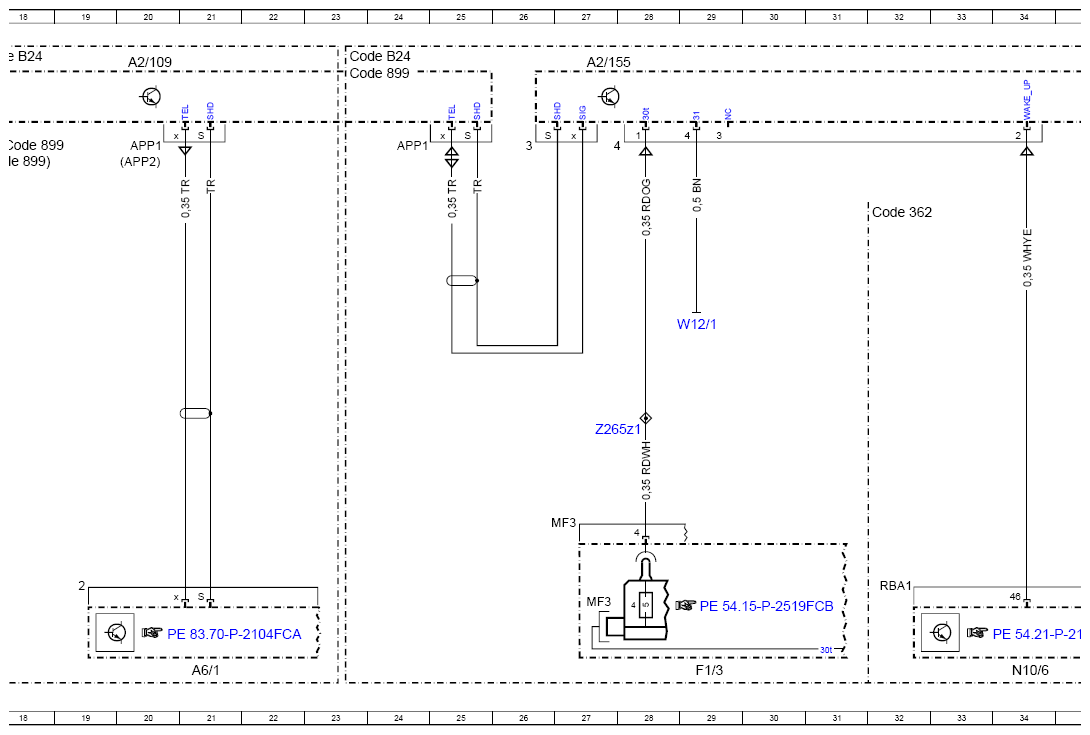

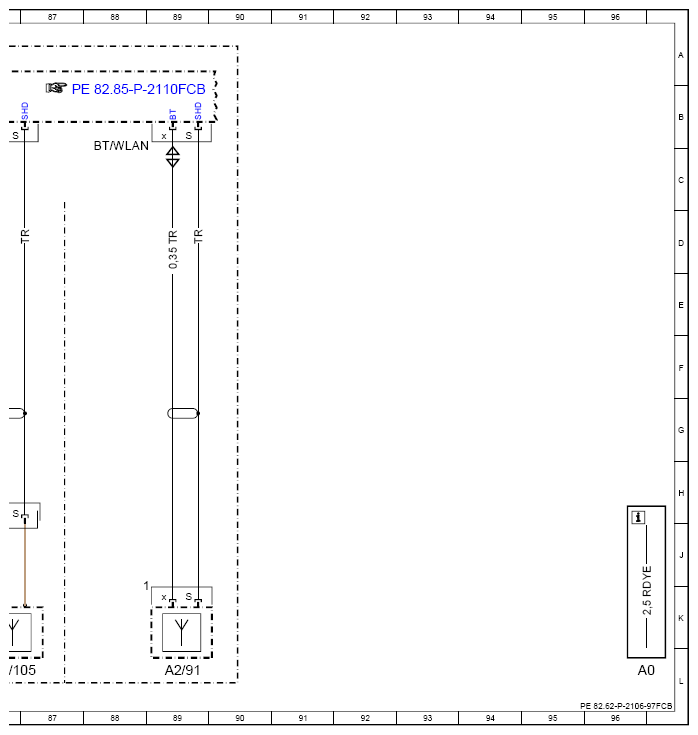

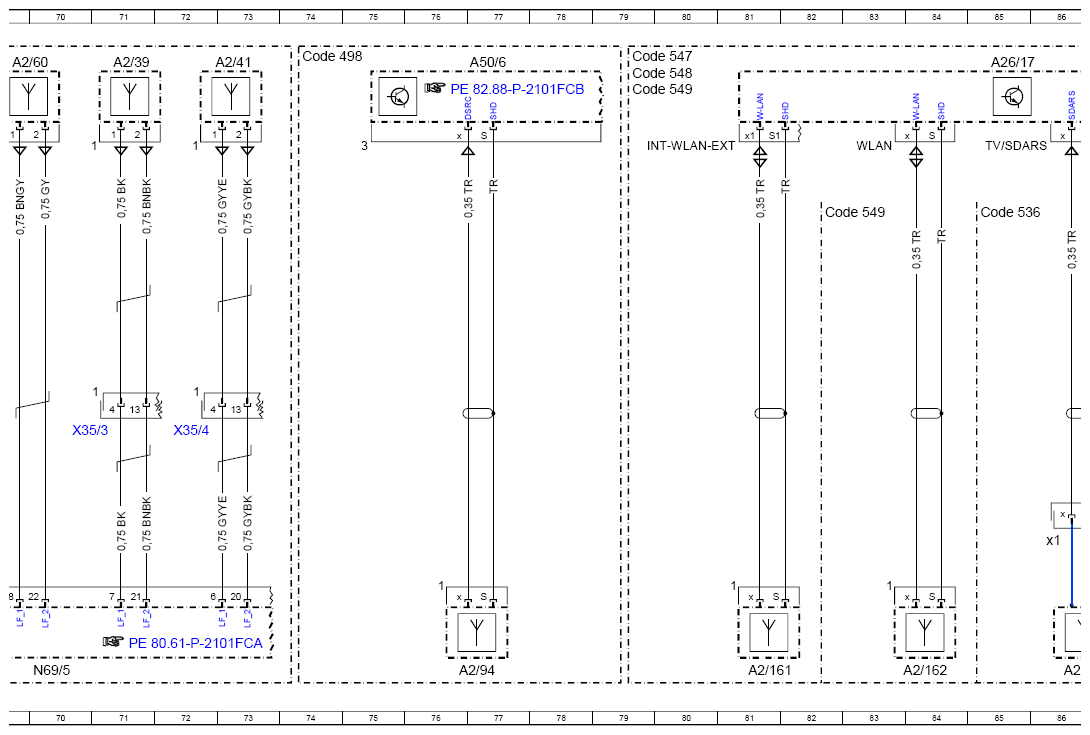

Wiring Diagram For Antennas - PE82.62-P-2106-97FCB
WARNING: This page is about a different car, the 2023 Mercedes-Benz GLC300, 2022 Mercedes-Benz GLC300, 2021 Mercedes-Benz GLC300, 2020 Mercedes-Benz GLC350e, and 2020 Mercedes-Benz GLC300. However, it is still accessible from the selected car via links, so may be relevant.
Model 253 (except 253.99) as of model year 2020
with code 853 ("Midline" sound system)
Control unit N40/2
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Use of wiring diagrams | 96L |
| A2/102 | Left telephone antenna | 3L |
| A2/102 | Left telephone antenna | 5L |
| A2/103 | Right telephone antenna | 3L |
| A2/103 | Right telephone antenna | 5L |
| A2/105 | SDARS antenna | 86L |
| A2/105x1 | SDARS antenna electrical connector | 86J |
| A2/109 | Telephone antenna splitter | 4A |
| A2/109 | Telephone antenna splitter | 12A |
| A2/109 | Telephone antenna splitter | 20A |
| A2/140 | Emergency call system antenna 1 | 12L |
| A2/155 | Telephone and stationary heater antenna changeover switch | 27A |
| A2/155 | Telephone and stationary heater antenna changeover switch | 36A |
| A2/155 | Telephone and stationary heater antenna changeover switch | 43A |
| A2/161 | Bluetooth®/WiFi antenna | 81L |
| A2/162 | Bluetooth®/WiFi antenna | 84L |
| A2/18 | FM 1, AM, CL [ZV] and KEYLESS GO antenna amplifier | 60A |
| A2/18 | FM 1, AM, CL [ZV] and KEYLESS GO antenna amplifier | 66A |
| A2/23 | GPS antenna | 48L |
| A2/23 | GPS antenna | 53L |
| A2/35 | Trunk KEYLESS GO antenna | 68A |
| A2/39 | Left rear door KEYLESS GO antenna | 71A |
| A2/41 | Right rear door KEYLESS GO antenna | 73A |
| A2/60 | Center console KEYLESS-GO antenna | 69A |
| A2/91 | Bluetooth® antenna | 89L |
| A2/94 | DSRC antenna | 77L |
| A26/17 | Head unit | 59L |
| A26/17 | Head unit | 53A |
| A26/17 | Head unit | 85A |
| A28/15 | Cellular telephone system antenna amplifier/compensator | 15L |
| A28/15 | Cellular telephone system antenna amplifier/compensator | 43L |
| A50/6 | Dedicated Short-Range Communications control unit | 77A |
| A6/1 | Stationary heater radio remote control receiver | 21L |
| A6/1 | Stationary heater radio remote control receiver | 39L |
| Code 362 | HERMES LTE | 1A |
| Code 362 | HERMES LTE | 32D |
| Code 362 | HERMES LTE | 36D |
| Code 362 | HERMES LTE | 45A |
| Code 362 | HERMES LTE | 51A |
| Code 498 | Japan version | 74A |
| Code 536 | SIRIUS satellite radio | 85D |
| Code 547 | Connect 20 Entry (NTG6) | 79A |
| Code 547 | Connect 20 Entry (NTG6) | 56A |
| Code 548 | Connect 20 MID (NTG6) | 79A |
| Code 548 | Connect 20 MID (NTG6) | 56A |
| Code 549 | Connect 20 HIGH (NTG6) | 79B |
| Code 549 | Connect 20 HIGH (NTG6) | 56B |
| Code 549 | Connect 20 HIGH (NTG6) | 82D |
| Code 889 | KEYLESS-GO | 61A |
| Code 899 | Wireless phone charging at front and antenna | 18C |
| Code 899 | Wireless phone charging at front and antenna | 17C |
| Code 899 | Wireless phone charging at front and antenna | 1A |
| Code 899 | Wireless phone charging at front and antenna | 13A |
| Code 899 | Wireless phone charging at front and antenna | 41D |
| Code 899 | Wireless phone charging at front and antenna | 36D |
| Code 899 | Wireless phone charging at front and antenna | 23A |
| Code B24 | Radio remote control for stationary heater | 17A |
| Code B24 | Radio remote control for stationary heater | 1B |
| Code B24 | Radio remote control for stationary heater | 7A |
| Code B24 | Radio remote control for stationary heater | 7A |
| Code B24 | Radio remote control for stationary heater | 36D |
| Code B24 | Radio remote control for stationary heater | 23A |
| Code L | LEFT-HAND DRIVE | 2L |
| Code L | LEFT-HAND DRIVE | 4L |
| Code L | LEFT-HAND DRIVE | 46G |
| Code R | RIGHT-HAND DRIVE | 2L |
| Code R | RIGHT-HAND DRIVE | 4L |
| Code R | RIGHT-HAND DRIVE | 46G |
| F1/3 | Passenger-side A-pillar fuse box | 29L |
| F1/3 | Passenger-side A-pillar fuse box | 64L |
| F1/3MF3 | Multiple fuse 3 | 27K |
| F1/3f320 | Fuse 320 | 63L |
| N10/6 | Front SAM control unit | 34L |
| N112/9 | HERMES control unit | 9L |
| N112/9 | HERMES control unit | 48A |
| N69/5 | KEYLESS-GO control unit | 70L |
| W12/1 | Right center console ground point | 29E |
| X35/1 | Driver door electrical connector | 5G |
| X35/1 | Driver door electrical connector | 47G |
| X35/1 | Driver door electrical connector | 53G |
| X35/2 | Front passenger door electrical connector | 2G |
| X35/2 | Front passenger door electrical connector | 47G |
| X35/3 | Left rear door electrical connector | 70G |
| X35/4 | Right rear door electrical connector | 72G |
| Z265z1 | Terminal 30t connector sleeve | 28G |
