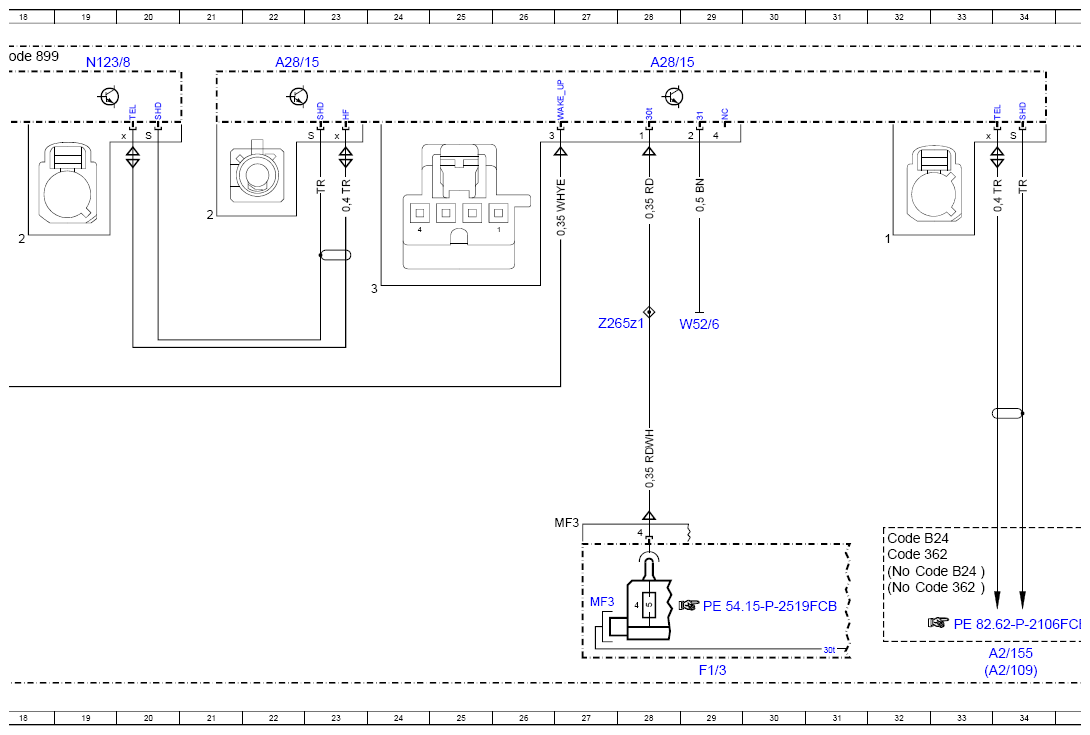

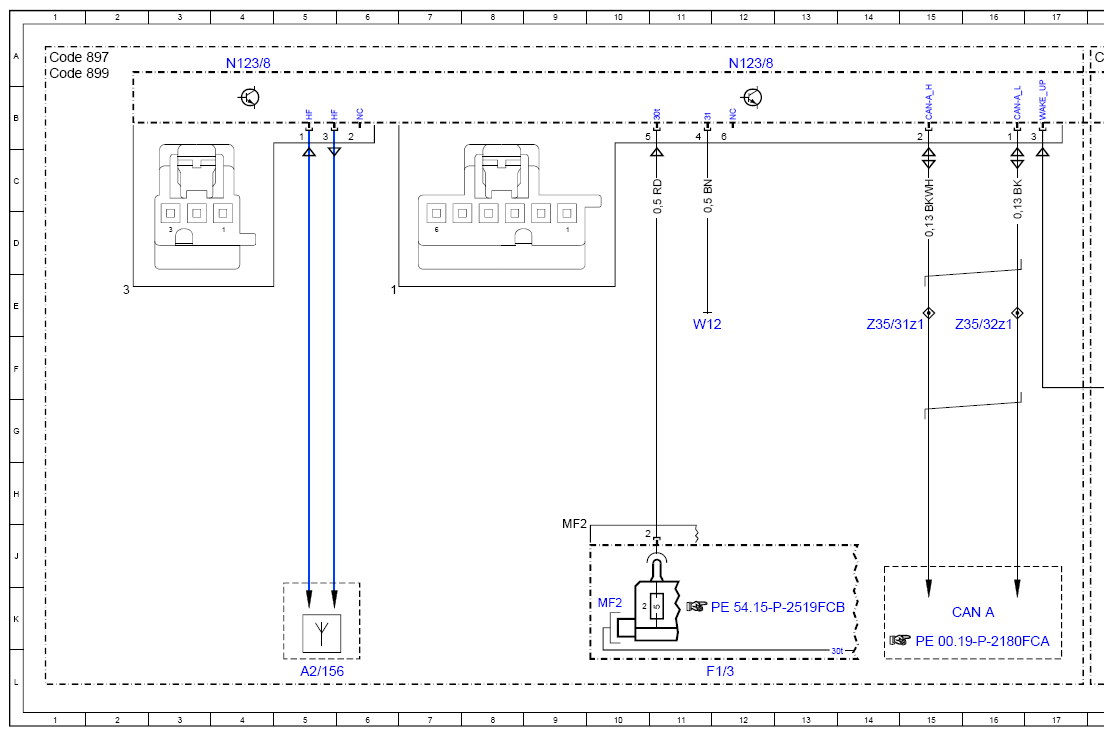

Telephone (TEL) Wiring Diagram - PE82.70-P-2000-97FCA
WARNING: This page is about a different car, the 2023 Mercedes-Benz GLC300, 2022 Mercedes-Benz GLC300, 2021 Mercedes-Benz GLC300, 2020 Mercedes-Benz GLC350e, and 2020 Mercedes-Benz GLC300. However, it is still accessible from the selected car via links, so may be relevant.
Model 253 (except 253.99) as of model year 2020
with code 897 (Front wireless telephone charging)
with code 899 (Multifunction telephony)
| Code: | Designation: | Position: |
|---|---|---|

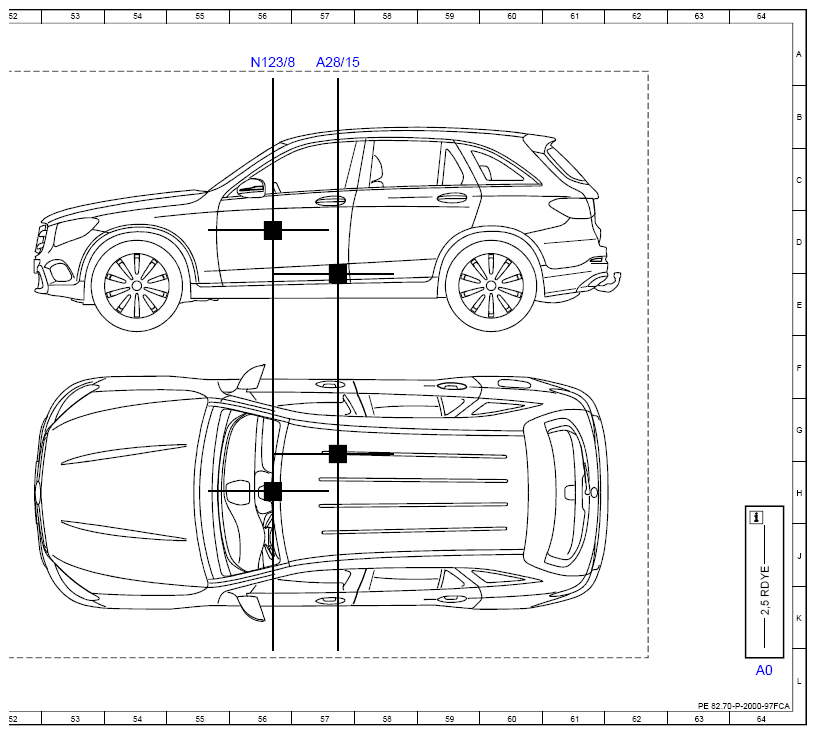

| A0 | Use of wiring diagrams | 64L |
| A2/109 | Telephone antenna splitter | 34L |
| A2/155 | Telephone and stationary heater antenna changeover switch | 34L |
| A2/156 | Near Field Communication antenna | 5L |

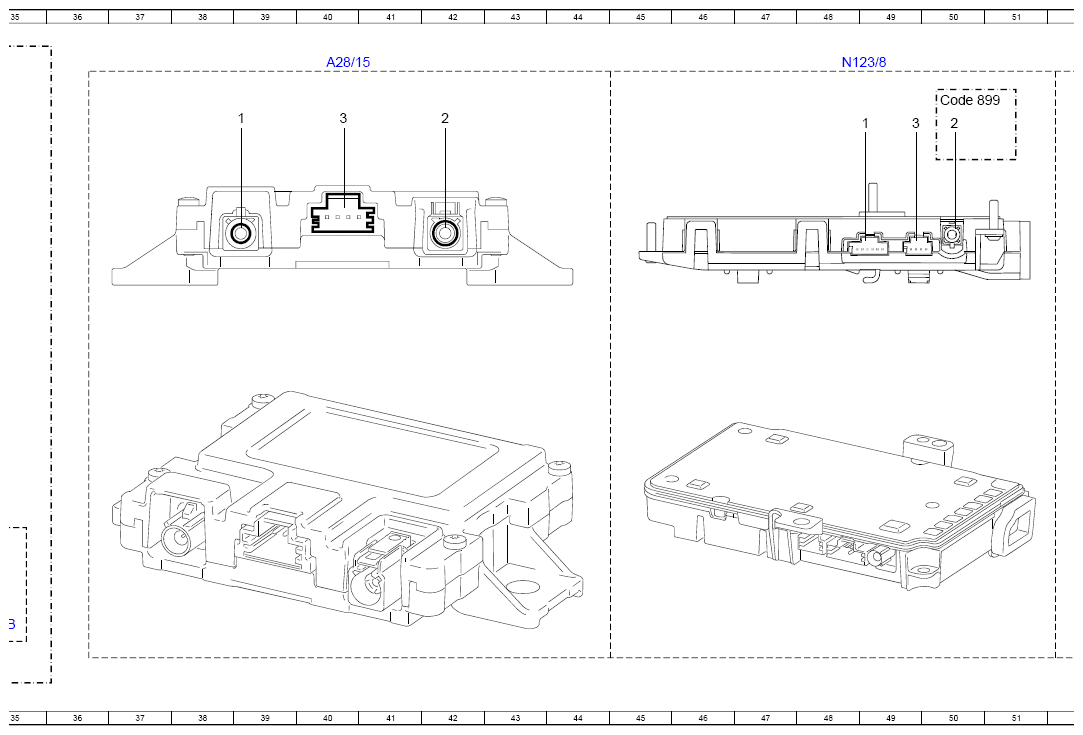

| A28/15 | Cellular telephone system antenna amplifier/compensator | 22A |
| A28/15 | Cellular telephone system antenna amplifier/compensator | 28A |
| A28/15 | Cellular telephone system antenna amplifier/compensator | 40A |
| A28/15 | Cellular telephone system antenna amplifier/compensator | 57A |
| CAN A | Telematics CAN | 16K |
| Code 362 | HERMES LTE | 32J |
| Code 362 | HERMES LTE | 32K |
| Code 897 | Wireless mobile phone charging | 1A |
| Code 899 | Wireless phone charging at front and antenna | 1A |
| Code 899 | Wireless phone charging at front and antenna | 18A |
| Code 899 | Wireless phone charging at front and antenna | 50B |
| Code B24 | Radio remote control for stationary heater | 32J |
| Code B24 | Radio remote control for stationary heater | 32J |
| F1/3 | Passenger-side A-pillar fuse box | 12L |
| F1/3 | Passenger-side A-pillar fuse box | 29L |
| F1/3MF2 | Multiple fuse 2 | 10K |
| F1/3MF3 | Multiple fuse 3 | 27K |
| N123/8 | Mobile phone cradle control unit | 12A |
| N123/8 | Mobile phone cradle control unit | 4A |
| N123/8 | Mobile phone cradle control unit | 19A |
| N123/8 | Mobile phone cradle control unit | 48A |
| N123/8 | Mobile phone cradle control unit | 56A |
| W12 | Ground point (center console) | 11E |
| W52/6 | Right center longitudinal member ground point | 29E |
| Z265z1 | Terminal 30t connector sleeve | 28E |
| Z35/31z1 | Head unit CAN (high) connector sleeve | 14E |
| Z35/32z1 | Head unit CAN (low) connector sleeve | 16E |
