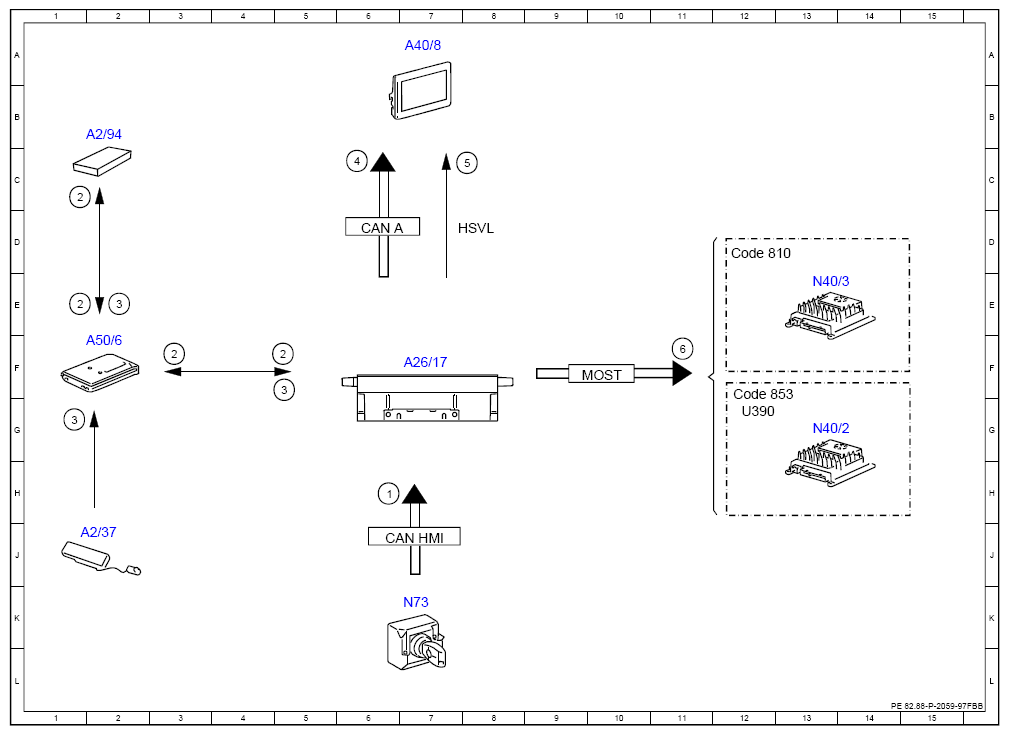

Electrical Function Schematic For Dedicated Short-Range Communications - PE82.88-P-2059-97FBB
WARNING: This page is about a different car, the 2023 Mercedes-Benz GLC300, 2022 Mercedes-Benz GLC300, 2021 Mercedes-Benz GLC300, 2020 Mercedes-Benz GLC350e, and 2020 Mercedes-Benz GLC300. However, it is still accessible from the selected car via links, so may be relevant.
Model 205 as of model year 2019
with code 498 (Japanese version)
Dealer option
Model 253 (except 253.99) as of model year 2020
with code 498 (Japanese version)
Dealer option
Model 253.99 with code 498 (Japanese version)
Dealer option
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Circuit 15, status | 6H |
| 2 | Electronic Toll Collection (ETC), signal | 5F |
| 2 | Electronic Toll Collection (ETC), signal | 3F |
| 2 | Electronic Toll Collection (ETC), signal | 1E |
| 2 | Electronic Toll Collection (ETC), signal | 1C |
| 3 | Vehicle Information and Communication System (VICS), signal | 5F |
| 3 | Vehicle Information and Communication System (VICS), signal | 2E |
| 3 | Vehicle Information and Communication System (VICS), signal | 1G |
| 4 | Switch-on request, signal | 6C |
| 5 | Audio/COMAND® display, actuation | 8C |
| 6 | Voice output, signal | 11F |
| A2/37 | Vehicle Information and Communication System (VICS) control unit | 2J |
| A2/94 | DSRC antenna | 2B |
| A26/17 | Head unit | 7F |
| A40/8 | Audio/COMAND® display | 7A |
| A50/6 | Dedicated Short-Range Communications control unit | 2F |
| CAN A | Telematics CAN | 6D |
| CAN HMI | User interface CAN | 7J |
| Code 810 | Sound system | 12D |
| Code 853 | Midline sound system | 12G |
| HSVL | High-speed video link | 8D |
| MOST | Media Oriented System Transport | 10F |
| N40/2 | Sound system midline amplifier control unit | 13G |
| N40/3 | Sound system amplifier control unit | 13E |
| N73 | Electronic ignition switch control unit | 7K |
| U390 | Valid for model 205 | 12G |
