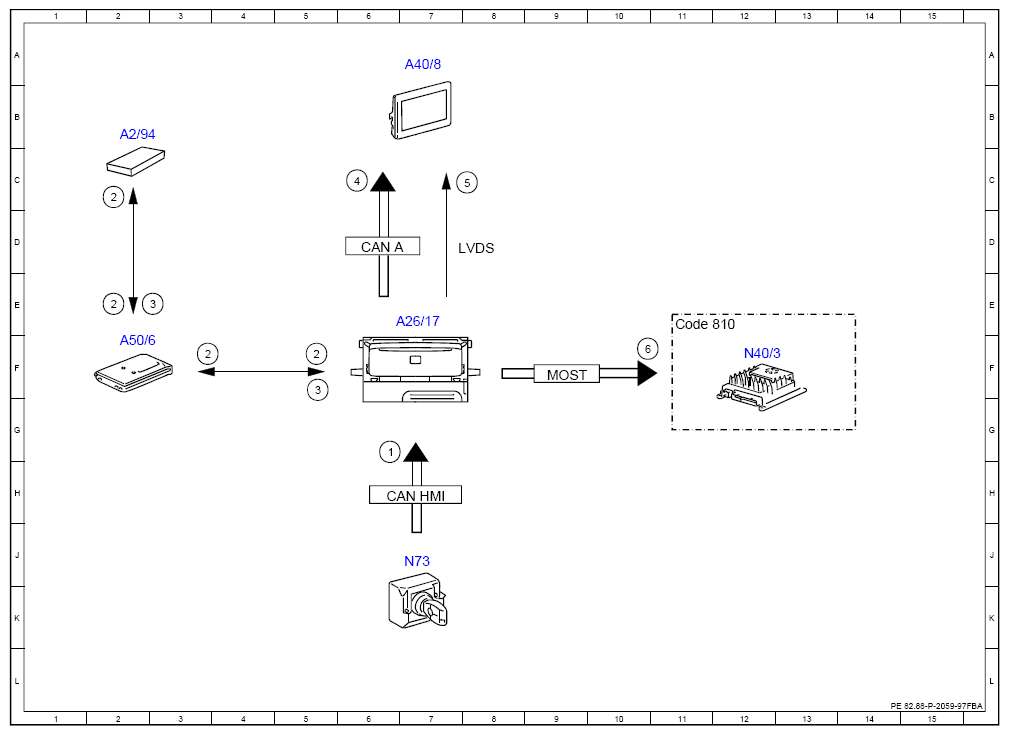

Electrical Function Schematic For Dedicated Short-Range Communications - PE82.88-P-2059-97FBA
WARNING: This page is about a different car, the 2023 Mercedes-Benz GLC300, 2022 Mercedes-Benz GLC300, 2021 Mercedes-Benz GLC300, 2020 Mercedes-Benz GLC350e, and 2020 Mercedes-Benz GLC300. However, it is still accessible from the selected car via links, so may be relevant.
Model 205 up to model year 2019
with code 498 (Japanese version)
Dealer option
Model 253 (except 253.99) up to model year 2020
with code 498 (Japanese version)
Dealer option
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Circuit 15, status | 6G |
| 2 | Electronic Toll Collection (ETC), signal | 5F |
| 2 | Electronic Toll Collection (ETC), signal | 3F |
| 2 | Electronic Toll Collection (ETC), signal | 2E |
| 2 | Electronic Toll Collection (ETC), signal | 2C |
| 3 | Vehicle Information and Communication System (VICS), signal | 5F |
| 3 | Vehicle Information and Communication System (VICS), signal | 3E |
| 4 | Switch-on request, signal | 6C |
| 5 | Audio/COMAND® display, actuation | 8C |
| 6 | Voice output, signal | 10F |
| A2/94 | DSRC antenna | 2B |
| A26/17 | Head unit | 7E |
| A40/8 | Audio/COMAND® display | 7A |
| A50/6 | Dedicated Short-Range Communications control unit | 2F |
| CAN A | Telematics CAN | 6D |
| CAN HMI | User interface CAN | 7H |
| Code 810 | Sound system | 11E |
| LVDS | Low voltage differential signal | 8D |
| MOST | Media Oriented System Transport | 9F |
| N40/3 | Sound system amplifier control unit | 12F |
| N73 | Electronic ignition switch control unit | 7J |
