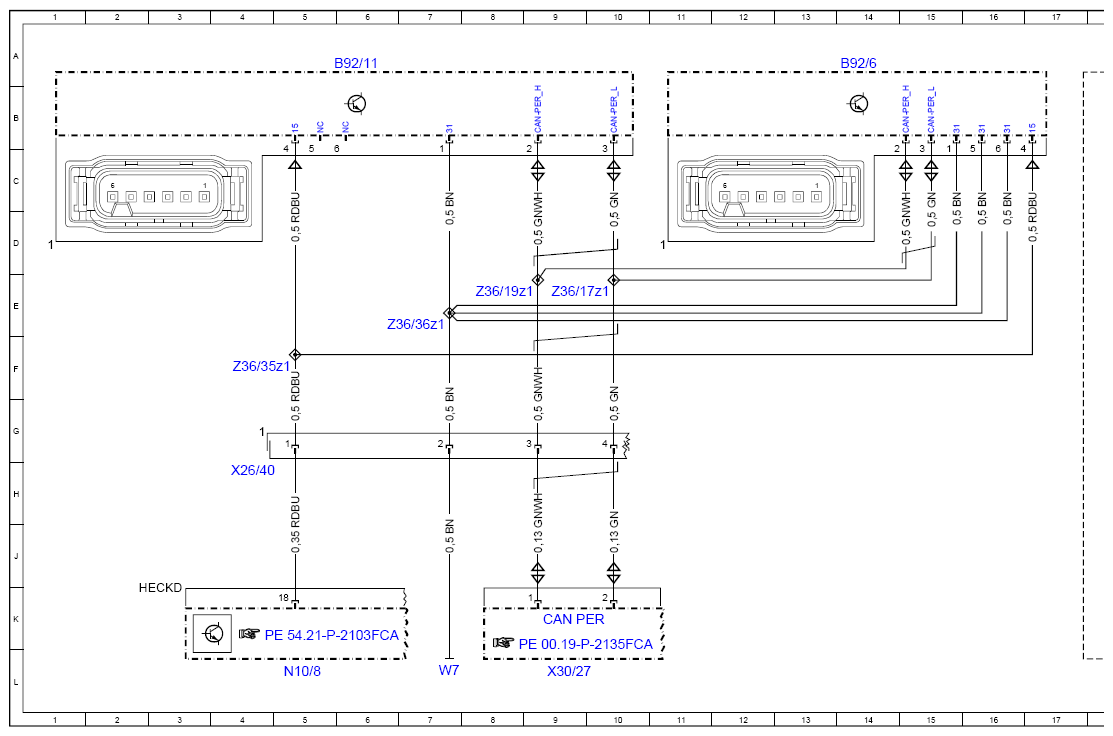

Blind Spot Assist Wiring Diagram - PE54.71-P-2100-97FCB
WARNING: This page is about a different car, the 2023 Mercedes-Benz GLC300, 2022 Mercedes-Benz GLC300, 2021 Mercedes-Benz GLC300, 2020 Mercedes-Benz GLC350e, and 2020 Mercedes-Benz GLC300. However, it is still accessible from the selected car via links, so may be relevant.
Model 253 (except 253.99)
as of model year 2020
with code 22P (Lane tracking package)
| Code: | Designation: | Position: |
|---|---|---|

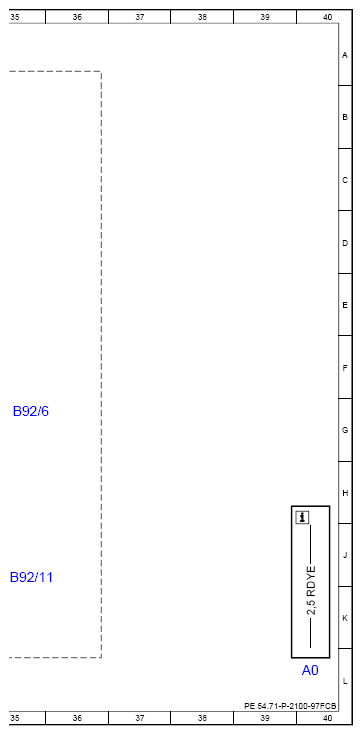

| A0 | Use of wiring diagrams | 40L |

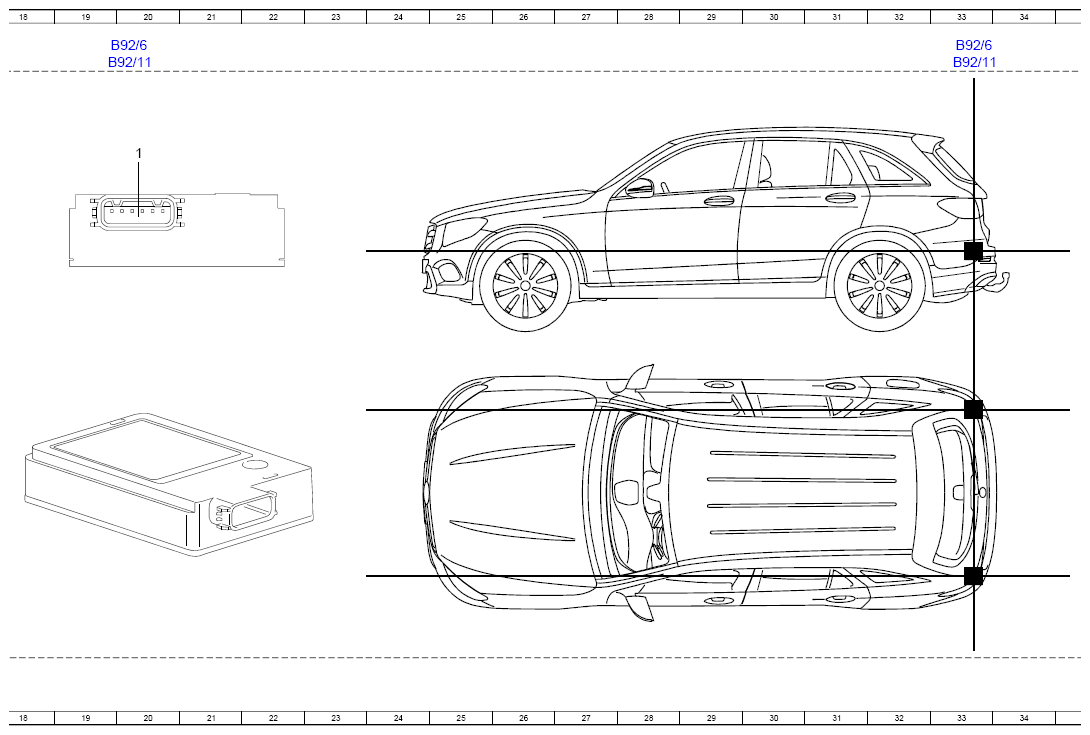

| B92/11 | Left outer rear bumper integrated radar sensor | 6A |
| B92/11 | Left outer rear bumper integrated radar sensor | 20A |
| B92/11 | Left outer rear bumper integrated radar sensor | 35J |
| B92/11 | Left outer rear bumper integrated radar sensor | 33A |
| B92/6 | Right outer rear bumper integrated radar sensor | 14A |
| B92/6 | Right outer rear bumper integrated radar sensor | 20A |
| B92/6 | Right outer rear bumper integrated radar sensor | 35G |
| B92/6 | Right outer rear bumper integrated radar sensor | 33A |
| CAN PER | Peripherals CAN | 9K |
| N10/8 | Rear SAM control unit | 5L |
| W7 | Right wheelhouse trunk ground point | 7L |
| X26/40 | Rear frame floor assembly/bumper electrical connector | 4H |
| X30/27 | Peripherals CAN (CAN PER) potential distributor electrical connector | 9L |
| Z36/17z1 | Rear sensor CAN (low) connector sleeve | 9E |
| Z36/19z1 | Rear sensor CAN (high) connector sleeve | 8E |
| Z36/35z1 | Rear bumper circuit 15 connector sleeve | 4F |
| Z36/36z1 | Rear bumper circuit 31 connector sleeve | 7E |
