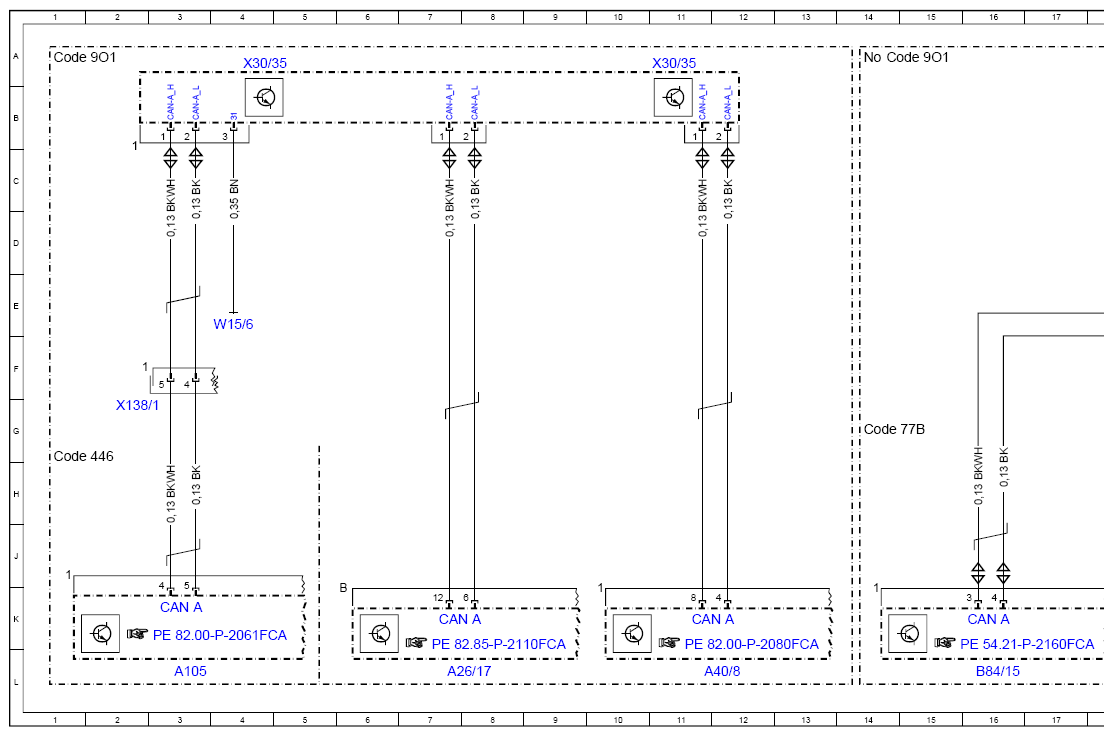

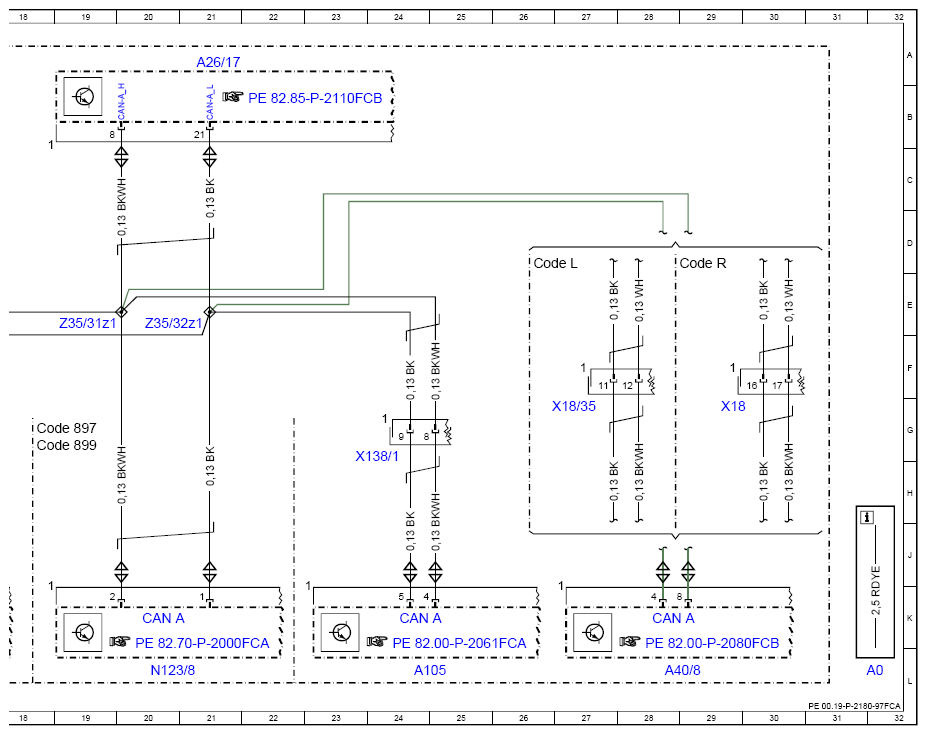

Wiring Diagram Of Telematics CAN - PE00.19-P-2180-97FCA
WARNING: This page is about a different car, the 2023 Mercedes-Benz GLC300, 2022 Mercedes-Benz GLC300, 2021 Mercedes-Benz GLC300, 2020 Mercedes-Benz GLC350e, and 2020 Mercedes-Benz GLC300. However, it is still accessible from the selected car via links, so may be relevant.
Model 253 (except 253.99)
as of model year 2020
Potential distributor X30/35
Model 253.99 as of model year 2019
with code 9O1 (Fuel cell pre-installation)
Potential distributor X30/35
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Use of wiring diagrams | 32L |
| A105 | Touchpad | 3L |
| A105 | Touchpad | 24L |
| A26/17 | Head unit | 7L |
| A26/17 | Head unit | 21A |
| A40/8 | Audio/COMAND® display | 12L |
| A40/8 | Audio/COMAND® display | 28L |
| B84/15 | Hand motion sensor | 16L |
| CAN A | Telematics CAN | 3K |
| CAN A | Telematics CAN | 11K |
| CAN A | Telematics CAN | 7K |
| CAN A | Telematics CAN | 16K |
| CAN A | Telematics CAN | 20K |
| CAN A | Telematics CAN | 24K |
| CAN A | Telematics CAN | 28K |
| Code 446 | Touchpad only | 1G |
| Code 77B | Contactless gesture control at front | 14G |
| Code 897 | Wireless mobile phone charging | 18G |
| Code 899 | Wireless phone charging at front and antenna | 18G |
| Code 901 | Fuel cell retrofitting | 1A |
| Code 901 | Fuel cell retrofitting | 14A |
| Code L | LEFT-HAND DRIVE | 26D |
| Code R | RIGHT-HAND DRIVE | 28D |
| N123/8 | Mobile phone cradle control unit | 20L |
| W15/6 | Left front footwell ground point (CAN) | 4E |
| X138/1 | Front center console electrical connector | 2G |
| X138/1 | Front center console electrical connector | 24H |
| X18 | Cockpit wiring harness and frame floor assembly electrical connector | 29G |
| X18/35 | Cockpit wiring harness and frame floor assembly electrical connector | 27G |
| X30/35 | Telematics CAN (CAN A) potential distributor electrical connector | 4A |
| X30/35 | Telematics CAN (CAN A) potential distributor electrical connector | 11A |
| Z35/31z1 | Head unit CAN (high) connector sleeve | 19E |
| Z35/32z1 | Head unit CAN (low) connector sleeve | 20E |
