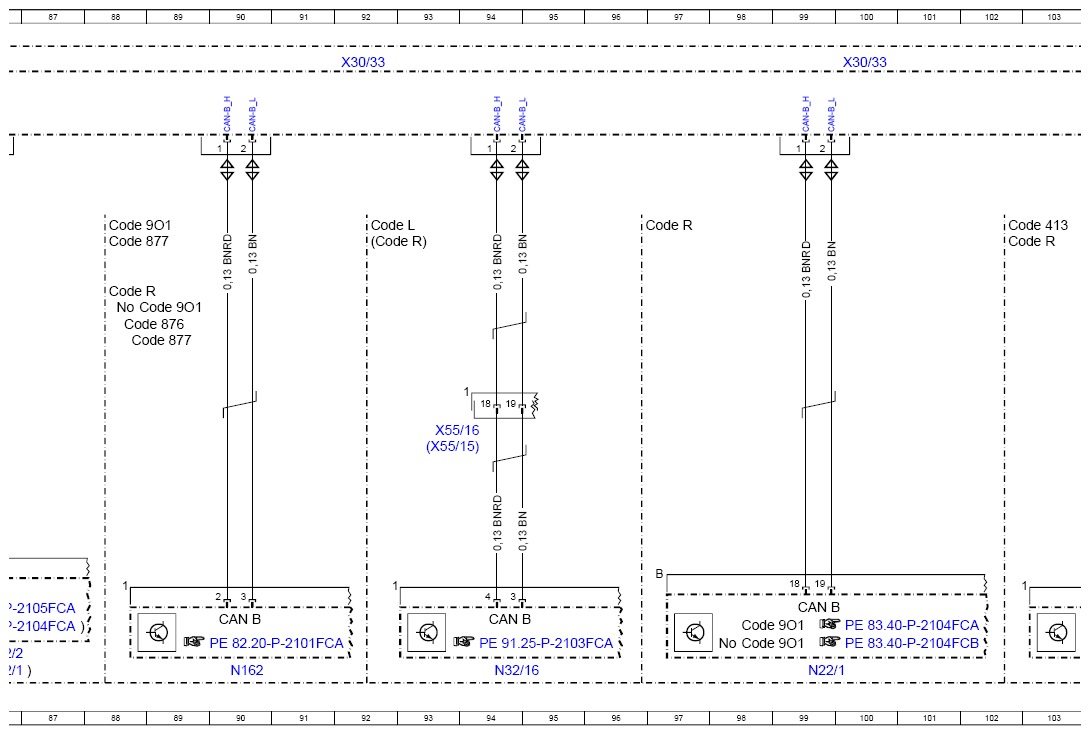

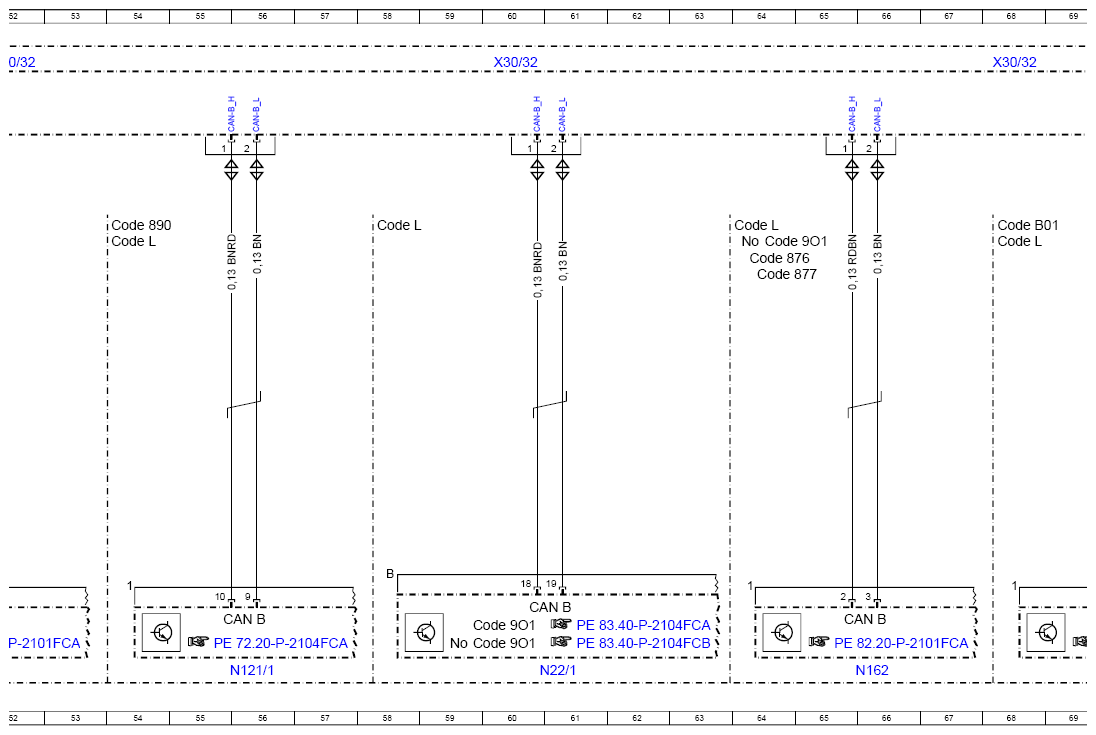

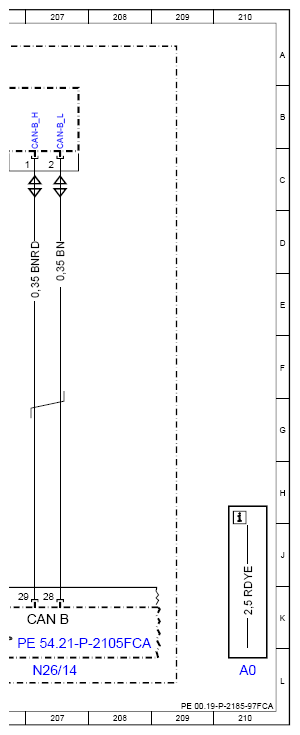

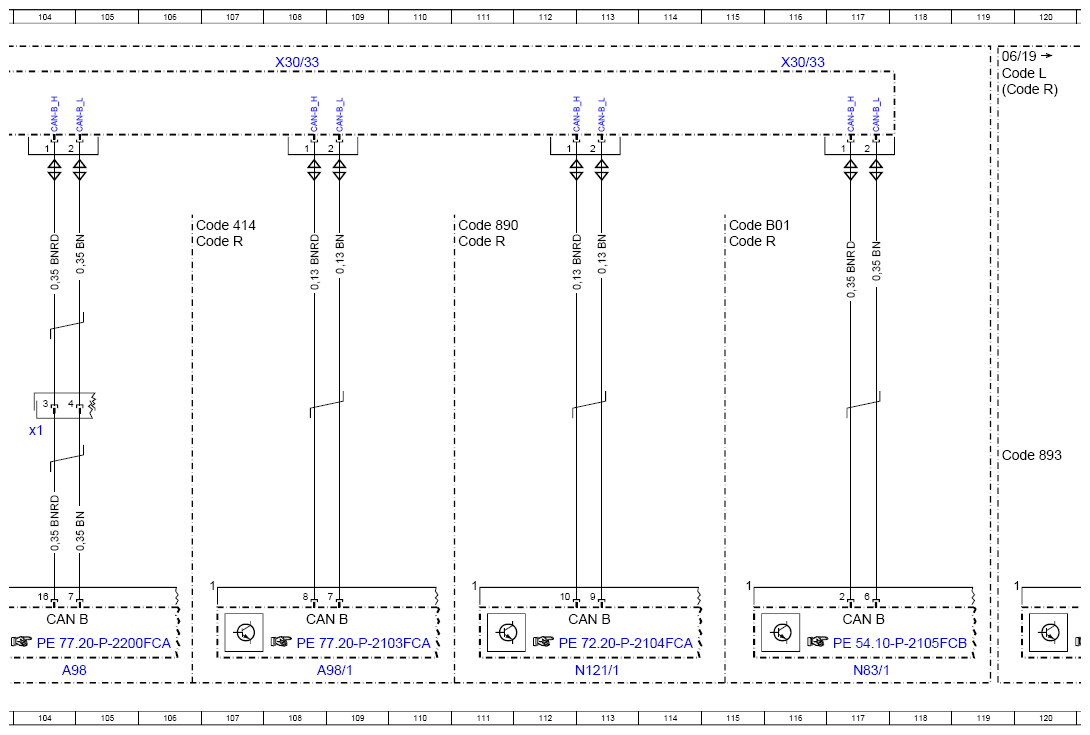

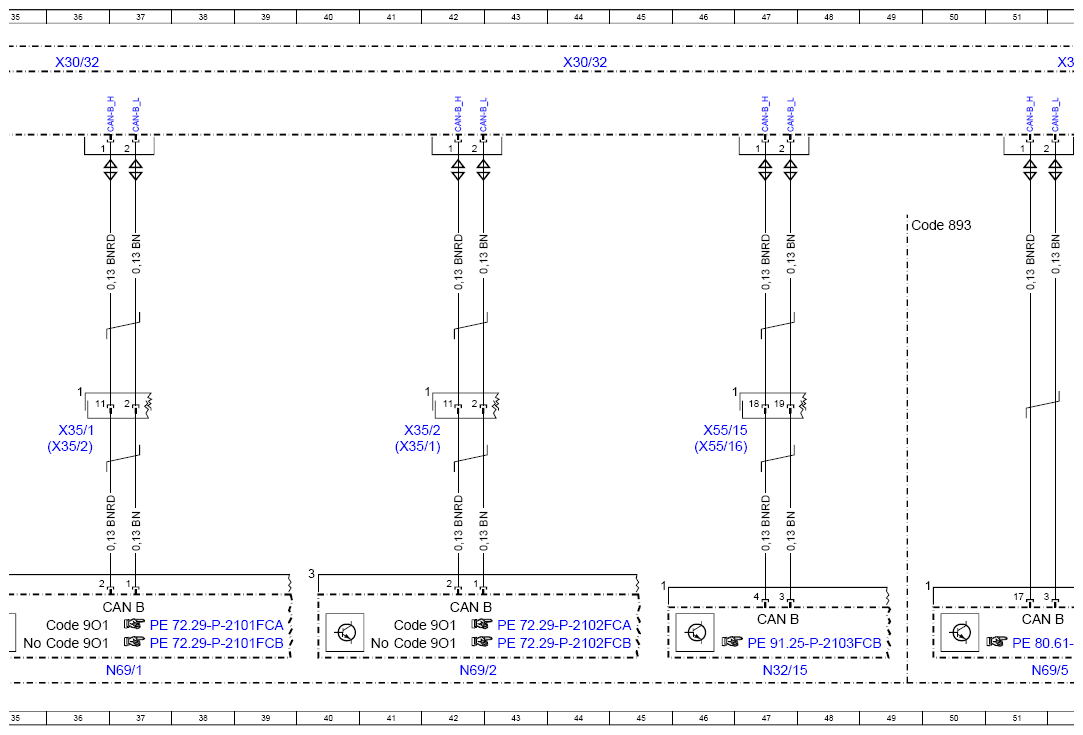

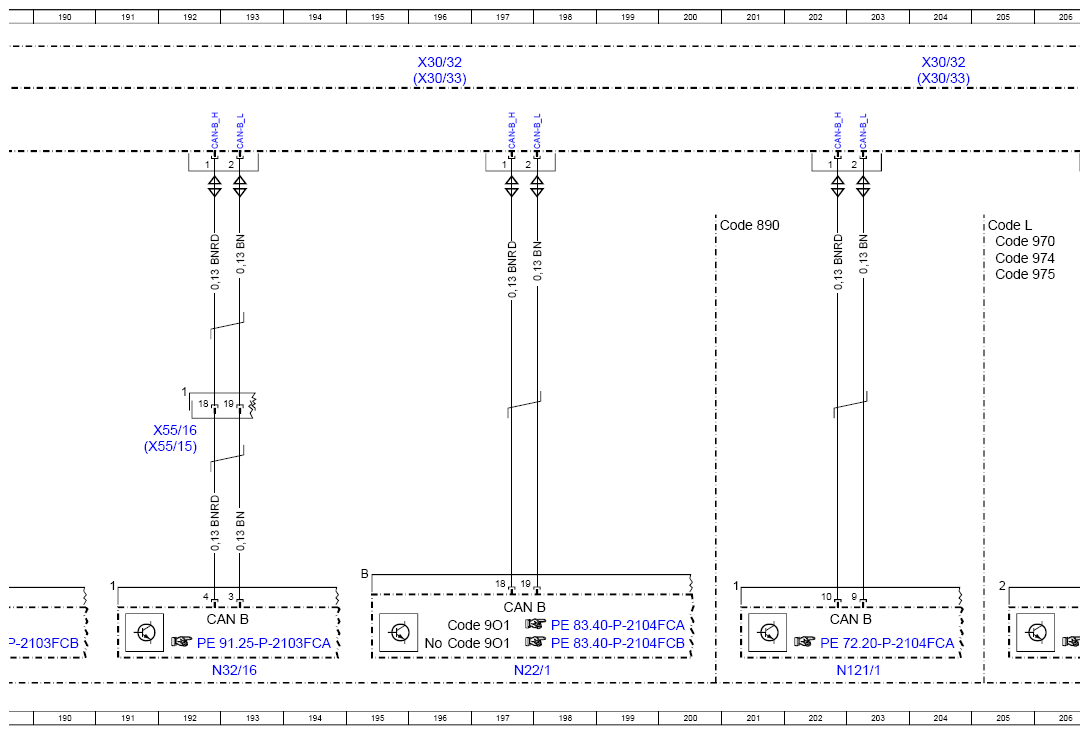

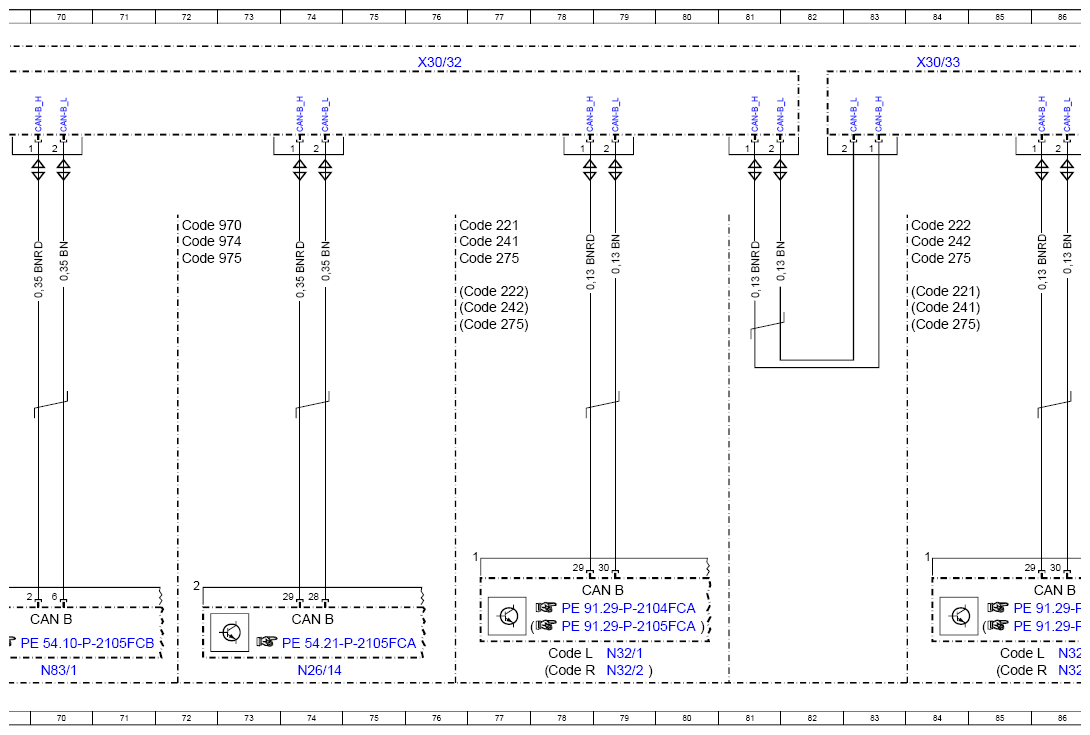

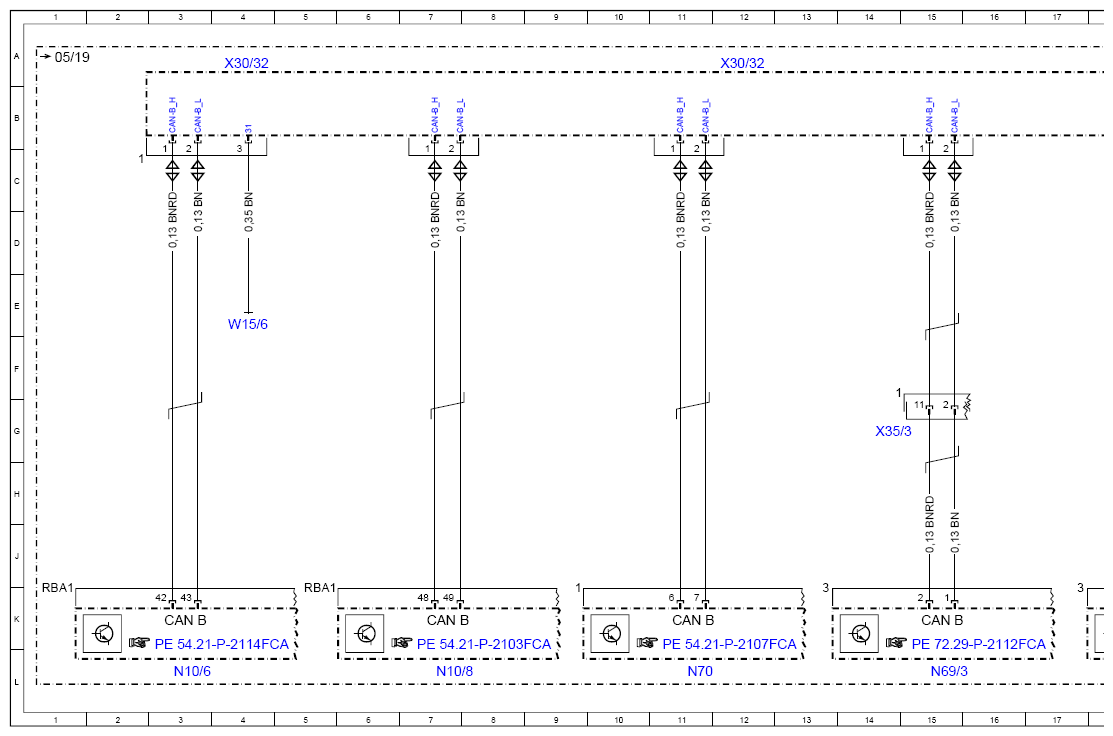

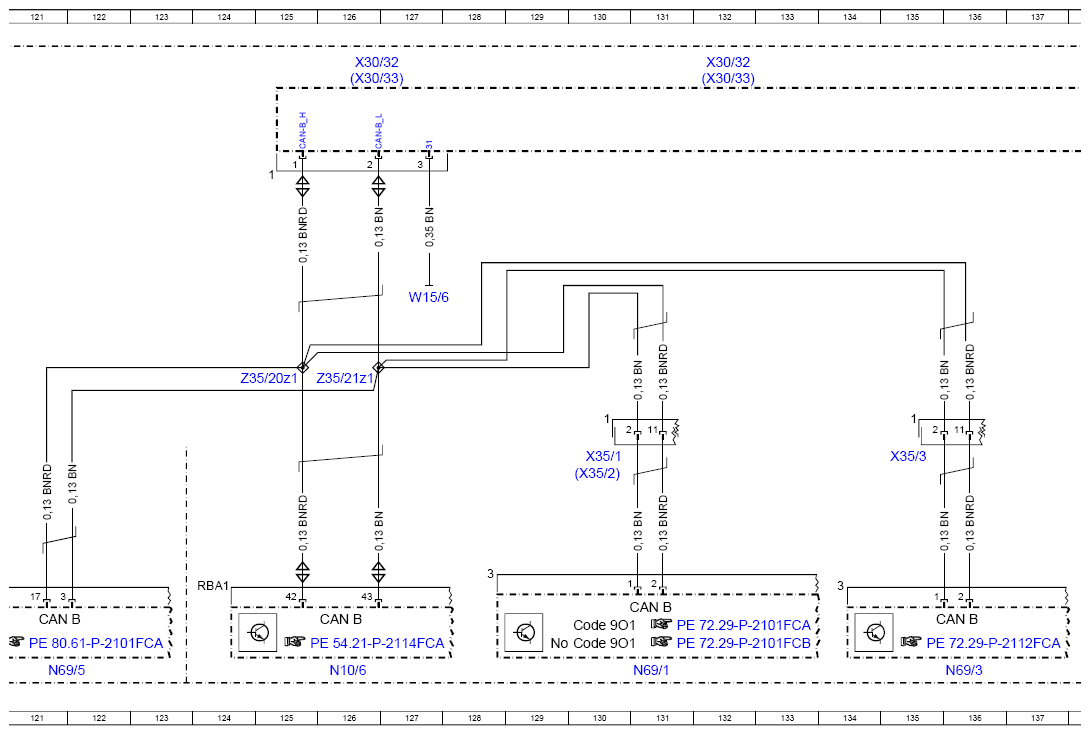

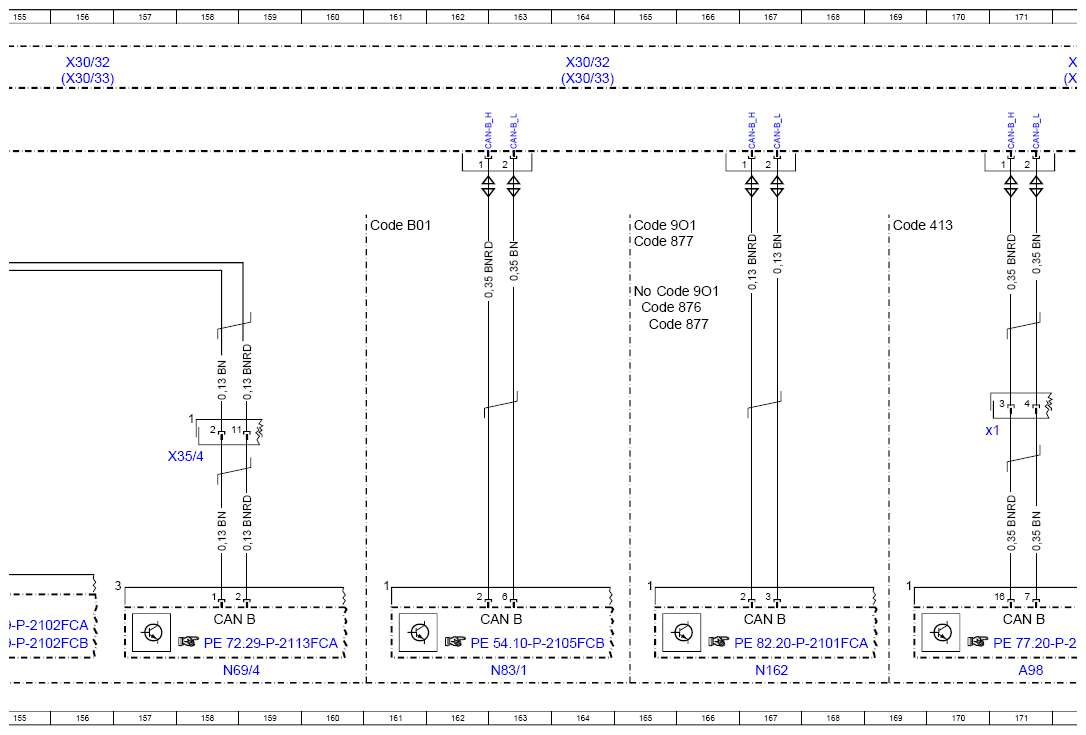

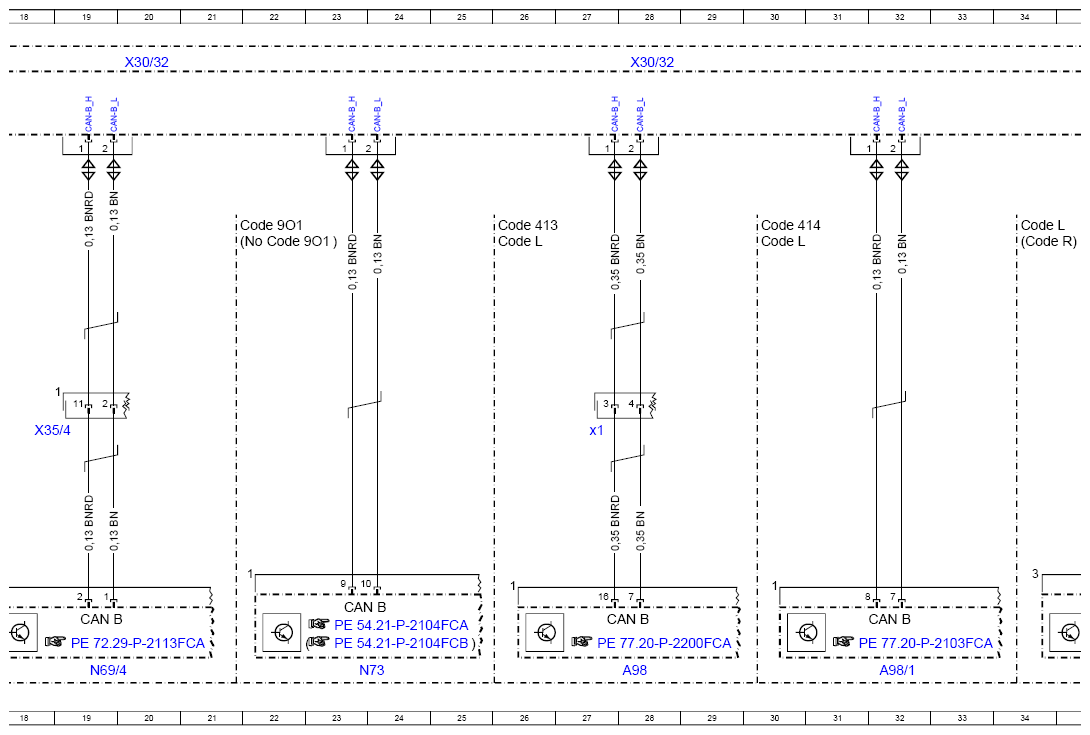

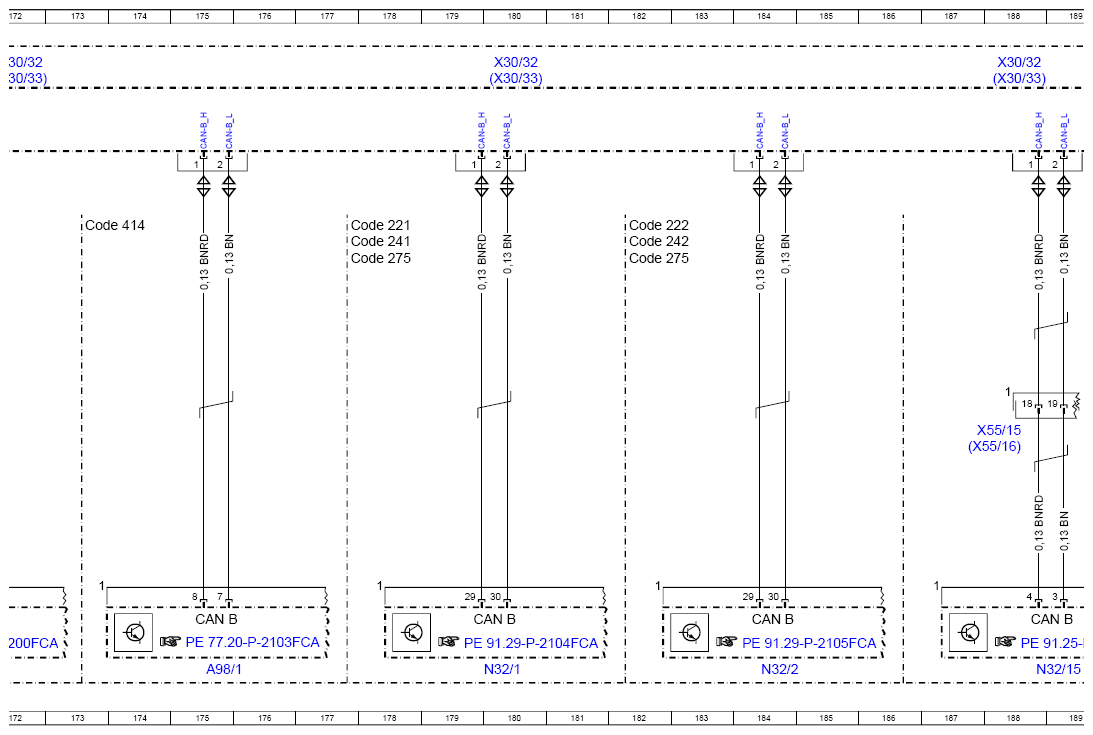

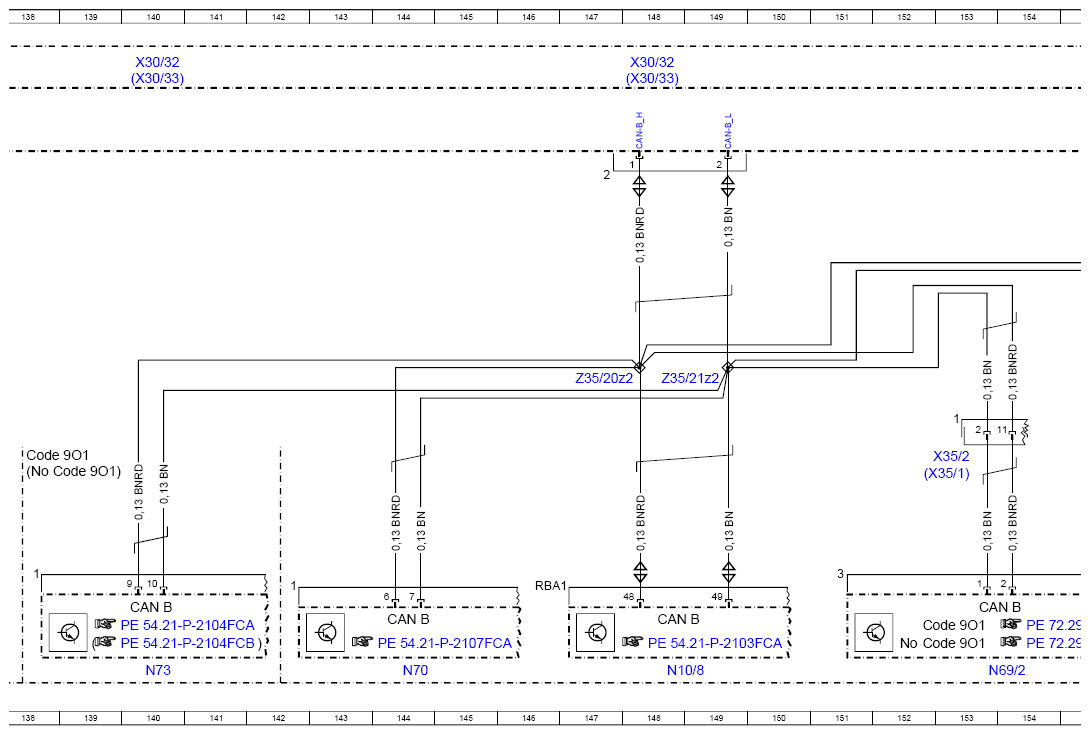

Wiring Diagram Of Interior CAN - PE00.19-P-2185-97FCA
WARNING: This page is about a different car, the 2023 Mercedes-Benz GLC300, 2022 Mercedes-Benz GLC300, 2021 Mercedes-Benz GLC300, 2020 Mercedes-Benz GLC350e, and 2020 Mercedes-Benz GLC300. However, it is still accessible from the selected car via links, so may be relevant.
Model 253 (except 253.99)
as of model year 2020
Potential distributor X30/32, X30/33
Model 253.99 as of model year 2019
with code 9O1 (Fuel cell pre-installation)
Potential distributor X30/32, X30/33
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Use of wiring diagrams | 210L |
| A98 | Panoramic sliding sunroof control module | 28L |
| A98 | Panoramic sliding sunroof control module | 104L |
| A98 | Panoramic sliding sunroof control module | 171L |
| A98/1 | Sliding roof control module | 32L |
| A98/1 | Sliding roof control module | 108L |
| A98/1 | Sliding roof control module | 175L |
| A98x1 | Panoramic sliding sunroof control module electrical connector | 27G |
| A98x1 | Panoramic sliding sunroof control module electrical connector | 104G |
| A98x1 | Panoramic sliding sunroof control module electrical connector | 171G |
| CAN B | Interior CAN | 3K |
| CAN B | Interior CAN | 11K |
| CAN B | Interior CAN | 7K |
| CAN B | Interior CAN | 15K |
| CAN B | Interior CAN | 19K |
| CAN B | Interior CAN | 23K |
| CAN B | Interior CAN | 28K |
| CAN B | Interior CAN | 56K |
| CAN B | Interior CAN | 37K |
| CAN B | Interior CAN | 32K |
| CAN B | Interior CAN | 42K |
| CAN B | Interior CAN | 47K |
| CAN B | Interior CAN | 51K |
| CAN B | Interior CAN | 60K |
| CAN B | Interior CAN | 65K |
| CAN B | Interior CAN | 70K |
| CAN B | Interior CAN | 74K |
| CAN B | Interior CAN | 79K |
| CAN B | Interior CAN | 86K |
| CAN B | Interior CAN | 90K |
| CAN B | Interior CAN | 94K |
| CAN B | Interior CAN | 99K |
| CAN B | Interior CAN | 104K |
| CAN B | Interior CAN | 113K |
| CAN B | Interior CAN | 108K |
| CAN B | Interior CAN | 117K |
| CAN B | Interior CAN | 121K |
| CAN B | Interior CAN | 126K |
| CAN B | Interior CAN | 131K |
| CAN B | Interior CAN | 144K |
| CAN B | Interior CAN | 136K |
| CAN B | Interior CAN | 140K |
| CAN B | Interior CAN | 148K |
| CAN B | Interior CAN | 153K |
| CAN B | Interior CAN | 158K |
| CAN B | Interior CAN | 163K |
| CAN B | Interior CAN | 167K |
| CAN B | Interior CAN | 171K |
| CAN B | Interior CAN | 175K |
| CAN B | Interior CAN | 180K |
| CAN B | Interior CAN | 188K |
| CAN B | Interior CAN | 184K |
| CAN B | Interior CAN | 192K |
| CAN B | Interior CAN | 197K |
| CAN B | Interior CAN | 202K |
| CAN B | Interior CAN | 207K |
| Code 221 | Fully electric driver seat adjustment without memory without electric head restraint adjustment | 76D |
| Code 221 | Fully electric driver seat adjustment without memory without electric head restraint adjustment | 84E |
| Code 221 | Fully electric driver seat adjustment without memory without electric head restraint adjustment | 177D |
| Code 222 | Electrically adjustable right front seat | 76E |
| Code 222 | Electrically adjustable right front seat | 182D |
| Code 222 | Electrically adjustable right front seat | 84D |
| Code 241 | All-electric front passenger seat with memory (left) | 76D |
| Code 241 | All-electric front passenger seat with memory (left) | 84E |
| Code 241 | All-electric front passenger seat with memory (left) | 177D |
| Code 242 | All-electric front passenger seat with memory (right) | 76E |
| Code 242 | All-electric front passenger seat with memory (right) | 182D |
| Code 242 | All-electric front passenger seat with memory (right) | 84D |
| Code 275 | Memory package | 76E |
| Code 275 | Memory package | 76D |
| Code 275 | Memory package | 182D |
| Code 275 | Memory package | 84E |
| Code 275 | Memory package | 84D |
| Code 275 | Memory package | 177D |
| Code 413 | Panoramic sliding sunroof | 26D |
| Code 413 | Panoramic sliding sunroof | 102D |
| Code 413 | Panoramic sliding sunroof | 169D |
| Code 414 | Sliding roof | 30D |
| Code 414 | Sliding roof | 106D |
| Code 414 | Sliding roof | 173D |
| Code 876 | Interior lights package | 64D |
| Code 876 | Interior lights package | 88E |
| Code 876 | Interior lights package | 165E |
| Code 877 | Ambiance illumination | 64E |
| Code 877 | Ambiance illumination | 88F |
| Code 877 | Ambiance illumination | 88D |
| Code 877 | Ambiance illumination | 165E |
| Code 877 | Ambiance illumination | 165D |
| Code 890 | EASY-PACK liftgate | 54D |
| Code 890 | EASY-PACK liftgate | 111D |
| Code 890 | EASY-PACK liftgate | 200D |
| Code 893 | KEYLESS-GO start function | 49D |
| Code 893 | KEYLESS-GO start function | 119G |
| Code 970 | Police emergency vehicles | 72D |
| Code 970 | Police emergency vehicles | 205D |
| Code 974 | Fire department lead emergency vehicle preinstallation | 72D |
| Code 974 | Fire department lead emergency vehicle preinstallation | 205D |
| Code 975 | Emergency physician vehicle preinstallation | 72D |
| Code 975 | Emergency physician vehicle preinstallation | 205E |
| Code 901 | Fuel cell retrofitting | 22D |
| Code 901 | Fuel cell retrofitting | 21D |
| Code 901 | Fuel cell retrofitting | 35K |
| Code 901 | Fuel cell retrofitting | 35K |
| Code 901 | Fuel cell retrofitting | 41K |
| Code 901 | Fuel cell retrofitting | 41K |
| Code 901 | Fuel cell retrofitting | 59K |
| Code 901 | Fuel cell retrofitting | 59K |
| Code 901 | Fuel cell retrofitting | 64D |
| Code 901 | Fuel cell retrofitting | 98K |
| Code 901 | Fuel cell retrofitting | 98K |
| Code 901 | Fuel cell retrofitting | 130K |
| Code 901 | Fuel cell retrofitting | 130K |
| Code 901 | Fuel cell retrofitting | 88E |
| Code 901 | Fuel cell retrofitting | 88D |
| Code 901 | Fuel cell retrofitting | 138G |
| Code 901 | Fuel cell retrofitting | 138H |
| Code 901 | Fuel cell retrofitting | 152K |
| Code 901 | Fuel cell retrofitting | 152K |
| Code 901 | Fuel cell retrofitting | 165E |
| Code 901 | Fuel cell retrofitting | 165D |
| Code 901 | Fuel cell retrofitting | 196K |
| Code 901 | Fuel cell retrofitting | 196K |
| Code B01 | 48V technology | 68D |
| Code B01 | 48V technology | 115D |
| Code B01 | 48V technology | 161D |
| Code L | LEFT-HAND DRIVE | 30D |
| Code L | LEFT-HAND DRIVE | 26D |
| Code L | LEFT-HAND DRIVE | 78L |
| Code L | LEFT-HAND DRIVE | 34D |
| Code L | LEFT-HAND DRIVE | 54D |
| Code L | LEFT-HAND DRIVE | 68D |
| Code L | LEFT-HAND DRIVE | 58D |
| Code L | LEFT-HAND DRIVE | 64D |
| Code L | LEFT-HAND DRIVE | 85L |
| Code L | LEFT-HAND DRIVE | 92D |
| Code L | LEFT-HAND DRIVE | 119A |
| Code L | LEFT-HAND DRIVE | 205D |
| Code R | RIGHT-HAND DRIVE | 78L |
| Code R | RIGHT-HAND DRIVE | 34D |
| Code R | RIGHT-HAND DRIVE | 85L |
| Code R | RIGHT-HAND DRIVE | 88E |
| Code R | RIGHT-HAND DRIVE | 92D |
| Code R | RIGHT-HAND DRIVE | 96D |
| Code R | RIGHT-HAND DRIVE | 102D |
| Code R | RIGHT-HAND DRIVE | 106D |
| Code R | RIGHT-HAND DRIVE | 111D |
| Code R | RIGHT-HAND DRIVE | 115D |
| Code R | RIGHT-HAND DRIVE | 119B |
| N10/6 | Front SAM control unit | 3L |
| N10/6 | Front SAM control unit | 126L |
| N10/8 | Rear SAM control unit | 7L |
| N10/8 | Rear SAM control unit | 148L |
| N121/1 | Tailgate control control unit | 56L |
| N121/1 | Tailgate control control unit | 113L |
| N121/1 | Tailgate control control unit | 202L |
| N162 | Ambiance illumination control unit | 66L |
| N162 | Ambiance illumination control unit | 90L |
| N162 | Ambiance illumination control unit | 167L |
| N22/1 | Climate control control unit | 61L |
| N22/1 | Climate control control unit | 99L |
| N22/1 | Climate control control unit | 197L |
| N26/14 | Special vehicle multifunction control unit (SVMCU [MSS]) | 74L |
| N26/14 | Special vehicle multifunction control unit (SVMCU [MSS]) | 207L |
| N32/1 | Driver seat control unit | 79L |
| N32/1 | Driver seat control unit | 86L |
| N32/1 | Driver seat control unit | 180L |
| N32/15 | Left front multicontour seat control unit | 47L |
| N32/15 | Left front multicontour seat control unit | 189L |
| N32/16 | Right front multicontour seat control unit | 94L |
| N32/16 | Right front multicontour seat control unit | 193L |
| N32/2 | Front passenger seat control unit | 79L |
| N32/2 | Front passenger seat control unit | 86L |
| N32/2 | Front passenger seat control unit | 184L |
| N69/1 | Left front door control unit | 37L |
| N69/1 | Left front door control unit | 131L |
| N69/2 | Right front door control unit | 42L |
| N69/2 | Right front door control unit | 153L |
| N69/3 | Left rear door control unit | 15L |
| N69/3 | Left rear door control unit | 136L |
| N69/4 | Right rear door control unit | 19L |
| N69/4 | Right rear door control unit | 158L |
| N69/5 | KEYLESS-GO control unit | 51L |
| N69/5 | KEYLESS-GO control unit | 121L |
| N70 | Overhead control panel control unit | 11L |
| N70 | Overhead control panel control unit | 144L |
| N73 | Electronic ignition switch control unit | 23L |
| N73 | Electronic ignition switch control unit | 140L |
| N83/1 | DC/DC converter control unit | 70L |
| N83/1 | DC/DC converter control unit | 117L |
| N83/1 | DC/DC converter control unit | 163L |
| W15/6 | Left front footwell ground point (CAN) | 4E |
| W15/6 | Left front footwell ground point (CAN) | 127E |
| X30/32 | Left interior CAN (CAN B) potential distributor electrical connector | 4A |
| X30/32 | Left interior CAN (CAN B) potential distributor electrical connector | 12A |
| X30/32 | Left interior CAN (CAN B) potential distributor electrical connector | 20A |
| X30/32 | Left interior CAN (CAN B) potential distributor electrical connector | 28A |
| X30/32 | Left interior CAN (CAN B) potential distributor electrical connector | 36A |
| X30/32 | Left interior CAN (CAN B) potential distributor electrical connector | 44A |
| X30/32 | Left interior CAN (CAN B) potential distributor electrical connector | 52A |
| X30/32 | Left interior CAN (CAN B) potential distributor electrical connector | 60A |
| X30/32 | Left interior CAN (CAN B) potential distributor electrical connector | 68A |
| X30/32 | Left interior CAN (CAN B) potential distributor electrical connector | 76A |
| X30/32 | Left interior CAN (CAN B) potential distributor electrical connector | 132A |
| X30/32 | Left interior CAN (CAN B) potential distributor electrical connector | 126A |
| X30/32 | Left interior CAN (CAN B) potential distributor electrical connector | 140A |
| X30/32 | Left interior CAN (CAN B) potential distributor electrical connector | 148A |
| X30/32 | Left interior CAN (CAN B) potential distributor electrical connector | 156A |
| X30/32 | Left interior CAN (CAN B) potential distributor electrical connector | 164A |
| X30/32 | Left interior CAN (CAN B) potential distributor electrical connector | 172A |
| X30/32 | Left interior CAN (CAN B) potential distributor electrical connector | 180A |
| X30/32 | Left interior CAN (CAN B) potential distributor electrical connector | 188A |
| X30/32 | Left interior CAN (CAN B) potential distributor electrical connector | 196A |
| X30/32 | Left interior CAN (CAN B) potential distributor electrical connector | 204A |
| X30/33 | Right interior CAN (CAN B) potential distributor electrical connector | 132A |
| X30/33 | Right interior CAN (CAN B) potential distributor electrical connector | 84A |
| X30/33 | Right interior CAN (CAN B) potential distributor electrical connector | 92A |
| X30/33 | Right interior CAN (CAN B) potential distributor electrical connector | 100A |
| X30/33 | Right interior CAN (CAN B) potential distributor electrical connector | 108A |
| X30/33 | Right interior CAN (CAN B) potential distributor electrical connector | 116A |
| X30/33 | Right interior CAN (CAN B) potential distributor electrical connector | 126A |
| X30/33 | Right interior CAN (CAN B) potential distributor electrical connector | 140A |
| X30/33 | Right interior CAN (CAN B) potential distributor electrical connector | 148A |
| X30/33 | Right interior CAN (CAN B) potential distributor electrical connector | 156A |
| X30/33 | Right interior CAN (CAN B) potential distributor electrical connector | 164A |
| X30/33 | Right interior CAN (CAN B) potential distributor electrical connector | 172A |
| X30/33 | Right interior CAN (CAN B) potential distributor electrical connector | 180A |
| X30/33 | Right interior CAN (CAN B) potential distributor electrical connector | 188A |
| X30/33 | Right interior CAN (CAN B) potential distributor electrical connector | 196A |
| X30/33 | Right interior CAN (CAN B) potential distributor electrical connector | 204A |
| X35/1 | Driver door electrical connector | 36G |
| X35/1 | Driver door electrical connector | 41G |
| X35/1 | Driver door electrical connector | 130H |
| X35/1 | Driver door electrical connector | 153H |
| X35/2 | Front passenger door electrical connector | 36G |
| X35/2 | Front passenger door electrical connector | 42G |
| X35/2 | Front passenger door electrical connector | 130H |
| X35/2 | Front passenger door electrical connector | 153H |
| X35/3 | Left rear door electrical connector | 14G |
| X35/3 | Left rear door electrical connector | 135H |
| X35/4 | Right rear door electrical connector | 18G |
| X35/4 | Right rear door electrical connector | 158H |
| X55/15 | Driver seat electrical connector | 46G |
| X55/15 | Driver seat electrical connector | 93G |
| X55/15 | Driver seat electrical connector | 188G |
| X55/15 | Driver seat electrical connector | 192G |
| X55/16 | Front passenger seat electrical connector | 46G |
| X55/16 | Front passenger seat electrical connector | 93G |
| X55/16 | Front passenger seat electrical connector | 188G |
| X55/16 | Front passenger seat electrical connector | 192G |
| Z35/20z1 | Vehicle interior CAN high (CAN B) end sleeve | 125F |
| Z35/20z2 | CAN for vehicle interior high end sleeve 2 | 147F |
| Z35/21z1 | Vehicle interior CAN low (CAN B) end sleeve | 126F |
| Z35/21z2 | CAN for vehicle interior low end sleeve 2 | 149F |
