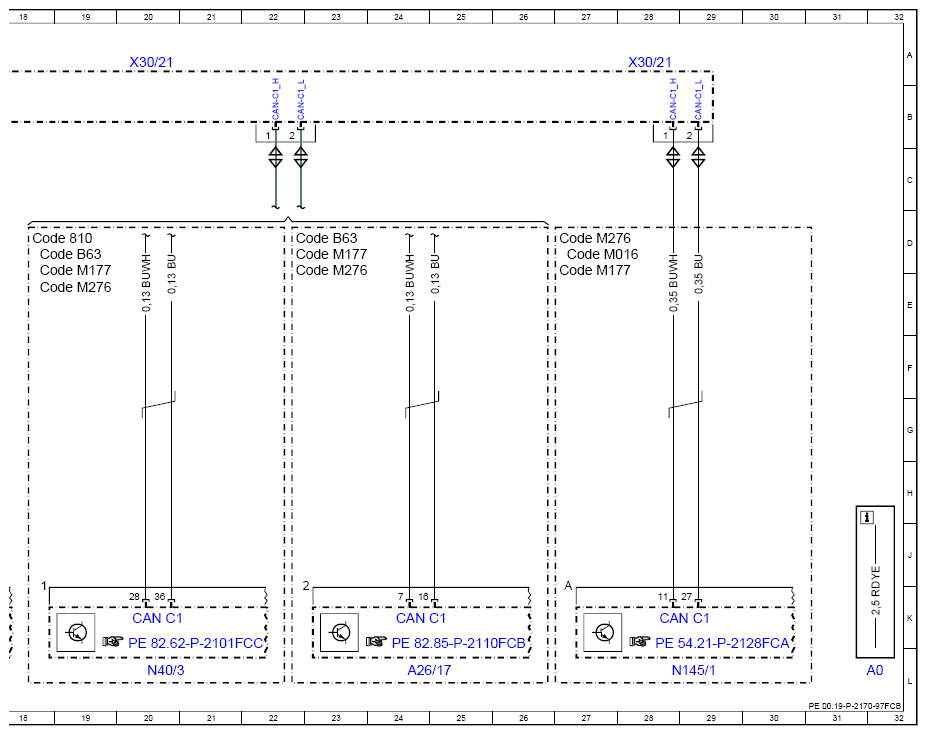

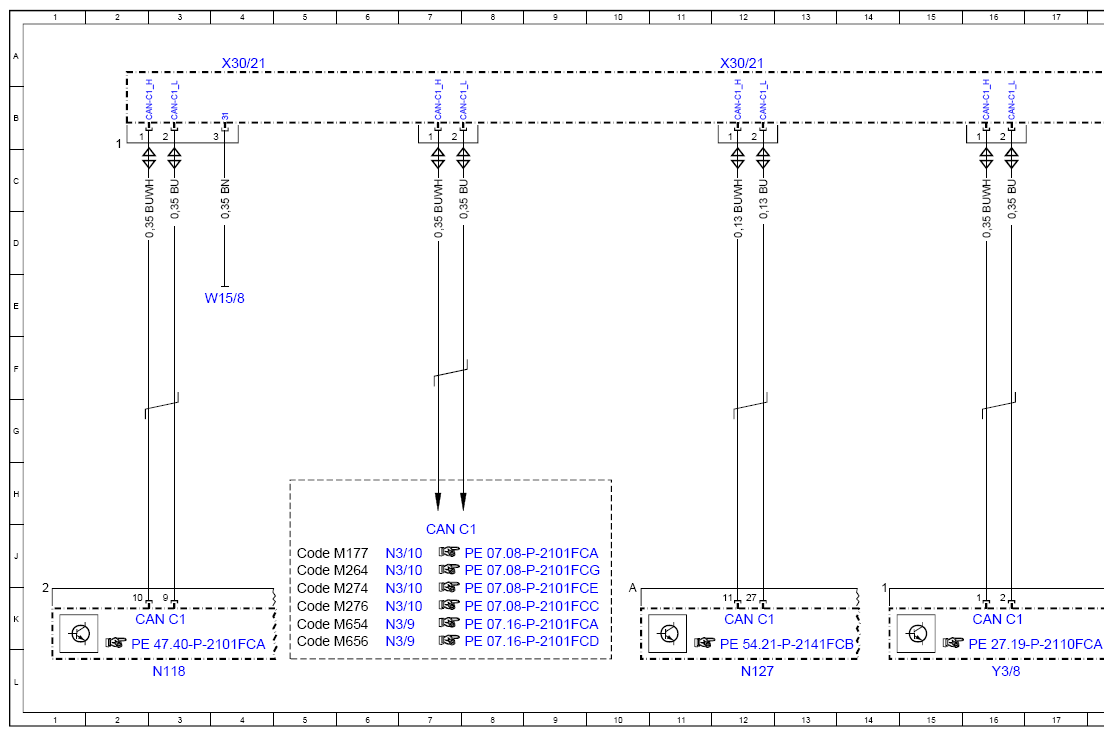

Wiring Diagram Of Drive Train CAN - PE00.19-P-2170-97FCB
WARNING: This page is about a different car, the 2023 Mercedes-Benz GLC300, 2022 Mercedes-Benz GLC300, 2021 Mercedes-Benz GLC300, 2020 Mercedes-Benz GLC350e, and 2020 Mercedes-Benz GLC300. However, it is still accessible from the selected car via links, so may be relevant.
Model 253 (except 253.99)
as of model year 2020
Potential distributor X30/21
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Use of wiring diagrams | 32L |
| A26/17 | Head unit | 24L |
| CAN C1 | Drive train CAN | 16K |
| CAN C1 | Drive train CAN | 3K |
| CAN C1 | Drive train CAN | 12K |
| CAN C1 | Drive train CAN | 7J |
| CAN C1 | Drive train CAN | 20K |
| CAN C1 | Drive train CAN | 24K |
| CAN C1 | Drive train CAN | 28K |
| Code 810 | Sound system | 18D |
| Code B63 | AMG eSound | 18D |
| Code B63 | AMG eSound | 22D |
| Code M016 | Uprated high-performance engine | 27D |
| Code M177 | SPARK-IGNITION ENGINE M177 | 5J |
| Code M177 | SPARK-IGNITION ENGINE M177 | 27E |
| Code M177 | SPARK-IGNITION ENGINE M177 | 18E |
| Code M177 | SPARK-IGNITION ENGINE M177 | 22D |
| Code M264 | SPARK-IGNITION ENGINE M264 | 5J |
| Code M274 | SPARK-IGNITION ENGINE M274 | 5K |
| Code M276 | SPARK-IGNITION ENGINE M276 | 5K |
| Code M276 | SPARK-IGNITION ENGINE M276 | 27D |
| Code M276 | SPARK-IGNITION ENGINE M276 | 18E |
| Code M276 | SPARK-IGNITION ENGINE M276 | 22E |
| Code M654 | DIESEL ENGINE 0M654 | 5K |
| Code M656 | 6-CYLINDER INLINE DIESEL ENGINE 0M656 | 5K |
| N118 | Fuel pump control unit | 3L |
| N127 | Drivetrain control unit | 12L |
| N145/1 | Drive unit control unit | 29L |
| N3/10 | ME-SFI [ME] control unit | 6K |
| N3/10 | ME-SFI [ME] control unit | 6J |
| N3/10 | ME-SFI [ME] control unit | 6K |
| N3/10 | ME-SFI [ME] control unit | 6J |
| N3/9 | CDI control unit | 6K |
| N3/9 | CDI control unit | 6K |
| N40/3 | Sound system amplifier control unit | 20L |
| W15/8 | Right front footwell ground point (CAN) | 4E |
| X30/21 | Drive train CAN (CAN CD potential distributor electrical connector | 4A |
| X30/21 | Drive train CAN (CAN CD potential distributor electrical connector | 12A |
| X30/21 | Drive train CAN (CAN CD potential distributor electrical connector | 20A |
| X30/21 | Drive train CAN (CAN CD potential distributor electrical connector | 28A |
| Y3/8 | Fully integrated transmission control control unit | 16L |
