Wiring Diagram For User Interface CAN - PE00.19-P-2145-97FCA
WARNING: This page is about a different car, the 2023 Mercedes-Benz GLC300, 2022 Mercedes-Benz GLC300, 2021 Mercedes-Benz GLC300, 2020 Mercedes-Benz GLC350e, and 2020 Mercedes-Benz GLC300. However, it is still accessible from the selected car via links, so may be relevant.
Model 253 (except 253.99)
as of model year 2020
Potential distributor X30/20
Model 253.99
as of model year 2019
with code 9O1(Fuel cell pre-installation)
Potential distributor X30/20
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Use of wiring diagrams | 64L |

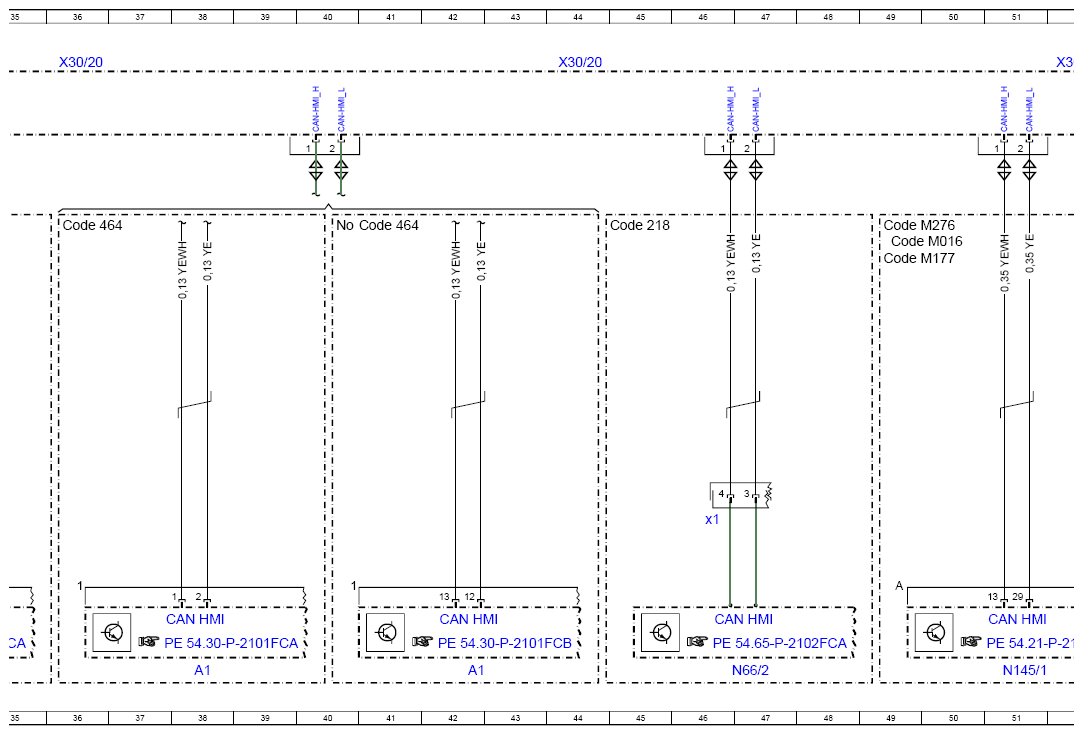

| A1 | Instrument cluster | 42L |
| A1 | Instrument cluster | 38L |

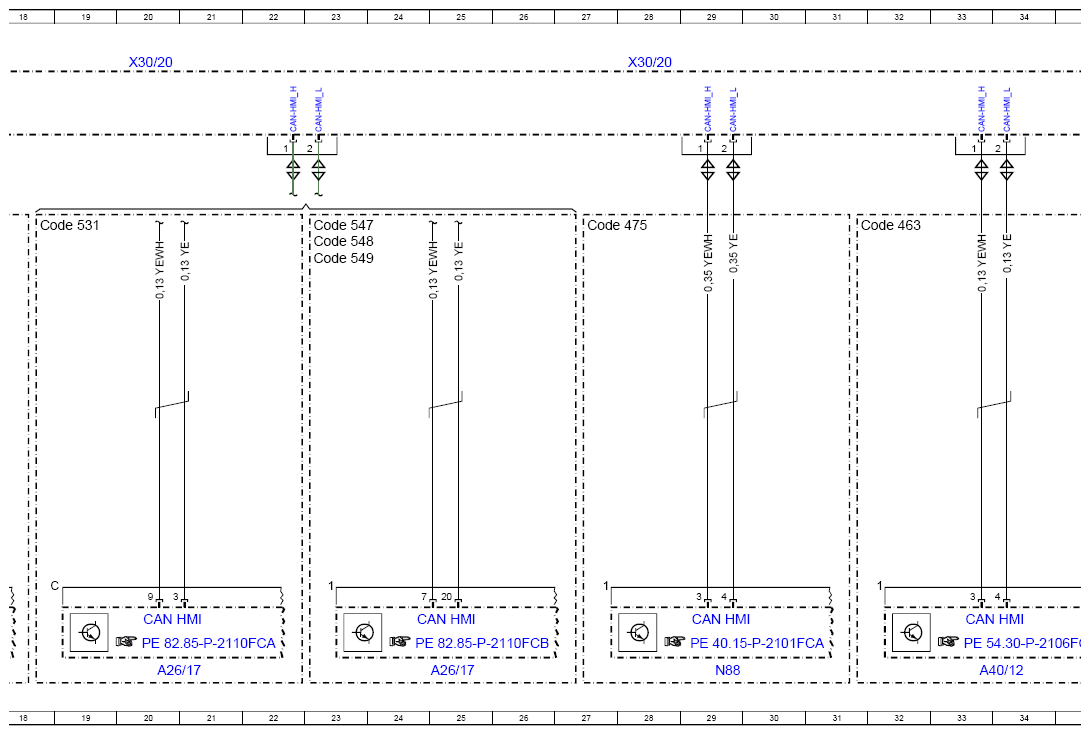

| A26/17 | Head unit | 20L |
| A26/17 | Head unit | 25L |
| A40/12 | Head-up display | 33L |

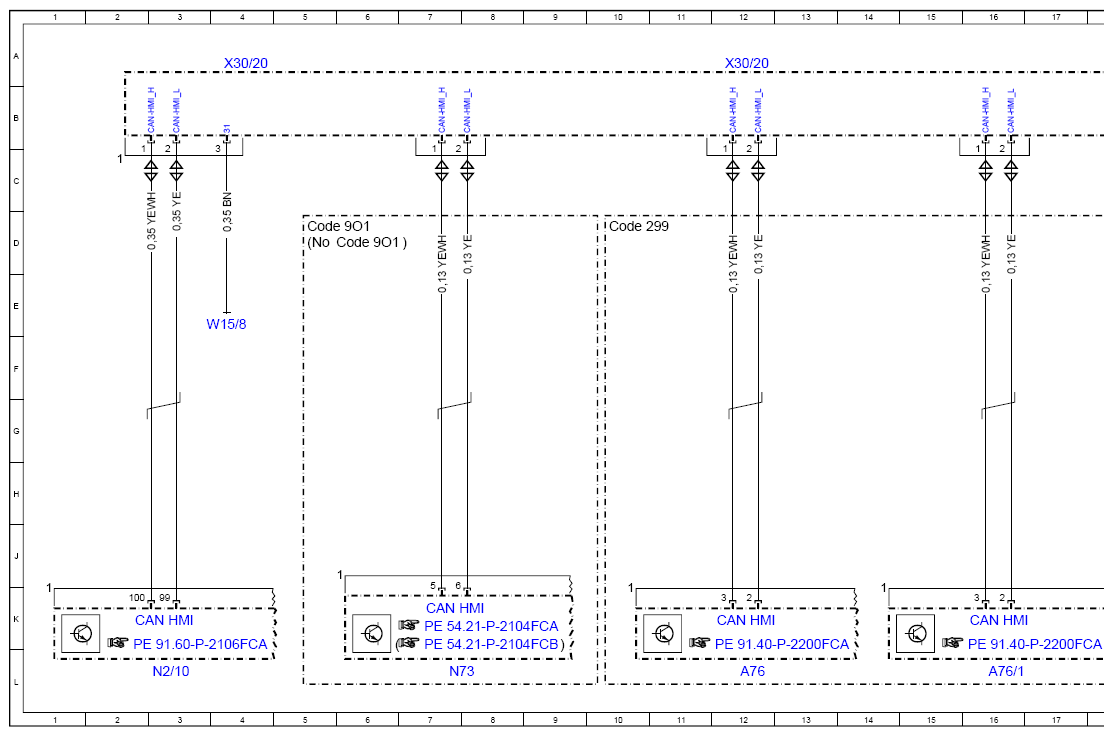

| A76 | Left front reversible emergency tensioning retractor | 12L |
| A76/1 | Right front reversible emergency tensioning retractor | 16L |

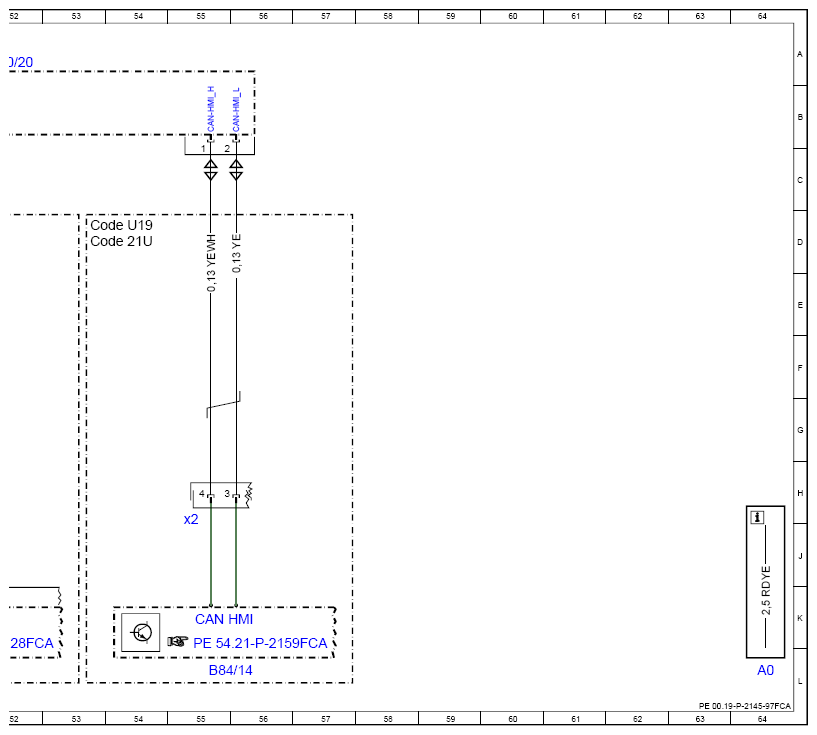

| B84/14 | Augmented reality camera | 55L |
| B84/14x2 | Augmented reality camera electrical connector 2 | 55J |
| CAN HMI | User interface CAN | 12K |
| CAN HMI | User interface CAN | 7K |
| CAN HMI | User interface CAN | 3K |
| CAN HMI | User interface CAN | 16K |
| CAN HMI | User interface CAN | 20K |
| CAN HMI | User interface CAN | 25K |
| CAN HMI | User interface CAN | 29K |
| CAN HMI | User interface CAN | 38K |
| CAN HMI | User interface CAN | 33K |
| CAN HMI | User interface CAN | 42K |
| CAN HMI | User interface CAN | 46K |
| CAN HMI | User interface CAN | 51K |
| CAN HMI | User interface CAN | 55K |
| Code 218 | Backup camera | 45D |
| Code 21U | Video recording function (dashcam) | 53D |
| Code 299 | PRE-SAFE® | 10D |
| Code 463 | Head-up display | 31D |
| Code 464 | Digital instrument cluster full display | 36D |
| Code 464 | Digital instrument cluster full display | 40D |
| Code 475 | Tire pressure monitor | 27D |
| Code 531 | COMAND® APS | 18D |
| Code 547 | Connect 20 Entry (NTG6) | 23D |
| Code 548 | Connect 20 MID (NTG6) | 23D |
| Code 549 | Connect 20 HIGH (NTG6) | 23D |
| Code 901 | Fuel cell retrofitting | 5D |
| Code 901 | Fuel cell retrofitting | 6D |
| Code M016 | Uprated high-performance engine | 49D |
| Code M177 | SPARK-IGNITION ENGINE M177 | 49D |
| Code M276 | SPARK-IGNITION ENGINE M276 | 49D |
| Code U19 | Augmented Reality | 53D |
| N145/1 | Drive unit control unit | 51L |
| N2/10 | Supplemental restraint system control unit | 3L |
| N66/2 | Backup camera control unit | 47L |
| N66/2x1 | Reversing camera control unit electrical connector 1 | 46J |
| N73 | Electronic ignition switch control unit | 7L |
| N88 | Tire pressure monitor control unit | 29L |
| W15/8 | Right front footwell ground point (CAN) | 4E |
| X30/20 | User interface CAN (CAN HMD potential distributor electrical connector | 12A |
| X30/20 | User interface CAN (CAN HMD potential distributor electrical connector | 4A |
| X30/20 | User interface CAN (CAN HMD potential distributor electrical connector | 20A |
| X30/20 | User interface CAN (CAN HMD potential distributor electrical connector | 28A |
| X30/20 | User interface CAN (CAN HMD potential distributor electrical connector | 36A |
| X30/20 | User interface CAN (CAN HMD potential distributor electrical connector | 44A |
| X30/20 | User interface CAN (CAN HMD potential distributor electrical connector | 52A |
