Wiring Diagram For Peripherals CAN - PE00.19-P-2135-97FCA
WARNING: This page is about a different car, the 2023 Mercedes-Benz GLC300, 2022 Mercedes-Benz GLC300, 2021 Mercedes-Benz GLC300, 2020 Mercedes-Benz GLC350e, and 2020 Mercedes-Benz GLC300. However, it is still accessible from the selected car via links, so may be relevant.
Model 253 (except 253.99)
as of model year 2020
Potential distributor X30/27
Model 253.99 as of model year 2019
with code 9O1 (Fuel cell pre-installation)
Potential distributor X30/27
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Use of wiring diagrams | 32L |
| A108 | Active Brake Assist controller unit | 26L |

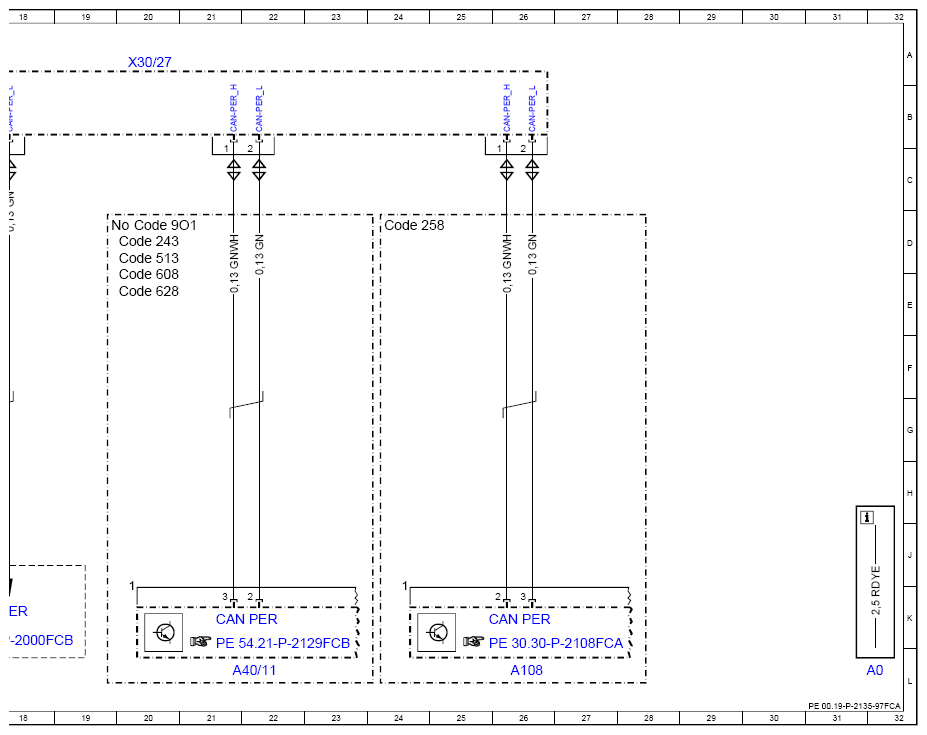

| A40/11 | Mono multifunction camera | 22L |
| B92/11 | Left outer rear bumper integrated radar sensor | 11L |
| B92/6 | Right outer rear bumper integrated radar sensor | 11L |

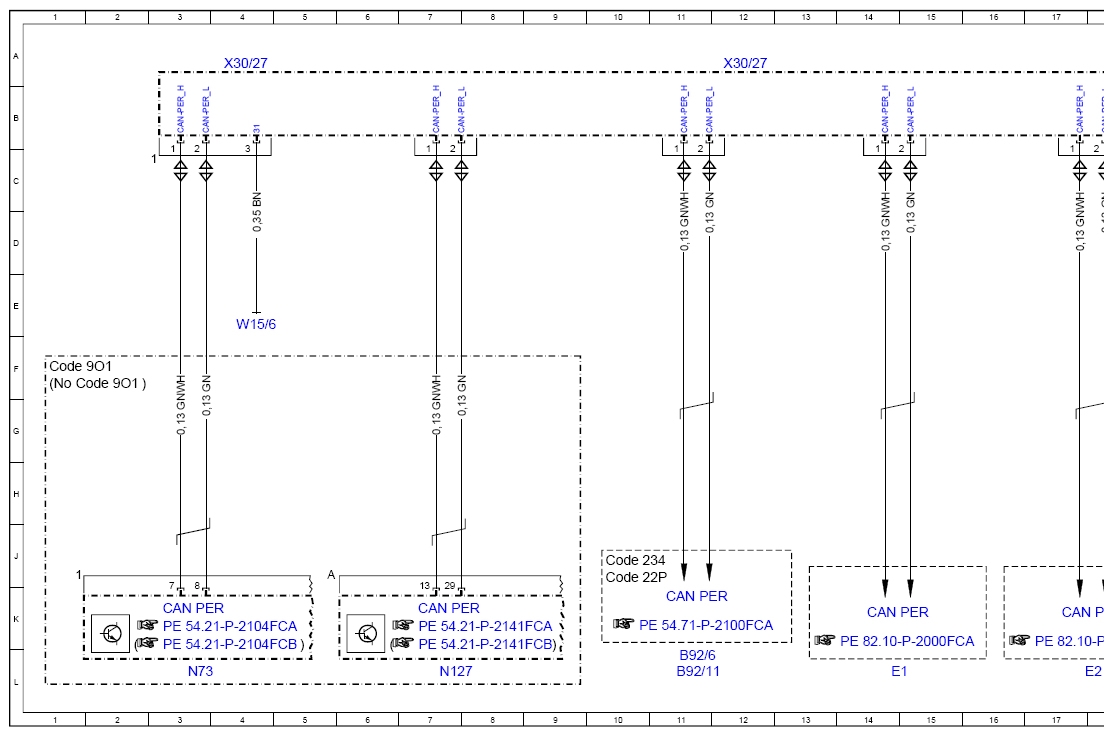

| CAN PER | Peripherals CAN | 3K |
| CAN PER | Peripherals CAN | 14K |
| CAN PER | Peripherals CAN | 7K |
| CAN PER | Peripherals CAN | 11K |
| CAN PER | Peripherals CAN | 17K |
| CAN PER | Peripherals CAN | 21K |
| CAN PER | Peripherals CAN | 26K |
| Code 22P | Track package | 10J |
| Code 234 | Blind Spot Assist (BSM) | 10J |
| Code 243 | Lane Keeping Assist | 20D |
| Code 258 | Collision Prevention Assist PLUS (CPA+) | 24D |
| Code 513 | Traffic sign recognition | 20D |
| Code 608 | Adaptive Highbeam Assist | 20E |
| Code 628 | Automatic high beam control PLUS (IHC+) | 20E |
| Code 901 | Fuel cell retrofitting | 1F |
| Code 901 | Fuel cell retrofitting | 1F |
| Code 901 | Fuel cell retrofitting | 20D |
| E1 | Left front lamp unit | 14L |
| E2 | Right front lamp unit | 18L |
| N127 | Drivetrain control unit | 7L |
| N73 | Electronic ignition switch control unit | 3L |
| W15/6 | Left front footwell ground point (CAN) | 4E |
| X30/27 | Peripherals CAN (CAN PER) potential distributor electrical connector | 4A |
| X30/27 | Peripherals CAN (CAN PER) potential distributor electrical connector | 12A |
| X30/27 | Peripherals CAN (CAN PER) potential distributor electrical connector | 20A |
