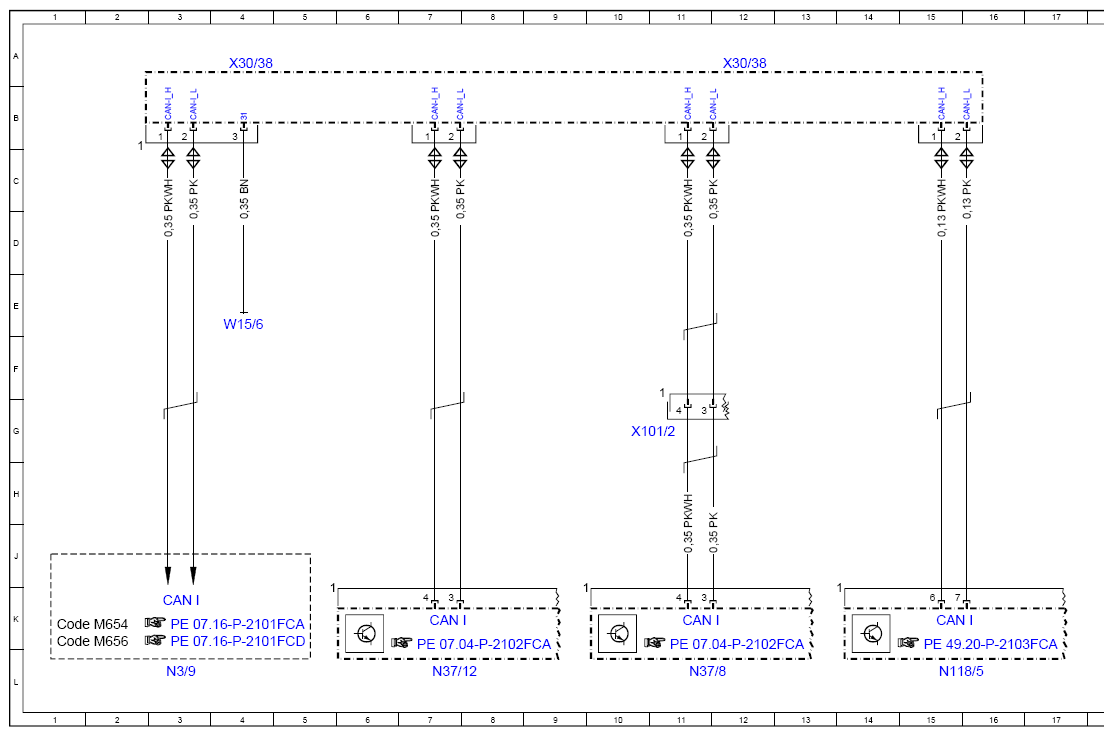

Wiring Diagram For Drive Train Sensor CAN - PE00.19-P-2171-97FCA
WARNING: This page is about a different car, the 2023 Mercedes-Benz GLC300, 2022 Mercedes-Benz GLC300, 2021 Mercedes-Benz GLC300, 2020 Mercedes-Benz GLC350e, and 2020 Mercedes-Benz GLC300. However, it is still accessible from the selected car via links, so may be relevant.
Model 253 (except 253.99)
as of model year 2020
with code U79 (BLUETEC (SCR) diesel exhaust treatment, generation 3)
Potential distributor X30/38
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Use of wiring diagrams | 23L |
| CAN I | Drive train sensor CAN | 3K |
| CAN I | Drive train sensor CAN | 7K |
| CAN I | Drive train sensor CAN | 11K |
| CAN I | Drive train sensor CAN | 15K |
| N118/5 | AdBlue® control unit | 15L |
| N3/9 | CDI control unit | 3L |
| N37/12 | Control unit of NOx sensor upstream of diesel oxidation catalytic converter | 7L |
| N37/8 | NOx sensor control unit downstream of SCR catalytic converter | 11L |
| W15/6 | Left front footwell ground point (CAN) | 4E |
| X101/2 | Right front frame floor assembly/underfloor electrical connector | 11G |
| X30/38 | Drive train sensor CAN (CAN I) potential distributor electrical connector | 12A |
| X30/38 | Drive train sensor CAN (CAN I) potential distributor electrical connector | 4A |
