Tightening Procedure For Oil Separator On Crankcase - AR01.20-P-9692-01MRK
WARNING: This page is about a different car, the 2023 Mercedes-Benz GLC300, 2022 Mercedes-Benz GLC300, 2021 Mercedes-Benz GLC300, 2020 Mercedes-Benz GLC350e, and 2020 Mercedes-Benz GLC300. However, it is still accessible from the selected car via links, so may be relevant.
Engine 264 in model 167, 205, 213, 222, 238, 253, 257, 463
CRANKCASE VENTILATION SYSTEM, CYLINDER HEAD COVER
| Number | Designation | Engine 264 | |
|---|---|---|---|
| BA01.20-P-1002-03B | Bolt, oil separator to crankcase | Nm | 9 |

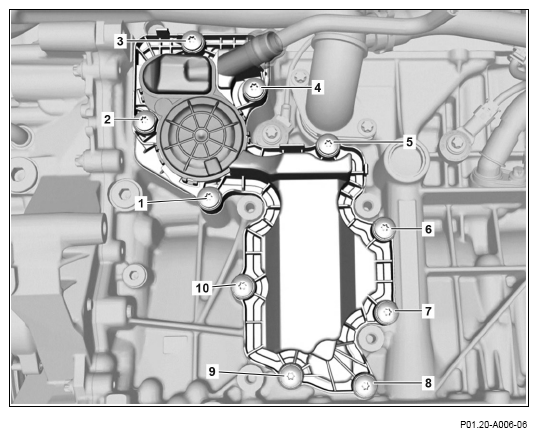

- First position screws (2, 7), then slightly tighten by hand.
- Tighten screws (1 to 10) in numerical order
.
