Remove/Install The Partial Loading Ventilation Line - AR01.20-P-0001MRA
WARNING: This page is about a different car, the 2023 Mercedes-Benz GLC300, 2022 Mercedes-Benz GLC300, 2021 Mercedes-Benz GLC300, 2020 Mercedes-Benz GLC350e, and 2020 Mercedes-Benz GLC300. However, it is still accessible from the selected car via links, so may be relevant.
Engine 274.9 in model 205
except code 494 (US version)
except code 945 (China Stage 6 exhaust treatment)
Engine 274.9 in model 253
except code 494 (US version)
except code 945 (China Stage 6 exhaust treatment)
MODIFICATION NOTES
| 13.10.2020 | Document completely revised. |

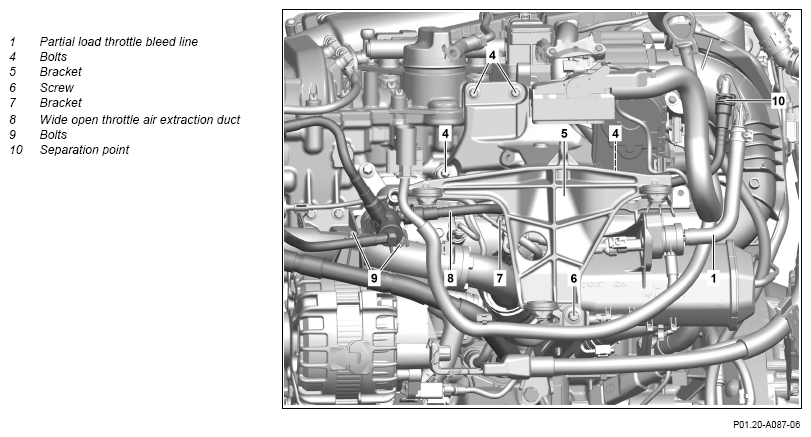

Fig 1: Partial Loading Ventilation Line Components Location - Engine 274.9 In Model 253 Except Codes 494, 945
| Risk of injury caused by scraping or cutting body parts on sharp vehicle parts | Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels. |
AS00.00-Z-0017-01A | |
| Risk of injury to skin and eyes due to handling of engine oil. Risk of poisoning caused by swallowing engine oil | Wear protective gloves, protective clothing and safety glasses. Do not fill engine oil into beverage containers. |
AS18.00-Z-0001-01A | |
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Notes on avoiding damage through contamination and foreign objects | AH00.00-P-5000-01A | ||
| Remove/install | |||
| 1 | Remove the alternator | Engine 274.9 in model 205 (except 205.047/147/247) except code 494 (US version) except code 945 (China Stage 6 exhaust treatment) Engine 274.9 in model 253 (except 253.354/954) except code 494 (US version) except code 945 (China Stage 6 exhaust treatment) |
AR15.40-P-5032LWA |
| 2 | Unclip ME-SFI [ME] control unit (N3/10) with bracket and place to one side with connected lines. | AR07.08-P-7008MRA | |
| 3 | Remove charge air cooler with lines connected and place to one side. | Engine 274.9 in model 205.047/053/054/147/247 except code 494 (US version) except code 945 (China Stage 6 exhaust treatment) Engine 274.9 in model 253.354/954 except code 494 (US version) except code 945 (China Stage 6 exhaust treatment) |
|
| AR09.41-P-6819MRA | |||
| 4 | Remove electrical vacuum pump. | Engine 274.9 in model 205.047/053/054/147/247 except code 494 (US version) except code 945 (China Stage 6 exhaust treatment) |
AR43.05-P-0001MRD |
| Engine 274.9 in model 253.354/954 except code 494 (US version) except code 945 (China Stage 6 exhaust treatment) |
AR43.05-P-0001LVH | ||
| 5 | Remove screw (6). | Engine 274.9 in model 205.047/053/054/147/247 except code 494 (US version) except code 945 (China Stage 6 exhaust treatment) Engine 274.9 in model 253.354/954 except code 494 (US version) except code 945 (China Stage 6 exhaust treatment) |
*BA09.41-P-1004-01U |
| 6 | Remove screws (4) and remove holder (5) of charge air cooler. | Engine 274.9 in model 205.047/053/054/147/247 except code 494 (US version) except code 945 (China Stage 6 exhaust treatment) Engine 274.9 in model 253.354/954 except code 494 (US version) except code 945 (China Stage 6 exhaust treatment) |
*BA09.41-P-1003-01U |
| 7 | Remove screws (9). | Engine 274.9 in model 205.047/053/054/147/247 except code 494 (US version) except code 945 (China Stage 6 exhaust treatment) Engine 274.9 in model 253.354/954 except code 494 (US version) except code 945 (China Stage 6 exhaust treatment) |
*BA01.20-P-1008-01R |
| 8 | Remove full-load bleed line (8) at separating point (10), holder (7), and charge-air distributor (2) and seal openings with suitable stop plugs. | Engine 274.9 in model 205.047/053/054/147/247 except code 494 (US version) except code 945 (China Stage 6 exhaust treatment) Engine 274.9 in model 253.354/954 except code 494 (US version) except code 945 (China Stage 6 exhaust treatment) |
Fig 3 |
| 9 | Release and disconnect electrical connector o partial-load operation crankcase ventilation valve (Y58/2). | ||
| 10 | Remove partial-load bleed line (1) from charge-air distributor (2) and oil separator (3) and seal openings with suitable stop plugs. | Fig 3 | |

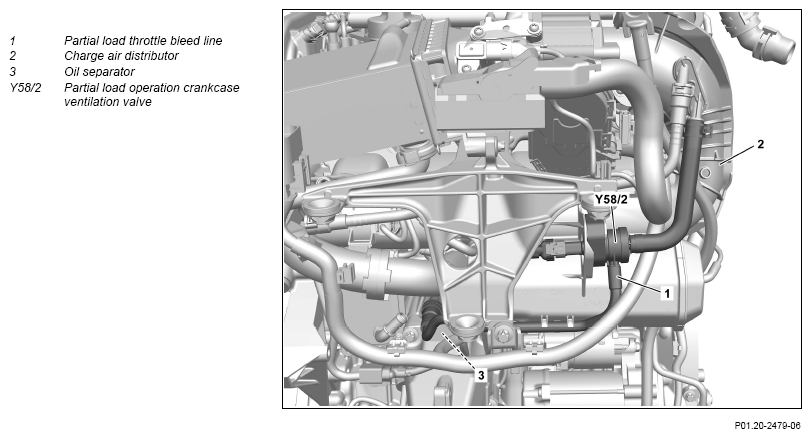

| Fig 2 | |||
| 11 | Remove partial-load operation crankcase ventilation valve (Y58/2) from charge-air distributor (2) and remove partial load throttle bleed line (1). | ||
| 12 | Install in the reverse order. |
CRANKCASE VENTILATION SYSTEM, CYLINDER HEAD COVER, CAMSHAFT HOUSING
| Number | Designation | Engine 274 | |
|---|---|---|---|
| BA01.20-P-1008-01R | Screw, bleed line/bleed valve to coolant thermostat | Nm | 8 |
CHARGE AIR PIPE/CHARGE AIR COOLING
| Number | Designation | Engine 274 | |
|---|---|---|---|
| BA09.41-P-1003-01U | Screw, water-cooled charge air cooler holder to cylinder head cover/cylinder head/chain case cover | Nm | 8 |
CHARGE AIR PIPE/CHARGE AIR COOLING
| Number | Designation | Engine 274 | |
|---|---|---|---|
| BA09.41-P-1004-01U | Bolt, holder for engine mount to holder for charge air cooler | Nm | 20 |
