Crank Engine With Starter - AR01.10-P-0110MRA
WARNING: This page is about a different car, the 2023 Mercedes-Benz GLC300, 2022 Mercedes-Benz GLC300, 2021 Mercedes-Benz GLC300, 2020 Mercedes-Benz GLC350e, and 2020 Mercedes-Benz GLC300. However, it is still accessible from the selected car via links, so may be relevant.
Engine 177, 274.9, 276.8 in model 205
Engine 264 in model 205, 253
except code B01 (48V technology)
Engine 274.9, 276.8 in model 253
Shown on ENGINE 274.9 in MODEL 205
| Risk of accident from vehicle starting off by itself when engine running. Risk of injury (bruises and burns) resulting from working on the engine while it is being started or when it is running. | Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. | AS00.00-Z-0005-01A | |
| Connect/disconnect | |||
| 1 | Shift transmission to idle position and engage parking brake | Engine 274.9 in model 205 with transmission 716.7 Engine 274.9 in model 253 with transmission 716.7 |
|
| 2 | Switch off ignition and store transmitter key outside of transmission range (at least 2 m) | ||

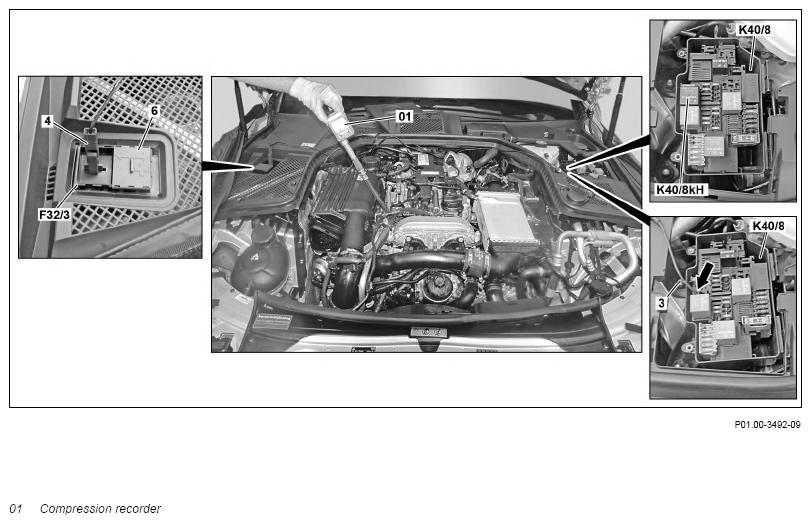

| 3 | Connect up compression recorder (01) | AR01.10-P-0010-01MRA | |
| Fig 1 | |||
| Fig 2 | |||
| 4 | Crank engine by pressing contact switch at compression recorder (01) | ||
| 5 | Disconnect in reverse order |
