Bolt Tightening Procedure For Cylinder Head Cover - AR01.20-P-5014-03MRH
WARNING: This page is about a different car, the 2023 Mercedes-Benz GLC300, 2022 Mercedes-Benz GLC300, 2021 Mercedes-Benz GLC300, 2020 Mercedes-Benz GLC350e, and 2020 Mercedes-Benz GLC300. However, it is still accessible from the selected car via links, so may be relevant.
Engine 264
CRANKCASE VENTILATION SYSTEM, CYLINDER HEAD COVER
| Number | Designation | Engine 264 | ||
|---|---|---|---|---|
| BA01.20-P-1001-03B | Screw/bolt, cylinder head cover to cylinder head | Stage 1 | Nm | 10 |
| Stage 2 | ∠° | 90 | ||

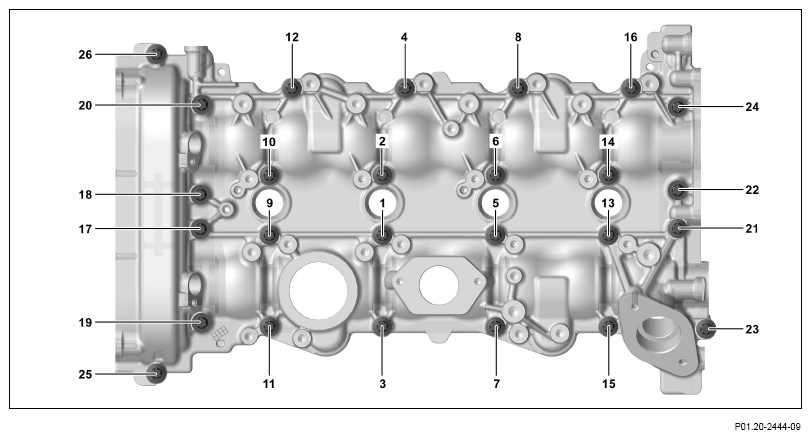

Always install new screws/bolts (1 to 26).
- Tighten screws/bolts (1 to 26) in ascending numerical sequence to stage 1
.
- Tighten screws/bolts (1 to 26) in ascending numerical sequence to stage 2
